Makita GE0600 Quick start guide

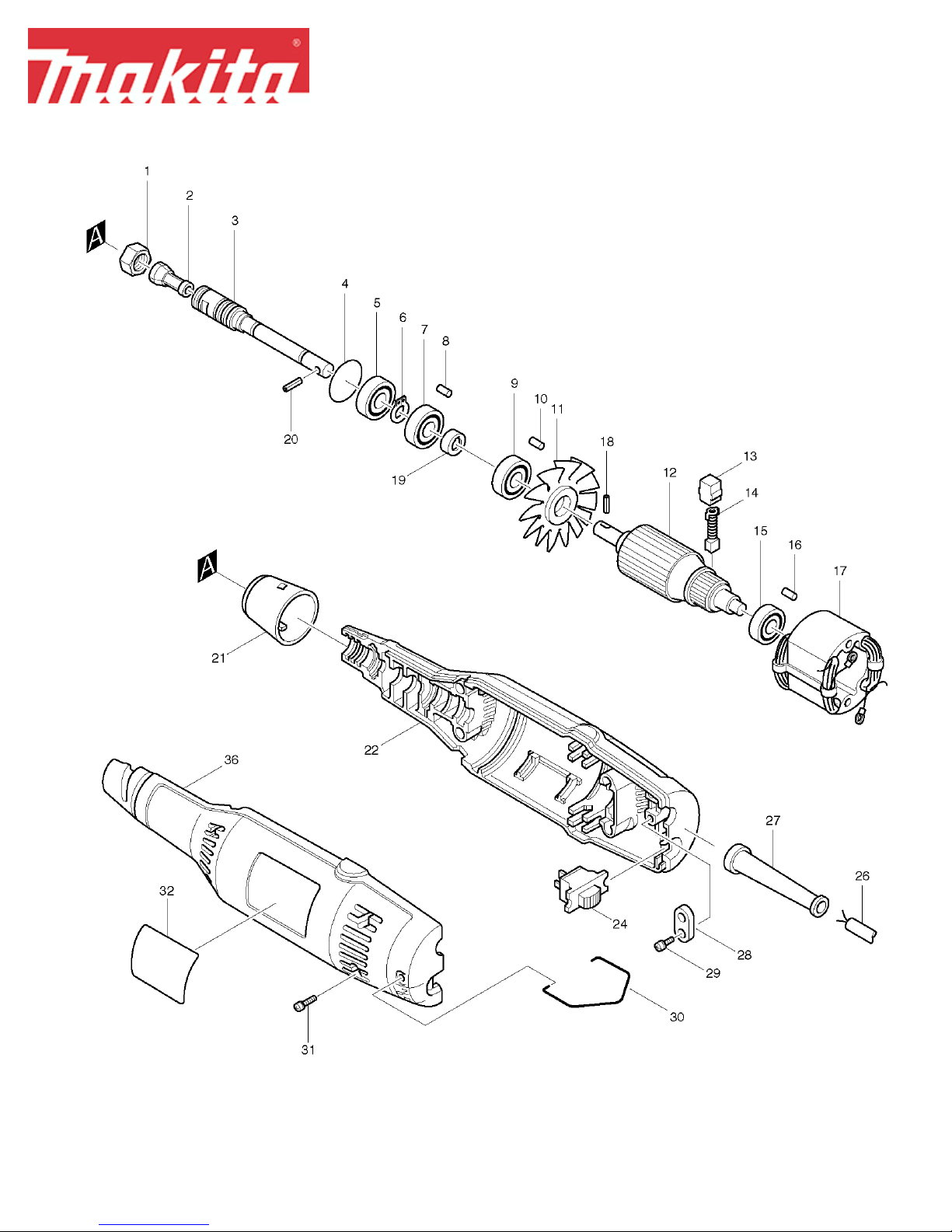

Parts Breakdown GE0600

Page 1 of 2 2/8/2008

Parts Breakdown GE0600

Fig # Part ID Part Name Quantity

1 763606-2 COLLET NUT, GEO600 1

2 763625-8 1/4 COLLET CONE, GEO600 1

3 321194-1 SPINDLE, GEO600 1

4 213373-4 O RING 22, GEO600 1

5 211031-6 BALL BEARING 608LLB, HR2400 1

5 211033-2 B. BEARING 608LB, 5091D 1

6 961004-6 RETAINING RING S-8, DA391D 1

7 211033-2 B. BEARING 608LB, 5091D 1

8 263002-9 RUBBER PIN 4, HR2400 1

9 211033-2 B. BEARING 608LB, 5091D 1

10 263002-9 RUBBER PIN 4, HR2400 1

11 241100-9 FAN 52, GE0600 1

12 511401-2 ARMATURE, GE0600 1

13 643552-4 BRUSH HOLDER, BO5012K 2

13 643562-1 BRUSH HOLDER 5X8, HP1351 2

14 191956-9 CARBON BRUSH 75, JR3000V 1

15 211028-5 B. BEARING 627LB, 6510LVR 1

16 263002-9 RUBBER PIN 4, HR2400 1

17 528634-2 FIELD ASSEMBLY, GE0600 1

18 951060-4 SPRING PIN 3-14, 4301BV 1

19 410986-4 COUPLING, GEO600 (TYPE 3) 1

20 951060-4 SPRING PIN 3-14, 4301BV 1

21 341553-3 CAP, GEO600 1

21 153549-0 CAP CPL., 906 1

22 181675-5 HOUSING SET, GEO600 1

24 651513-0 SWITCH (ON/OFF), BO4552-T1 1

24 651523-7 SWITCH, BO4551 1

26 664013-1 CORD (2X18X8 SJT), N9501B 1

27 682500-8 CORD GUARD, DA3000R 1

28 687001-1 STRAIN RELIEF, 6013BR 1

29 911133-5 P.H. SCREW M4X18, N9501B 1

30 321193-3 HANGER, GEO600 1

31 911148-2 P.H. SCREW M4X25, 5057KB 4

32 854807-4 NAME PLATE, GE0600 1

35 953101-2 RIVET 0-3, 5201NA 2

36 181675-5 HOUSING SET, GEO600 1

401 781003-0 SPANNER, 3700B 1

402 781008-0 WRENCH 17, 9217SPC 1

5,001 810234-5 N/A 1
