Makita 6503DZ User manual
9.6V - ¼” HIGH SPEED DRILL Model 6503DZ
9.6V - ¼” HIGH SPEED DRILL Model 6503DWDE
(With 2 Batteries)
06-2000
2 Model 6503DZ
2 Model 6503DWDE

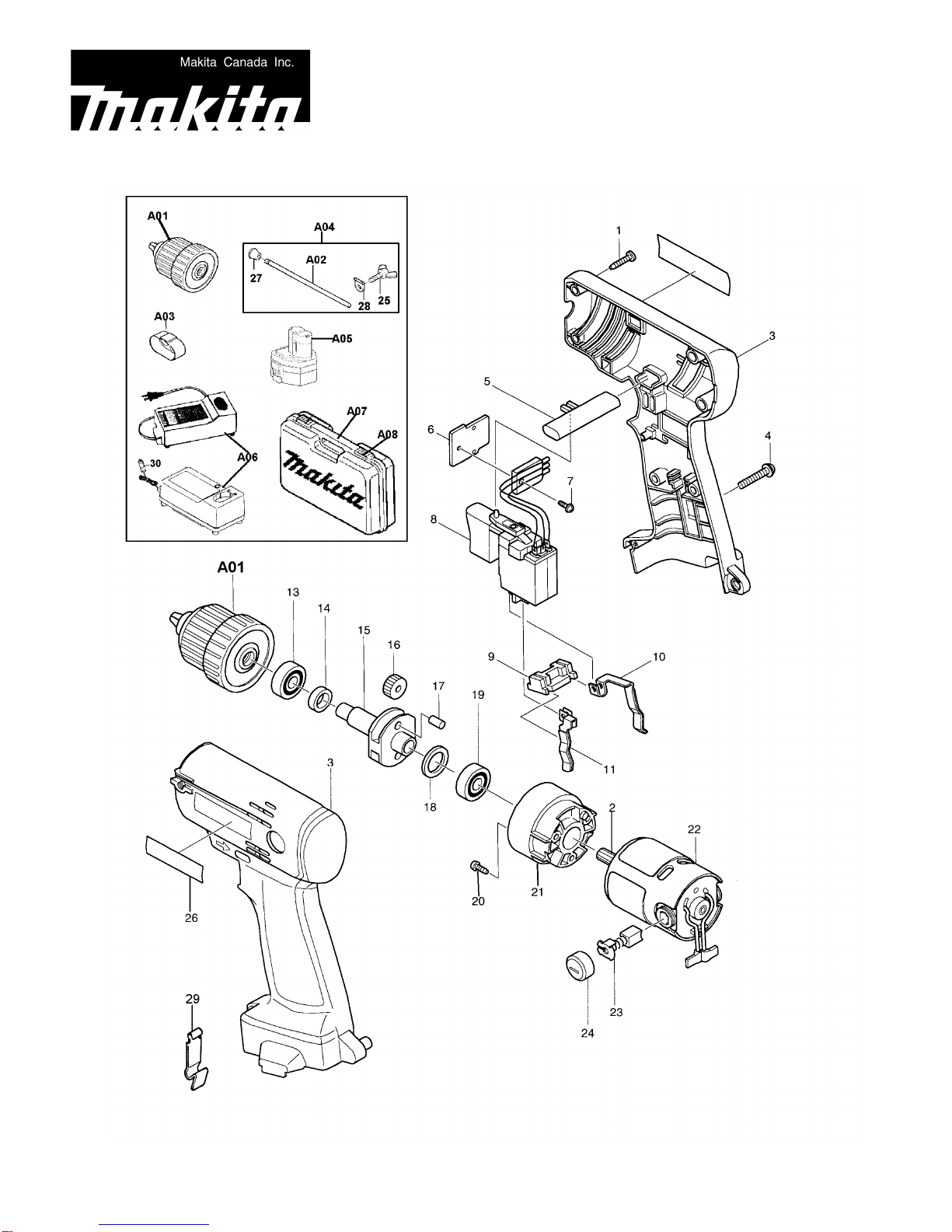

Item Part No.
No. No. Used Description Item Part No.
No. No. Used Description
1265995-6 7Tapping Screw 4X18
2226337-9 1Spur Gear 7
3183246-4 1Housing Set
4911143-2 1P.H. Screw M4X22
5417283-9 1F/R Change Lever
6689098-6 1Heat Sink
7911006-2 1P. H. Screw M3X8
8651993-0 1Switch
9687085-9 1Holder
10 654168-0 1Spring Terminal (+)
11 654169-8 1Spring Terminal (-)
12 654069-2 2Receptacle
13 211101-1 1Ball Bearing 6001LLB
14 262090-3 1Ring 12
15 324048-1 1Spindle
16 226336-1 2Spur Gear 22
17 256253-1 2Pin 5
18 253744-3 1Flat Washer 12
19 211101-1 1Ball Bearing 6001LLB
20 911013-5 3P.H. Screw M3X10
21 417284-7 1Internal Gear Case
22 629757-0 1DC Motor (Includes Items
2, 23 & 24)
23 191966-6 2Carbon Brush CB-424 (2pcs/Set)
24 643933-2 2Holder Cap
25 265741-7 1Thumb Screw M4X10
26 819063-3 1Makita Label
27 286224-4 1Cap 12
28 343525-4 1Stopper Pole Retainer
29 343579-1 1Set Plate
30 655000-B 1Plug for Cigarette Lighter
Accessories
A01 193212-3 1Keyless Drill Chuck
A02 322177-4 1Depth Rod
A03 414938-7 1Battery Cover
A04 193151-7 1Depth Gauge Set
A05 193156-7 19.6V Ni-MH Battery 9134 (2.6Ah)
A06 DC1411 1Charger for 7.2V ~ 14.4V & 1.3Ah ~
3.0Ah Ni-Cad & Ni-MH Batteries
DC1422 Automotive Charger for 7.2V ~ 14.4V
& 1.3Ah ~ 3.0Ah Ni-Cad & Ni-MH
Batteries (Includes Item 30)
A07 824489-6 1Plastic Carrying Case
(Includes Item A08)
A08 186347-7 2Slide Latch Set
