Makita 6501 Quick start guide

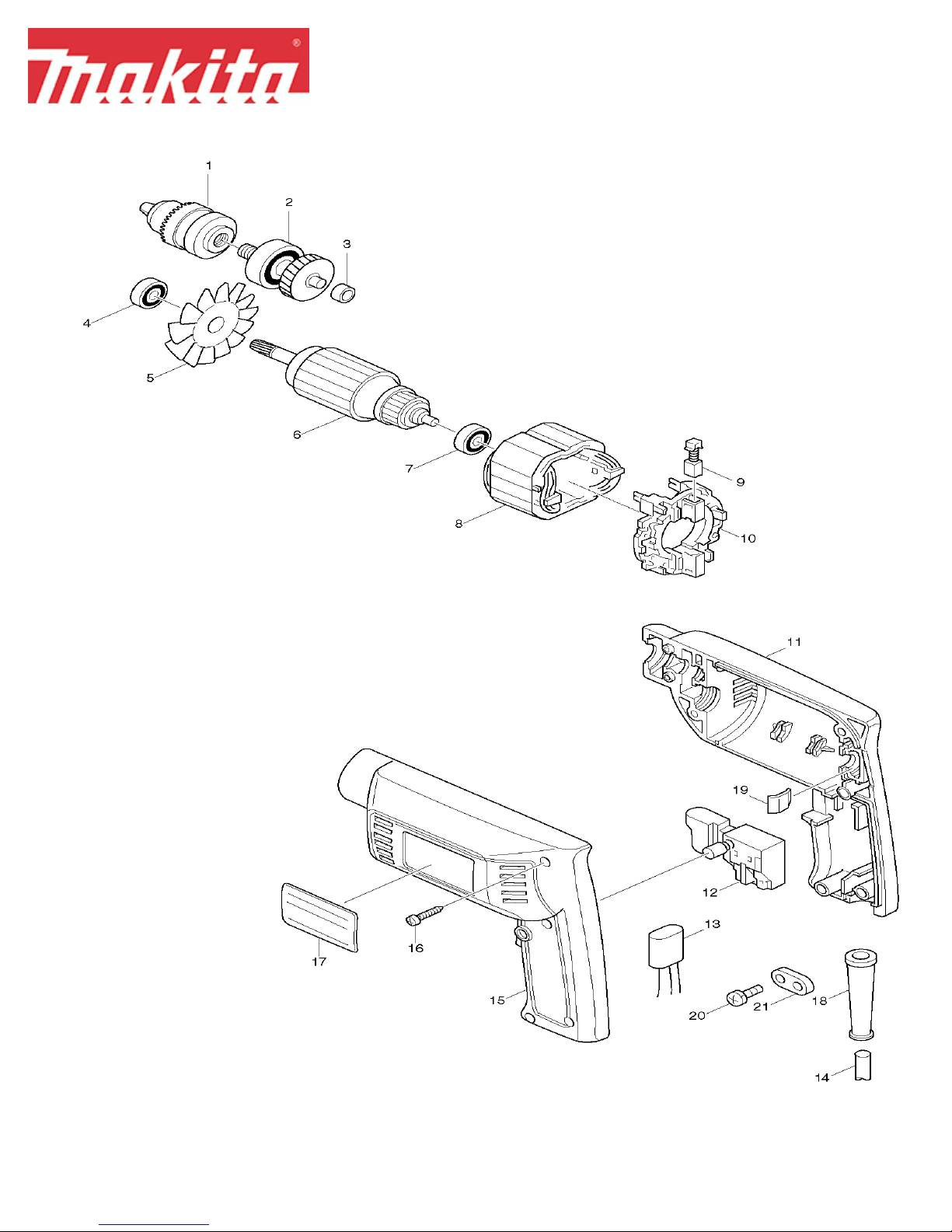

Parts Breakdown 6501
Page 1 of 2 2/8/2008
Parts Breakdown 6501
Fig # Part ID Part Name Quantity
1 763077-390A N/A 1
2 153178-9 GEAR COMPLETE, 6501 1
3 214017-9 P. BEARING 5, 6043D 1
4 211016-2 B. BEARING 626LLB, 6300LR 1
4 211018-8 BALL BEARING 626LB, 6501 1
5 241508-7 FAN 1
6 511676-3 ARMATURE, 6501 1
6 517031-7 ARMATURE ASS'Y 115, 6501 1
7 211018-8 BALL BEARING 626LB, 6501 1
7 211016-2 B. BEARING 626LLB, 6300LR 1
8 633031-0 FIELD, 6501 1
9 191914-5 CARBON BRUSH 70, N9514B 1
10 632073-1 BRUSH RING, 6501 1
11 182798-2 HOUSING SET, 6501-T2 1
11 183209-0 HOUSING SET,6501 1
12 651268-7 SWITCH, 6501 1
14 664002-6 CORD 1
14 664424-0 CORD (2X18X8 SJT), 3621 1
15 183209-0 HOUSING SET,6501 1
15 182798-2 HOUSING SET, 6501-T2 1
16 265874-8 TAPPING SCREW 4X20, 6501 6
17 856067-4 NAME PLATE, 6501 1
18 682502-4 CORD GUARD 8-85, HP1621F 1
19 232100-0 LEAF SPRING, 6501 1
20 265995-6 TAPPING SCREW 4X18, 4323K 2
21 687063-9 STRAIN RELIEF, 4323K 1
400 286224-4 CAP 12, 6501 1
401 322177-4 STOPPER POLE 1
402 343525-4 STOPPER POLE RETAINER, 6501 1
403 924221-9 WING BOLT M5X18, 6501 1
404 763418-3 CHUCK KEY, 6012HDW 1
405 411780-7 KEY HOLDER,6402 1
5,001 810134-9 N/A 1
Page 2 of 2 2/8/2008
