Makita ANGLE CUTTER 4110C User manual

Anale Cutter

Wheel

diameter

255 mm (10”)

255

(10”)

MODEL

4110C

Max.

(115

load speed Overall Net

Power

AMPS

AClDC

length weight supply cord

cutting capacity

620” 9 kg 2.5 m

3r500

(24.318“) (19.8

Ibs)

(8.2ft.)

mm (3”) 15

INSTRUCTION MANUAL

DOUBLE

INSULATION

SPEC

CAT1

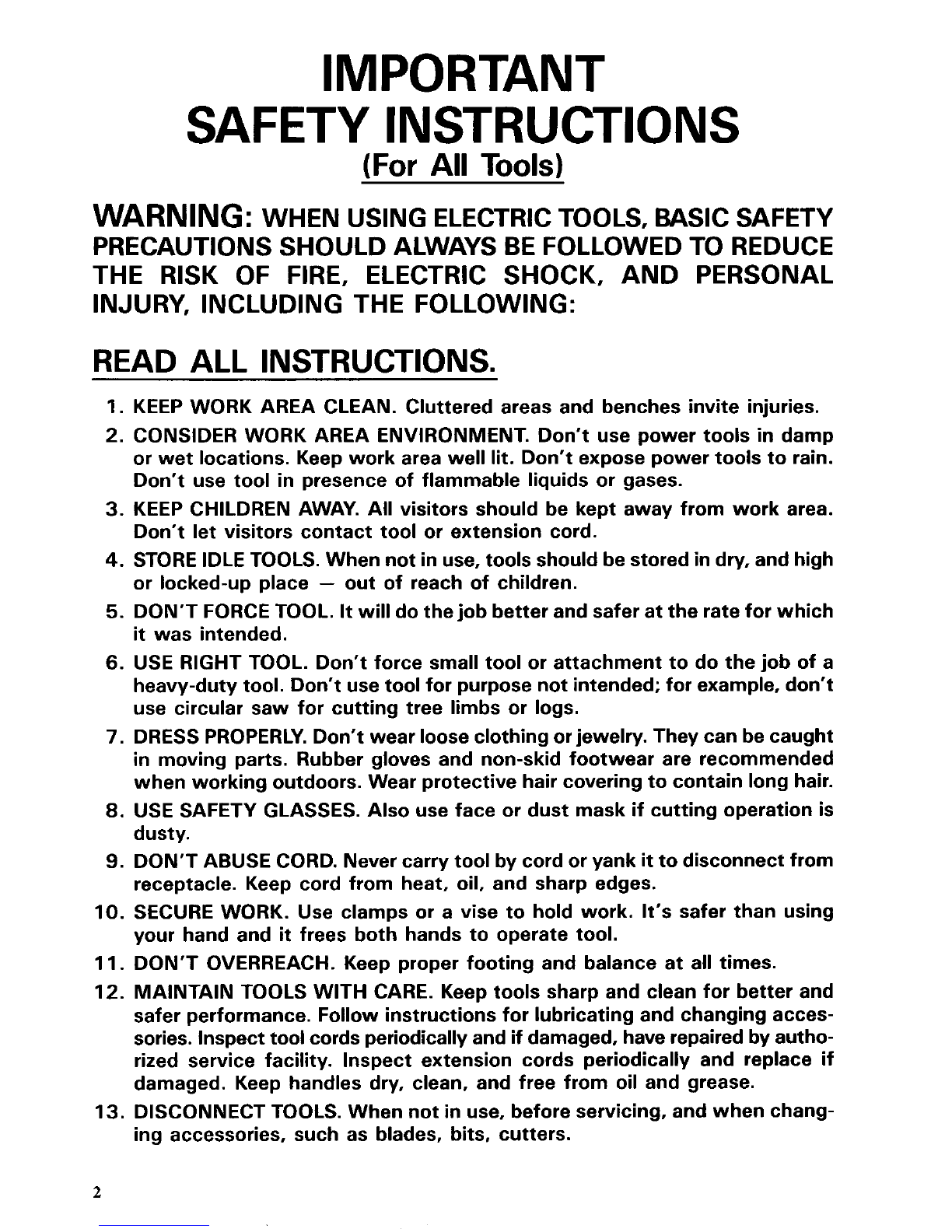

IMPORTANT

SAFETY INSTRUCTIONS

(For

All

Tools)

WARNING:

WHEN USINGELECTRICTOOLS, BASIC SAFETY

PRECAUTIONSSHOULDALWAYS

FOLLOWEDTO REDUCE

THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL

INJURY, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS.

~~~ ~~

KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.

CONSIDER WORK AREA ENVIRONMENT. Don't use power tools

damp

or wet locations. Keep work area well

lit.

Don't expose power tools to rain.

Don't use tool in presence of flammable liquids or gases.

KEEP CHILDREN AWAY. All visitors should be kept away from work area.

Don't let visitors contact tool or extension cord.

STORE IDLETOOLS. When notinuse, tools should be stored

dry, andhigh

or locked-up place

out of reach of children.

DON'T FORCETOOL.

will dothejob better andsafer at the ratefor which

was intended.

USE RIGHT TOOL. Don't force small tool or attachment to do the job of a

heavy-dutytool. Don't use toolfor purposenot intended; for example, don't

use circular saw for cutting tree limbs or logs.

DRESS PROPERLY. Don't wear looseclothing orjewelry. They can be caught

moving parts. Rubber gloves and non-skid footwear are recommended

when working outdoors. Wear protective hair covering tocontain longhair.

USE SAFETY GLASSES. Also use face or dust mask if cutting operation is

dusty.

DON'T ABUSE CORD. Never carry tool by cordor yank

todisconnect from

receptacle. Keep cord from heat, oil, and sharp edges.

IO.

SECURE WORK. Use clamps or a vise to hold work.

It's

safer than using

your hand and

frees both hands to operate tool.

11.

DON'T OVERREACH. Keep proper footing and balance at all times.

12.

MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and

safer performance. Follow instructions for lubricatingand changing acces-

sories. Inspecttoolcordsperiodicallyandifdamaged, haverepairedbyautho-

rized service facility. Inspect extension cords periodically and replace if

damaged. Keep handles dry, clean, and free from oil and grease.

13.

DISCONNECTTOOLS. When not

use, beforeservicing, and when chang-

ing accessories, such as blades, bits, cutters.

14.

REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to

see that keysand adjusting wrenches are removed fromtoolbeforeturning

on.

15. AVOID UNINTENTIONALSTARTING. Don't carry toolwithfinger onswitch.

Be sure switch is OFF when plugging in.

16. EXTENSIONCORDS. Make sure your extension cord is in good condition.

When using an extension cord, be sure to use one heavy enough to carry

the current your product will draw. An undersized cord will cause a drop

inlinevoltage resulting in

loss

of power and overheating. Table 1shows the

correct size to use depending on cord length and nameplate ampere rating.

If in doubt, use the next heavier gage. The smaller the gage number, the

heavier the cord.

TABLE

MINIMUM

GAGE

FOR

CORD

SETS

Ampere Rating

More Not More

Than Than

Total Length

Cord

in Feet

25 26

100 101

150

AWG

18 16 14

16 16 14 12

14 12

Not

Recommended

18 16

17. OUTDOOR USE EXTENSIONCORDS. Whentool isusedoutdoors, use only

extension cords intended for use outdoors and

marked.

18.

STAY ALERT. Watch what you are doing, use common sense. Don't operate

tool when you are tired.

19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other

part that is damaged should be carefully checked to determine that

will

operate properly and perform itsintended function. Check for alignment of

moving parts, bindingof moving parts, breakageof parts, mounting, andany

other conditions that may affect its operation. A guard or other part that

is damaged should be properly repaired or replaced by an authorized serv-

ice center unless otherwise indicated elsewhere

this instruction manual.

Have defective switches replaced by authorized service center. Don't use

tool

switch does not turn

on and off.

20.

GUARDAGAINST ELECTRIC SHOCK. Prevent body contact

with

grounded

surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.

21.

REPLACEMENTPARTS. When servicing, useonly identical replacementparts.

22. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has

a polarized plug (one blade is wider than the other). This plug will

fit

polarized outlet only one way.

the plug does not fit fully in the outlet,

reversethe plug. If

stilldoes notfit, contact aqualified electrician toinstall

the proper outlet. Do not change the plug in any way.

VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,

outlet, etc.) be sure the voltage supplied is the same as that specified

the

nameplate of the tool. A power source withvoltage greater than that specified

for the tool can result

SERIOUS INJURY tothe user

as well as damage to

the tool.

If in

doubt,

NOT PLUG IN

THE

TOOL. Using a power source with

voltage less than the nameplate rating is harmful to the motor.

SAVE THESE INSTRUCTIONS.

Switch action

To start the

tool,

simply pull the trigger.

Release the trigger to stop.

How

cut

The cut

made by pulling the tool to-

ward you (not by pushingaway from

you).

Align the notch on the shaft of the safety

guard with your cutting line when perform-

ing

cut.

CAUTION

Notch

(Groove)

Use this tool for straight line cutting only. Cutting curves can cause stress cracks

fragmentation of the diamond wheel and abrasive cut-off wheel resulting in possible

injury to persons in the vicinity.

Cuttingdepth adjustment

Loosenthe wing bolt.

Obtain the desired cuttingdepth.

Tighten the wing bolt.

Base

Securing safety guard

The safety guard can be adjusted about

degrees, after you loosen the wing nut.

Adjust to

the

desired angle, then secure the

wing nut.

Safety

guard

Wheel changes

replace the abrasive cut-off wheel,

depress the shaft lock to hold the shaft

stationary, then loosen the hex bolt with

the socket wrench provided.

Be sure to fully tighten the hex boltwhen

mounting the new wheel, or operation will

be dangerous.

NOTE

Hex bolt has

left-hand thread.

MAINTENANCE

CAUTION

Always be sure that

the

tool

switched off and unpluggedbefore attempting to perform

inspection or maintenance.

Replacingcarbon

brushes

Remove and check the carbon brushes

regularly. Replace when they wear down

to the limit mark. Keep the carbon brushes

clean and free to slip in the holders. Both

carbon brushes should be replaced

the

same time. Use only identical carbon

brushes.

Use

screwdriver to remove the brush

holder caps. Take out the worn carbon

brushes, insert the new ones and secure the

brush holder caps.

maintain product SAFETY and RELIABILITY, repairs, any other maintenance or

adjustment should be performed by FAakita Authorized or Factory Service Centers,

always using Makita replacement parts.

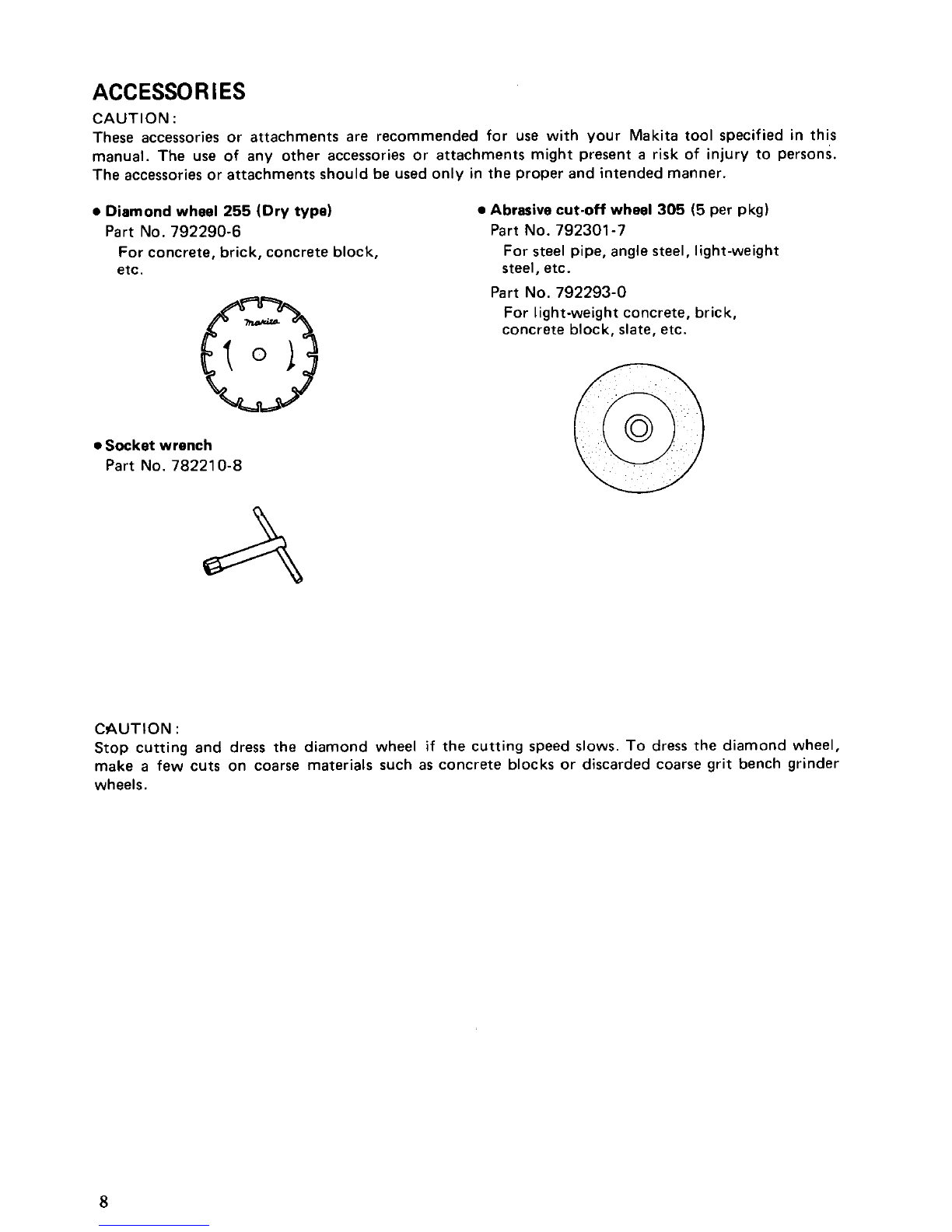

ACCESS0

CAUTION

These accessories or attachments are recommended for use with your Makita

tool

specified in this

manual. The use of any other accessories or attachments might present

risk

injury to persons.

The accessories or attachments should be used only in the proper and intended manner.

Diamond wheel

255

(Drytype)

Abrasivecut-off wheel

305

per pkg)

Part No. 792290-6 Part

No.

792301-7

For concrete, brick, concrete block,

etc. steel, etc.

For steel pipe, angle steel, light-weight

Socket wrench

Part No. 78221

0-8

Part No. 792293-0

For light-weight concrete, brick,

concrete block,

slate,

etc.

CAUTION

Stop cutting and dress the diamond wheel if the cutting speed slows.

dress the diamond wheel,

make

few cuts on coarse materials such

concrete blocks or discarded coarse grit bench grinder

wheels.

Oec-08-'94

255

(IO")

CUTTER

Model

4110C

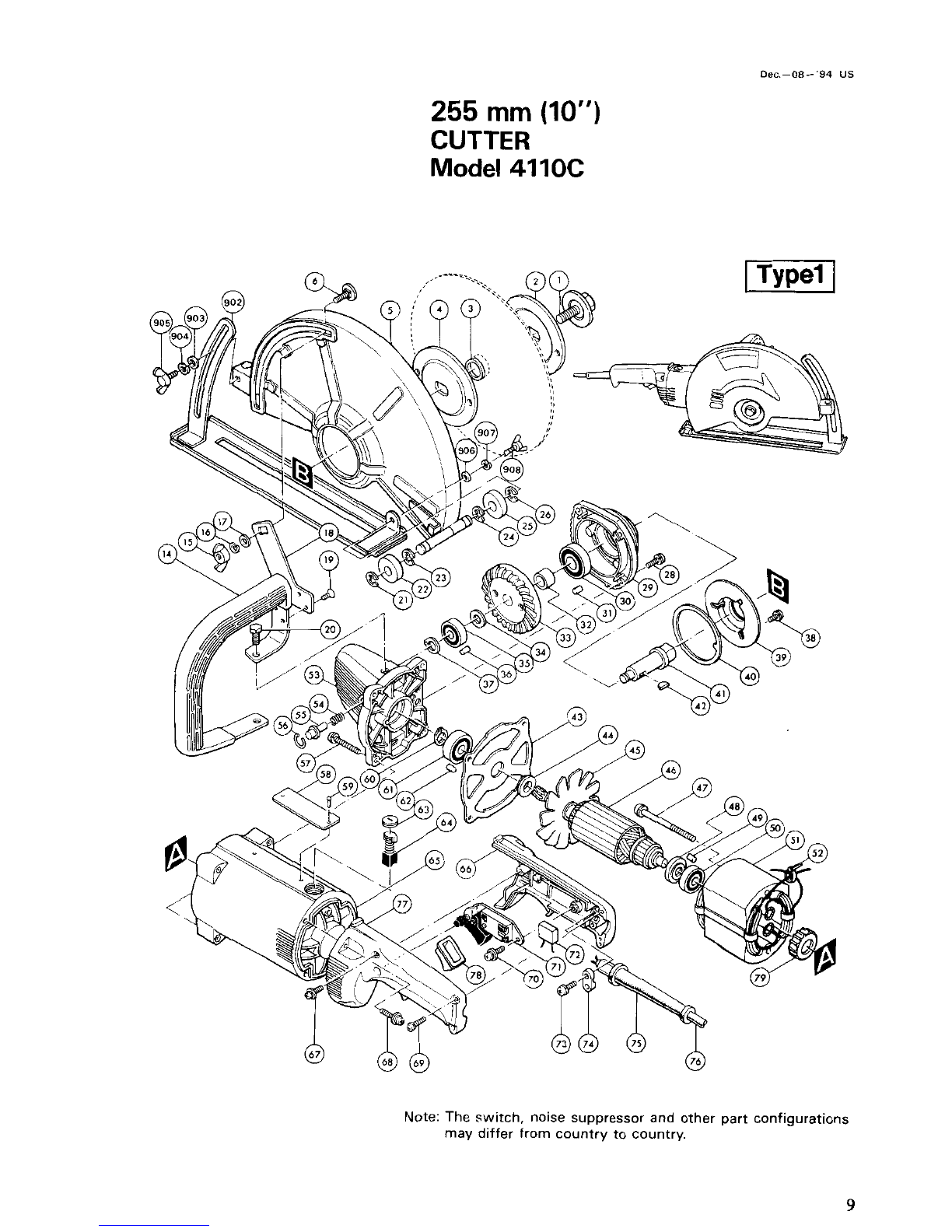

Note: The switch, noise suppressor and other part configurations

may differ from country to country.

MACHINE

1 1 Hex. Bolt M10x25

2 1 Inner Flange 100

3 1 Ring

4 1

Inner

Flange 100

5 1 Safety cover

6 1 Cap Square Neck

Bolt

M8x24

14 1 Grip

15 1 Wing Nut

16 1 Spring Washer

17 1

Flat

Washer

18 1 Lock Plate

Countersunk Head Screw M5x8

Hex

Bolt

M8x16

21 1 Stop

Ring

E-9

Ring

23 1 Stop Ring E-9

24 1 Stop

Ring

E-9

25 1 Ring 12

26 1 Stop

Ring

E-9

28 4 Hex. Socket Head

Bolt

M5x22 IWithWasher)

29 1

Bearing

Box

30 1

Ball

Bearing 6203LLB

Rubber

Sleeve

33 1 Spiral

Bevel

Gear 55

34 1 Flat Washer 10

35 1 Ball Bearing 6200LLB

36 1 Rubber Pin 4

37 1

Retaining

Ring

5-10

Pan

Head Screw

M5x10 IWith Washer1

39 1

Pressure

Plate

40 1

Plate

41 1 Spindle

42 1 Woodruff

Key

43 1 Baffle

Plate

44 1 Bush 15

45 1 Fan 100

46 1 ARMATUREASSEMBLY

IWith

Item

46.

501

Note: The switch and other part specifications may differ from country

country

MACHINE

Pan Head

Screw

M5x85 IWith Washer1

48 1 Insulation Washer

49 1

Rubber

Pin 4

50 1 Ball Bearing 6000DDW

51 1 FIELD ASSEMBLY

1 Band

53 1 Gear

Housing

54 1 Compression Spring 7

55 1 Pin

56 1

Ring

Spring

57 4 Pan Head Screw M5x40 IWith Washerl

58 1 Name

Plate

Rwet 0-5

Retaining

Ring

S-

61 1

Ball

Bearing 6202LLB

62 1

Rubber

Pin 6

Brush Holder Cap

Carbon

Brush

65 1 Motor Housing

66 1 Handle

Set

IWthItem 771

Pan

Head

Screw M4x25 IWith Washerl

Pan

Head Screw M5x28 IWith Washerl

69 1 Pan Head

Screw

M4x25 (With Washer1

70 1 Pan Head

Screw

M4x6 WthWasherl

71 1 Switch

73 1

Pan

Head

Screw

M4x18 IWith Washerl

74 1 Strain

Relief

75 1 Cord Guard

76 1 Cord

77 1 HandleSet IWith

Item

661

78 1

Dun

cover

79 1

Rubber

Ring 26

902 1

Base

Set

903 1 Flat Washer

904 1 Spring Washer

905 1 Wing

Bolt

Max15

906 1 Flat Washer

907 1 Spring Washer

908 1 WinaBolt M6x12

Other manuals for ANGLE CUTTER 4110C

Table of contents

Popular Cutter manuals by other brands

Milwaukee

Milwaukee HEAVY DUTY M12 FCOT Original instructions

SignWarehouse.com

SignWarehouse.com Bobcat BA-60 user manual

GEISMAR STUMEC

GEISMAR STUMEC MTZ 350S manual

Hitachi

Hitachi CM 4SB2 Safety instructions and instruction manual

Dexter Laundry

Dexter Laundry 800ETC1-20030.1 instruction manual

GCC Technologies

GCC Technologies AFJ-24S user manual

DeWalt

DeWalt XR LI-ION DCS350N manual

Baudat

Baudat ES1 instruction manual

Mafell

Mafell ZAF 200 Operating instructions and spare parts list

Formax

Formax FD 574 Operator's manual

EINHELL

EINHELL TE-MA 1500 Original operating instructions

Husqvarna

Husqvarna Cut-n-Break K 760 Operator's manual

CLEAN ROOM DEVICES

CLEAN ROOM DEVICES CRD130SS Operator's manual

TRI tool

TRI tool 301A user manual

Roller

Roller King 1 1/4 operating instructions

RODCRAFT

RODCRAFT RC7170 Operator's manual

Guarda

Guarda EDGE Operator's manual

Formax

Formax FD 574 installation guide
