Magnum Peak T5 User manual
Peak T5
PLEASE READ ME FIRST
www.magnumbikes.com
Contents
1.General Introduction
1.1 Welcome .................................................................................................................................................... 01
1.2 Use of Manual ............................................................................................................................................ 01
1.3 Service and Technical Support ................................................................................................................. 01
1.4 Bike Components ...................................................................................................................................... 02
1.5 Technical Data ........................................................................................................................................... 03
2.Installation and Adjustment
2.1 Handlebar and Stem Assembly ................................................................................................................ 04
2.2 Front Wheel Installation ............................................................................................................................ 05
2.3 Pedal Installation ....................................................................................................................................... 05
2.4 Seat Position .............................................................................................................................................. 06
2.5 Saddle Height & Adjustment ..................................................................................................................... 07
2.6 Fork Adjustment ........................................................................................................................................ 08
2.7 Brakes ......................................................................................................................................................... 08
2.8 Safety Checks & Adjustments .................................................................................................................. 09
3.Battery and Charger
3.1 Overview .................................................................................................................................................... 10
3.2 General Remarks ....................................................................................................................................... 10
3.3 Installing and Removing the Battery ........................................................................................................ 10
3.4 Charging ..................................................................................................................................................... 10
4. Display ....................................................................................................................................................... 11
5.Recommendations and Maintenance
5.1 General Requirements ............................................................................................................................... 20
5.2 Maintenance Schedule .............................................................................................................................. 21
5.3 Denition of Tampering and Recommendations ..................................................................................... 22
6. Warranty .................................................................................................................................................... 23
1.General Introduction
1.1 Welcome
Thank you for purchasing a Magnum electric bike, and welcome to the Magnum Bikes family of e-bike
enthusiasts. We encourage you to join our Facebook group “Magnum Bikes Community”. Our Facebook
group is a place for Magnum riders to ask questions, have discussions, share recommendations and
experiences and connect with other Magnum Bike enthusiasts. You can nd the group linked here: https://
www.facebook.com/groups/389290978573773
1.3 Service and Technical Support
This manual is intended as a general overview of your new E-bike, and is therefore not an extensive refer-
ence. Please consult your local Magnum dealer or Magnum customer support team for technical support,
including information about service, maintenance, and repairs. In addition, you can visit our website (www.
magnumbikes. com) for more information about our products and technology or nd a dealer close to you.
General
01
1.2 Use of Manual
We encourage you to read this manual thoroughly before you take your new E-bike for a ride. It is essential
not to overlook the safety instructions and explanations of both traditional and non-traditional bike parts.
So please take a moment to read through the various sections before you get in the saddle.
*Disclaimer
Because it is impossible to anticipate every situation or condition which can occur while riding, this manual
makes no representations about the safe use of bicycles under all conditions. There are risks associated
with the use of any bicycle which cannot be predicted or avoided, and which are the sole responsibility
of the rider. You should keep this manual along with any other documents that were included with your
bicycle. All content in this manual is subject to change without notice. Magnum Bikes makes every effort to
ensure accuracy of its documentation and assumes no responsibility of liability if any errors or inaccuracies
appear within. Assembly and initial adjustments of your Magnum e-bike requires special tools and skills. It
is recommended that this be done by a trained bicycle mechanic if possible.
1.General Introduction
1.4 Bike Components
General
02
1. Left Grip 3. Throttle 5. Display 7. Right Brake Lever
2. Left Brake Lever 4. Display Controls 6. Shifter 8. Right Grip
1. Rear Fender 7. Kickstand 13. Saddle Quick Release 19. Front Fender
2. Motor 8. Chain Ring 14. Saddle 20. Rim
3. Cassette 9. Crankset 15. Waterbottle Mount 21. Tire
4. Rear Disc Brake 10. Pedal 16. Headlight 22. Front Fork
5. Rear Derailleur 11. Controller 17. Stem 23. Front Disc Brake
6. Chain 12. Battery 18. Cable Connector 24. Wheel Reector
1
2
3
4
67 8
5
9
10
11
12
13
14 15
24
23
16
22
17
21
20
19
18
1 2 3 4
5
6 7 8
Component Peak T5
Motor 48V, 500W Bafang Rear Geared Hub Motor
Battery 48V 15Ah Lithium Ion
Display Magnum LCD Display
Throttle/PAS Thumb Throttle, Torque Sensor
Front Fork SR Suntour XSM34 Boost with Lockout & Preload Adjustment
Crankset 42T, 170mm
Brakes Hydraulic
Derailleur 11 Speed
Freewheel 11 Speed, 11-50T
Tires Patrol 27.5” x 2.8”
Front Light Integrated Front Headlight 40 lux, Rear Light 20 lux
Max Loading¹ 275 lbs
Max Speed² Torque sensing PAS up to 25mph, trigger throttle up to 20mph
1.General Introduction
1.5 Technical Data
General
03
Remove the faceplate from the stem with a 4mm
allen key.
2.Installation and Adjustment
2.1 Handlebar and Stem Assembly
Installation & Adjustment
04
Attach the faceplate using a 4mm allen key. Re-in-
stall the display.
Remove the display for easy installation. Lift the
handlebars (attached to the cables and display)
and center them with the head tube.
12
3
2.Installation and Adjustment
2.2 Front Wheel Installation
Place the front wheel between the fork.
Insert axle into non-drivetrain side. Use a 6mm allen key to tighetn the axle.
WARNING
First screw on the pedals by hand, then tighten with the wrench provided.
Installation & Adjustment
05
2.3 Pedal Installation
Identify your pedals: check the letters on the pedals, “L” or “R”.
The “R” marked pedal is for the right (when facing the forward direction). For attachment to the crank,
tighten clockwise.
The “L” marked pedal is for the left. For attachment, tighten counterclockwise when facing directly.
L
R
2.Installation and Adjustment
2.4 Seat Position
To enable comfortable, fatigue-free and safe riding, the saddle and handlebar height should be adjusted to the
body size of the rider.
The saddle height is correct if the leg is near full extension while the foot is resting at on the pedal in the
bottom position of the crank cycle. The toes must still be able to touch the ground comfortably.
Installation & Adjustment
06
2.Installation and Adjustment
2.5 Saddle Height & Adjustment
The quick-release lever must require noticeable effort to put into fully closed position to prevent any unde-
sired movement while riding.
WARNING
An improperly closed quick release lever can open again or have limited ability to keep the saddle in place.
This may cause the saddle to suddenly drop into the seat tube, potentially leading to serious falls and injury.
Installation & Adjustment
07
MININSERT
There is a minimum insertion line marked on the seat post
(failure to observe the minimum insertion line can result
in serious injury); please ensure the seat post is always
inserted into the seat tube beyond this line (the line must be
inside the seat tube).

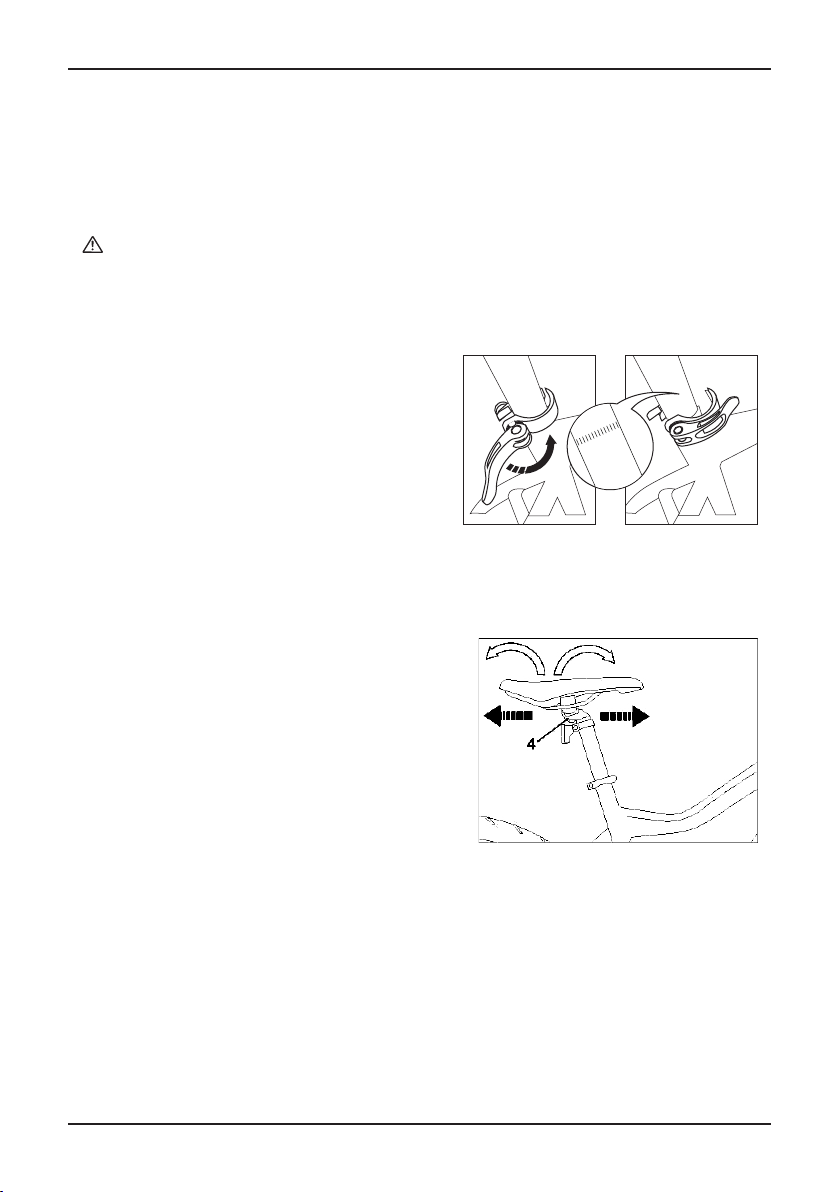

Loosen the quick release lever at the top of the seat tube,
determine the appropriate saddle height and tighten the
clamp.
The clamping force can be adjusted by adjusting the bolt on
the quick release lever.
The quick release lever must be closed with considerable
counter pressure.
The saddle can also be tilted and adjusted in the forward/
back direction.
Loosen the bolt at the bottom (4).
Adjust the saddle tilt by pressing down on the front or rear
of the saddle.
Move the saddle forward or backward to adjust for arm/
torso length and desired riding position.
Tighten the bolt (4) to secure the saddle.
2. Installation and Adjustment
2.6 Fork Adjustment
Installation & Adjustment
08
Rotate the lever (1) to lock the suspension.
2.7 Brakes
The front and rear brakes operate independently of each other. When stopping or slowing down, use both
brakes at the same time.
The left brake lever (1) controls the front brake.
The right brake lever (2) controls the rear brake.
