Magma Gourmet Series User manual

INFRARED

Gourmet Series Marine Gas Grill

Model A10-918-2GS

OWNER’S MANUAL

™

For questions regarding performance, assembly,

operation, parts, or returns, contact the experts

at MAGMA by calling (562) 627-0500

7:00 a.m. - 5:00 p.m. Pacific Time Monday thru

Friday or e-mail us at mail@MagmaProducts.com

IMPORTANT, read these instructions carefully before use. Familiarize yourself with the appliance

before connecting it to its gas container. Keep these instructions for future reference.

s53%/54$//23/.,9

s$/./453%4()3!00,)!.#%).3)$%4(%"/!4/2!.9%.#,/3%$30!#%

s'2),,32!$)!4%(%!4#,%!2!.#%&2/-#/-"534)",%3v3)$%3!.$"!#+.%6%253%5.$%2

!7.).'30!4)/#/6%23%4#

s53%02/0!.%'!3/.,9&5%,34/2!'%3(/5,$"%).#/-0,)!.#%7)4(4(%!-%2)#!."/!4!.$

9!#(4#/5.#),!"9#34!.$!2$3!-!2).%,)15)&)%$0%42/,%5-'!3,0'3934%-3

s&/2.!452!,'!3!00,)#!4)/.#/.4!#4-!'-!

s!,7!93,)'(4'2),,7)4(,)$/0%.

s.%6%2,%!6%(/4'2),,5.!44%.$%$

s53%(/40!$7(%.(!.$,).'

s!,7!93452.'2),,/&&!&4%253%

s.%6%2,%!6%'!3#9,).$%23!.$2%'5,!4/2#/..%#4%$7(%.34/7%$

s34/2%'!3#9,).$%23).7%,,6%.4),!4%$!2%!

s$/./434/2%'!3#9,).$%23).$//23).$)2%#435.,)'(4"%,/7$%#+3/."/!43/2).,/#+%23

./4!002/6%$&/2"54!.%/202/0!.%34/2!'%

s#!54)/.#(%#+&/2'!3,%!+3%!#(4)-%#9,).$%2)3#(!.'%$

s.%6%2#(%#+&/2'!3,%!+37)4(!&,!-%

s$/./4",/#+2%342)#4/2/4(%27)3%/"3425#4#/-"534)/./26%.4),!4)/.

!)2/0%.).'3

s$/./4-/$)&94()3!00,)!.#%

s#(%#+4(!46!,6%3%!,).'7!3(%2!)3).0,!#%!.$).'//$#/.$)4)/.

"%&/2%#/..%#4).'4(%'!3#/.4!).%2

s).34!,,#!.)34%23).7%,,6%.4),,!4%$!2%!!.$!7!9&2/-/0%.&,!-%(%!4

3/52#%/230!2+3+%%0!7!9&2/-/4(%20%/0,%/2&,!--!",%-!4%2)!,3

IMPORTANT SAFETY WARNINGS

INSTALLATION INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE OPERATING.



Each Magma

Gas Grill is individually fire tested before it leaves the factory.

For this reason, the burner on your grill may be slightly discolored.

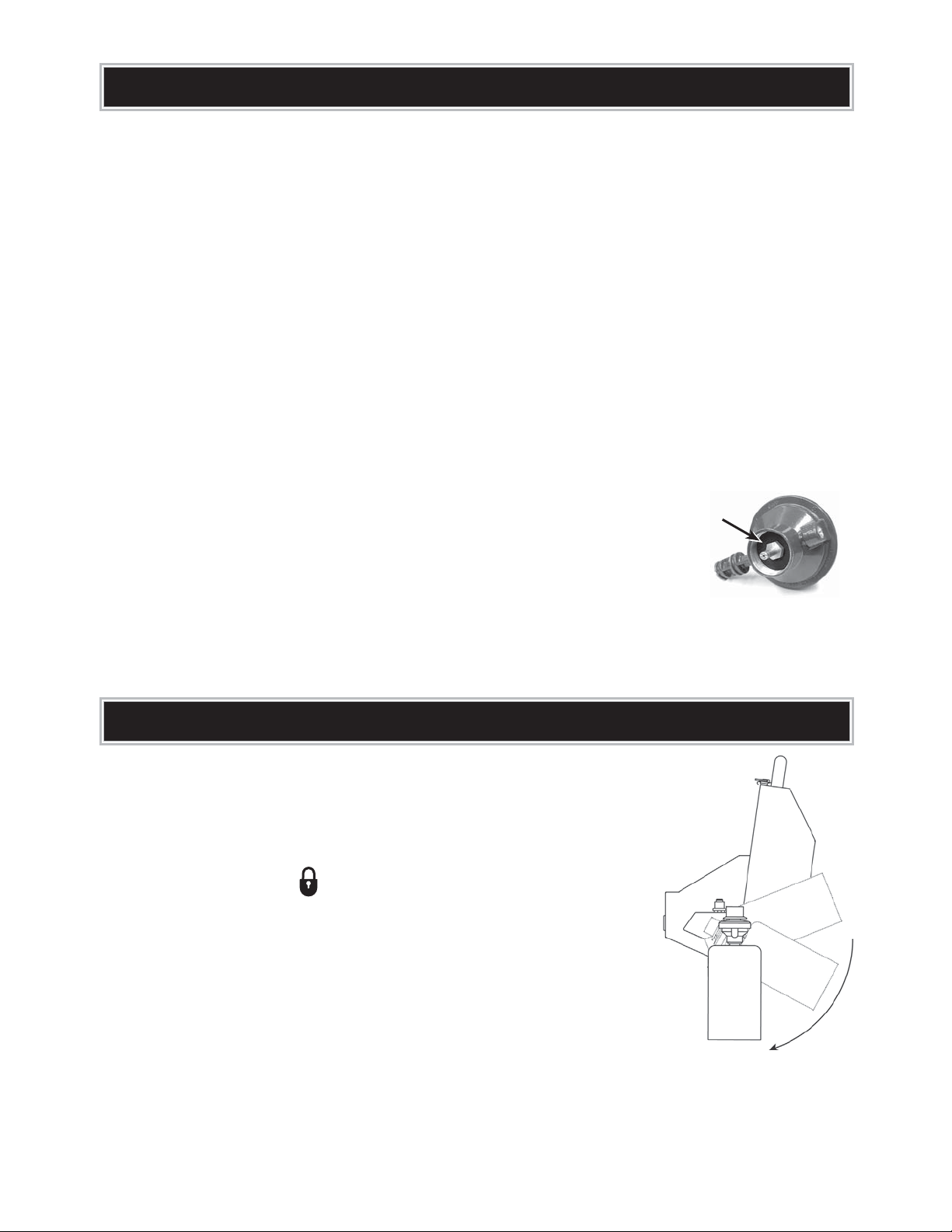

CONTROL VALVE REGULATOR

s5SESSTANDARDLBDISPOSABLEPROPANECANISTERS$/4.2#

s0RIORTOINSTALLINGVALVEBECOMEFAMILIARWITHTHEVALVEFUNCTIONANDGRAPHICS

ONVALVEKNOB.EVERFORCETHEKNOB!LWAYSTURNORPUSHGENTLY

s4URNCONTROLVALVETOhLOCKvANDINSTALLGASCANISTERBEINGCAREFULNOTTO

CROSSTHETHREADS#HECKFORLEAKSPRIORTOUSEBYBRUSHINGSOAPYWATER

SOLUTIONAROUNDTHREADSANDORIFICEHOLECHECKINGFORBUBBLES

s0OSITIONVALVEWITHGASBOTTLEASSHOWN(A)'ENTLYINSERTVALVESTEMINTO

VALVECHAMBER2OTATEUNTILVALVESTEMKEYALIGNSWITHLOCKDETENTALLOWING

VALVETOFULLYINSERT2OTATEGASCANISTERDOWNSOKNOBFACESYOU(B) OR

STRAIGHTUP(C) DEPENDINGONAPPLICATION

(A)

(B)

(C)

Valve will feel loose and will rotate easily. Even though the valve feels loose, it will not leak.

The valve was designed to be loose fitting in order to allow safe, easy installation and removal

of the propane canister and so it easily swings without resistance to fit all applications.

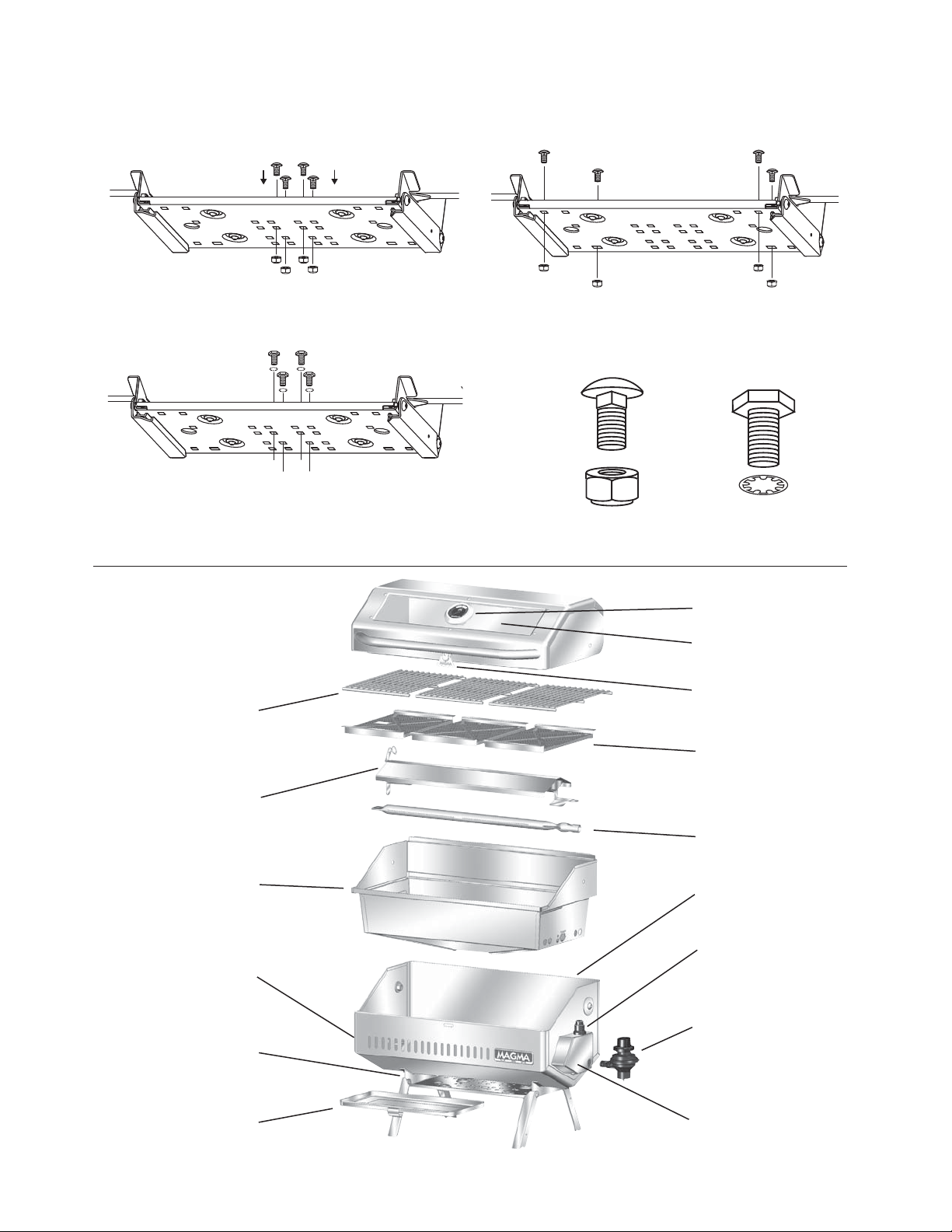

Burner

Lid Lock

Glass Viewing

Window

Grill Grates

Radiant Plate

Outer Shell

Liner

Match Light

Hole

Mount Support

Pad with

Folding Legs

Valve Chamber

Electronic

Ignition

Anti-Flare/

Anti-Blow-Out

Screens

Slide Out

Grease Tray

Control Valve

Regulator

Type 1

Low-Output

See Magma website for

replacement part numbers

and valve applications.

www.MagmaProducts.com

Single mount non-through-bolt

applications, including Style 1 “Levelock”

4 Hex head bolts & lock washers.

MOUNT HARDWARE

Fasteners are supplied for both Single Mount and Dual Mount grill mounting

options. See Magma Catalog or Website for best mount selection.

Dual mount applications

4 Carriage bolts & lock nuts. Only 4 bolts

required for grill mounting. Place bolts (2 per

side) diagonally from each other as shown.

Hex head bolt

& lock washer

Carriage bolt

& lock nut

Single mount through-bolt applications

4 Carriage bolts & lock nuts.

Thermometer

OPERATE ONLY ON “LOW” WHEN LID IS CLOSED.

ALWAYS OPERATE WITH GREASE TRAY IN PLACE.

WARNING: Do not overheat grill.

Magma Grills do not require pre-heating. Stainless Steel loses

anti-corrosive characteristics when subjected to extreme heat. Most grilling is done on low

temperature with the lid closed. If medium or high heat is required, grill with lid open.

LIGHTING INSTRUCTIONS

s/PENLIDDURINGLIGHTING

s$EPRESSKNOBANDROTATECOUNTERCLOCKWISETOTHEh()'(v flame position.

s0USH%LECTRONIC)GNITERs6ISUALLYCONFIRMIGNITIONs4URNKNOBTOADJUSTFLAME

s)FGRILLDOESNOTLIGHTSEEPAGE

s

)FELECTRONICIGNITIONFAILSTOIGNITETHEGASSEE-!4#(,)'(4).').3425#4)/.3

NOTE:"EFORELIGHTINGLIDLOCKMUSTBEPOSITIONEDNOTTOENGAGE/PENLIDANDTURNLOCKTO

LOCKEDPOSITION

NOTE:%LECTRONICIGNITIONCOMESEQUIPPEDWITHBATTERYPREINSTALLED2EPLACEWITHh!!!v

ALKALINEBATTERYONLY

MATCH LIGHTING INSTRUCTIONS

(Back up system allows use of grill until piezo ignition system is repaired.)

s/PENLIDDURINGLIGHTINGs0LACEFLAMEUPTOBURNERTHROUGHTHEMATCHLIGHTHOLE

s$EPRESSVALVEANDTURNCOUNTERCLOCKWISETOTHEh()'(vflame position.

s6ISUALLYCONFIRMIGNITION

TO REDUCE FLARE-UP

s%MPTYANDCLEANGREASETRAYPRIORTOEACHUSE

s4RIMEXCESSFATSFROMMEATs5SENONOILBASEDMARINADES

s2EDUCEHEATs5SEWATERSPRAYDIRECTLYONFLAREUPS

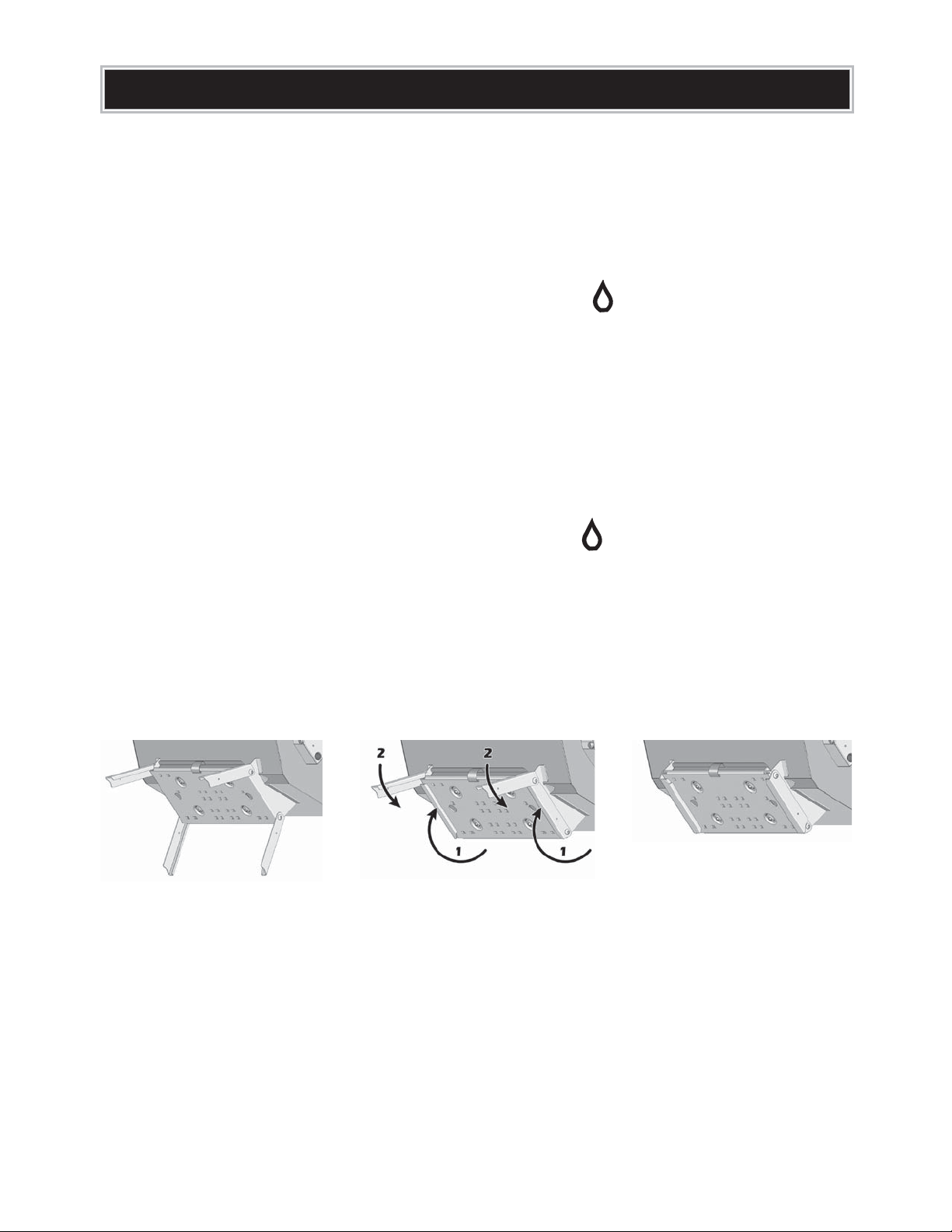

FOLDING LEGS

&ORSTORAGETRANSPORTORWHILEUSINGOTHERMOUNTINGOPTIONS&OLDUPBACKLEGSFIRSTTHENFRONT

LEGSASSHOWN)FLEGSBECOMELOOSETHEYCANBETIGHTENEDWITHAv(EX+EY7RENCH

PRACTICAL HINTS:

Before lighting your grill, be sure that …

s

'RILLISSECUREANDPROPERLYMOUNTED

s

)NTERNALCOMPONENTSANDGREASETRAYARECLEANANDCORRECTLYPOSITIONED

s

9OUHAVEPLENTYOFGASINTHECANISTER

s

'ASCANISTERISATTACHEDPROPERLYANDTHEREARENOGASLEAKS

s

,IDLOCKHASBEENSETNOTTOENGAGE

s

9OUHAVEAWATERSPRAYBOTTLEHANDYTOCOOLAHOTGRILLORSTOPANYFLAREUPS

STOWING TIPS

s!LWAYSDISCONNECTTHEFUELCANISTERFROMTHEVALVEPRIORTOSTOWING

s3TOWTHEVALVEINACLEANDRYAREATOPROTECTFROMCORROSIONTOVALVE

s

!LWAYSSTOREPROPANEINASEALEDPROPANESTORAGELOCKERTHATALLOWSLEAKAGETOVENTOVERBOARD

or use Magma Propane Storage/Locker Tote Bag..EVERSTOWBELOWDECKS

OPERATING PROCEDURES

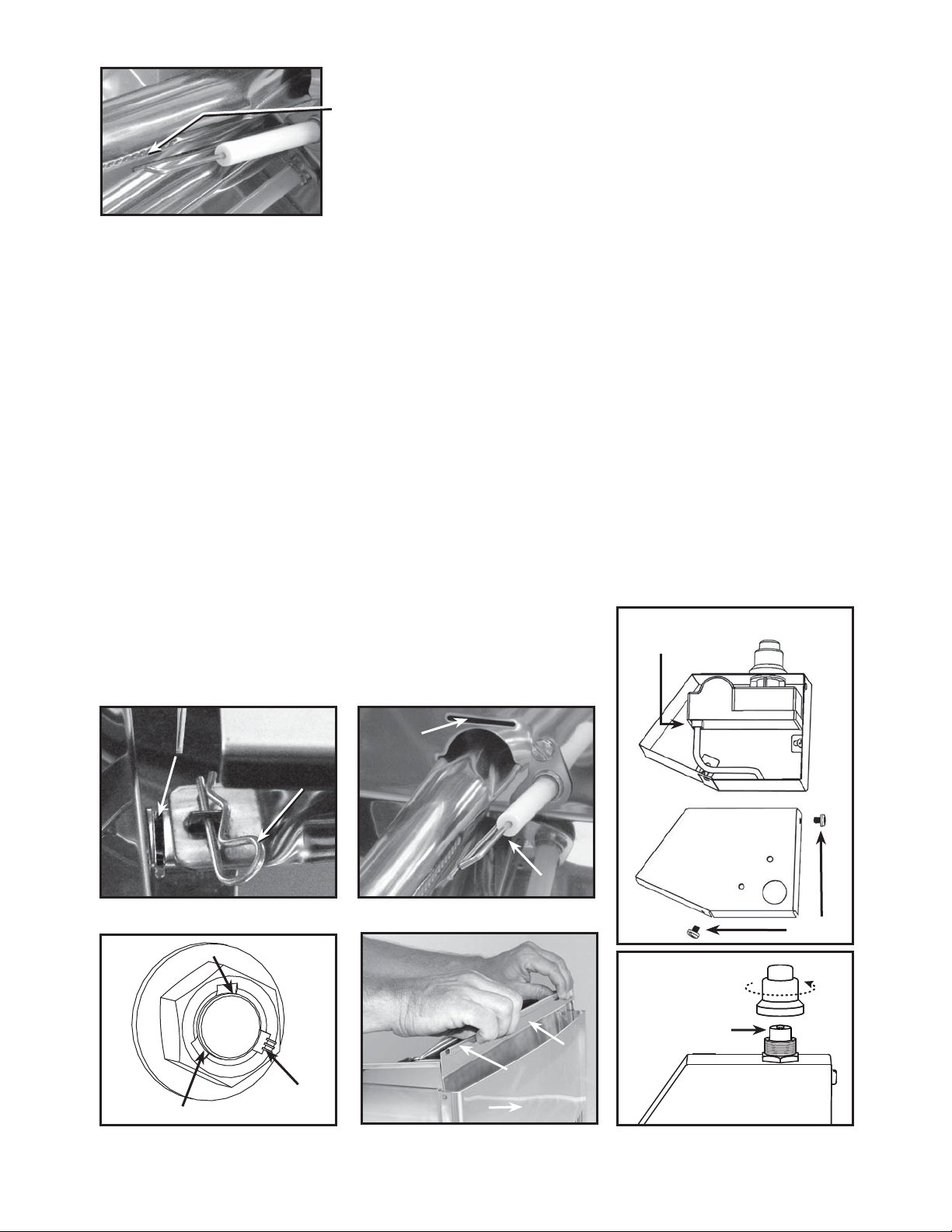

ELECTRODE SPARK ADJUSTMENT

CAUTION: Spark can cause small shock. Do not leave

fingers on or near electrode wire while engaging igniter.

s%LECTRODEWIRESHOULDBE

approximately 1/8” from gas

EXITHOLEINBURNER

. Carefully adjust wire if required.

Left

side

slot Retaining pin

Radient Plate

Right

side

slot

Locking

Indents

Outer Shell

Liner

Liner Lip

DISASSEMBLY & RE-ASSEMBLY

s

,IFTRADIANTPLATEUPOUTOFLEFTSLOTSEE"ANDREMOVEBYSLIDINGITOUTOF

right slot (see C).

s2EMOVEBURNERRETAINERPINSEE"REMOVEBURNER)NSPECTBURNERREMOVEANY

OBSTRUCTIONS#!54)/.7(%.2%0,!#).'"52.%2#543,/43)."52.%2

-534&!#%$/7.

s

To remove liner from outer shell you must disconnect the electrode wire

SEE$&IRSTREMOVETHETWOSCREWSONVALVECHAMBERSEE$ANDREMOVE

THECOVERPLATE'ENTLYPULLWIREOFFCONNECTORSEE$)TISNOTNECESSARYTO

remove electrode from liner.

s

2EMOVE,IDANDLINERBYREMOVINGHINGESCREWSANDLOCKNUTSWITHvHEX

key wrench (supplied) and 1/2” wrench or pliers. CAUTION: LOCK NUTS

-534"%).34!,,%$7)4(,/#+).').$%.4-!2+33(/7).'SEE%

)-02/0%2).34!,,!4)/.7),,$!-!'%4(%().'%3#2%7!.$,/#+.54

s

,IFTLINEROUTOFOUTERSHELLBYLIFTINGUPONLINERLIPONBACKSIDEOFLINER

SEE&7HENREPLACINGLINERBESURETOPLIPOFLINERINSTALLSOVERTOPEDGEOF

outer shell (start with corners of lip and work in).

s#LEANASINDICATEDIN-AINTENANCEPAGE

s4OREASSEMBLEREVERSETHEPROCEDUREABOVE

Electrode

Disconnect

wire

Screws

Battery

MAINTENANCE

Stainless steel contrary to popular belief can rust. Most commonly, deposits on surface of the product will trap moisture. It is this

moisture that robs stainless steel of oxygen. Oxygen is the element that reacts with stainless steel to form a protective layer of chrome

oxide. Robbed of oxygen, this reaction does not take place and “crevice corrosion” or “surface rusting” occurs. To minimize this effect,

thoroughly clean your grill with soap and water, rinse with fresh water, and dry. Avoid using stainless steel polishes on grill exterior as

most leave a residue that may discolor when grill is heated.

Additionally, stainless steel that is exposed to high heat will change color and texture over time. The “amber” color of grill exterior

and internal components is not a failure of the stainless steel and will not affect products operation. When this happens, we

recommend using “Magma Magic” Grill Restorer to remove the “amber” color and return grill to its original luster. However,

prolonged exposure to extreme high heat will cause chromium and nickel to “burn out” of stainless steel. At this point stainless steel

will become more susceptible to corrosion and will start to deteriorate. We recommended replacement of internal components as they

become seriously deteriorated.

We recommend thoroughly cleaning grill and internal components after each outing. Disassemble interior components and

remove all food residue. Use a “Scotch Brite” pad or similar product and “Easy-Off” oven cleaner for cleaning grills interior

components, followed by thoroughly washing with soap and water, rinse with fresh water & dry. AVOID CONTACT OF OVEN

CLEANER WITH SKIN, CONTROL VALVE, IGNITOR ELECTRODE & WIRE, AND BOAT SURFACE. CAUTION: DO NOT USE ANY TYPE OF

ABRASIVE PAD ON EXTERIOR MIRROR FINISH AS IT WILL SCRATCH SURFACE, USE ONLY A SOFT CLOTH. We recommend covering grill

between uses. Grill covers are available at Magma retailers or directly from Magma. See our website, www.magmaproducts.com

After cooking Do Not turn grill to high heat to burn off grilling residue. The grill is not a self cleaning oven & this extreme heat can

damage stainless steel components.

Glass Viewing Window - Use Oven and Grill Cleaner for burnt on residue. Wash with soapy water and dry prior to storage.

Grill Grates -Clean with brass wire brush while grill is warm. Use Oven & Grill cleaner for burnt-on residue. Wash with

soapy water and dry prior to storage.

Anti-Flare/Anti-Blow-Out Screens - Use Oven & Grill cleaner for burnt-on residue. Wash with soapy water and dry prior

to storage. Periodic cleaning of the infrared screens in required to maintain optimum performance and reduce flare-up on the screens.

Heavy debris buildup will deprive the grill of oxygen creating blowout issues.

Ceramic Electrode - Located just beside the burner, it should be kept clean of grease and debris. Be careful not to damage the

ceramic insulation or the wire. See page 5 for electrode spark adjustment.

Control Valve -All valves are set and tested at our factory. Do not attempt to adjust or disassemble the valve in any way.

Call Magma if you suspect it is not adjusted properly. Clean valve with a cloth and remove any debris obstructing the orifice.

Repair/Replacement Parts - All replacement parts are readily available at your Magma Retailers or directly from Magma.

For a complete list of replacement parts visit our website www.MagmaProducts.com.

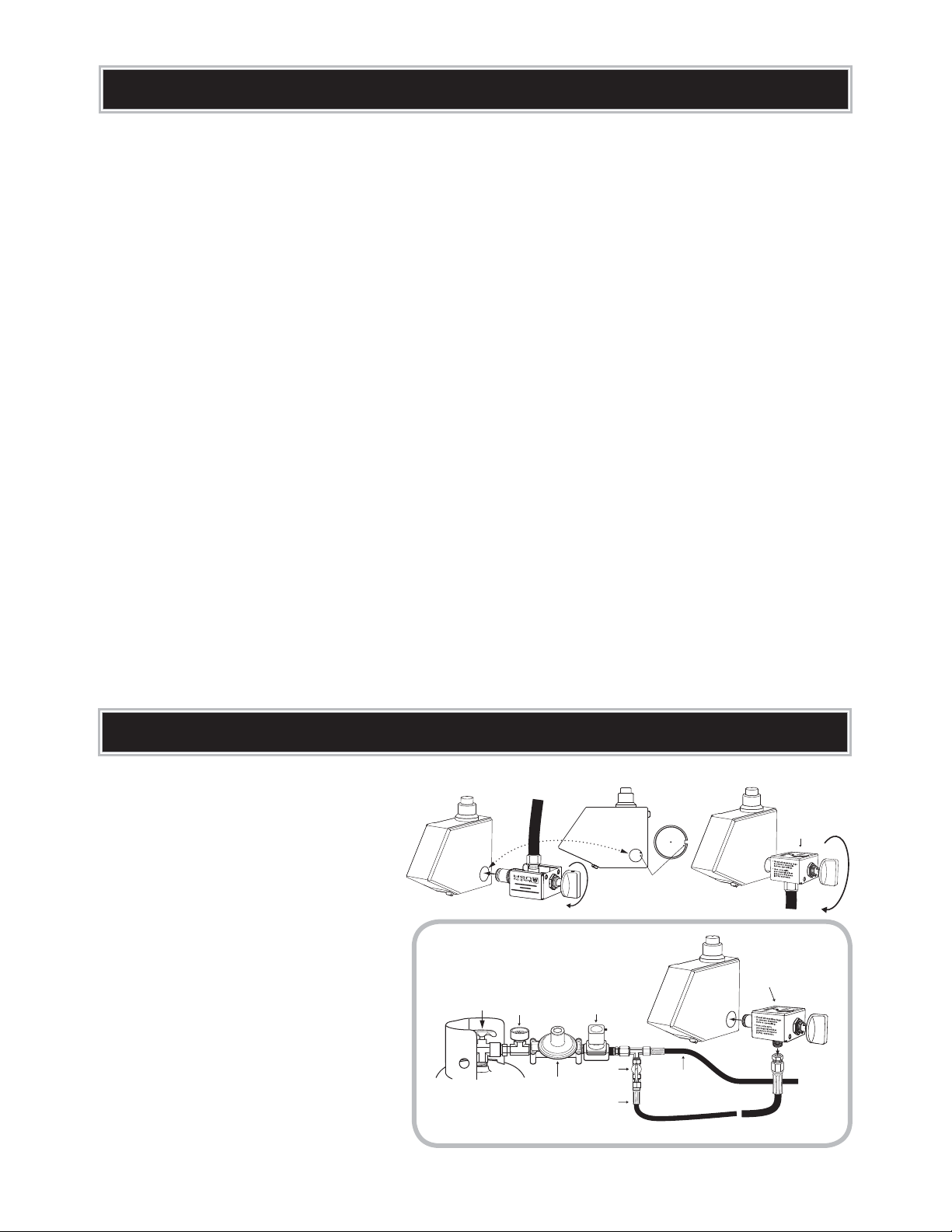

USING GRILL WITH ON-BOARD LPG (PROPANE) SYSTEMS

Propane (LPG) Gas Regulator

A10-225 LPG (Propane)

10' Gas Grill Connection Kit

To other LPG

appliance

or use cap

Shut off

valve

Cylinder Valve

Gauge

Gourmet

Gas Grill

Type 3

Valve

Solenoid

Typical Marine &

R.V. Application

Gourmet

Gas Grill

Align valve stem key

to valve chamber

lock detent and rotate

Gourmet

Gas Grill

Gourmet

Gas Grill

Type 3

Valve

s-AGMA/N"OARD,0'0ROPANE6ALVES

Hose Kits allow Magma Grills to be installed

within a boats existing on-board, pre-regulated

LOWPRESSURE,0'0ROPANESYSTEM

s5SEONLYMagma Type 3 Low Pressure LPG

(Propane) Valves. See our Valve Application

Guide at www. MagmaProducts.com for

correct valve.

s)N.ORTH!MERICAUSEMagma A10-225 LPG

10' Gas Grill Connection Kit in conjunction

with Type 3 Valve. Outside North America check

your local dealer for proper hose and fittings.

In Australia & New Zealand LPG fuel

systems must be installed by a certified

gas technician.

s!PRIMARYSHUTOFFVALVE(supplied with Gas

Grill Connection Kit) must be used with this

control valve at point of connection into your

system. This allows shut off of gas supply to hose

leading to grill.

USING GRILL WITH ON-BOARD CNG (NATURAL GAS) SYSTEMS

Magma's grills are designed for use with small disposable propane canisters or with pre-regulated

low-pressure propane and optional low-pressure valves. Running high-pressure propane fuel supply

lines on a boat is in violation of American Boat & Yacht Council (ABYC) guidelines and is not

considered a safe application. Additionally, impurities found in larger refillable propane tanks may

clog the small orifices in the high-pressure control valve/ regulator causing it to lose performance

capabilities and eventually fail. Regulating these tanks to 1/2 PSI and using this pre-regulated

propane with the correct low-pressure valve will insure safe, efficient performance of the grill.

)-0/24!.4s$/./4#/..%#4!()'(02%3352%3500,9(/3%

FROM A NON-REGULATED TANK DIRECTLY TO GRILL.

s-AGMAONBOARD#.'NATURALGASVALVESALLOW-AGMAGRILLSTOBEINSTALLEDTOANEXISTINGONBOARD

PREREGULATEDLOWPRESSURE#.'NATURALGASSYSTEM

s5SEONLY-AGMA4YPE,OW0RESSURE#.'NATURALGASCONTROLVALVES6ISITOUTWEBSITEAT

www.MagmaProducts.com to view valve application guide. See your local dealer for proper hose and fittings.

Problem

Electrode covered with grease or residue

Igniter/electrode too far from burner

Electrode wire loose, disconnected, or corroded

Wire is shorted causing spark from wire before

electrode

No spark being generated

No gas flow

Obstructed gas flow

Excessive cooking temperature

Grease and/or residue build-up

Excessive fat in meats

Excessive oils in marinades

Obstructed gas flow

Flame too low

Wind directly on burner

Obstructed gas flow

Grill not level

Grease or residue build-up

Excessive fat in meats

Excessive oil in marinades

Clean electrode

Adjust electrode until proper spark appears

(see page 5)

Clean, adjust & reconnect wire between igniter

& electrode, see Complete Disassembly (page 5)

Replace Igniter, Electrode & Wire

See website for part number

Adjust electrode until proper spark appears.

5NSCREWIGNITERPUSHBUTTONREMOVEINSPECT

“AAA” battery, replace “AAA” alkaline battery if

necessary, reinstall & re-assemble push button

Replace Igniter, Electrode & Wire

See website for part number

Check fuel level, replace canister or

refill cylinder

Clean burner and valve orifice.

Remove debris/spider webs

Operate only on low when lid is closed

Reduce flame level

,EAVELIDOPEN

5SEWATERSPRAYTOCOOL

Clean components

4RIMFATFROMCUTSOFMEATBEFOREGRILLING

5SENONOILBASEDMARINADES

Clean burner and valve orifice.

Remove debris/spider webs

Increase flame

Block wind when opening lid

Clean burner and valve orifice.

Remove debris/spider webs

,EVEL'RILL

Clean components

4RIMFATFROMCUTSOFMEATBEFOREGRILLING

5SENONOILBASEDMARINADES

Hot Spots

Blow-out

Yellow sooty

flame

Flare-up

Burner will

not light even

with match

Burner will

not light with

igniter

TROUBLE SHOOTING GUIDE

Possible Solution

Possible Cause

LIMITED WARRANTY

x 4 x 4

x 4x 4

A) (1) 3/16” Hex key wrench for lid removel.

B) Pack of (4) 1/4”-20 x 5/8” hex head screws

and internal lock washers for Single Mount

non-through-bolt applications, including

Style 1 “LeveLock”.

C) Pack of (4) 1/4”-20 x 5/8” carriage bolts and

lock nuts for dual mount and single mount

applications.

Magma Products, Inc. guarantees this product to be free from defects in materials or workmanship to the original consumer. This guarantee

is for the periods herein speciﬁed when used under normal and reasonable conditions, one (l) year from the date of original purchase. This war-

ranty does not include the cost of property damage or any inconvenience due to the failure of the product. Nor does it cover damage due to

misuse, abuse, accident, or damage resulting from transportation of the product. Nor does it include damage resulting from the commercial use

of this product. Nor does it include, on stainless steel products, "Surface Rust'; Excessive Corrosion due to exposure to salt water; or Discoloration

or Corrosion caused by exposure to excessive heat or failure to properly clean and care for the stainless steel surfaces. If the product fails to oper-

ate due to a defect in materials or workmanship during the warranty period, the defective part will be repaired or replaced at Magma's option.

If you wish to obtain performance under this limited warranty, you should contact Magma's Customer Service Department via telephone at

(562) 627-0500, or via e-mail at [email protected], or via U.S. Postal Service mail at "Magma Products, Inc., Attention Customer Service,

3940 Pixie Ave. Lakewood, CA, 90712". The defective part, along with proof of purchase, must be returned postage prepaid to Magma Products,

Inc. We suggest that you keep your purchase receipt as we may require reasonable proof of purchase.

In the state of California only, if reﬁnishing or replacement of the product is not commercially practicable, the retailer selling the product, or

Magma Products, Inc., will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer

prior to the discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment from

which it was purchased or to any retail establishment selling this product in order to obtain performance under this warranty. All implied war-

ranties, including the implied warranties of merchantability and ﬁtness for a particular purpose, are limited in duration to the express warranty

periods speciﬁed herein for the parts described herein. Some states do not allow limitations on how long an implied warranty lasts, so the above

limitation may not apply to you. Neither Magma dealers, nor the retail establishment selling this product has any authority to make any warran-

ties or to promise remedies in addition to or inconsistent with those stated above. Magma's maximum liability shall not exceed the purchase price

of the product paid by the original consumer. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the

above limitation orexclusions may not apply to you. The warranty gives you speciﬁc legal rights and you may also have other rights which vary

from state to state.

MAGMA and the Magma logo are registered trademarks of Magma Products, Inc.

Newport is a trademark of Magma Products, Inc.

Patent pending.

Magma Products, Inc.

0IXIE!VENUE,AKEWOOD#!s53!

0HONEsEMAILMAIL -AGMA0RODUCTSCOM

www.MagmaProducts.com

83-918-2GS 1114

CALIFORNIA PROPOSITION 65 – WARNING – The burning of gas cooking fuel generates some by-products, which are on the list of

substances, which are known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn

customers of potential exposure to such substances. To minimize exposure to these substances, always operate this unit according to the use

and care manual, ensuring you provide good ventilation when cooking with gas.
