Magic Chef HMAR45HCWE User manual

Model HMAR45HCWE/HMAR45HCBE/

HMAR45HCSE

4.4 Cu. Ft.

Compact All Refrigerator

User's Manual

10

9

10

10

10

13

11 - 12

DOOR REVERSAL INSTRUCTION

HMAR45HCWE/HMAR45HCBE/

HMAR45HCSE

HMAR45HCWE/HMAR45HCBE/

HMAR45HCSE

HMAR45HCWE/HMAR45HCBE/

HMAR45HCSE

Transparent Plastic Sheff

Compact All Refrigerator

4.4

20.3

47.84

21.7 31.3

• Remove the top hinge cover.

•Using Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place.

•Remove top hinge and carefully lift off the door.

•Remove the screw hole plugs from the opposite side and insert the plugs in the screw hole

openings of the just removed screws.

•Remove any loose items in the refrigerator and carefully turn refrigerator on its back and place in

a secure area.

•Loosen the screws holding the lower hinge bracket to the refrigerator and remove screws and

bracket.

•Remove (2) screws from the other side and insert in the previously removed screw holes.

•Remove door pin by turning counter clockwise and reinsert to the underside of the bracket and

tighten.

•Align bracket and insert (2) remaining screws into the holes provided .

•Align hole in the door with the door pin and washer and gently push down until firm.

•Align upper hinge bracket with screw holes insert screws and partially secure, check that door

and cabinet are properly aligned and then secure tightly.

•Replace hinge cap.

Door Reversal Instruction

90°F (32.2°C)

10

right side

1 Use a Phillips screwdriver to remove the screw that secures the light cover.

9

2 Remove the interior light cover.

3 Unscrew and remove the old light bulb.

4 Screw in the new light bulb.

5 Reinstall the light cover.

This manual suits for next models

2

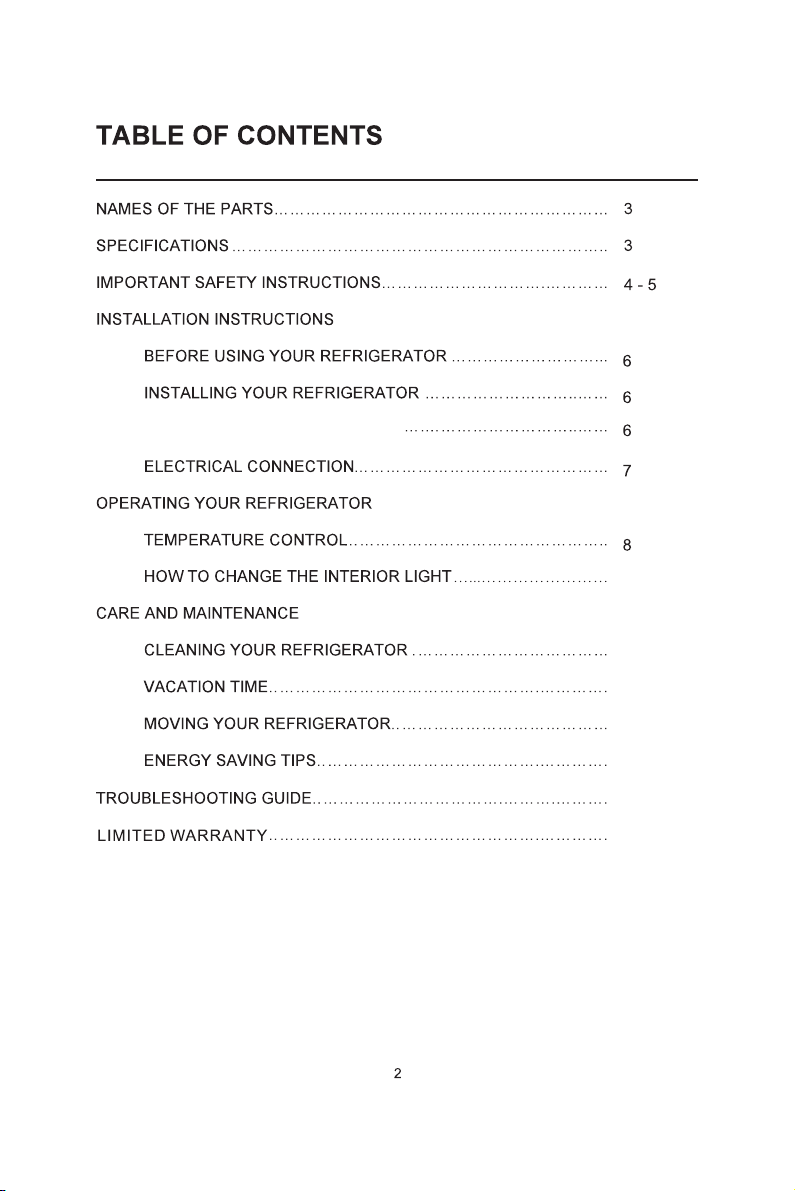

Table of contents
