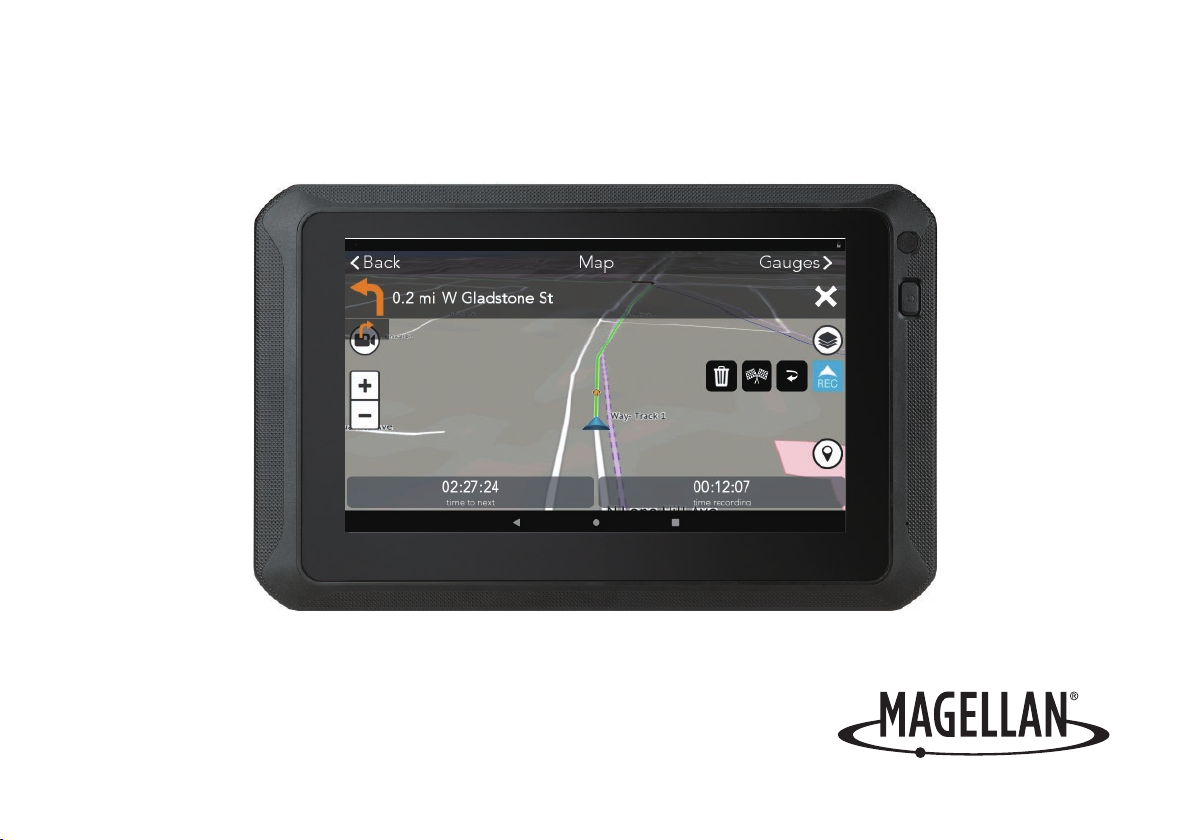

Magellan TRX7 CS Pro User manual

Off-Road GPS Navigator

Quick Start Guide

Magellan®TRX7 CS Pro

The Magellan TRX7 CS Pro is an Off-Road vehicle navigation aid

designed to assist you in driving on your route and arriving at your

selected destinations.

Please check with your state or local law enforcement for applicable

regulations regarding mounting to the windshield.

The driver should enter data or program the Magellan receiver only

when the vehicle is stopped. Only a vehicle passenger should enter data

or program the receiver while the vehicle is moving.

It is your responsibility to comply with all trafﬁc laws.

Every attempt is made to ensure that the database is accurate.

However, roadways, points of interest (POIs), and business and service

locations may change over time.

Keep the receiver safe from extreme temperature conditions. For

example, do not leave it exposed to direct sunlight for an extended

period of time. The maximum operating temperature is 140°F (60°C).

Take care when mounting the receiver in your vehicle, whether using

the windshield mount or other mount or accessories, that it does not

obstruct the driver’s view of the road, interfere with the operation of

the vehicle’s safety devices such as airbags, or present a hazard to

occupants of the vehicle should the receiver be dislodged while driving.

You assume the risks associated with damage to your vehicle or vehicle

occupants as the result of your choices in mounting the receiver.

The battery is rechargeable and should not be removed. In the event

it should need to be replaced, please contact Magellan Technical

Support.

1. This Transmitter must not be co-located or operating in conjunction

with any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set

forth for an uncontrolled environment. This equipment should be

installed and operated with a minimum distance of 20 centimeters

between the radiator and your body.

WIFI 5G Band 1 is for indoor use only.

Magellan’s Take-Back Program provides a way for

consumers to recycle certain Magellan equipment.

As part of this program, all Magellan GPS models will

be accepted.

Visit magellanGPS.com for more information.

Magellan Take-Back Program

Safety.

FCC RF Radiation Exposure Statement

Magellan TRX7 CS Pro connects you to the ultimate off-highway navigation

experience. Find Trails and create custom Routes for street-to-trail navigation.

Record your Tracks and Waypoints as you explore. Take photos and videos during

your journey. Review and share your experiences with friends and view Tracks

shared by other TRX users so that you’re always informed about the latest off-

highway information.

It all starts with Magellan TRX7 CS Pro.

720 P

trxsupport.magellangps.com.

Connect with us

@MagellanTRX

TRX7 CS Pro Hardware.

This Quick Start Guide will provide you with

the essential info you need to get started

with your Magellan TRX7 CS Pro. Find more

tutorials, videos, and support for your TRX at

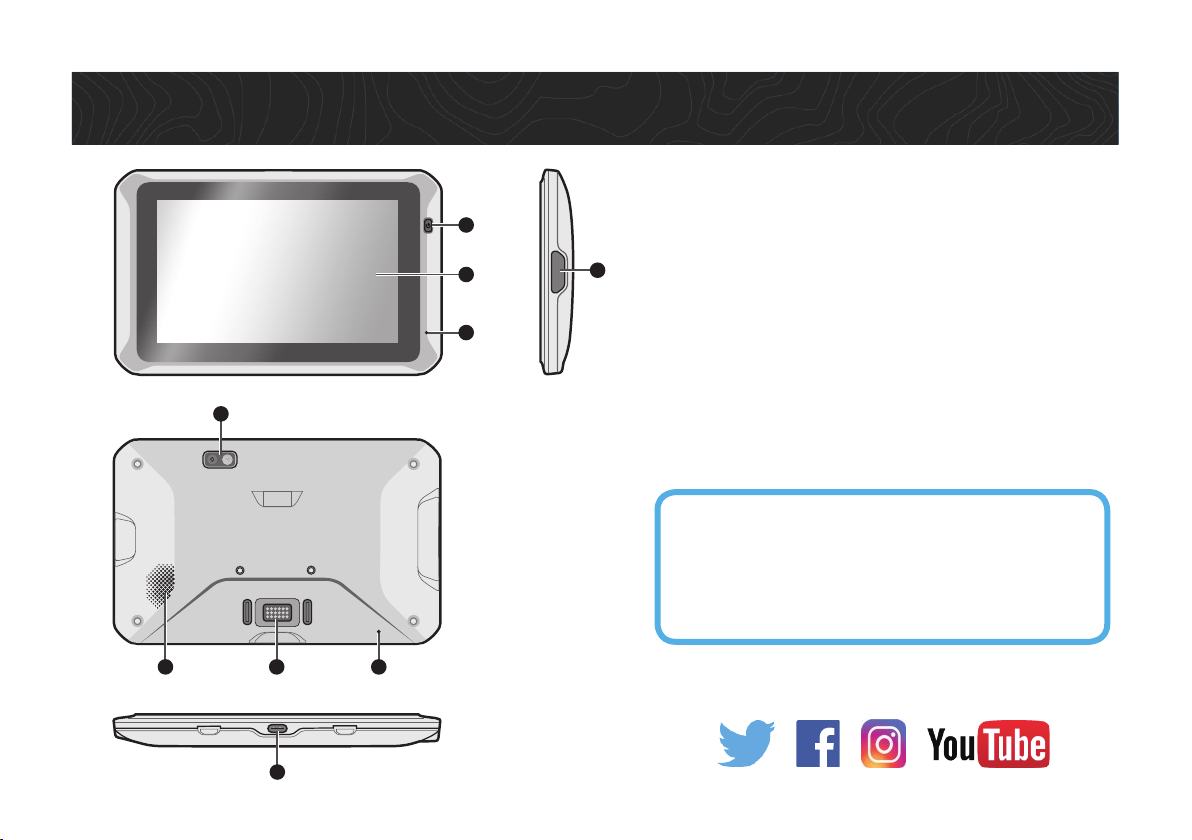

1. Power button

2. Touchscreen

3. Microphone

4. Memory card slot

5. Camera lens with flash light

6. Speaker

7. Pogo pins

8. Microphone

9. Micro-USB port

SIM Card MicroSD Card

SIMSD

❸

❹

❺

❶

❷

❸

❹

❺

❶

❷

❸

FLEET

SIM

6 7 8

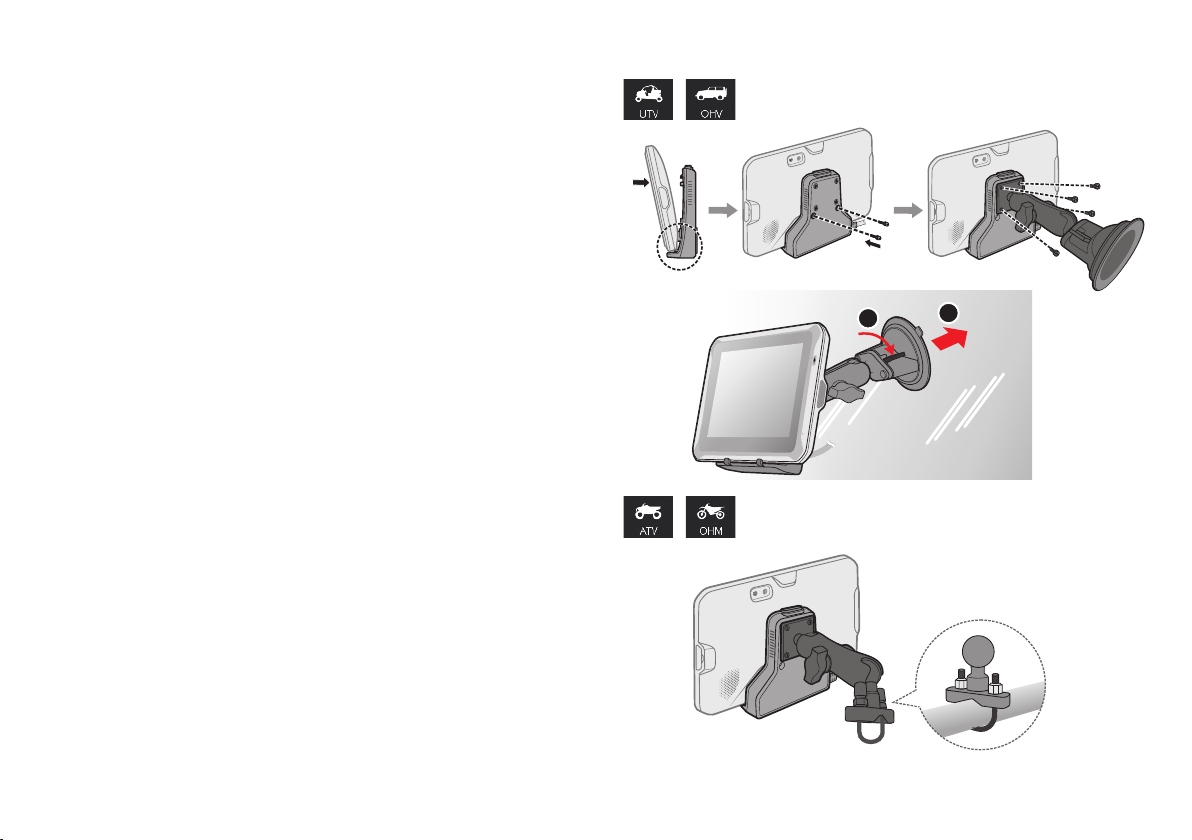

Install the TRX.

1. Find a location with a clear view of the sky.

2. Mount the TRX in your vehicle

Clean the area on the windshield where you want to

mount the device. Allow the surface to dry.

Screw the mount baseplate on the cradle. Attach

the device onto the mount. Attach the mount to the

vehicle.

Mount the TRX on your ATV/OHM

Use the U-mount accessory kit to mount the TRX on

the handle bar of your ATV/OHM.

Note: RAM suction and U-Bolt mounts both require

additional assembly.

3. Plug the device into your Vehicle Power Outlet using

the Vehicle Power Adapter supplied with your TRX.

Please use only the supplied VPA.

Note: Go to trxsupport.magellangps.com for articles and

videos about setting up and operating your TRX, and get

in touch with our Magellan TRX Support team via email at

[email protected].

TRX7 CS Pro Software.

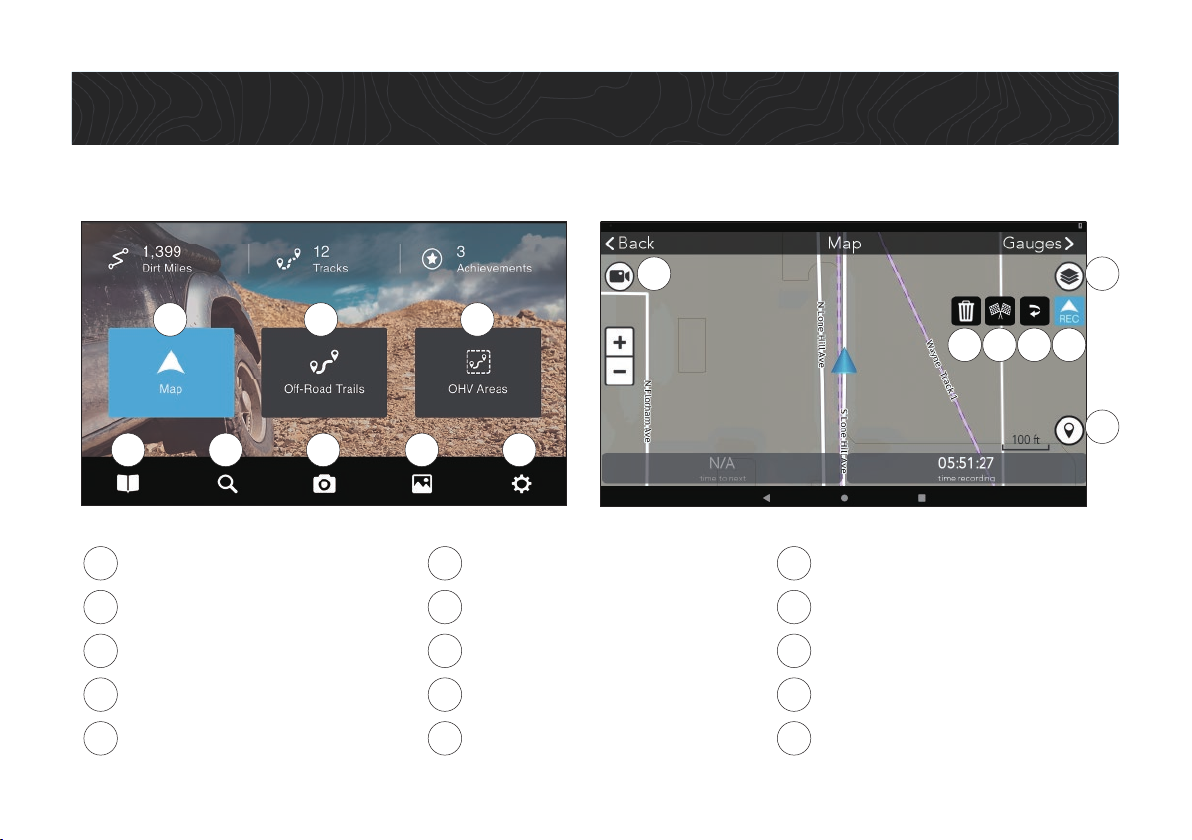

TRX7 CS Pro Dashboard Screen TRX7 CS Pro Map Screen (paused)

11 12 13 14

109

1Map: Tap to open the Map screen.

2Off-Road Trails: Quick search for off-

road trails nearby.

3OHV Areas: Quick search for OHV areas

nearby.

4Journal: Contains your Logs & Plans.

5Search: Search for Trails, Tracks, POIs,

etc.

6Camera: Tap to open the Camera app.

7Album: Tap to open the Album app.

8Settings: Edit account, vehicle profiles,

connectivity, etc.

9DVR: Tap to open DashCam.

10 Map Options: View map display settings.

11 Delete: Discard current Track.

12 Finish: Save Track with details and

commentary.

13 Backtrack: Follow active Track back to

starting point.

14 Start/Pause: Tap to pause tracking or

resume tracking.

15 Waypoint: Mark Waypoints while driving

or recording a Track.

1 2 3

4 5 6 7 8

1. Power On.

Press and hold the Power button to turn the device on.

2. Connect to WIFI.

1. Tap Settings from the TRX Dashboard.

2. Scroll down to WIFI > tap the check box next to the

WIFI option to see available networks.

3. Tap the network you want to connect to.

4. Enter WIFI password (if applicable).

5. Tap Connect.

3. Update Software + Maps.

Note: WIFI must be ON to get updates as well as to sync

your TRX with your TRX Trailhead account. You must also

have a good internet connection to complete updates.

1. Tap Settings from the TRX Dashboard.

2. Tap Updates > Software Update or Map Update.

3. Follow the instructions to update to the latest

software version or download the latest map data.

4. Create Your TRX Account.

1. Tap Settings from the TRX Dashboard.

2. Tap Account Profile.

3. Enter your account details. Use your existing

MagellanGPS.com account if you have one.

4. Tap Create Account to confirm your account details.

If you used an existing MagellanGPS.com account,

your TRX will be registered to that account.

A MagellanGPS.com account will also be created if you’re

new to Magellan and you’re registering an email address

for the first time.

Go to www.TRXTrailhead.com once you’ve created your

account > enter your email and password to log in with

your TRX/Magellan GPS account.

Get Started.

Various factors inﬂuence GPS signal reception and

there are some tips you can follow to improve the signal

reception and time it takes to calculate the current

location.

• Leave any enclosed structure, (garage, parking

structures, etc.).

• Make sure you have a ‘clear view of the sky’. Buildings

and trees can have an impact on GPS signal reception.

• Be sure that the device is mounted where it can have a

clear line of sight to the windshield.

Note: The ﬁrst time the device calculates its location can take up

to 1 minute. Subsequent times will be 15 seconds on average.

Important

5. Get a GPS Signal.

1. Access to the device's Settings app.

2. Scroll down to Security & location > tap Location.

3. Slide User location button to On to let the device

apps use your location information.

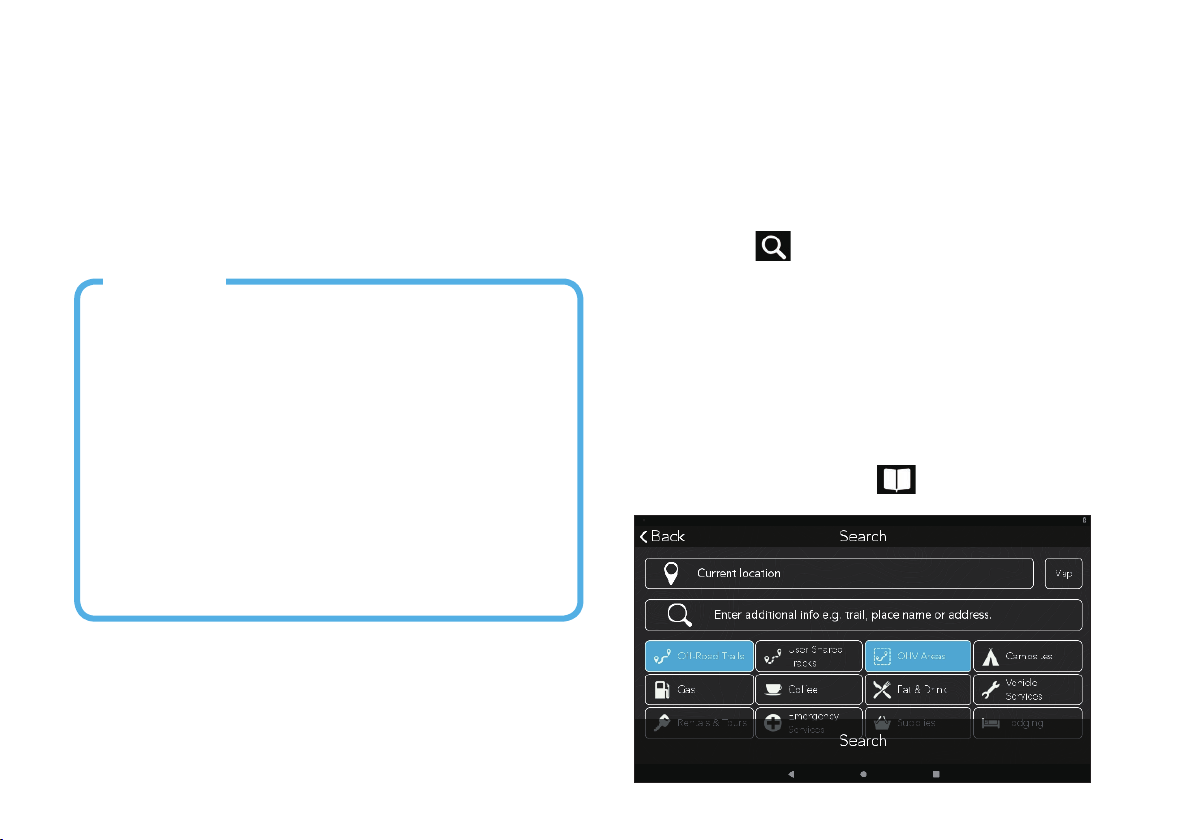

6. Search For Trails.

Your TRX helps you filter for Trails, Tracks, Trips, or

POIs around you. You can also search for map data in

other locales no matter their distance from your current

location.

1. Tap Search from the TRX Dashboard.

2. Search for an Address, Trail, or other location that

you want to get to.

3. Tap any desired filter button > tap Search.

4. Tap individual items in the results list.

5. Tap Save to add items of interest to your plan list.

To follow saved Trails or Tracks, go to your plan list on

the TRX Dashboard > Journal > Plans.

Log Your Tracks.

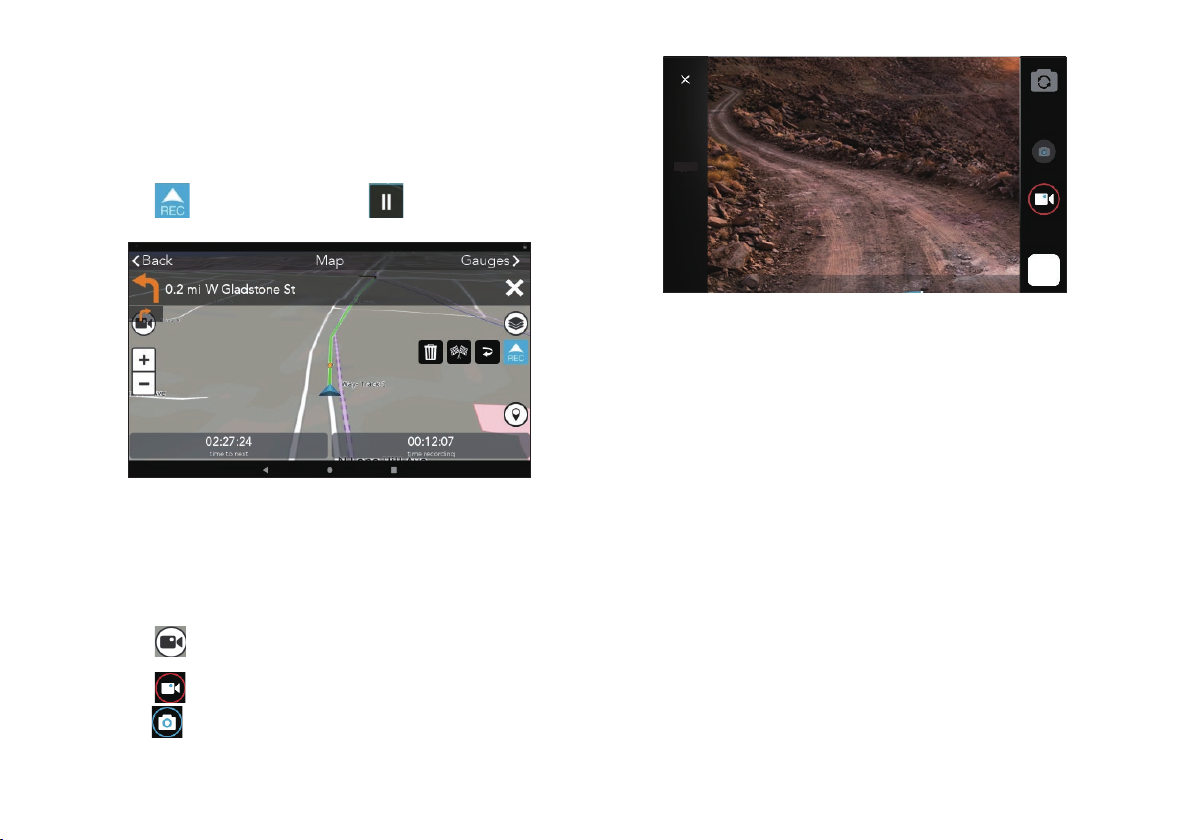

1. Tap Map from the TRX Dashboard. The Map Screen

opens to free driving mode.

2. Tap to start Tracking or to pause Tracking.

Take Photos and Videos.

To take photos and videos with your TRX during the

Track or along a Trail:

1. Tap on the Map screen.

2. Tap to begin capturing video footage or

tap to take a photo.

Note: The photos and videos are automatically saved

to your device. To access your photos and videos,

swipe up from the bottom of the device's Home screen

> tap Files > DCIM folder.

Auto record

You can enable "Auto record" to capture video footage

automatically along the Trail.

1. Plan your Trail.

2. Tap Follow > Start to End or End to Start.

3. Tap Begin > select the recording mode: Normal

recording, Normal recording with gauge or

Timelapse recording.

4. When you are approaching the Trail, select Stay at

TRX or Go to recording view when prompted.

Your TRX will automatically start recording when you

begin the Trail.

720 P

Backtrack.

Tap to follow the Track you just created back to its

start, in reverse.

Finish and Save Track.

1. Tap while Tracking.

2. Enter a name for the track.

3. Enter details to calculate a difficulty rating.

4. Tap Save to see your stats and achievements.

Note: Entering Track details is optional when you first

save the Track, but mandatory before publishing a Track

on www.TRXTrailhead.com.

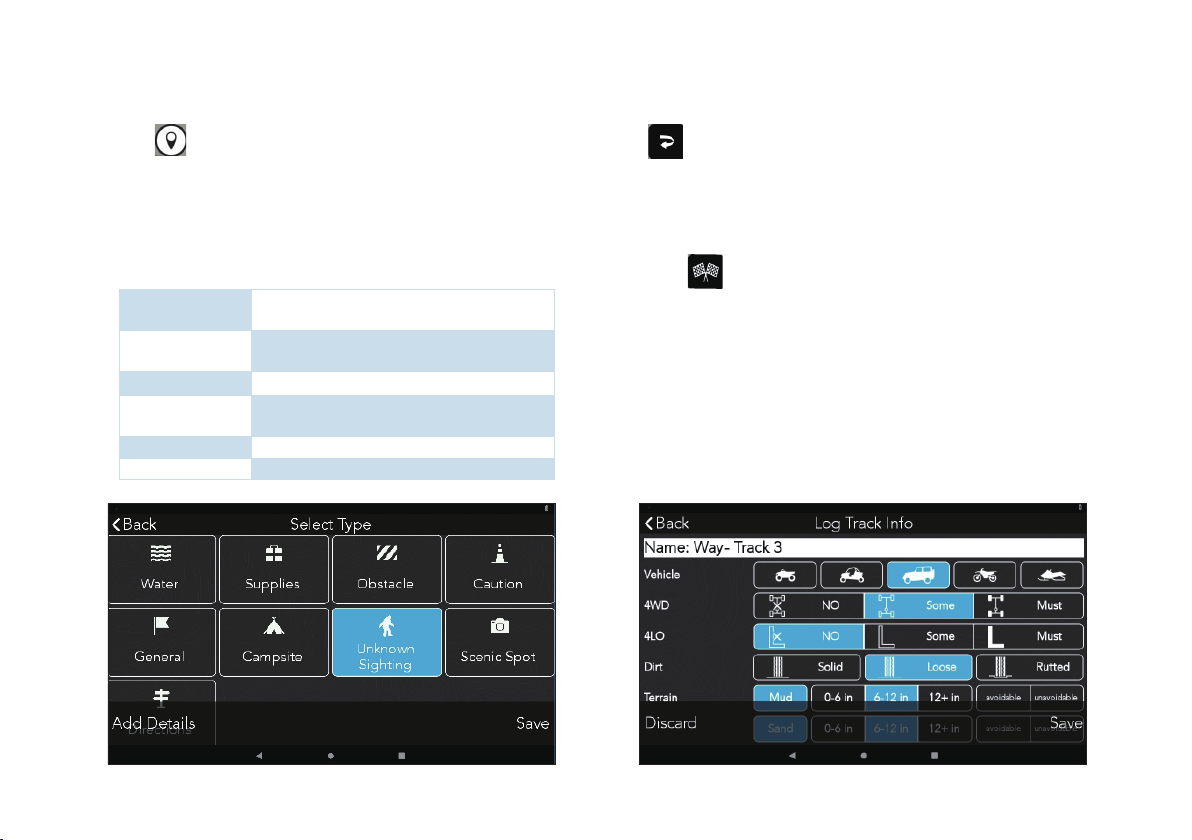

Mark Waypoints.

1. Tap to leave Waypoints when Tracking your

route or while you’re stopped on a Track or Trail.

2. Tap any desired filter button.

3. Tap Add Details to select from the following

Waypoint options:

Current Position Set a Detail Waypoint marker at your

location.

Point on Map Set a Waypoint marker anywhere on the

map.

Coordinates Use Lat/Long coordinates to set Waypoint.

Audio Record and save a message about your

location.

Add Photo Add photo(s) of your location.

Comment Add comment to the location.

Table of contents

Other Magellan GPS manuals

Magellan

Magellan MobileMapper CE - Hiking GPS Receiver User manual

Magellan

Magellan eXplorist 200 - Hiking GPS Receiver User manual

Magellan

Magellan RoadMate 5175T Traveler Instruction Manual

Magellan

Magellan ProMark3 User manual

Magellan

Magellan MobileMapper CX - Hiking GPS Receiver User manual

Magellan

Magellan RoadMate 1200 - Automotive GPS Receiver Service manual

Magellan

Magellan Triton 300 User manual

Magellan

Magellan Blazer12 User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 360 - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan Meridian Series User manual

Magellan

Magellan eXplorist 100 User manual

Magellan

Magellan MobileMapper CE - Hiking GPS Receiver User manual

Magellan

Magellan eXplorist 400 - Wilderness Bundle User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan eXplorist 600 User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 1200 - Automotive GPS Receiver Troubleshooting guide

Magellan

Magellan RoadMate 3045T User manual

Magellan

Magellan Maestro 4220 - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 1700 - Automotive GPS Receiver Instruction Manual

Magellan

Magellan RoadMate 1230 User manual

Magellan

Magellan eXplorist TRX7 User manual

Popular GPS manuals by other brands

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Operating instruction

Garmin

Garmin SOUNDER 125 Owner's manual & reference

Garmin

Garmin DEZL 580 owner's manual

Jigabot

Jigabot EX quick start guide

Pointer

Pointer Cellocator CelloTrack XT LTE overview

Queclink

Queclink GV55LITE user manual

Voxson

Voxson Voxtrack GPS500 Quick user guide

Garmin

Garmin ECHOMAP PLUS owner's manual

Starcom Systems

Starcom Systems Kylos Compact user guide

Garmin

Garmin 15 H Series Technical specifications

Cobra

Cobra Marine MC 600Ci owner's manual

Cellocator

Cellocator CelloTrack T installation guide

Enfora

Enfora Mini-MT GSM2228UG001 user guide

LTE

LTE G50B user manual

Garmin

Garmin DEZL OTR500 owner's manual

SkyGolf

SkyGolf SkyCaddie SG1 user guide

Garmin

Garmin GPSMAP 78 series owner's manual
