MAGELLAN CYCLO 500 / 505

USER MANUAL

2 | P a g e

Welcome

Thank you for purchasing this Magellan Cyclo. Please read this manual carefully before using your

Magellan for the first time. Keep this manual in a safe place and use as your first point of reference.

isclaimer

Not all models are available in all regions.

epending on the specific model purchased, the colour and look of your device and accessories may

not exactly match the graphics shown in this document.

Magellan operates a policy of ongoing development. Magellan reserves the right to make changes

and improvements to any of the products described in this document without prior notice. Magellan

does not warrant that this document is error-free. The screenshots and other presentations shown

in this manual may differ from the actual screens and presentations generated by the actual

product. All such differences are minor and the actual product will deliver the described functionality

as presented in this User Manual in all material respects.

respective owners.

ANT+™ is a trademark of ynastream Innovations Inc. or its subsidiaries.

3 | P a g e

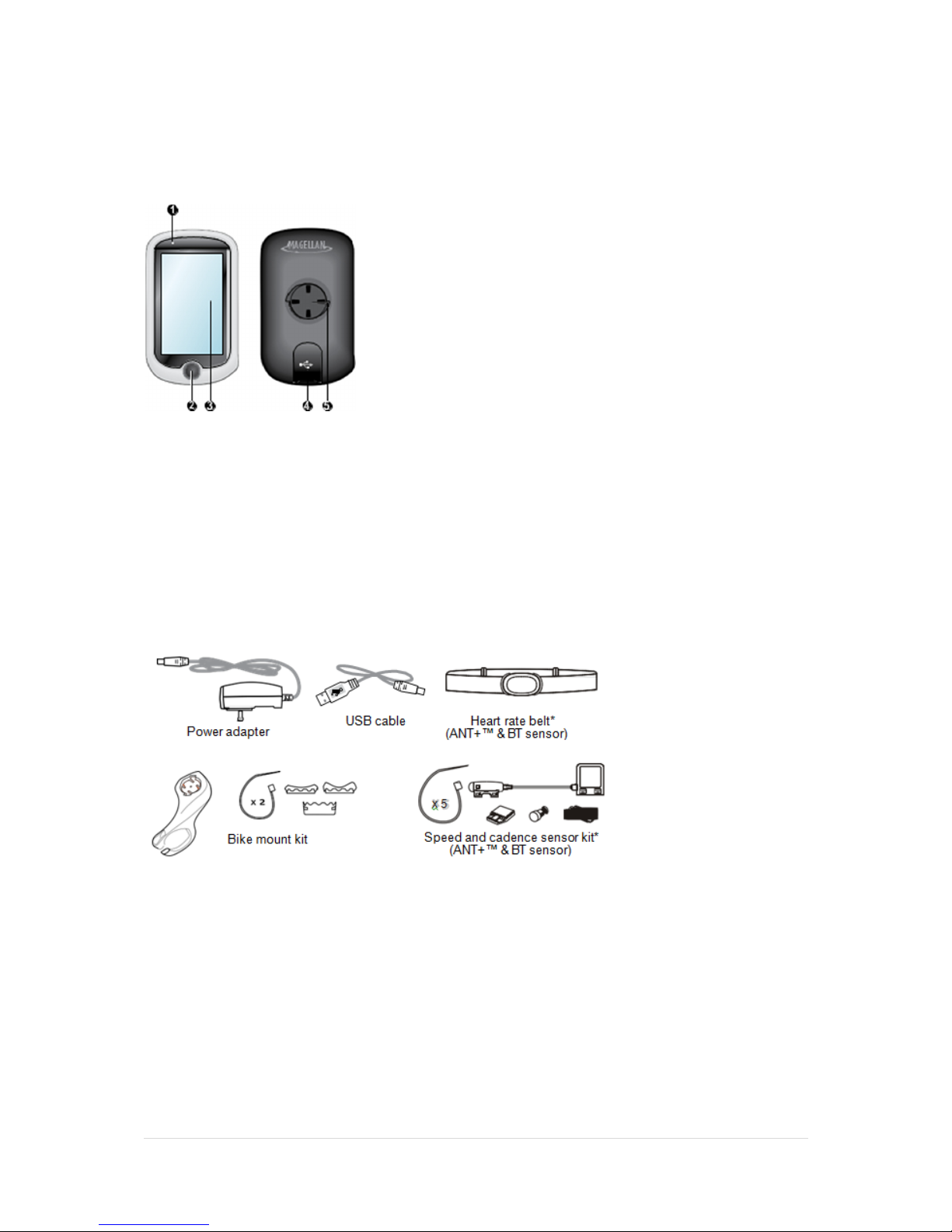

Knowing your device

Head Unit

1. Charge Indicator

Indicates the level of internal battery

charge: Green - battery full; Orange - battery

charging.

2. POWER button

Turns your device on/off.

3. Touch screen

• isplays the output of your device.

• Tap the screen with your finger to

select menu commands or enter information.

4. Mini-USB connector

Connects to the charger or USB cable.

5. Bike mount socket

For the device mount.

Accessories

Your device comes with the following accessories. To use your device on a bike, ensure you use the

specific bike mount kit that came with your device. Magellan may provide optional accessories for

specific models. Please visit the Cyclo website (www.magellangpd.com.au or

www.magellangps.co.nz) for information.

Note: epending on the specific model purchased, the colour and look of your device and

accessories may not exactly match the graphics shown in this document.

* May be sold separately and used for selected models only.

Information:

This device is ANT+ certified. Visit www.thisisant.com/directory for a list of compatible products and

apps.

4 | P a g e

Getting started

Charging the battery

Your device has an internal battery that may not be fully charged when you purchase it. You should

charge the battery for at least 8 hours before you start using it for the very first time.

To charge the battery:

Using a power socket

•Plug the home charger cable into the USB connector on the back of your device and the

charger into the AC outlet.

Via the computer

•Connect your device to the computer by using the provided USB cable. For more

information, see "Connecting your device to the computer" in this section.

CAUTION:

For optimal performance of the lithium battery, note the following:

•o not charge the battery where the temperature is high (e.g. in direct sunlight).

•The battery will stop charging when the ambient temperature is less than -10ºC (14ºF) or

more than 60ºC (140ºF).

•Recharge the battery when it is nearly discharged. When recharging, make sure that the

battery is fully charged. oing so can extend the battery life.

•If you will not use the product for a long period of time (over one month) or find the

discharge/recharge time has been shortened, be sure to fully discharge the battery first

before recharging it. You are also advised to fully discharge and recharge the battery once

every 1~2 months.

•Failure to follow the battery usage instructions could cause damage to your device, battery

and even bodily injury or property damage and will void the warranty.

Performing the initial start-up

1. Mount the device and accessories on to your bike.

2. Press and hold the POWER button for 3 seconds to turn your device on.

3. Follow the prompts to personalize your device, including:

•Select your preferred language.

•Set the date and time.

•Set the units format.

•Create your user profile.

Note: You can change these settings later by tapping Main menu > Settings.

4. Once your device is turned on, it will search for satellite signals automatically. This may take

several seconds depending on the location.

When GPS is fixed, the GPS signal icon on the screen indicates the GPS status.

5 | P a g e

5. epending on your device model, it will also automatically scan for heart rate monitor and

cadence/speed sensor and prompt to pair them with Cyclo.

See the following section for sensor installation and pairing.

You can also scan the accessories manually by tapping Main menu > Settings > Sensors.

Connecting your device to the computer

1. Turn on the computer.

2. Turn on your device. Connect the mini-USB end of the USB cable to the back of your device and

the other end to a USB port on your computer.

3. Select the desired connection type from the pop-up message window:

•Connect to PC: Your device will be recognised as two external mass storage drives:

Mgn_system and Mgn_data. You can use Windows File Explorer to copy/move the files from

the computer to your device. A USB Connection screen appears to prevent you from using

your device.

O NOT delete any files that are pre-installed on the device. eleting the files can cause the

device to crash. Magellan is not responsible for product quality caused by file deletion.

•Charge only: You will be able to continue using your device with the battery in charging

mode via the computer.

Installing the device

Follow the instructions in this section to mount the device and the cadence/speed sensor kit (for

selected models only) on your bike. In addition, you will need to put on the heart rate monitor

during your workouts.

Provided Mounts

Two styles of mounts may be provided for the device. These are the forward mount and the cable-

tie mount. If both are included with your kit, you may use either, or mount them on two different

bikes.

Installing the Cable-Tie mount

The bike mount kit includes two types of rubber pads, allowing you to attach the bike mount to your

bike securely.

1. Select the rubber pad that best fits the handle bars on your bike and then attach it using the two

plastic straps.

6 | P a g e

2. Align the latch on the back of the device with the slot on the bike mount, and then rotate the

device clockwise to lock the device to the bike mount.

You can choose to mount the device on the handlebar (a) or on the stem (b).

Installing the sensors on your bike

The cadence/speed sensor kit is used for selected models only.

1. Follow the instruction below to install the cadence/speed sensor kit on your bike.

For both sensors (crank and wheel):

Set clearance between magnet and sensor

3-5 mm (1/8 - 3/16 inch)

7 | P a g e

2. Ensure that the magnets are aligned with the sensing area on the sensors.

3. When done, you can pair the sensor with your device by tapping:

Main menu > Settings > Sensors > Cadence/Speed

Note: the sensors “sleep” when not in use to conserve battery power. They “wake up” when they

receive their usual input - the Speed/Cadence sensor must “see” a magnet passing it a few times to

wake up. The sensor can only be paired within a few minutes of “waking up”, or it goes back to

sleep.

Putting on the heart rate monitor

The ANT+ heart rate monitor is used for Magellan Cyclo 505 only. A Bluetooth heart rate monitor

can be used for both Magellan Cyclo 500 and 505.

Note: Please note the heart rate monitor is not a medical device and its readings are not a substitute

for obtaining measurements that require medical precision. It is strongly recommended to consult a

doctor if you have a pacemaker or other implanted devices before using the heart rate monitor.

1. Before using the heart rate monitor, wet the contacts on the back of the chest strap. You can also

use an electrolyte gel (usually available in local sports stores) to ensure good contact.

2. Adjust the elastic strap so it’s snug while you are putting it on. Ensure that you can take a good

deep breath after putting on the strap.

3. Follow the instructions below to wrap the strap around your back, and then secure it on the other

side with the buckle.

8 | P a g e

4. When done, you can pair the monitor with your device by tapping

Main menu > Settings > Sensors > Heart rate.

Note: the sensors “sleep” when not in use to conserve battery power. They “wake up” when they

receive their usual input - the Heart Rate Monitor’s pads must firmly touch your skin to wake up.

The sensor can only be paired within a few minutes of “waking up”, or it goes back to sleep.

Battery Replacement

The cadence sensor and heart rate monitor each contain a replaceable

CR2032 battery. Follow the instructions below to replace the battery:

1. Locate the battery cover on the back of the unit, and then twist the cover counterclockwise (e.g.

by using a coin) to remove the cover and battery.

2. Insert the new battery into the battery chamber .

3. Making sure the rubber ring is in place, replace the cover.

4. Twist the cover clockwise (e.g. by using a coin) to close the cover.

Operating basics

Using the POWER button

• Turning on the device

Press and hold the POWER button for 3 seconds to turn on your device.

• Turning off the device

Press and hold the POWER button for 3 seconds to pop up the Power Off/Cancel screen.

Choose Power Off to turn off the device or Cancel to continue operating the device.

Note: Press and hold the POWER button for 5 seconds to force power off if the device doesn’t

respond.

Your device will automatically turn off after 10 minutes (by default) of inactivity. The Power

Off/Cancel screen will pop up and the device will be turned off if you do not make a selection.

Note: You can change the auto power off setting by tapping Main menu > Settings > Screen > Auto

Power Off Timer.

9 | P a g e

Using the touch screen

To operate your device, touch the screen with your finger. You can perform the following actions:

• Tap

Quick touch the screen once to open menus or select onscreen button/option.

• rag

While navigating on the map, tap and hold on the screen without releasing your finger to

move the map to the desired position.

• Slide

rag your finger vertically or horizontally across the screen.

• rag to the left/right to switch to another menu screen.

• rag to the top/bottom to scroll up/down a list.

Note: Not all slide gestures are applicable to all screens.

Unlocking the screen

Your device will automatically lock the screen after 5 minutes (by default) of inactivity. When the

screen is locked, press the POWER button briefly to unlock the screen.

Note: You can change the screen lock setting by tapping Main menu > Settings > Screen > Screen

Lock Timer.

• Navigating through the screens

While the device is turned on and you are navigating through the menu screens, press the POWER

button briefly to return to the previous screen.

Main menu

The Main menu is your starting place for various tasks, providing quick access to applications and

settings. Tap a button to start a task or open another menu.

The System icons

Various System icons on the title bar at the top of the screen provide the status information of your

device. epending on your settings, the icons may be different to provide various information of

your device. Please note that these icons will not be always displayed during your trip/training.

10 | P a g e

Time isplay

User Profile

Heart Rate Connection

Speed / Cadence Connection

Power Meter

Connection

Shimano i2 Connection

Bluetooth Connection

Activity Recording Status

GPS Signal

10.

Battery Status

Keyboard screen

The Keyboard screen will display when you are required to enter text, such as when searching for a

street name. Search results will be listed in matching order, with the closest matches appearing on

the screen. The Keyboard screen can display with various layouts depending on the information you

need to enter.

The keyboard features the “Predictive text” technology that allows addresses to be searched easily

and quickly. As you enter a letter of an address, your device will compare all possible combinations

against the maps.

Changing the keyboard layout

The device also supports Russian, Bulgarian, and Greek keyboards. You can enable/disable them

from Main menu > Settings > Keyboard. The enabled keyboards are available in addition to the

English and numeric keyboards.

The keyboard selection keys will then include ABC, 123, and the additional keyboard(s) enabled.

Viewing ashboard screens

The ashboard provides the extended screens that can be used to assist you in your travels,

trainings, and workouts. The layout of the dashboard screens can be customized to display the

information (e.g. speed, distance, time, calories, etc.) you want to know.

Other manuals for Cyclo 500 Series

This manual suits for next models

Other Magellan GPS manuals

Magellan

Magellan ProMark3 User manual

Magellan

Magellan eXplorist User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 1200 - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan Triton Triton 300 User manual

Magellan

Magellan RoadMate 760 - Automotive GPS Receiver User manual

Magellan

Magellan ROADMATE 5045 User manual

Magellan

Magellan eXplorist 400 - Wilderness Bundle User manual

Magellan

Magellan RoadMate 3120 User manual

Magellan

Magellan eXplorist 110 User manual

Magellan

Magellan RoadMate 360 - Automotive GPS Receiver User manual

Magellan

Magellan Trailblazer XL User manual

Magellan

Magellan Maestro 3220 - Automotive GPS Receiver Configuration guide

Magellan

Magellan Triton 400 - Hiking GPS Receiver User manual

Magellan

Magellan RoadMate 6230-LM User manual

Magellan

Magellan RoadMate 3045T User manual

Magellan

Magellan eXplorist 500 - Hiking GPS Receiver User manual

Magellan

Magellan RoadMate 9055-LM User manual

Magellan

Magellan RoadMate 3000T - Automotive GPS Receiver User manual

Magellan

Magellan RoadMate 1700-LM User manual

Magellan

Magellan RoadMate 1200 - Automotive GPS Receiver Setup guide

Magellan

Magellan eXplorist TRX7 User manual

Magellan

Magellan eXplorist 200 - Hiking GPS Receiver User manual

Popular GPS manuals by other brands

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Operating instruction

Garmin

Garmin SOUNDER 125 Owner's manual & reference

Garmin

Garmin DEZL 580 owner's manual

Jigabot

Jigabot EX quick start guide

Pointer

Pointer Cellocator CelloTrack XT LTE overview

Queclink

Queclink GV55LITE user manual

Voxson

Voxson Voxtrack GPS500 Quick user guide

Garmin

Garmin ECHOMAP PLUS owner's manual

Starcom Systems

Starcom Systems Kylos Compact user guide

Garmin

Garmin 15 H Series Technical specifications

Cobra

Cobra Marine MC 600Ci owner's manual

Cellocator

Cellocator CelloTrack T installation guide

Enfora

Enfora Mini-MT GSM2228UG001 user guide

LTE

LTE G50B user manual

Garmin

Garmin DEZL OTR500 owner's manual

SkyGolf

SkyGolf SkyCaddie SG1 user guide

Garmin

Garmin GPSMAP 78 series owner's manual
