MAC TOOLS AS726M User manual

AS726M 1 11/13/14

SPECIFICATIONS

Strokes Per Minute (SPM) ......7,500

Stroke Length ...............3/16"

Cutting Capacity ........3/64" Steel

Air Inlet (NPT) ................1/4"

Air Pressure (PSIG)..............90

Air Consumption (CfM) ........ 0.7

Hose Size (I.D.) .............5/16"

Sound Pressure Level .......84 dBA

Sound Power Level .........87 dBA

Length................... 7-5/8"

Net Weight...............0.94 lbs.

Some dust created by power sanding, sawing, grinding, drilling, and

other construction activities contains chemicals known to cause

cancer, birth defects or other reproductive harm. Some examples of

these chemicals are:

 

 

and other masonry products, and

 

 

Your risk from these exposures varies, depending on how often you

do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety

equipment, such as those dust masks that are specially designed to

filter out microscopic particles.





























 

 



 



AS726M

MINI

AIR SAW

WARNING WARNING

AS726M 2 11/13/14

THIS INSTRUCTION MANUAL CONTAINS IMPORTANT

SAFETY INFORMATION.

It is the responsibility of the owner to make sure all personnel read

this manual prior to using the device. It is also the responsibility

of the device owner to keep this manual intact and in a convenient

location for all to see and read. If the manual or product labels

are lost or not legible, contact Mac Tools for replacements. If the

operator is not ﬂuent in English, the product and safety instructions

shall be read and discussed with the operator in the operator's

native language by the purchaser/owner or his designee, making

sure that the operator comprehends its contents.

• Read,study,understand&followallinstructionsbeforeusing.

• Cuttingwiththesetoolswillcreatesharpedges.Wearglovesto

protect hands.

• Cuttingedgesandshearbladescanbecomehotduringuse.Do

not touch.

• Neverforcethecuttingtooltocutfasterorthroughheavier

gauge material than rated capacity.

• Addforanytoolswithsafetylever:Donotlock,tapeorwire

the"on/off"safetyleverinthe"on"position,asthelevermust

befreetoreturntothe"off"positionwhenreleased.

• Alwaysoperate,inspectandmaintainthistoolinaccordancewith

AmericanNationalStandardsInstituteSafetyCodeforPortableAirTools

(ANSIB186.1)andanyotherapplicablesafetycodesandregulations.

• ForSafety,topperformanceandmaximumdurabilityofparts,operate

thistoolat90psig/6.2barmaxairpressurewith5/16"diameterair

supply hose.

• Alwayswearimpactresistanteye&faceprotection(Users&

Bystanders)whenoperatingorperformingmaintenanceonthistool.

• Alwayswearhearingprotectionwhenusingthistool(Users&

Bystanders).Highsoundlevelscancausepermanenthearingloss.

UsehearingprotectionasrecommendedbyyouremployerorOSHA

regulation.

• Keepthetoolinefficientoperatingcondition.

• Operatorsandmaintenancepersonnelmustbephysicallyabletohandle

bulk, weight and power of this tool.

• Keeptooloutofreachofchildren.

• Airpoweredtoolscanvibrateduringuse.Extendedexposureto

vibration, repetitive motions or uncomfortable positions during use

maybeharmfultoyourhandsandarms.Discontinueuseoftoolif

discomfort, tingling feeling or pain occurs. Seek medical advice before

resuming use.

• Compressedaircancausesevereinjury.Neverdirectairatyourselfor

others. Always turn off the air supply, drain hose of air pressure and

detachtoolfromairsupplybeforeinstalling,removingoradjustingany

part or accessory on this tool, or before performing any maintenance on

thistool.Failuretodosocouldresultininjury.

• Whiphosescancauseseriousinjury.Alwayscheckforandreplace

immediately any damaged, frayed or loose hoses and fittings.

• Donotoperateadamagedorworntool.Donousequick-detach

couplingsattool.Seeinstructionsforcorrectset-up.

• Placethetoolontheworkbeforestartingthetool.Donotpointorindulge

in any horseplay with this tool.

• Slipping,trippingand/orfallingwhileoperatingairtoolscanbea

majorcauseofseriousinjuryordeath.Beawareofexcesshoselefton

walking or work surface.

• Keepbodyworkingstancebalancedandfirm.Donotoverreachwhen

operating this tool.

• Anticipateandbealertforsuddenchangesinmotionduringuseofany

power tool.

• Donotcarrytoolbyhose.Protectthehosefromsharpobjectsandheat.

• Toolshaftmaycontinuetoreciprocatebrieflyafterthrottleisreleased.

Avoid direct contact with accessories during and after use. Gloves will

reduce the risk of cuts or burns.

• Keepawayfromreciprocatingendoftool.Donotwearjewelryorloose

clothing. Secure long hair. Scalping can occur If hair is not kept away

fromtoolandaccessories.Chokingcanoccurifneckwearisnotkept

away from tool and accessories.

• Thistoolisnotinsulatedagainstelectricshock.

• Thistoolmustnotbeusedinexplosiveatmospheres.

• Donotlubricatetoolswithflammableorvolatileliquidssuchas

kerosene,dieselorjetfuel.

• Donotforcetoolbeyonditsratedcapacity.

• Donotremoveanylabels.Replaceanydamagedlabels.

• UsereplacementpartsandaccessoriesrecommendedbyMacTools.

• Servicingandrepairsshouldonlybemadebyanauthorizedservice

center.

• Donotuse(ormodify)thetoolforanyotherpurposethanthatforwhich

itwasdesignedwithoutconsultingthemanufacturer'sauthorized

representative.

• Somedustcreatedbypowersanding,sawing,grinding,drilling,and

other construction activities contains chemicals known to cause

cancer,birthdefectsorotherreproductiveharm.Someexamplesof

these chemicals are:

 • leadfromlead-basedpaints,

 • crystallinesilicafrombricksandcementandothermasonry

products, and

 • arsenicandchromiumfromchemically-treatedlumber

 Yourriskfromtheseexposuresvaries,dependingonhowoftenyoudo

thistypeofwork.Toreduceyourexposuretothesechemicals:work

inawellventilatedarea,andworkwithapprovedsafetyequipment,

such as those dust masks that are specially designed to filter out

microscopic particles.

• Thisproductmaycontainoneormorechemicals(orbrasswhere

applicable)knowntotheStateofCaliforniatocausecancerandbirth

defects or other reproductive harm. Wash hands thoroughly after

handling.

FAILURETOOBSERVETHESEWARNINGSCOULDRESULTININJURY.

WArning inforMAtion

AS726M 3 11/13/14

 Ref.# Item# DESCRIPTION QTY

 1 RS26101 ValvePlug 1

 2 RS26102 O-Ring(6.5x1.5mm) 2

 3 RS26103 ThrottlePin 1

 4 RS848010 O-Ring 1

 5 RS26105 O-Ring(4.5x1.7mm) 1

 6 RS26106 Spring 1

 7 RS26107T ValveBody 1

 8 RS26108 CapScrew 8

9 RS26109 RollPin 1

 10 RS26110 SafetyThrottleLever 1

 11 RS26111 Gasket 1

 12 RS26112 Cylinder 1

 13 RS26113MC ComfortGrip 1

 14 RS26114 ValveBody 1

 15 RS26115 SetScrew 1

 16 RS26116A Head 1

17 RS26117 SawBladeGuard 1

 18 RS26118 RearCushionSpring 1

 19 RS26119C PistonRodAssy. 1

 20  WorkPiston(Incl.w/#19) 1

 Ref# Item# DESCRIPTION QTY

 21  OperatePiston(Incl.w/#19) 1

 22  FrontCushionSpring(Incl.w/#19) 1

 24 RS26124A SetScrew(Incl.w/#19) 2

 25  BladeHolder(Incl.w/#19) 1

 26 RS26126 HexagonWrench(2mm) 1

 27 RS26127 ServiceWrench(2.5mm) 1

 30 RS26130A ExhaustCap 1

31 RS26131 AirInlet 1

 34 RS26134 SlideInsert 1

 35 * ReplacementSawBlade 1

 36 RS26136 LockWasher(Incl.w/#19) 1

 37 RS26137 SocketHeadCapScrew(Incl.w/#19) 1

AS726M

Mini Air Saw

* Replacementsavailableas:

 ASB874 24TPIECDCoatSrlBlade,10PK

 ASB876 32TPIECDCoatScrlBlade,10PK

 ASB884 24TPIECDCoatBlade,10PK

 ASB886 32TPIECDCoatBlade,10PK

 ASB984A AirSawBlade32(10PK)

AS726M 4 11/13/14

Nipple

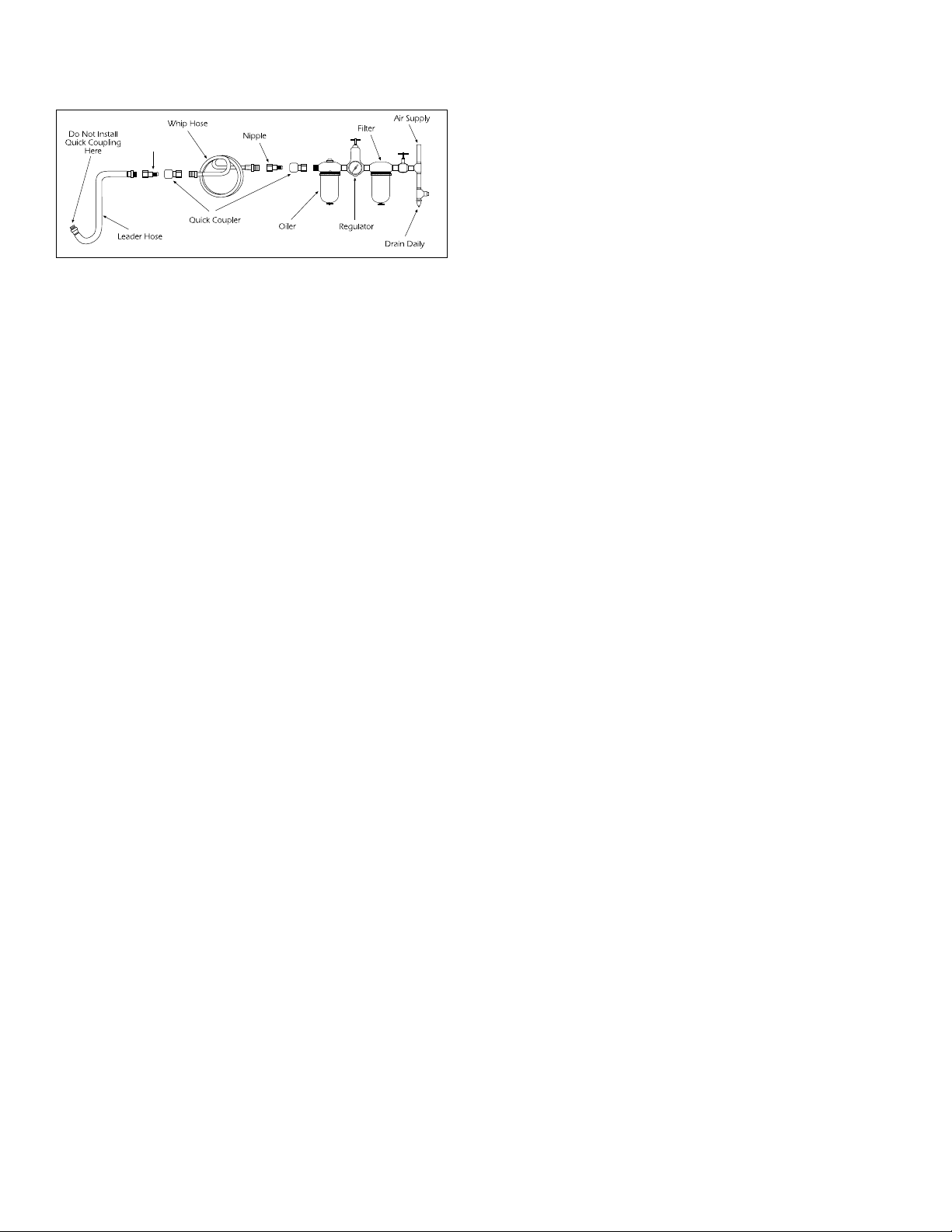

AIR SUPPLY

Tools operate on a wide range of air pressures. It is recommended

that air pressure measures 90 psig at the tool with the trigger fully

depressedandnoloadappliedtothetool.Higherpressure(over

90 psig;6.2bar)raisesperformancebeyondtheratedcapacityofthe

tool,whichwillshortentoollifeandcouldcauseinjury.

Alwaysuseclean,dryair.Dust,corrosivefumesand/orwaterinthe

airlinewillcausedamagetothetool.Drainwaterfromairlines

andcompressorpriortorunningtool.Cleantheairinletfilterscreen

weekly. The recommended hookup procedure can be viewed in the

above figure.

Theairinletusedforconnectingairsupplyhasstandard1/4"NPT.

Linepressureshouldbeincreasedtocompensateforunusuallylong

airhoses(over25feet).Minimumhosediametershouldbe5/16"

I.D.andfittingsshouldhavethesameinsidedimensionsandbe

tightly secured.

Ensure an accessible emergency shut off valve has been installed in

the air supply line and make others aware of its location.

LUBRICATION

Lubricatetheairmotordailywithhighqualityairtooloil.Ifnoairline

oilerisused,run1/2oz.ofoilthroughthetool.Theoilcanbesquirted

into the tool air inlet or into the hose at the nearest connection to the

air supply, then run the tool. A rust inhibitive oil is acceptable for air

tools.

WARNING:Afteranairtoolhasbeenlubricated,oilwilldischarge

throughtheexhaustportduringthefirstfewsecondsofoperation.The

exhaustportmustbecoveredwithatowelbeforeapplyingairpressure

topreventseriousinjury.

OPERATION

Always turn off the air supply, drain hose of air pressure and detach

toolfromairsupplybeforeinstalling,removingoradjustinganypart

or accessory on this tool, or before performing any maintenance on

this tool.

Speedadjustmentisachievedthroughvariablepressureon

the trigger.

Increasing the pressure will increase the speed of the blade.

ToChangeBlades:

1. Detachfromairsupply.

2. Loosen#24SetScrewswith#27wrench.

3. Removeoldbladeandinsertnewbladeinto#25blade 

holder,andtighten#24setscrews.

NOTE:Duringoperation,safetygogglesshouldalwaysbewornto

guardagainstyingrustandchips(users&bystanders).

TROUBLESHOOTING

Otherfactorsoutsidethetoolmaycauselossofpowerorerratic

action.Reducedcompressoroutput,excessivedrainontheairline,

moisture or restrictions in air pipes or the use of hose connections of

impropersizeorpoorconditionsmayreduceairsupply.Gritorgum

deposits in the tool may cut power and may be corrected by cleaning

the air strainer and flushing out the tool with gum solvent oil or an

equalmixtureofSAE#10andkerosene.Ifoutsideconditionsare

in order, disconnect tool from hose and take tool to your Mac Tools

Distributorforrepair.

OperatingInstructions•WarningInformation•PartsBreakdown

Other MAC TOOLS Saw manuals

MAC TOOLS

MAC TOOLS MPS1911 User manual

Popular Saw manuals by other brands

RIDGID

RIDGID BS1400 owner's manual

ATIKA

ATIKA BWS 400-2 Original instructions

RGC

RGC FS20 instructions

Makita

Makita M2300 instruction manual

IMET Spa

IMET Spa BASIC 300 PLUS SHI Instructions for use

IMET Spa

IMET Spa SIRIO 370 AF-E User instructions

Optimum

Optimum OPTisaw CS 275 operating manual

Makita

Makita BPB180 instruction manual

Stihl

Stihl MS 462 C-M instruction manual

AEG

AEG TS 250 K Original instructions

Meec tools

Meec tools 004665 operating instructions

Makita

Makita LS1018L instruction manual

Ryobi

Ryobi RCS1400 Original instructions

DeWalt

DeWalt DCS391 instruction manual

Sealey

Sealey SA72 instructions

skilsaw

skilsaw SPT88 Operating/safety instructions

Urrea

Urrea SI810 User manual and warranty

EINHELL

EINHELL BKG 210/1 operating instructions
