Lynx L30WD-1 User manual

1LCS30 COCKTAIL STATION CARE & USE/INSTALLATION

MAKE THE MOST OF YOUR

L30WD-1 (Pictured)

L42CC-1

Warming Drawer / Warming Drawer Cabinet

CARE & USE/INSTALLATION

2L30WD/L42CC Use/Install Manual

Important Safety Instructions

WARNING:

Read this manual carefully and completely before using your warming drawer to reduce the risk of:

• Fire

• Burn hazard, personal injury, or property damage

• Unapproved installation or service

This product is designed for indoor or outdoor installation. Improper installation, adjustments, alteration, service or

maintenance can cause personal or property damage and may void the warranty. Read this manual thoroughly before

installation, use or service

CAUTION: UNPLUG the warming drawer before beginning any work. Make sure you READ and UNDERSTAND these

instructions BEFORE installation. If you have any questions or concerns prior to, or during service, please call Customer

Care/Tech. Support at 888-289-5969.

IMPORTANT: When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions before using the warming drawer

2. Do not store or use gasoline or other ﬂammable vapors and liquids in the drawer or in the vicinity of this or any other

appliance.

3. Do not touch hot surfaces, the heating elements or drawer interior surfaces while the drawer is in use. Only touch

handles or knobs. Use only dry potholders. Using moist or damp pot holders may cause steam burns to your hands.

4. To protect against electrical shock, do not immerse cord, plugs, or base in water or other liquids.

5. Do not use foil to line the interior of the drawers. This traps heat and increases the risk of damage.

6. Close supervision is necessary when the appliance is used by or near children.

7. Do not allow the cord to touch hot surfaces.

8. Do not install on or near a hot gas or an electric burner.

9. Make sure the appliance is turned o before plugging in or removing the plug from the power receptacle.

10. Do not use this appliance for anything other than the intended use.

11. Keep the warming drawer away from water sprinklers.

12. Do not store materials, not recommended by the manufacturer, in the drawer when not in use.

13. Always place steam racks in desired position while the appliance is cool.

14. Do not obstruct the warming drawer vent ducts while cooking. You may want to close them when the unit is not in use

to help keep rain/water from getting into the drawer.

15. Do not cover food with plastic wraps or use plastic food containers in the drawer while heating. Plastics will melt and

damage the drawer interior.

16. Do not place food in sealed containers in the drawer. Pressure could build up and cause the container to burst resulting

in damage or personal injury.

17. Use care while opening a heated drawer to allow hot air and steam to escape before removing or replacing food.

18. This appliance is designed to be installed by a qualiﬁed technician and plugged into a dedicated, properly grounded,

GFIC outlet.

19. ETL listed for indoor and outdoor use.

20. Unplug the unit when not in use and before cleaning. Allow to cool before putting on or taking o parts.

21. Do not operate any appliance with damaged cord or plug, or after the appliance malfunctions or has been damaged in

any manner. Contact our Preferred Customer Service facility for information or additional details.

22. Do not repair or replace any part of this warming drawer. All servicing should be done by an authorized service agency.

Contact Lynx Customer Service at 1-888-289-5969

23. Save these instructions for future reference.

L30WD/L42CC Use/Install Manual

Electrical Information

WARNING: ELECTRICAL GROUNDING

1. Warming drawer must be installed in accordance with the local electric code or, in the absence of local codes, the

latest edition of the National Electrical Code ANSI/NFPA No. 70, or the Canadian Electrical Code CGA 1.6b 2005.

2. Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor appliance. This type of outlet should be

installed by a qualiﬁed electrician.

3. This warming drawer is equipped with a three prong (grounded) electric plug for your protection against shock

hazard and must be plugged directly into a properly grounded three prong outlet. Never cut or remove the

grounding prong from this plug.

4. Use only extension cords with a 3 prong grounding plug rated for the power of the equipment and approved for

outdoor use with a “WA” marking.

5. To protect against electric shock, do not immerse any part of the power cord, extension cord, or any plugs in

water or other liquids.

6. Unplug or shut down the circuit to the warming drawer from the outlet before cleaning or when not in use for

extended periods. Allow the drawer to cool before putting on or taking o parts.

7. Do not clean this product with a water spray or the like.

8. Allow the drawer to cool before putting on or taking o parts.

9. Do not use the warming drawer for purposes other than intended.

10. Do not operate the warming drawer with a damaged cord, plug or after the appliance malfunctions, or has been

damaged in any manner. Contact Lynx Customer Service for repairs. 1-888-289-5969

Connection to AC:

Installation requires an outdoor 120 VAC, 15 amp dedicated GFI protected outlet.

The warming drawer is rated as follows; 120 VAC, 60 Hz, 480 W, 4 AMP

IF SHIPMENT ARRIVED DAMAGED:

1. VISIBLE LOSS OR DAMAGE: Be certain this is noted on freight bill or express receipt and signed by person making the

delivery.

2. FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of extent of damage.

3. CONCEALED LOSS OR DAMAGE: If damage is unnoticed until merchandise is unpacked, notify transportation company

or carrier immediately and ﬁle a “concealed damage” claim with them. This should be done within (15) days of date

delivery is made to you. Be sure to retain container for inspection. We cannot assume responsibility for damage or loss

incurred in transit.

WARNING: ELECTRICAL SHOCK HAZARD

This appliance is equipped with a 3-prong power cord with a grounding plug for your protection against shock

hazard and should be plugged directly into a properly grounded receptacle. Only use power cord supplied with

the unit. Do not operate warming drawer with a damaged plug or cord.

4L30WD/L42CC Use/Install Manual

L30WD Dimensions

TOP VIEW

SIDE VIEW

FRONT VIEW

21-1/8” (53.7 cm)

20” (50.8cm)

30”

(76.2 cm)

28-1/4”

(71.8 cm)

23-5/8”

(60.0 cm)

4-5/8”

(11.7 cm)

21-1/8” (53.7 cm)

20” (50.8 cm)

15/16” (0.9 cm)

17-1/2” (44.5 cm)

20-1/2” (52.1 cm)

30” (76.2 cm)

9-3/4”

(24.8 cm)

11-1/2”

(29.2 cm)

L30WD/L42CC Use/Install Manual

Installing the Warming Drawer - L30WD

Model W

(Width)

(Height

(Depth)

L30WD 28-1/2” 10” 20-1/2”

20”

11-1/2”

Cutout Dimensions

Typical Island Installation L30WD-1

1. Provide a 10” x 28 ½” cutout to the front of the island.

2. Provide support beams using metal studs.

3. Pull the drawer out of the drawer casing to gain access on the mounting holder at the front of the casing.

4. Insert the drawer casing into the island opening.

5. Secure the drawer casing with screws at the inside front top and bottom, using the pre-punched mounting holes.

6. Re-assemble the drawer section into the drawer casing.

7. Apply weather proof sealant along the edges of the warmer.

8. Plug-in the warmer to a weather proof, and properly grounded, electrical outlet.

9. If installing the unit directly under a grill, please allow 2-3/16" between the grill cutout bottom and the top of the

warming drawer cutout

• Be sure that the warming drawer is properly grounded and installed by a qualiﬁed technician. The electrical cord has a

3 prong plug. Do not cut any of the prongs.

• Make sure that the island is free of cracks that would allow water or other liquids to get into the electrical controls.

• Keep the warming drawer away from water sprinklers.

• When not in use, cover the island to protect from rain and harsh weather.

• If installing the unit directly under a grill, please allow 2-3/16” between the grill cutout bottom and the top of the

warming drawer cutout.

IMPORTANT

30”

6L30WD/L42CC Use/Install Manual

L42CC Dimensions

TOP VIEW

SIDE VIEW

FRONT VIEW

26-3/16” (66.5 cm)

24-9/16” (62.4 cm)

41-3/4”

(106.0 cm)

40-1/8”

(101.9 cm)

26-3/16” (66.5 cm)

24-9/16” (62.4 cm)

19”

(48.3 cm)

17-1/2”

(44.5 cm)

41-3/4” (106.0 cm)

21”

(53.3 cm)

11-1/2”

(29.2 cm)

9-5/16”

(23.7 cm)

25-1/2”

(64.8 cm)

16”

(40.6 cm)

L30WD/L42CC Use/Install Manual

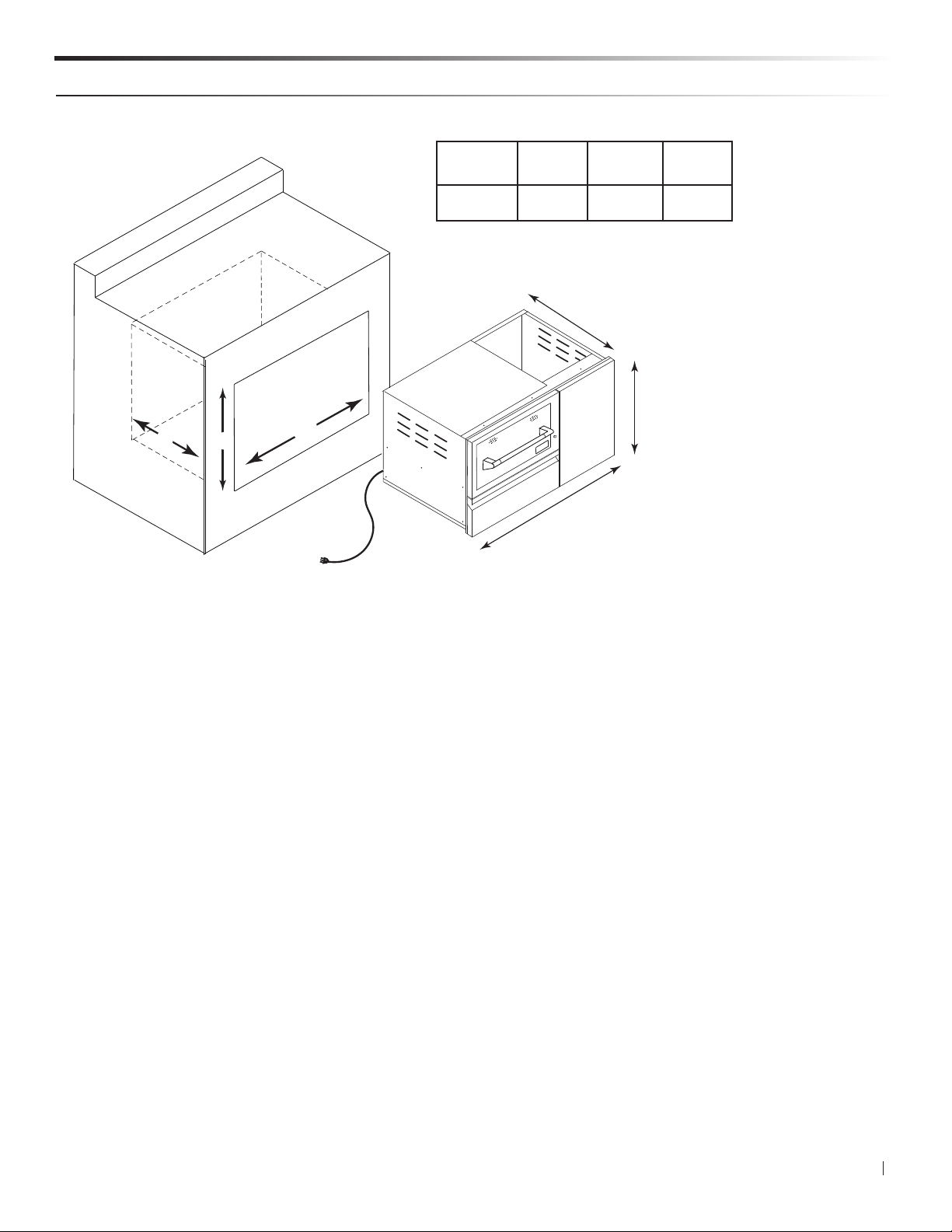

Installing the Warming Drawer w/Cabinet L42CC

120 V Electric

Outlet Needed

Model W

(Width)

(Height

(Depth)

L42CC 40-1/4” 19-3/8” 24-3/4”

24-1/2”

21”

Cutout Dimensions

41-3/4”

Typical Island Installation L42CC

1. Provide a 19 3/8” x 40 ¼” cutout to the front of the island.

2. Provide support beams using metal studs.

3. Pull the drawer out of the drawer casing to gain access on the mounting holder at the front of the casing.

4. Insert the drawer casing into the island opening.

5. Secure the drawer casing with screws at the inside front top and bottom, using the pre-punched mounting holes.

6. Re-assemble the drawer section into the drawer casing.

7. Apply weather proof sealant along the edges of the warmer.

8. Plug-in the warmer to a weather proof, and properly grounded, electrical outlet.

9. If installing the unit directly under a grill, please allow 2-3/16" between the grill cutout bottom and the top of the

warming drawer cutout.

• Be sure that the warming drawer is properly grounded and installed by a qualiﬁed technician. The electrical cord has a

3 prong plug. Do not cut any of the prongs.

• Make sure that the island is free of cracks that would allow water or other liquids to get into the electrical controls.

• Keep the warming drawer away from water sprinklers.

• When not in use, cover the island to protect from rain and harsh weather.

• If installing the unit directly under a grill, please allow 2-3/16” between the grill cutout bottom and the top of the

warming drawer cutout.

IMPORTANT

8L30WD/L42CC Use/Install Manual

Temperature Controls

Heat Light ON

Moisture Vent Control

The temperature control dial is used to select the temperature of the warming drawer.

The warming drawer should only be opened when adding or removing food. Continuous opening of the drawer allows

warm air to escape and make the food colder.

Do not use aluminum foil to line the drawer. It is an excellent heat insulator and will trap heat beneath it. This may aect the

performance of the warming drawer and the interior ﬁnish.

The heat-on blue indicator light turns on when the control knob is set and cycles “on” and “o” with the heating element as

temperature is maintained.

The moisture vent control is located at the top inside of the warming drawer. It can be adjusted in any position between

“open” and “close” to maintain desired degree of moisture.

For crispy foods, slide the moisture vent control inward to open the vents and allow the moisture to escape.

For moist food, slide the moisture vent control outward to close the vents and seal the moisture inside the drawer.

Heating Instructions

1. Dry Heat

• The main function of the warming drawer is to maintain food at a desired serving temperature.

• Place previously prepared foods directly into the empty steam pans (no water) and set the moisture vent control.

• Set the temperature control dial. The heat-on blue indicator light will illuminate until the desired temperature is reached.

2. Moist Heat

• The warming drawer also seals moisture within the drawer to keep the food moist.

• Put just enough of water, approximately ½” high, in the steam pans.

• Place the steam rack inside the steam pan.

• Place the food directly on the rack or use a suitable container that will ﬁt in the steam pans. Do not use plastic

containers or utensils.

• Set the temperature control dial. The heat-on blue indicator light will illuminate until the desired temperature is reached.

• Periodically, check the water level in the steam pans and add water when necessary.

•

Before Using Your Appliance

All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have

remained from the manufacturing process. Before using, clean the drawer thoroughly with hot, soapy water. There may be

some burn o and odors on ﬁrst use of the appliance—this is normal.

L30WD/L42CC Use/Install Manual

Cleaning and Maintenance

The Warming Drawer is made of welded stainless steel. It is non-rusting and non-magnetic.

1. Allow the warming drawer and its accessories to cool before cleaning.

2. Remove steam pans and all accessories from the warming drawer.

3. Unplug the warming drawer prior to cleaning.

4. Clean all items including the drawer with a mild cleanser. Scrub dirt with a sponge in the direction of the grain.

5. When cleaning the front panel, always scrub in the direction of the grain. In order to maintain the luster and highlights of

the polished surface, do not use abrasives when cleaning the polished surfaces.

6. Do not use steel wool to clean the drawer and accessories.

7. Check out the slide rails and make sure they are clean and free from debris.

8. It is recommended to clean the warming drawer after every use.

Lynx products are known for their attractive appearance. We achieve this by selecting only the ﬁnest grades of stainless

steel and applying exacting workmanship.

In order to maintain this attractive appearance over the life of the grill it is important to take the following steps:

Use a commercially available Stainless Steel cleaner* to clean and polish the exterior surfaces.

Doing these things on a regular basis minimizes the amount of eort required.

Part of the appeal of your Lynx Accesory is the ﬁne grain ﬁnish. When removing stubborn stains:

• Do not use metallic abrasives and always rub in the direction of the grain.

• Some household cleaning products are not suitable for stainless steel; be sure to read the label before using on your Lynx

Accesory.

• Always use the mildest cleaning solution ﬁrst, scrubbing in the direction of the

grain. Specks of grease may gather in the grain of the stainless steel and bake

on to the surface, giving the appearance of rust. To remove these baked-on

foods use a ﬁne to medium grit non-metallic abrasive pad (Scotch Brite is good)

in conjunction with a stainless steel cleaner.

• Solutions used for cleaning concrete and masonry can be very corrosive and will ‘attack’ stainless steel. Ensure your Lynx

products are well protected before you allow the use of such chemicals.

SPECIAL NOTE FOR LOCATIONS NEAR POOLS AND COASTAL AREAS:

The 304 stainless steel material used in the construction of a Lynx Grill is highly rust resistant, however, chlorine in the air

from swimming pools or the salt from sea air may cause surface rust to appear and even create some pitting if left on the

product.

Here are a few tips to avoid this:

• Regularly wipe down the exterior surfaces with a damp cloth. (Micro ﬁber cloths such as Ecloth perform very well).

• Allow the surfaces to dry before installing the cover. Do not cover a damp sink.

• In extreme environments apply a rust inhibitor which leaves a microscopic protective layer on the stainless. Products that

provide a layer of vapor corrosion inhibitors (VpCI™) protect the surface very well.

• For seasonal storage use the product referred to above, ensure the sink is dry and then cover and secure the cover to

minimize the amount of damp air getting to the surfaces.

THE LYNX LIMITED LIFE TIME WARRANTY PROVIDES PROTECTION AGAINST RUST THROUGH OF PARTS THAT

RENDER THE PRODUCT INOPERATIVE. IT DOES NOT COVER OCCASIONAL SURFACE RUST OR STAINING DUE TO

ENVIRONMENTAL CONDITIONS.

For light and heavy food stains there are many dierent stainless steel cleaners available.

Stainless Steel

10 L30WD/L42CC Use/Install Manual

Trouble Shooting Guide and Obtaining Service

1. Warming drawer will not heat up.

2. Heat on indicator light does not illuminate

1. Check if the unit is plugged in to an electrical outlet.

2. Check to ensure the GFCI has not been tripped.

3. Check if the temperature control dial is set properly.

4. Check if the circuit breaker has not been tripped

If Service is required: 1. Call Preferred Customer Service (888-289-5969)

2. Provide the following information:

Model Number

Serial Number

Date of Purchase

Name of the Dealer

Material Recommendations

Drawer interior (stainless steel) Use dish detergent. Wash, rinse well and dry. For hard water spots or scales, use

white vinegar. Apply with a sponge or cloth, rinse, and dry.

Heat Discoloration / Corrosion:

Clean with BarKeeper’s Friend® sprinked on a wet sponge or wet cloth. Apply to

stainless steel surface. Rub gently and evenly in the direction of the grain. Rinse and

dry.

Drawer exterior (stainless steel) Always wipe or rub in the direction of the grain. Clean with a soapy sponge, then rinse

and dry or use mild non-abrasive cleaners on a paper towel. Protect and polish with

stainless steel cleaner and a soft cloth. Remove water spots a cloth dampened with

white vinegar.

Control Panel Clean with hot soapy water or mild non-abrasive cleaner on a clean sponge. Wipe

clean. Avoid usng abrasive cleaners and scrubbing pads.

Cleaning Chart

Cleaning and Maintenance

Other manuals for L30WD-1

This manual suits for next models

Table of contents

Other Lynx Warming Drawer manuals

Lynx

Lynx L30WD Manual

Lynx

Lynx L30WD User manual

Popular Warming Drawer manuals by other brands

Siemens

Siemens HW 290 Series instruction manual

Hatco

Hatco HDW-1 Installation & operating manual

APW Wyott

APW Wyott WD-2CMF Specification sheet

Viking

Viking DEWD102SS Quick reference guide

Miele

Miele ESW 6229 Operating and installation instructions

Brandt

Brandt WD1014X user guide

KitchenAid

KitchenAid KOWT107ESS installation instructions

Gaggenau

Gaggenau WSP 222 installation instructions

DCS

DCS WDI installation guide

Fisher & Paykel

Fisher & Paykel OR90SCG6R1 manual

Electrolux

Electrolux EED21600X user manual

Fisher

Fisher PROFESSIONAL WB76SPEX1 user guide

Electrolux

Electrolux EW30WD55GS Use and care guide

Hanseatic

Hanseatic TCN14J6D-S user manual

Jenn-Air

Jenn-Air JWD6030CDX user guide

Gaggenau

Gaggenau WS482710 installation instructions

Bosch

Bosch HWD2720UC installation manual

NEFF

NEFF N29HA11Y2 User manual and installation instructiions
