Lynx D AA 5320 D User manual
Series 5000
Reference Manual
D AA 5320 D; D AA 5320 S
Analog Audio Distribution Amplifier
CardModul
e
Version 2.0
© LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
www.lynx-technik.com
Reference Manual D AA 5320 Version 2.0
Page 2
Information in this document is subject to change without
notice. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or
mechanical for any purpose, without express written permission
of LYNX Technik AG.
LYNX Technik AG may have patents, patent applications,
trademarks, copyrights or other intellectual property rights
covering the subject matter in this document. Except as
expressly written by LYNX Technik AG, the furnishing of this
document does not give you any license to patents,
trademarks, copyrights or other intellectual property of LYNX
Technik AG or any of its affiliates.
© LYNX Technik AG 2002 - 2006 all rights reserved
Reference Manual D AA 5320 Version 2.0
Page 3
Warranty
LYNX Technik AG warrants that the product will be free from
defects in materials and workmanship for a period of two (2)
year from the date of shipment. If this product proves defective
during the warranty period, LYNX Technik AG at its option will
either repair the defective product without charge for parts and
labor, or will provide a replacement in exchange for the
defective product.
In order to obtain service under this warranty, customer must
notify LYNX Technik of the defect before expiration of the
warranty period and make suitable arrangements for the
performance of service. Customer shall be responsible for
packaging and shipping the defective product to the service
center designated by LYNX Technik, with shipping charges
prepaid. LYNX Technik shall pay for the return of the product to
the customer if the shipment is within the country which the LYNX
Technik service center is located. Customer shall be responsible
for payment of all shipping charges, duties, taxes and any other
charges for products returned to any other locations.
This warranty shall not apply to any defect, failure, or damage
caused by improper use or improper or inadequate
maintenance and care. LYNX Technik shall not be obligated to
furnish service under this warranty a) to repair damage resulting
from attempts by personnel other than LYNX Technik
representatives to install, repair or service the product; b) to
repair damage resulting from improper use or connection to
incompatible equipment; c) to repair any damage or
malfunction caused by the use of non LYNX Technik supplies; or
d) to service a product which has been modified or integrated
with other products when the effect of such modification or
integration increases the time or difficulty servicing the product.
THIS WARRANTY IS GIVEN BY LYNX TECHNIK WITH RESPECT TO THIS
PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. LYNX TECHNIK AND ITS VENDORS DISCLAIM ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. LYNX TECHNIK`S RESPONISIBILITY TO REPAIR AND
REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE
REMEDY PROVIDED TO THE CUSTOMER FOR BREACH OF THIS
WARRANTY. LYNX TECHNIK AND ITS VENDORS WILL NOT BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES IRRESPECTIVE OF WHETHER LYNX TECHNIK OR THE
VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH
DAMAGES.
Reference Manual D AA 5320 Version 2.0
Page 4
Regulatory information
Europe
Declaration of Conformity
USA
FCC 47 Part 15
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to the part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense
We LYNX Technik AG
Brunnenweg 3
D-64331 Weiterstadt
Germany
Declare under our sole responsibility that the product
TYPE: D AA 5320 D; D AA 5320 S
To which this declaration relates is in conformity with the following
standards (Environments E1-E3):
EN 55103-1 /1996
EN 55103-2 /1996
EN 60950 /2001
Following the provisions of 89/336/EEC and 73/23/EEC directives.
Winfried Deckelmann
Weiterstadt, June 2006
Place and date of issue Legal Signature
Reference Manual D AA 5320 Version 2.0
Page 5
Contents
Warranty ...............................................................................................3
Regulatory information........................................................................4
Europe............................................................................................................. 4
Declaration of Conformity ........................................................................4
USA................................................................................................................. 4
FCC 47 Part 15..........................................................................................4
Contents ...............................................................................................5
Getting Started.....................................................................................7
Packaging........................................................................................................ 7
Product Description ........................................................................................7
Functional Diagram ........................................................................................ 8
Module Layout................................................................................................ 8
Audio Connections............................................................................11
D AA 5320 D.............................................................................................11
Audio Output Connections (balanced) ...................................................11
Audio Input Connector (balanced) .........................................................12
Audio Connections (un-balanced) ..........................................................12
D AA 5320 S .............................................................................................13
Audio Connections (balanced)................................................................13
Audio Connections (un-balanced) ..........................................................14
Installation ..........................................................................................15
Settings and Control ..........................................................................16
Switch Settings ............................................................................................. 17
Factory Preset Condition.........................................................................17
Adjustment Procedures................................................................................. 18
Set Stereo / Mono Mode .........................................................................19
Set Unity Gain (using gang mode) ......................................................... 20
Set Unity Gain (Individual channels) .....................................................21
Set Stereo Gain Levels (Using Gang Mode) ..........................................22
Set Stereo Gain Levels (Individually) .................................................... 23
Set Mono Gain Level ..............................................................................24
Auto Store................................................................................................ 24
Alarm/LED Status Indicators..............................................................25
Channel Condition Indicators .................................................................25
Front Panel Alarm Indicator ...................................................................25
Locate Function.......................................................................................26
Specifications (D AA 5320) ...............................................................27
Available Options ..............................................................................28
Parts List...............................................................................................29
Service ................................................................................................30
Contact Information ..........................................................................31
Reference Manual D AA 5320 Version 2.0
Page 6
This page is intentionally left blank
Reference Manual D AA 5320 Version 2.0
Page 7
Getting Started
Packaging
The shipping carton and packaging materials
provide protection for the module during transit.
Please retain the shipping cartons in case
subsequent shipping of the product becomes
necessary.
Product Description
The D AA 5320 is a high quality analog audio
distribution amplifier designed primarily for
broadcast and professional applications.
Flexible configurations allow the D AA 5320 to be
used for a 1 to 4 stereo application or a 1 to 8
mono application. The module has adjustable gain
and signal presence detection is provided for each
channel. Local presets / adjustments and alarms
are provided on each module as well as optional
remote control / status reporting and SNMP error
reporting using the LYNX central control system.
The D AA 5320 is part of the 5000 series of
CardModules, which offer high quality, modularity
and flexibility in a small form factor ideal for
applications where space is at a premium.
CardModules are installed in the series 5000 card
frame that can accommodate up to 10
CardModules. All modules are hot swappable and
Options include full redundant power and a range
of controller options.
Reference Manual D AA 5320 Version 2.0
Page 8
Functional Diagram

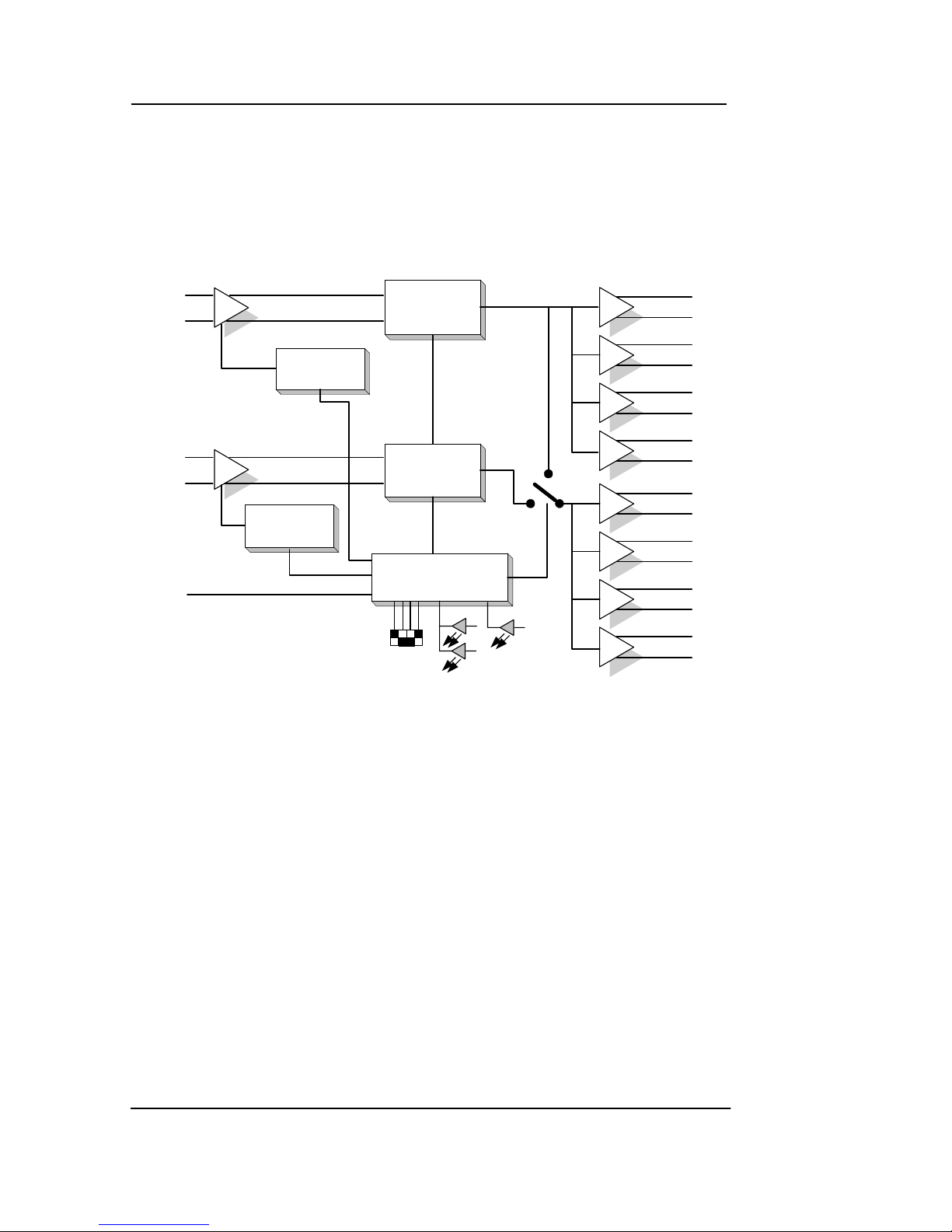

Figure 1 below is the basic functional diagram for
the D AA 5320 CardModule.
Figure 1- D AA 5320 Functional Diagram
Module Layout
Figure 2 shows the layout of the D AA 5320
CardModule and the rear connection panel. The
rear connection panel utilizes Sub D connectors
(D AA 5320 D) or Weco type connectors (D AA 5320
S) for the audio input and outputs. Please refer the
connections section of this manual for wiring details
for the connectors.
Gain
Adjustment
Gain
Adjustment
Presence
Detection
Micro Controller
Presence
Detection
OUT Left 1
OUT Left 2
OUT Left 3
OUT Left 4
OUT Right 1
OUT Right 2
OUT Right 3
OUT Right 4
IN Left
IN Right
Remote
Control
Status
Alarm
Switch
Reference Manual D AA 5320 Version 2.0
Page 9
Figure 2 – Module Layout
Reference Manual D AA 5320 Version 2.0
Page 10
Caution
Use static precautions when handling the
PCB. Static discharge could result in serious
damage to the module.
