LXE MX1ISA378 User manual
MX1-IS MULTI-charger
User’s Guide
Model MX1ISA378CHGR3WW
(Only For Use with LXE 157873-0001 / 161139-0001 Lithium Ion Battery Packs)
Copyright © December 2006 by LXE Inc.
All Rights Reserved
E-EQ-MX1ISMCHGROG-C
Notice:
LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time without
notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no
liability resulting from any errors or omissions in this document, or from the use of the information contained herein. Further,
LXE Incorporated, reserves the right to revise this publication and to make changes to it from time to time without any obligation
to notify any person or organization of such revision or changes.
Copyright Notice:
This manual is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied, photocopied,
reproduced, translated or reduced to any electronic medium or machine-readable form without prior consent, in writing, from
LXE Inc. Further, LXE Incorporated, reserves the right to revise this publication and to make changes to it from time to time
without any obligation to notify any person or organization of such revision or changes.
Copyright © 2006 by LXE Inc., An EMS Technologies Company
125 Technology Parkway, Norcross, GA 30092, U.S.A. (770) 447-4224
LXE® is a registered trademark of LXE Inc. All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations. When manual is in PDF format: "Acrobat ® Reader Copyright © 1987-2006 Adobe
Systems Incorporated. All rights reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe
Systems Incorporated." applies.
FCC Information:
This device complies with FCC Rules, part 15. Operation is subject to the following conditions:
1. This device may not cause harmful interference
and
2. This device must accept any interference that may be received, including interference that may cause undesired
operation.
Warning!
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Changes or modifications to this device not expressly approved by LXE Inc., could void the user’s authority to operate this
equipment.
EMC Directive Requirements:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
Industry Canada:
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouiller du Canada.
Le present appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numeriques
de le Classe A préscrites dans le Reglement sur le brouillage radioélectrique édits par le ministere des Communications du
Canada.
Initial Release October 2002. Second release March 2005 -- Changed word “operator” to “user”. Updated LXE logo on front
page.Third release October 2005 – Added WEEE statement to “Introduction.” Fourth release December 2006 – Added 161139-
0001 (MX1ISA382BATT) battery pack for use in AU and NZ only.
IMPORTANT SAFETY WARNINGS US
SAVE THESE INSTRUCTIONS
This document contains important safety and operating instructions for the LXE MX1-IS MULTI-charger. Please
read all instructions and cautionary markings on the charger itself before putting the unit into service.
Safety Alert Symbols
This symbol is used to call your attention to instructions concerning your personal safety. Watch for
this symbol – it will alert you to important safety precautions that must be observed to avoid death,
personal injury or property damage. Follow the instructions after the warning symbol and be alert to
the possibility of personal injury or death.
These signal words provide users with information about the seriousness of the hazard involved:
DANGER WARNING CAUTION
Indicates imminent hazards
which, if not avoided, WILL
result in severe personal injury
or death.
Indicates potential hazards
which, if not avoided, COULD
result in severe personal injury
or death.
Indicates hazards or unsafe practices
which, if not avoided, COULD result in
minor or moderate personal injury or
property damage.
Safety Instructions
Setting up the MX1-IS MULTI-charger
DANGER
This charger is NOT for use within a hazardous location. It is to be used only in non-hazardous
locations where the ambient temperature is between 10°C and 35°C (50°F and 95°F).
There is an external power supply between the wall and the charger. Plug the AC cord from the external power
supply into the wall and the DC power connector into the back of the charger.
Charge only LXE part no. 157873-0001 and 161139-0001 Rechargeable Lithium Ion Battery Packs in this charger.
Other batteries or battery packs may burst causing injury or property damage.
Operating the MX1-IS MULTI-charger
Only users who have read and understand all operating instructions are qualified to operate the charger. Failure to
read, understand and follow safety instructions may result in injury or death.
Keep the rear of the charger free of obstacles and do not block the rear ventilation slots. The charger generates
internal heat during charging.
Use care when inserting the battery. Do not "slam" the battery into the pocket. This action could damage the
charger.
Keep dirt and foreign objects out of the battery pocket. Do not short circuit any of the contacts in the battery pocket.
This action could result in injury or property damage.
Keep the charger away from any heat source. Excessive heating can ruin the charger. Do not operate the charger if it
has been dropped or damaged in any way. Return the charger to LXE.
Storing the MX1-IS MULTI-charger
Disconnect the charger from the external power supply by pulling the plug; not the cord. Disconnect the external
power supply from the AC source and store in a cool, dry location.
Maintaining the MX1-IS MULTI-charger
Service should be performed by trained persons only. Return the charger to LXE.
Caring for MX1-IS Battery Packs
WARNING
Failure to observe these warnings could result in injury or damage to the battery from rapid
discharge of energy or overheating of the battery:
Do not dispose of batteries into a fire. Burning will generate hazardous vapors and may cause the battery to explode.
Failure to observe this warning may result in injury from inhalation of vapors or burns from flying debris.
Do not immerse batteries in water or any other liquid. If batteries have been immersed, contact LXE before
attempting to insert batteries in the MX1-IS computer.
Do not disassemble or perform modifications to the battery. There are no user serviceable components in the
battery.
Do not place battery into a pants/shirt pocket or toolbox containing conductive objects (coins, keys, tools, etc.).
A battery placed on damp ground or grass could be electrically shorted. Lay the battery on its side when not in use.
Do not store batteries above 140°F (60°C) for extended periods.
Electrical Shock Hazards
DANGER
The following precautions should be observed to avoid the risk of electrical shock hazards
associated with charging batteries:
The MX1-IS MULTI-charger is designed for indoor use only. Do not operate outdoors or in extreme high humidity
environments. Do not expose charger to rain, snow or wet conditions.
Unplug the charger from the power source before cleaning. Use only mild detergent with a slightly damp cloth to
clean the outside of the charger. Do not use solvents or flammable cleaners. Allow the case to dry fully before
using it again.
Using attachments or accessories not recommended by LXE could result in fire, electric shock or injury.
This appliance must be properly grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with an external
power supply having an equipment grounding conductor and ground outlet that is properly installed and grounded
in accordance with all local codes and ordinances. Do not operate the charger with a damaged external power
supply or plug. LXE does not recommend the use of any extension cord with the MX1-IS MULTI-charger.
The MX1-IS MULTI-charger has been designed for use on a nominal 100 or 120 volt or nominal 220 or 240 volt
circuit and has a grounding attachment plug. The plug is an IEC configuration that is appropriate for your country
and regulations. Make sure that the appliance is connected to an outlet having a configuration similar to the plug.
No adapter should be used with this appliance. Improper connection of the equipment-grounding conductor can
result in a risk of electric shock.
Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly
grounded. Do not modify the plug provided with the appliance. If it will not fit in the outlet, have a proper outlet
installed by a qualified electrician.
Do not disassemble the MX1-IS MULTI-charger. It contains no user serviceable parts.
Please refer to the Appendix to view the “Important Safety Warnings” translated
into the following languages:
DE – German FI – Finnish IT – Italian PT – Portuguese
DK – Danish FR – French NL – Dutch SE – Swedish
ES – Spanish GR – Greek NO – Norwegian TR - Turkish
E-EQ-MX1ISMCHGROG-C MX1-IS MULTI-charger User’s Guide
Table of Contents
INTRODUCTION 1
Purpose of this Manual ............................................................................................ 1
Quick Start................................................................................................................. 1
Intended Use ............................................................................................................. 1
Specifications............................................................................................................ 2
Electrical Specifications........................................................................................................................ 2
Operating Temperature Ranges............................................................................................................. 2
Dimensions............................................................................................................................................ 2
Rechargeable Lithium Ion Battery Pack ............................................................................................... 3
External Power Supply.......................................................................................................................... 3
Controls and Connectors......................................................................................... 4
MX1-IS MULTI-charger ...................................................................................................................... 4
INSTALLATION AND OPERATION 5
Introduction............................................................................................................... 5
Setup.......................................................................................................................... 5
Placing the Battery Pack into the Charger.............................................................. 6
Inserting the Battery Pack ..................................................................................................................... 6
Interpreting the Charge Pocket LEDs ................................................................................................... 7
RED - on any charge pocket............................................................................................................... 7
RED FLASHING - on all charge pockets .......................................................................................... 7
GREEN - on any charge pocket ......................................................................................................... 7
YELLOW - on any charge pocket...................................................................................................... 7
NO LIGHT - on a charge pocket........................................................................................................ 7
NO LIGHT - on all charge pockets .................................................................................................... 7
Normal Operations................................................................................................................................ 8
Maintenance.......................................................................................................................................... 8
Storage .................................................................................................................................................. 8
Service................................................................................................................................................... 8
APPENDIX 9
Troubleshooting Guide............................................................................................. 9
Getting Help........................................................................................................................................ 10
Important Safety Warnings - Translations............................................................ 11
Table of Contents ii
MX1-IS MULTI-charger User’s Guide E-EQ-MX1ISMCHGROG-C
Illustrations

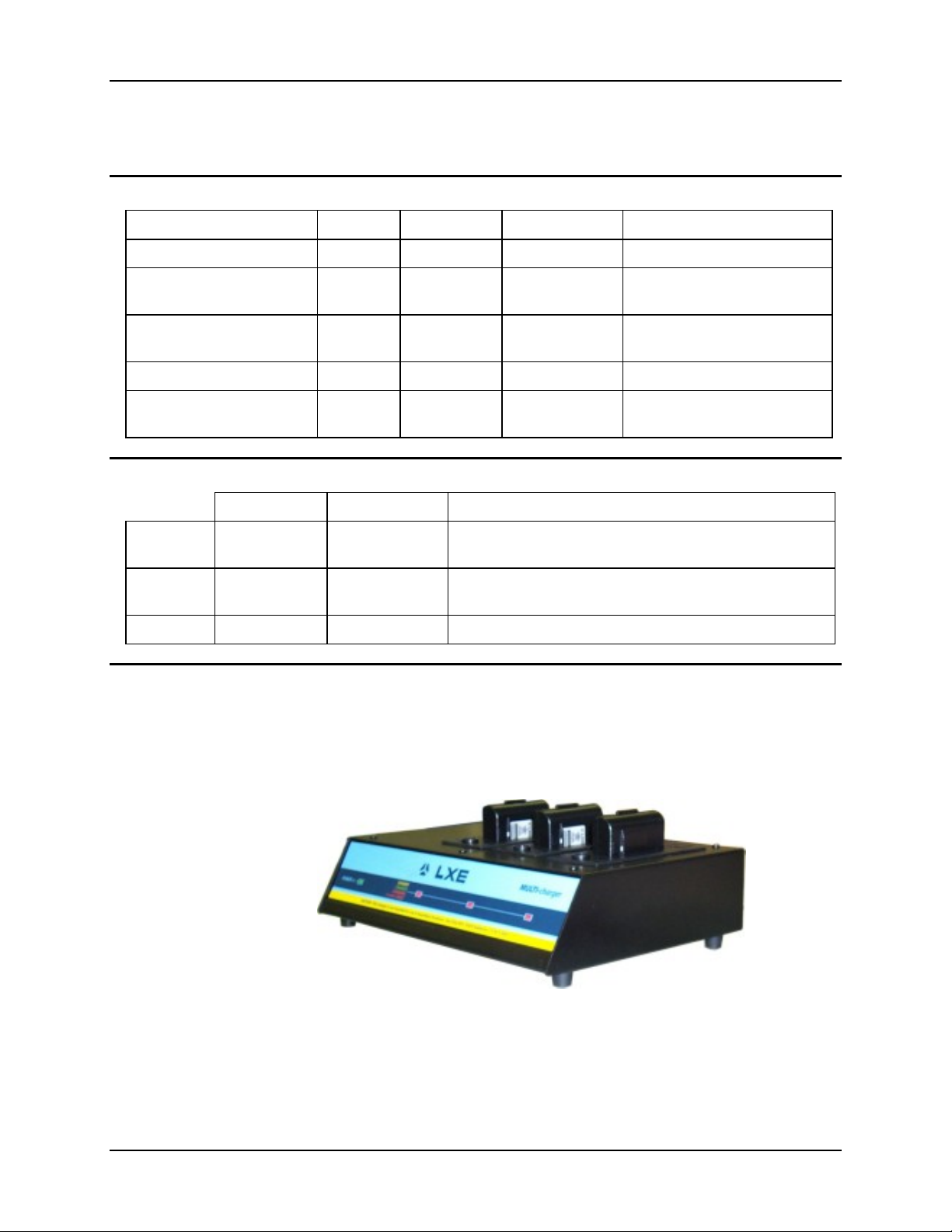

Figure 1 MX1-IS MULTI-charger.......................................................................................................................2

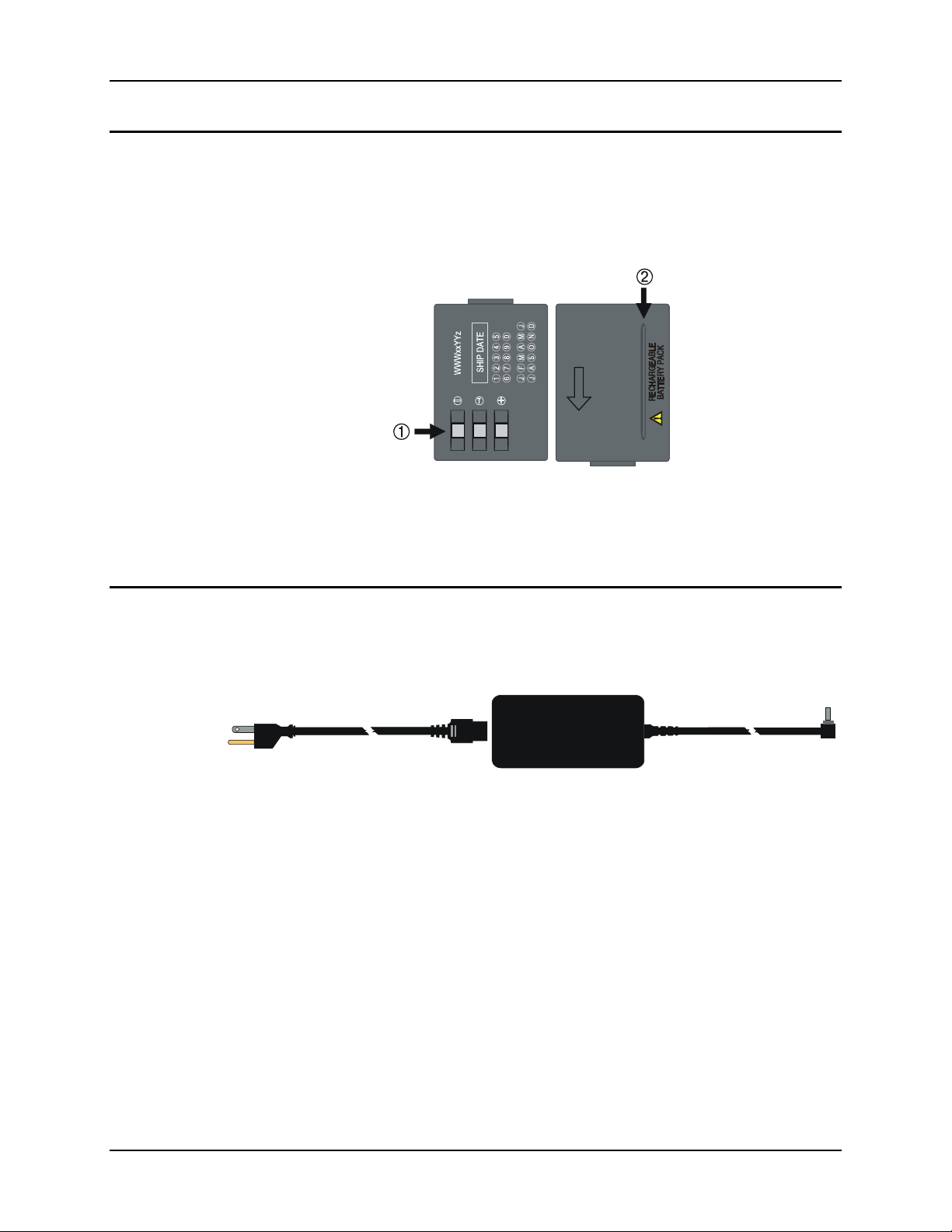

Figure 2 MX1- IS Lithium Ion Battery Pack .......................................................................................................3
Figure 3 External Power Supply..........................................................................................................................3
Figure 4 MX1-IS MULTI-charger Components..................................................................................................4
Figure 5 Battery Pack Insertion ...........................................................................................................................6
Figure 6 MX1-IS MULTI-charger LEDs.............................................................................................................7
E-EQ-MX1ISMCHGROG-C MX1-IS MULTI-charger User’s Guide
Introduction
Purpose of this Manual
This user’s guide is intended to familiarize the user with the safety and operating instructions
necessary to use the MX1-IS MULTI-charger (LXE Model MX1ISA378CHGR3WW) to charge
LXE MX1- IS Rechargeable Lithium Ion Battery Packs (Li-Ion).
This manual should be readily available to all users and maintenance personnel using this charger.
Quick Start
This manual provides the following instructions for operating the MX1-IS MULTI-charger.
•Setting Up the MX1-IS MULTI-charger
•Inserting the Battery Pack
•Interpreting the LEDs
Intended Use
The LXE MX1-IS MULTI-charger is designed to simultaneously charge up to three MX1-IS
Lithium Ion Battery Packs in less than four hours depending upon battery pack temperature and
conditions.
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and Electronic
Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled,
reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about
proper disposal, contact LXE through your local sales representative, or visit www lxe com.
2 Introduction
MX1-IS MULTI-charger User’s Guide E-EQ-MX1ISMCHGROG-C
Specifications
Electrical Specifications
Parameter Min Typical. Max. Comment
Charge Current 750mA Per station.
Power Supply Input
Voltage(VAC-IN)
90VAC 264VAC Auto-ranging
Power Supply Input
Frequency (freq)
47Hz 63Hz
Cutoff Voltage (VOUT) 8.4V ± 1% 4.2V per cell
Charge Termination
Current (IT)
70mA ± 20mA
Operating Temperature Ranges
Minimum Maximum Comment
Operating 0°C (32°F) +50°C (122°F) Battery packs are only to be charged when their
temperature is between 10°C (50°F) and 35°C (95°F).
Charging +10°C (50°F) +35°C (95°F) Battery packs will not charge if their temperature is outside
this range.
Storage -20°C (-4°F) +70°C (158°F) Unit is off.
Dimensions
Weight 4.30 lb (1.950 kg) [without battery packs]
Plug Type DC Power Jack
LxWxH 10.875” x 7.625” x 2.875” (27.6cm x 19.3cm x 7.3cm)
Figure 1 MX1-IS MULTI-charger
Introduction 3
E-EQ-MX1ISMCHGROG-C MX1-IS MULTI-charger User’s Guide
Rechargeable Lithium Ion Battery Pack
LXE Part No.
•157873-0001 (MX1ISA381BATT)
•161139-0001 (MX1ISA382BATT) -- For use in Australia (AU) and New Zealand (NZ)
only.
Figure 2 MX1- IS Lithium Ion Battery Pack
1. Battery Contacts
2. Positioning Key
External Power Supply
Weight 0.40 lb (.181 kg)
Plug Type Barrel connector
Figure 3 External Power Supply
4 Introduction
MX1-IS MULTI-charger User’s Guide E-EQ-MX1ISMCHGROG-C
Controls and Connectors
MX1-IS MULTI-charger
Front
Back
Figure 4 MX1-IS MULTI-charger Components
1. Battery Charging Pocket
2. Power On/Off LED
3. Battery Charge LED Indicators
4. Ventilation Slots
5. Power Connection
This manual suits for next models
1
Table of contents
Other LXE Batteries Charger manuals
