Lumens PS660 User manual

English - 0

PS660

Visual Presenter

User Manual

[Important]

To download the updated quick start guide,

multilingual manuals, software, and drivers,

please visit Lumens website at

http://www.lumens.com.tw/goto.htm

English - 1

Contents

Chapter 1 Precautions ....................................................................................4

Chapter 2 Package Content............................................................................6

Chapter 3 Product Overview ..........................................................................7

Chapter 4 Installation and Connections........................................................8

4.1 System Diagram.................................................................................8

4.2 Connecting to a Projector or Monitor..................................................9

4.3 Connecting to a Computer and Use Lumens Software......................9

4.4 Connecting to an Interactive Whiteboard (IWB)...............................10

4.5 Connecting to a Projector, 2 PCs, and a Monitor at the Same Time10

4.6 Connecting to a TV........................................................................... 11

4.7 Connecting to an HDTV ................................................................... 11

4.8 Connecting to a Computer with RS232............................................12

4.9 Connecting to Audio Input and Output .............................................12

4.10 Installing application software...........................................................13

Chapter 5 Start Using....................................................................................14

Chapter 6 DIP Switch Settings .....................................................................15

6.1 Connecting to a projector or monitor................................................15

6.2 Connecting to a TV...........................................................................16

Chapter 7 Control Panel/Remote Control and Setting Menu ....................17

7.1 Functions of control panel and remote control.................................17

7.2 Setting Menu ....................................................................................19

Chapter 8 Descriptions of major functions.................................................23

8.1 I would like to switch image sources................................................23

8.2 I would like to switch image sources from PC 1/PC 2 .........................23

English - 2

8.3 I would like to make text clearer and photos more colorful..............23

8.4 I would like to zoom in /out of images ..............................................24

8.5 I would like to use the auto focus.....................................................24

8.6 I would like to adjust the brightness .................................................24

8.7 I would like to turn on / off the lamp..................................................24

8.8 I would like to automatically adjust the image to have best brightness

and focusing performance............................................................................24

8.9 I would like to capture images..........................................................25

8.10 I would like to view captured images................................................25

8.11 I would like to delete captured images.............................................26

8.12 I would like to automatically delete the captured images whenever it

is turned off (Auto Erase) .............................................................................26

8.13 I would like to record videos (Record)..............................................26

8.14 I would like to switch a part of the live image (PAN) ........................27

8.15 I would like to play the slides (Slide Show) ......................................27

8.16 I would like to compare images (Compare live images with captured

images) (PBP, Picture by Picture)................................................................28

8.17 I would like to resume the factory default setting (Factory Reset) ...29

8.18 I would like to reduce the image noise (Projector Type)..................29

8.19 I would like to set / change the password (Lock Down)...................30

8.20 Using a SD card ...............................................................................31

8.21 I would like to adjust the volume ......................................................32

8.22 I would like to control projector.........................................................32

8.23 Computer-related functions..............................................................32

Chapter 9 Connecting to Microscope..........................................................38

Chapter 10 Packing the Machine ...................................................................40

Chapter 11 Troubleshooting...........................................................................41

English - 3

Lumens is a trademark that is currently being registered by Lumens Digital Optics

Inc.

Copying, reproducing or transmitting this file is not allowed if a license is not

provided by Lumens Digital Optics Inc. unless copying this file is for the purpose

of backup after purchasing this product.

In order to keep improving the product, Lumens Digital Optics Inc. hereby

reserves the right to make changes to product specifications without prior notice.

The information in this file is subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may

refer to names of other products or companies, nevertheless without any intention

of infringement.

Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any

possible technological, editorial errors or omissions, nor responsible for any

incidental or related damages arising from providing this file, using, or operating

this product.

English - 4

Chapter 1 Precautions

Always follow these safety instructions when setting up and using the visual presenter:

1. Do not place visual presenter in tilted position.

2. Do not place the visual presenter on an unstable trolley, stand or table.

3. Do not use the visual presenter near water or source of heat.

4. Use attachments only as recommended.

5. Use the type of power source indicated on the visual presenter. If you are not sure of

the type of power available, consult your dealer or local electricity company for

advice.

6. Place the visual presenter on a place that it can be unplugged easily.

7. Always take the following precautions when handling the plug. Failure to do so may

result in sparks or fire:

Ensure the plug is free of dust before inserting it into a socket.

Ensure that the plug is inserted into the socket securely.

8. Do not overload wall sockets, extensions leads or multi-way plug boards as this may

cause fire or electric shock.

9. Do not place the visual presenter where the cord can be stepped on as this may

result in fraying or damage to the lead or the plug.

10. Unplug the projector from the wall socket before cleaning. Use a damp cloth for

cleaning. Do not use liquid or aerosol cleaners.

11. Do not block the slots and openings in the projector case. They provide ventilation

and prevent the visual presenter from overheating. Do not place the visual presenter

on a sofa, rug or other soft surface or in a built-in installation unless proper ventilation

is provided.

12. Never push objects of any kind through cabinet slots. Never allow liquid of any kind

to spill into the visual presenter.

13. Except as specifically instructed in this User Manual, do not attempt to operate this

product by yourself. Opening or removing covers may expose you to dangerous

voltages and other hazards. Refer all servicing to licensed service personnel.

14. Unplug the visual presenter during thunderstorms or if it is not going to be used for

an extended period, do not place the visual presenter or remote control on top of

heat-emitting equipment or heated objects such as a car and etc.

15. Unplug the visual presenter from the wall outlet and refer serving to licensed service

personnel when the following situations happen:

If the power cable or plug becomes damaged or frayed.

If liquid is spilled into it or the visual presenter has been exposed to rain or

water.

<Note>: Using an incorrect battery type in the remote control may result in breakdown.

Follow your country’s instructions on how to dispose of used batteries.

English - 5

Safety Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to

rain or moisture.

This visual presenter has a 3-wire AC line Plug. This is a safety feature to ensure that the

plug will fit into the power outlet. Do not try to disable this safety feature.

If the visual presenter will not be used for a long period of time unplug it from the power

outlet.

Note: To reduce the risk of electric shock. Do not remove cover (or back). No

user-serviceable parts inside. Refer servicing to licensed service Personnel.

This symbol indicates that this

equipment may contain

dangerous voltage which could

cause electric shock.

This symbol indicates that there

are important operating and

maintenance instructions in this

User Manual with this unit.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A or B

digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation.

EN55022 (CE Radiation) Warning

This product is intended for use in a commercial, industrial, or educational environment. It

is not intended for residential use.

This is a Class A product. In a domestic environment it may cause radio interference, in

which case the user may be required to take adequate measures. The typical use is in a

conference room, meeting room or auditorium.

Note

RISK OF ELECTRIC SHOCK

DO NOT OPEN

English - 6

Chapter 2 Package Content

PS660

Quick Start Guide

Extender Adapter



Download Card

Remote Control

C-Video Cable



VGA Cable

USB Cable

Audio cable

Power Cord

Microscope Adapter

Padded Carry Bag

(Optional)

Appearance may vary with

country/region

Backlight (Optional)

English - 7

Chapter 3 Product Overview

1. Lens

3. Auxiliary floodlight and

lamp arm

5. Remote control slot

7. SD card slot

9. Control Panel

11. Remote sensor

2. Camera arm

4. Backlight

6. DIP Switch Settings

8. Lampstand latch

10. Function keys instructions

12. Input/output port

English - 8

Chapter 4 Installation and Connections

4.1System Diagram

Speaker

(Or connect to

an additional

amplifier

before

connecting to

the speaker)

Projector or monitor

Monitor

LCD TV

Television

English - 9

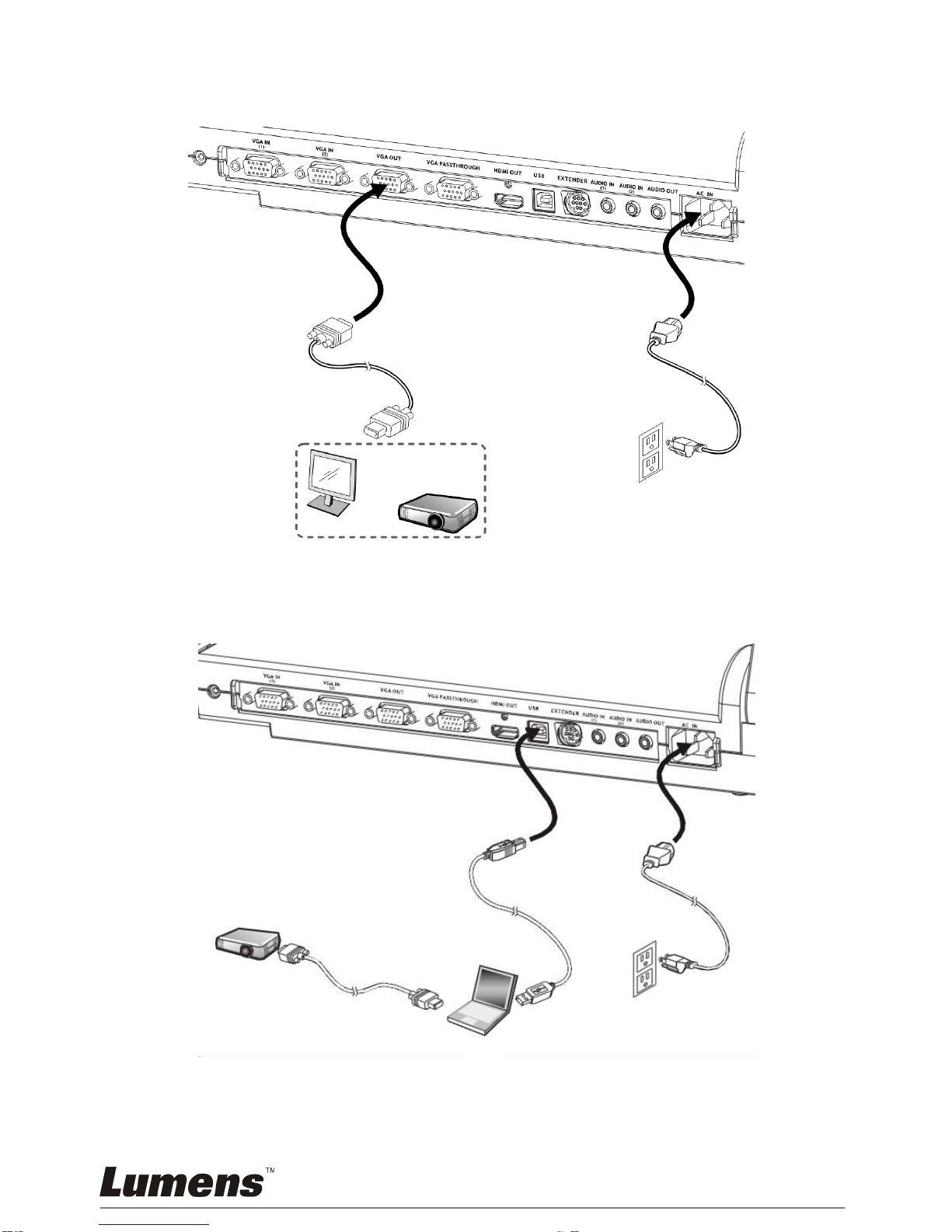

4.2Connecting to a Projector or Monitor

4.3 Connecting to a Computer and Use Lumens Software

VGA Cable

Projector or

monitor

Power Cord

Power Outlet

Power Cord

Power Outlet

Projector

VGA Cable

Computer

USB Cable
