LT-Light TRITTON-24 User manual
TRITTONTRITTON
www.dimmer.de
COMPACT CONTROL FOR
THEATRE AND LIVE
24 CH / 36 CH / 48 CH
USER MANUAL
Version 1.3
User Manual - Index
LT- A
INDEX
1 - PRESENTATION 1
INTRODUCTION 1
2 - TECHNICALS CHARACTERISTICS 3
TECHNICALS CHARACTERISTICS - DEFINITION 3
CONECTIONS 5
DMX-OUT 5
MIDI IN-THRU-OUT 5
MAINS 5
INSTALLATION 6
MAINTENANCE 6
TECHNICAL SERVICE 6
3 - LAYOUT & BASIC FUNTIONS 7
LAYOUT: LOGIC PARTS 7
MANUAL FIELD 7
MASTERS 7
GENERAL CONTROL 7
SEQUENCE 8
GENERAL MASTER & BLACKOUT KEY 8
MAIN SYSTEM INSTALLATION. COLD RESET 9
THE MANUAL FIELD: C1..C24 FADERS 9
CHANNELS GROUPS 10
MEMORIES OR PRESETS 11
LOADING PRESET IN THE MASTERS 12
RECORDING MASTER PAGES 14
MAIN MENU 16
EDITOR FOR THE MANUAL FIELD: zz NUM zz 17
PRESETS & GROUPS MODIFICATION 19
4 - MASTERS 23
FUNCTIONS KEYS ASSOCIATED TO THE MASTERS 23
WORKING IN "GO" MODE 23
MASTER FLASH FUNCTION 24
NOTES ABOUT THE MASTERS 24
5 - THE SEQUENCE 27
Manual de Usuario - Index
B- LT
THE SEQUENCE 27
WORKING WITH THE SEQUENCE 27
EDITING THE SEQUENCE 29
NOTES ABOUT THE SEQUENCE:31
NOTES FOR SETUP AND SEQUENCE 31
ERASING THE SEQUENCE: DEL 32
6 - THE CHASES 35
THE CHASES 35
STORING A CHASE 35
NOTES ABOUT THE CHASE EDITION:37
THE CHASES IN THE MASTERS 38
7 - SETUP 41
SYSTEMS SETUP 41
PCH - 24/36/48 CONTROL CHANNELS: 512 DIMMER CHANNELS 41
EDIT, EDITS THE CHANNEL PATCH 42
EDITING THE PATCH 43
SEQ- PARAMETERS FOR THE SEQUENCE 44
SOLOON/SOLOOFF 45
TºON/TºOFF 45
RECFIXED /RECFREE 45
GM - GENERAL MASTER PARAMETERS 46
CH 46
BLKOUTENABLED / BLKOUTDISABLED 46
PRH- PREHEAT FUNCTION 47
LV (LEVEL) 47
CAP (CAPTURE) 47
MEM - THE SHOW DATA.48
EX (EXAM) 48
LO (LOAD) 48
REC 48
DEL (DELETE) 49
FORMT (FORMAT) 49
SYSTEM EXCLUSIVE: SYSX RXD TXD 49
MID - MIDI PORT CONFIGURATION 50
ON/OFF 51
IN/OUT 51
CH1 51
INFO 51
-> - TO ACCESS TO THE SECOND SETUP DISPLAY 53
RST - WARM RESET 54
LNG - LANGUAGE 54
CT - DISPLAY CONTRAST 54
BEEP - ACOUSTIC SIGNAL 55
XF - CROSSFADE TYPE 55
Manual de Usuario - Index
LT- C
SCR - SCROLLERS (COLOUR CHANGERS)56
8 - TEST 59
SOFTWARE TEST 59
BUF (BUFFER) 59
HARD (HARDWARE) 59
MEM (MEMORY) 59
VER (VERSION) 60
HARD (HARDWARE TEST) 60
INPUT 60
MEM (MEMORY) 60
DISP (DISPLAY) 60
BEEP 61
LEDS 61
9 - WORKING WITH SCROLLERS 63
DEFINING ONE CONTROL CHANNEL LIKE SCROLLER 63
SCROLLERS EXAM 63
WORKING WITH THE SCROLLERS 63
10 - WORKING WITH MIDI 65
MIDI PORT CONFIGURATION 66
FOR MORE INFORMATION... 66
11 - EXAM FUNCTION 67
12 - SPECIAL FUNCTIONS - TIME 69
‘CAPTURING’ DELAY TIMES FOR THE SEQUENCE 69
‘CAPTURING’ STEP TIMES FOR THE CHASE 70
Manual de Usuario - Index
D- LT
User Manual - Lesson 1 - Presentation
LT &1
1 - PRESENTATION
INTRODUCTION
There are three models for the manual control console "TRITTON":
•TRITTON-24, for 24 control channels / 12 masters.
•TRITTON-36, for 36 control channels / 24 masters.
•TRITTON-48, for 48 control channels / 36 masters.
These control boards are manufactured completely with digital technology, and passed the hard
control tests.
The manipulation of these consoles is very easy, quick and efficient, in this way the user can use the
100% of the console tools. TRITTON is a console cheaper and very functional.
TRITTON has a great number of possibilities similar to sophisticated consoles possibilities, in
constant update.
There are 3 different models, one model for each requirement. In the next figure, we can see the
basic parts:
•Manual field. (24 faders for TRITTON-24, 36 for TRITTON-36 and 48 for TRITTON-48).
•Masters. (12 masters for TRITTON-24, 24 for TRITTON-36 and 36 for TRITTON-48).
•Sequence.
•General Master.
•General control, with a display, numeric keyboard, cursors and dedicated function keys.
The difference between models is the channels and masters number.
User Manual - Lesson 1 - Presentation
2<

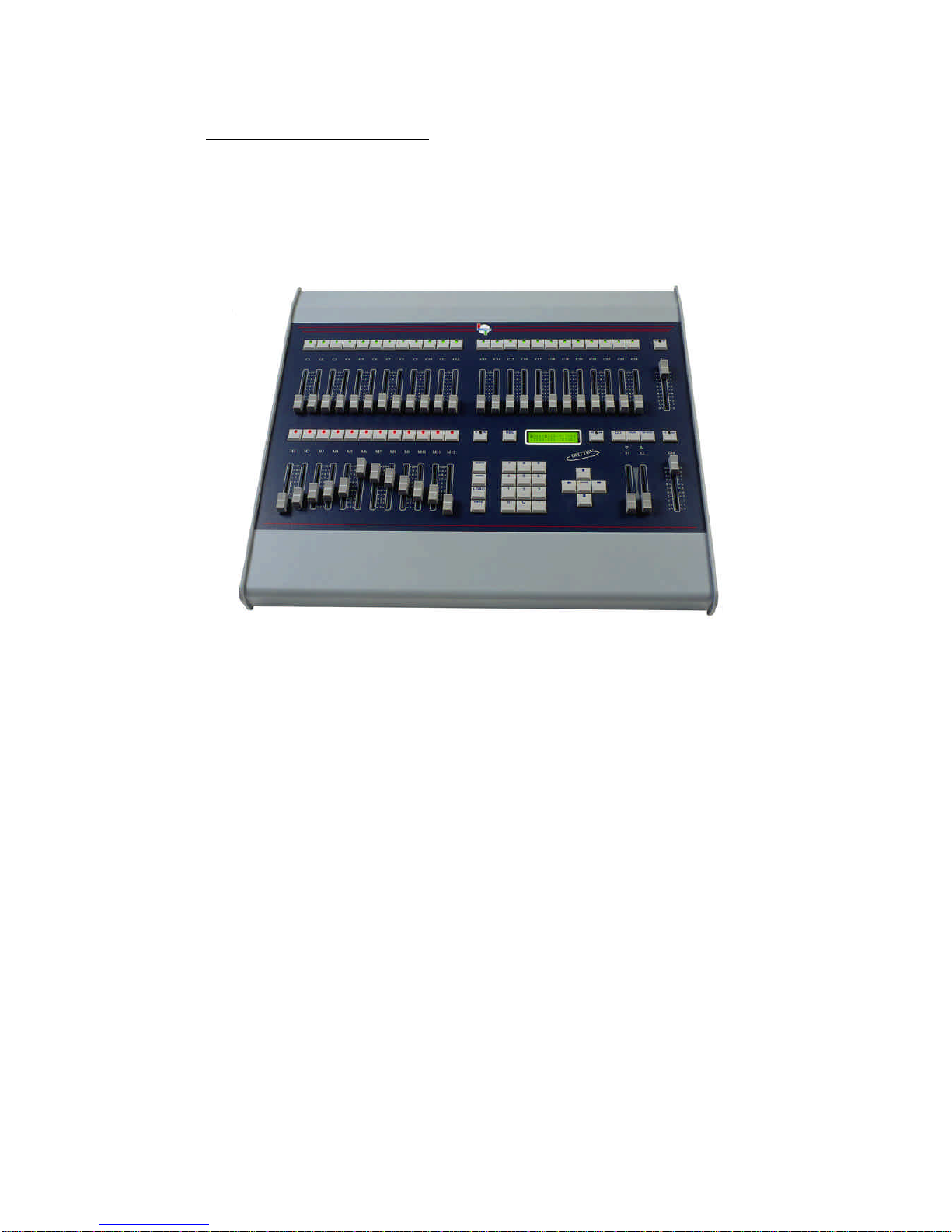

TRITTON-24:
User Manual - Lesson 2 - Technical Characteristics
LT &3
2 - TECHNICALS CHARACTERISTICS
TECHNICALS CHARACTERISTICS - DEFINITION
•Control channels: 24, 36 or 48.
•Masters: 12, 24 or 36. Masters for channels groups, presets or chases.
•Dimmers channels: 512.
•Presets or memories: 800 (1 -799).
•Channel Flash.
•Masters Flash, in modes Solo and Normal.
•Times in masters.
•99 Chases of steps no limited, with presets, groups or channels: With level and rate control, 3
directions, and 5 reproduction modes (4 hard modes and 1 soft mode).
•Sequence: 1000 steps. All step with a preset, time-in, time-out, delay and jump.
•Dipless crossfade.
•99 master pages.
•14, 26 or 38 simultaneous fades, for TRITTON-24, 36 or 48 respectively.
•EXAM function. Helps us to know any recorded information.
•MODIFY function. Permits us to modify presets and groups.
•Setup.
•Patch: 512 dimmers, 4 curves and maximum output level by channel.
•Preheat function.
•MIDI port configuration.
•Inner data memory, for data shows. Functions: record, load, exam... and permits us to
export the data show to a MIDI sequencer (Sysex).
•Warm reset.
•Messages language selection.
•Scrollers patch.
•... And other friendly functions of the LT consoles.
User Manual - Lesson 2 - Technical Characteristics
4<
•Hardware and software tests.
•Output buffer.
•Tests for keys, potentiometers, LED's, display, inner data memory...
•Free memory test…
•General Master. (It is possible to exclude channels of this control).
•Black-Out key. (It is possible enable or disable this function key).
•Scrollers, (colour changer), management.
•MIDI IN-THRU-OUT.
•DMX-512 1990 (USITT).
•Alphanumeric display - 2 x 16 characters.
•Digital technology:
•Microprocessor: H8/3003 - 16 Mhz.
•EPROM: 512 Kb.
•RAM. 512 Kb.
•Size:
•TRITTON-24: 540 mm. x 500 mm. x 60 mm...160 mm. 6 Kg.
•TRITTON-36: 770 mm. x 500 mm. x 60 mm…160 mm. 8 Kg.
•TRITTON-48: 1000 mm. x 500 mm. x 60 mm…160 mm. 10 Kg.
•85-265V~ / 50-60 Hz.
•Nominal Power: 21W.
•Nominal Intensity: 0.165 A.
•Protection: 2 fuses x 1 A/250V type F
•Temperature: -45º / 80ºC
•Humidity: 80% (no condensation).
•CAT II.
