Logitech BRIO ULTRA HD PRO Assembly Instructions

BRIO ULTRA HD PRO

BUSINESS WEBCAM

Complete Setup Guide | 设置指南 |

完整設定指南 | 설치 가이드 |

Panduan Pemasangan Lengkap

CONTENTS

English . . . . . . . . . . . . . . . . .3

简体中文 . . . . . . . . . . . . . . . .9

繁體中文 . . . . . . . . . . . . . . . 15

한국어 . . . . . . . . . . . . . . . . 21

Indonesia . . . . . . . . . . . . . . . 27

KNOW YOUR PRODUCT

Autofocus 4K

UltraHD lens

Dual microphone

Detachable

universal

mountingclip

Attachable

privacy shutter

IR sensor

IR LED

LED activity light

3English

Detachable USB-A cable

(USB 2.0 or 3.0)

Type C compatible

Travel bag

Tripod thread*

* Tripod not included

4English

ATTACH THE PRIVACY SHUTTER

1 Attach the privacy shutter over the lens

onthewebcam as shown.

WHAT’S IN THE BOX

1 Webcam with detachable universal mounting clip

(onwebcam)

2 External privacy shutter

3 Carrying case

4 7.2 ft (2.2 m) USB-A to USB-C cable (USB 2.0 or 3.0)

5 User documentation

2 Snap it onto the front of the webcam,

directlyoverthe center.

3 Manually adjust the privacy shutter to open

orcloseas desired.

5English

SETTING UP THE WEBCAM

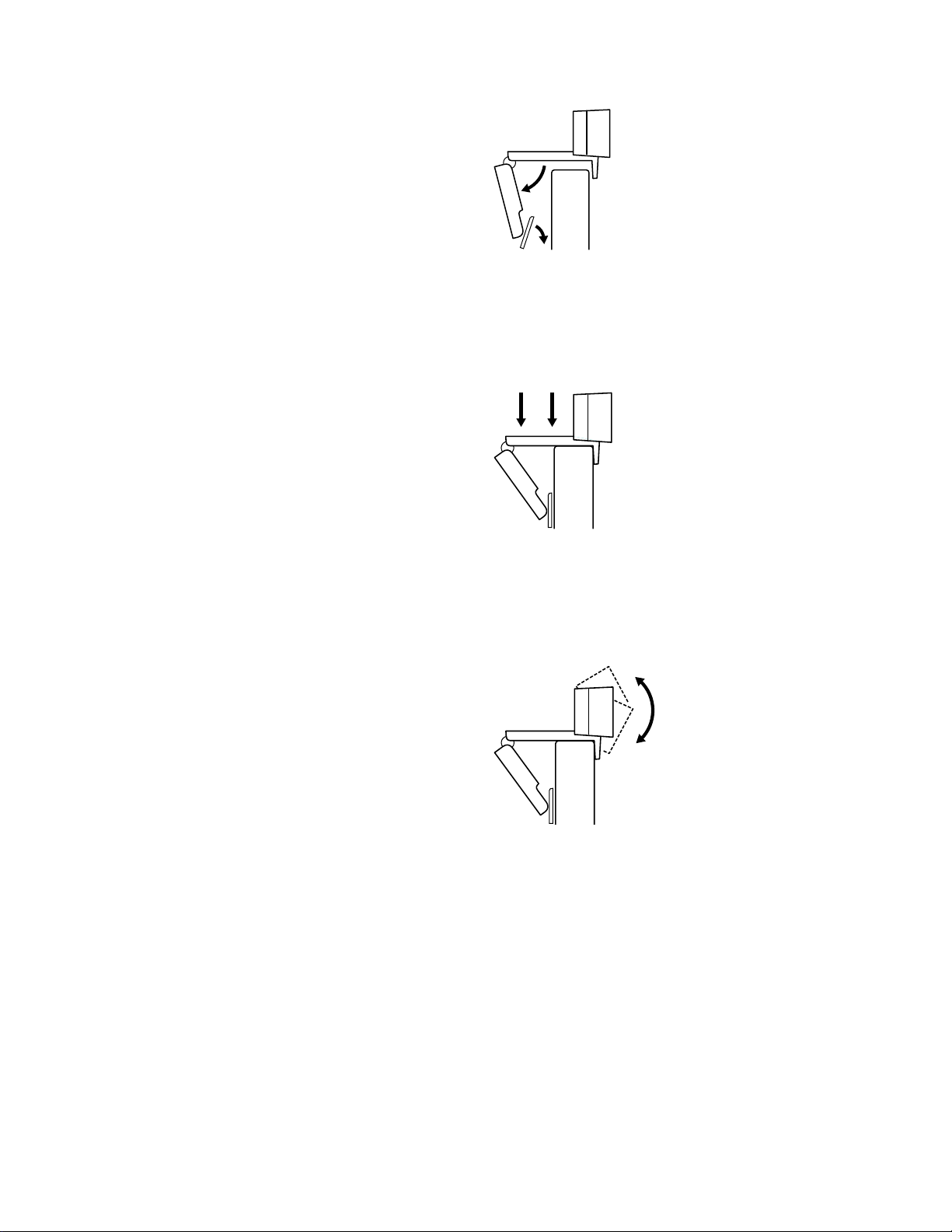

For placement on a monitor

1 Place your webcam on a computer, laptop or monitor

at a position or angle you desire.

2 Adjust the webcam to make sure the foot on

theuniversal mounting clip is ush with the back

ofyour device.

3 Manually adjust the webcam up/down to the best

position to frame yourself.

6English

For placement on a tripod*

1 Remove the detachable universal mounting clip

fromthe webcam.

2 Locate the ¼ inch tripod thread on the bottom

ofthewebcam.

3 Secure the webcam on your tripod by twisting it

intothe ¼ inch thread.

4 Place your webcam with the tripod anywhere

youdesire to the best position to frame yourself.

* Tripod not included

7English

USB 2.0

USB 3.0

CONNECTING THE WEBCAM VIA USB-A

Plug the USB-C end into the webcam and the USB-A

connector into the USB-A port on your computer.

SUCCESSFUL CONNECTION

LED activity light will light up when the webcam

isinuseby an application.

WEBCAM:

Height x Width x Depth:

1.06 in (27 mm) x 4.02 in (102 mm) x 1.04 in (27 mm)

Cable Length: 7.2 ft (2.2 m)

Weight: 2.22 oz (63 g)

ATTACHABLE MOUNTING CLIP:

Height x Width x Depth:

0.75 in (19 mm) x 1.42 in (36 mm) x 2.48 in (63 mm)

Weight: 1.55 oz (44 g)

DIMENSIONS

www.logitech.com/support/brio

trademarks of Logitech Europe S.A. and/or its aliates in the U.S. and other countries.

Logitechassumes noresponsibility for any errors that may appear in thismanual.

Informationcontained herein issubject to change without notice.

了解您的产品

自动对焦 4K 超高清

镜头

双麦克风

可拆卸通用安装夹

可拆卸

隐私镜头盖

IR 传感器

IR LED

LED 活动指示灯

9简体中文

可拆卸 USB-A 线缆

（USB 2.0 或3.0）

兼容 Type C

便携包

三脚架安装螺纹*

*三脚架需另购

10 简体中文
