Harmony 550

User Manual, version 1.1

Harmony 550 User Manual

Table of Contents

INTRODUCTION...........................................................................................................................................1

GETTING TO KNOW YOUR HARMONY REMOTE...............................................................................................2

BEGINNING THE ONLINE SETUP PROCESS.....................................................................................................3

USING YOUR HARMONY REMOTE...........................................................................................................4

USING THE GLOW BUTTON...........................................................................................................................4

USING THE MOTION SENSOR........................................................................................................................4

DISPLAYING HELP ON YOUR HARMONY REMOTE ...........................................................................................4

Types of Help Available.........................................................................................................................5

Using the Remote Assistant ..................................................................................................................5

SELECTING AN ACTIVITY...............................................................................................................................6

CONTROLLING INDIVIDUAL DEVICES..............................................................................................................6

USING THE SMART BUTTONS........................................................................................................................6

CUSTOMIZING YOUR HARMONY REMOTE .............................................................................................7

CUSTOMIZING THE DISPLAY ON THE HARMONY REMOTE ................................................................................8

Changing the Behavior of Buttons within an Activity.............................................................................8

Adding Custom-Labeled Buttons...........................................................................................................8

CHANGING THE SETTINGS FOR YOUR HARMONY REMOTE ..............................................................................9

LEARNING INFRARED (IR) COMMANDS ..........................................................................................................9

Using the Infrared Sensor....................................................................................................................10

Naming an Infrared Command ............................................................................................................11

GETTING ADDITIONAL HELP ..................................................................................................................12

Finding Answers to Your Questions ....................................................................................................12

Troubleshooting Your Harmony Remote.............................................................................................12

v. 1.1 page i

Harmony 550 User Manual

Introduction

Congratulations on the purchase of your Harmony remote! True system control is now at your fingertips.

This User Manual will introduce you to the basic online setup process, customizations and main features

of your Harmony remote.

If in doubt about how to set up your Harmony remote, follow the information and instructions using the

Logitech Harmony remote control software (also referred to as Harmony remote control software).

The Harmony remote is an Internet-powered universal remote control. Your Harmony remote can control

most devices that understand infrared (IR) signals.

The configuration of your Harmony remote is simple:

• You will be prompted to answer questions about your entertainment devices to create your own

personal Harmony remote configuration.

• Your answers will provide us with a description of the entertainment devices you want to control,

how they are set up, and your preferences for controlling them.

• If one of your devices is not in the Harmony remote's database, the Harmony remote control

software will learn about your device and add it to your configuration.

• Once you have told us about your devices, you will then be guided through setting up Activities.

Creating Activities is simple: you will be prompted to indicate the devices you use within an

Activity and how you want to control specific features, such as the volume, within that Activity.

 An Activity is a set of commands the Harmony remote sends to your entertainment system

to turn on the necessary devices.

 Once you have selected an Activity, you are in Activity mode, and the functionality of each

button on your Harmony remote is automatically configured for that Activity.

 Additionally, the display buttons will give you access to other commands for that Activity,

which cannot be set to the standard buttons.

Example

For the Watch Television Activity, the Harmony remote sends commands to your entertainment

system to turn on the necessary devices so you can watch television. The remote will

automatically be configured for the Activity based on the answers you selected during the online

setup process for the Activity.

At the end of the setup process, you will have your own configuration loaded in your Harmony remote.

Use your Harmony remote control software to:

• Customize any of your Harmony remote’s features.

• Add more entertainment devices.

• Add more Activities.

v. 1.1 page 1

Harmony 550 User Manual

Getting to Know Your Harmony Remote

Many of the Harmony remote's buttons are standard remote buttons. However, there are buttons and

other hardware that may not be so familiar to you. The extra buttons and hardware give you access to the

special features of the Harmony remote.

USB Connector: Connect one end of the USB cable to this connector

and the other end to your computer so that you can download your

configuration using the Harmony remote control software.

OFF: Turns all devices off with one button press.

Activities: Press Activities to view a list of Activities you have added.

Press the display button next to the Activity you want and the Harmony

remote will set up your entertainment system.

Devices: Lists all your devices on the display, and allows you to select

and directly control any device.

Help: Asks you simple questions so that your Harmony remote can fix

problems you are having within an Activity.

Display: Shows a list of your Activities and devices, help, infrared (IR)

commands and any available listings.

Display Buttons: Use the buttons at the side of the display to select the

corresponding command.

Left/Right Arrow: Allows you to view more options on the display.

Guide: Gives you access to view program listings, if you have a device

with this feature.

Info: Gives you additional information on program listings, if you have a

device with the Guide feature.

Exit: Exits from the Guide feature.

Menu: Gives you access to the menu system on a device, if you have a

device with this feature.

Smart Buttons: While there is a default setting for the buttons in most

Activities, you can customize these buttons to send different commands.

Glow: Turns on and of the backlight on the Harmony remote.

Prev: Goes to previous television channel.

SOUND: Controls special sound features.

PICTURE: Controls special picture features.

A, B: These two buttons are designed for use with the on-screen menu

for some digital set-top boxes, but can be customized to send any

command you want.

Infrared Learning Port: The Harmony remote uses this port to learn

commands from your original remote.

v. 1.1 page 2

Harmony 550 User Manual

Beginning the Online Setup Process

Once you have installed the Logitech Harmony remote control software, you will be guided through a

series of question-and-answer steps to complete each of the five main steps of the online setup process:

1. Login Information: Create your login information.

2. Check Connection: Ensures your computer and your Harmony remote are communicating

properly.

3. Set Up Devices: Helps you provide us with information about the devices in your personal home

theater system.

4. Set Up Activities: Helps you provide us with information about the way your devices work

together to perform Activities (e.g. Watch Television Activity).

5. Update Remote: Updates your remote with your personal settings.

Note: When using the Harmony remote control software, click Help to view specific help for the

step you are at.

v. 1.1 page 3

Harmony 550 User Manual

Using Your Harmony Remote

This section provides you with information that will help you use your remote.

Using the Glow Button

Press the Glow button to light up or turn off the display backlight. To determine the length of time the

backlight stays on:

1. Connect your Harmony remote to your computer to start the Harmony remote control software.

2. Click

Remote Preferences.

3. Select Settings.

4. Click

Next.

Using the Motion Sensor

If the remote is not used for two hours, the motion sensor on the remote automatically turns on. When the

sensor detects any motion, the motion sensor will turn on the backlight on the remote. You can also turn

off the motion sensor by pressing the Glow button.

Displaying Help on Your Harmony Remote

From time to time when you select an Activity, the Activity may not work. This can happen when the

Harmony remote sends many infrared commands to set up all your devices for an Activity, but one or

more devices are not receiving some commands. The Harmony remote is then "out of sync" with your

devices (e.g. it thinks one of your devices is on, but it is turned off). Some of the reasons the Harmony

remote can become "out of sync" with your system are:

• Someone walks between the Harmony remote and your entertainment system while an Activity is

starting.

• You point your Harmony remote away from your system while an Activity is starting.

• There is an object blocking the line-of-sight between your Harmony remote and the system.

• You are very far away from your entertainment system.

You will need to use the Help button on your Harmony remote to resynchronize the remote with your

devices. Before resynchronizing, ensure the cause of the problem has been addressed.

Example

Remove all obstructions so that the entertainment devices can receive the infrared commands

from the Harmony remote.

v. 1.1 page 4

Harmony 550 User Manual

To resynchronize:

1. Press the Help button.

2. Answer the questions on the remote’s display by selecting Yes or No. If you answer no to any

question, the Harmony remote will resend the necessary command and ask you the same

question again.

When you are done, the Harmony remote will be "in sync" with your devices again.

Types of Help Available

You can customize the Help button on your Harmony remote to provide one of the following types of help:

• Smart help

Asks questions about the devices that are on during a specific Activity.

• Full help

Asks questions about all the devices in your help system.

Select Full help if you find devices that aren’t being controlled the way you want them to, and the help on

the remote is not asking you questions about these devices.

To select the type of help you want:

1. Connect your Harmony remote to your computer to start the Harmony remote control software.

2. Click

Remote Preferences.

3. Select

Settings.

4. Click Next.

Using the Remote Assistant

Extra help is available from your remote by turning on the Remote Assistant.

To turn on/off this feature using the remote control software:

1. From

Home in the Harmony control software, click Remote Preferences.

2. Select

Settings.

3. Click Next.

v. 1.1 page 5

Harmony 550 User Manual

While the Help button helps you solve device problems within an Activity, the Remote Assistant teaches

you how to use your Harmony remote. The following is an example of the type of help the Remote

Assistant offers:

Example

If any devices are not set up correctly, press “Help” now.

Selecting an Activity

View the Activities you have added by pressing the Activities button. The

display will then list the Activities you have added. Press the corresponding

display button next to the Activity you want to start.

As a default, when you select an Activity, you will see a message on the

remote’s display reminding you to keep the remote pointed at your

entertainment system while the Activity starts. This helps ensure that all

infrared (IR) signals are properly sent.

To turn on/off the “Starting Activity” message:

1. Connect your Harmony remote to your computer to start the Harmony

remote control software.

2. Click

Remote Preferences.

3. Select Settings.

4. Click

Next.

Controlling Individual Devices

Press Devices to enter device mode. Device mode gives you access to all the possible commands for

each device included in your Harmony remote configuration. To access device mode you do not need to

be in an Activity. However, you should never need to use device mode during normal use of your

Harmony remote. This mode should only be used to send a specific command to a specific device.

You can eliminate the use of device mode by customizing your Activities.

Example

You can put commands on the display or customize specific buttons for the commands.

See Customizing Your Harmony Remote.

At any time, press Devices to switch into device mode. Once in this mode, the Harmony remote will

display a list of all the devices you have in your configuration. Select a device from the list and the

Harmony remote will only control the device features for the device.

Example

If you choose Television as the device, the number, volume and channel buttons will all control

your television.

Press Devices to return to Activity mode.

Using the Smart Buttons

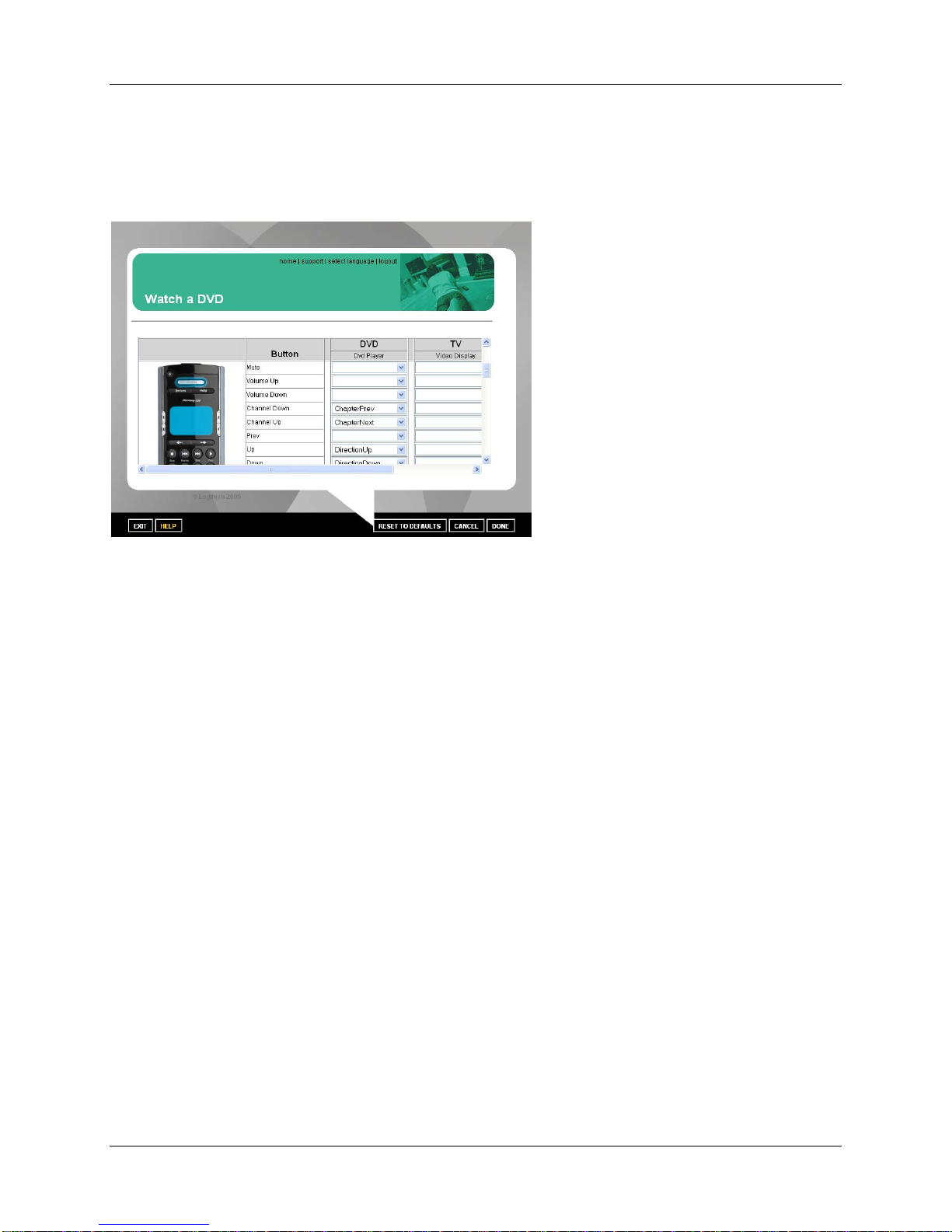

While there is a default setting for the buttons in most Activities, you can customize these buttons to send

different commands. See Changing the Behavior of Buttons Within an Activity.

v. 1.1 page 6

Harmony 550 User Manual

Customizing Your Harmony Remote

Customize your Harmony remote from Home in the Harmony remote control software.

Use the Harmony remote control software to:

Troubleshoot

• Click Troubleshoot when your Harmony remote isn’t controlling your system correctly.

view Activities

• Click Activities to add or delete Activities.

• Click an Activity icon to change the specific settings (e.g. the name of an Activity) for an Activity.

Example

To have more than one Activity of a given type (e.g. If you have both a cable converter and a

satellite receiver, you can add a second Watch Television Activity) click Add an Activity. When

you're done, rename the Activities to help you distinguish between them (e.g. For the Watch

Television Activity you could rename one from "Watch Television" to "Watch Cable" and the

other to "Watch Satellite".)

view Devices

• Click Devices to add or delete entertainment devices.

• Click a device icon to change the specific settings for a device you have already set up.

view Remote Preferences

• Click Remote Preferences to change the remote’s settings.

Get Support

• Click Get Support to view a list of support tools and services we offer.

Update Remote

• Click Update Remote after you have made changes your configuration or settings. This will

ensure you have the latest configuration and settings on your Harmony remote.

v. 1.1 page 7

Harmony 550 User Manual

Customizing the Display on the Harmony Remote

This section provides information that will help you to customize the commands and options listed on the

Harmony remote’s display.

Changing the Behavior of Buttons within an Activity

When you select an Activity, the Harmony remote will:

• Turn on all the correct entertainment devices

• Set the device inputs correctly

• Set up the remote’s buttons to control the Activity

Based on our knowledge of how each of your devices is controlled, the Harmony remote will make its

best effort to match all the buttons you need to control an Activity.

However, there may be some commands you want to add to buttons or list on the display. Commands

can be added to buttons quickly and easily by customizing any Activity to change the behavior of buttons.

To change the behavior of buttons:

1. Connect your Harmony remote to your computer to start the Harmony remote control software.

2. Click

View Activities.

3. Click an Activity.

4. Select

Change the Behavior of Buttons to view the:

 Buttons that have a command associated with them

 Device being controlled

 Command being sent to the device

Adding Custom-Labeled Buttons

You can also add any number of custom-labeled buttons to an Activity.

To add a custom-labeled button for an Activity:

1. Connect your Harmony remote to your computer to start the Harmony remote control software.

2. Click

Activities.

v. 1.1 page 8

Other manuals for Harmony 550 - Harmony 550 Universal Remote

This manual suits for next models

Table of contents

Other Logitech Remote Control manuals

Logitech

Logitech Harmony 600 User manual

Logitech

Logitech HARMONY 700 User manual

Logitech

Logitech Harmony Ultimate Hub User manual

Logitech

Logitech Harmony 890 User manual

Logitech

Logitech Harmony Touch User manual

Logitech

Logitech Harmony Ultimate Hub User manual

Logitech

Logitech Harmony 900 User manual

Logitech

Logitech 966196-0403 - Harmony 890 Pro Advanced Universal Remote... User manual

Logitech

Logitech Harmony 659 User manual

Logitech

Logitech Ultimate Control User manual

Logitech

Logitech Harmony 525 User manual

Logitech

Logitech R400 - Wireless Presenter Presentation Remote... User manual

Logitech

Logitech Harmony Smart Control Add-on User manual

Logitech

Logitech Harmony 670 User manual

Logitech

Logitech Harmony 650 User manual

Logitech

Logitech Harmony 1000 Manual

Logitech

Logitech Harmony 350 Remote User manual

Logitech

Logitech Cordless Mini User manual

Logitech

Logitech Harmony Touch User manual

Logitech

Logitech HARMONY 950 User manual

Logitech

Logitech Harmony 785 User manual

Logitech

Logitech Harmony 785 User manual

Logitech

Logitech Harmony 200 User manual

Logitech

Logitech COVER FPO User manual

Popular Remote Control manuals by other brands

Panasonic

Panasonic EUR7622KB0 Operation guide

Bang & Olufsen

Bang & Olufsen Beo4 user manual

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 user manual

Multiplex

Multiplex PROFI TX 9 instructions

One Remote

One Remote RMB4 user manual

FUTABA

FUTABA 9ZAP - PART2 manual

HR Matic

HR Matic HR MULTI 3 quick start guide

Yamaha

Yamaha ACC-GNRST-30-20 installation instructions

EisSound

EisSound KBSOUND user manual

Marantz

Marantz RC101 user guide

Conrad

Conrad FS20 TC6 operating instructions

Anritsu

Anritsu MP1777A Operation manual

Niles

Niles WVC100 Installation & operating guide

RCA

RCA RCU1300 manual

Bang & Olufsen

Bang & Olufsen BEO6 Getting started

GE 94901 instruction manual

Onbon

Onbon YQ1-75 user manual

FUTABA

FUTABA R7108SB Full manual
