Logik LFC152W14 User manual

Instruction Manual

Fridge Freezer

LFC152W14

LFC152W14_IB_Final140122.indd 1 22/01/2014 9:15 PM

LFC152W14_IB_Final140122.indd 2 22/01/2014 9:15 PM

Contents

Safety Warnings............................................................................................................................ 4

Unpacking..................................................................................................................................... 6

Installation .................................................................................................................................... 7

Location ...................................................................................................................................................................... 7

Levelling the Unit .................................................................................................................................................... 7

Installing the Spacers............................................................................................................................................. 7

Free Space Requirements .................................................................................................................................... 7

Reversing the Door Swing ................................................................................................................................... 8

Cleaning Before Use .............................................................................................................................................11

Before Using Your Unit.........................................................................................................................................11

Product Overview.......................................................................................................................12

Switching On Your Unit .......................................................................................................................................13

Adjusting the Temperature................................................................................................................................13

Noises Inside the Unit!.........................................................................................................................................13

Tips for Keeping Food in the Unit....................................................................................................................14

Preparations for Freezing....................................................................................................................................14

Defrosting Frozen Food.......................................................................................................................................14

Cleaning ......................................................................................................................................15

Defrosting ................................................................................................................................................................15

Cleaning the Interior and the Exterior of the Unit.....................................................................................15

Maintenance ...............................................................................................................................16

Care When Handling / Moving Your Unit......................................................................................................16

Servicing...................................................................................................................................................................16

Switching O for Long Periods of Time.........................................................................................................16

Condensation ........................................................................................................................................................16

Disposal.......................................................................................................................................16

Specications..............................................................................................................................17

LFC152W14_IB_Final140122.indd 3 22/01/2014 9:15 PM

Safety Warnings

• For your continued safety and to reduce the risk of injury or electric

shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for

future reference.

• Retain the manual. If you pass the unit onto a third party, make sure to

include this manual.

• This appliance is intended for indoor household use and similar

applications such as:

- farm houses and by clients in hotels, motels and other residential type

environment;

- bed and breakfast type environment;

- catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the

mains supply.

• Keep ventilation openings in the unit enclosure clear of obstructions.

• Do not use mechanical devices or other means to accelerate the

defrosting process, other than those recommended by the manufacturer.

• Do not use electrical appliances inside the food storage compartments

of the unit, unless they are of the type recommended by the

manufacturer.

• If the mains cable is damaged, it must be replaced by the manufacturer,

its service agent or a qualied technician in order to avoid a hazard.

• Choose a location for your unit away from heat sources such as radiators

or res as refrigerant and vesicant are burnable.

• Do not damage the refrigerant circuit (The refrigerant is a very

environmental-friendly gas but is also combustible. Take care when

transporting or moving the unit to ensure that the refrigeration circuit

is not damaged. In the event of damage avoid naked ames or ignition

sources and ventilate the room in which the unit is placed for a few

minutes.)

• The unit must be manoeuvred by a minimum of 2 persons.

LFC152W14_IB_Final140122.indd 4 22/01/2014 9:15 PM

• This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall not be made by children

without supervision.

• Children should be supervised to ensure that they do not play with the

unit.

• If your unit is tted with a lock to prevent children being trapped inside,

keep the key out of reach and not in the vicinity of the unit.

• Do not store volatile or ammable substances, such as aerosol cans with

a ammable propellant, in the unit.

• Do not store bottles or glass containers in the freezer compartment.

Contents can expand when frozen (zzy drinks) which may break the

bottle and damage your freezer compartment.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED

SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH

INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT

REPAIRS YOURSELF.

LFC152W14_IB_Final140122.indd 5 22/01/2014 9:15 PM

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local

regulations.

The following items are included:

Main Unit

If items are missing or damaged please contact Partmaster (UK only).

Tel: 0844 800 3456 for assistance.

Upper Balconies X2 Bottom Balcony X1

Glass Shelves X2 Salad Bin Cover X1

Upper Drawers X2 Bottom Drawer X1 Salad Bins X2

Egg Tray

Ice Tray Spacers x 2

Thank youfor purchasing your new Logik Fridge Freezer.

We recommend that you spend some time reading this instruction manual in order that

you fully understand all the operational features it oers.

Read all the safety instructions carefully before use and keep this instruction manual for

future reference.

LFC152W14_IB_Final140122.indd 6 22/01/2014 9:15 PM

INSTALLATION

Installation

Location

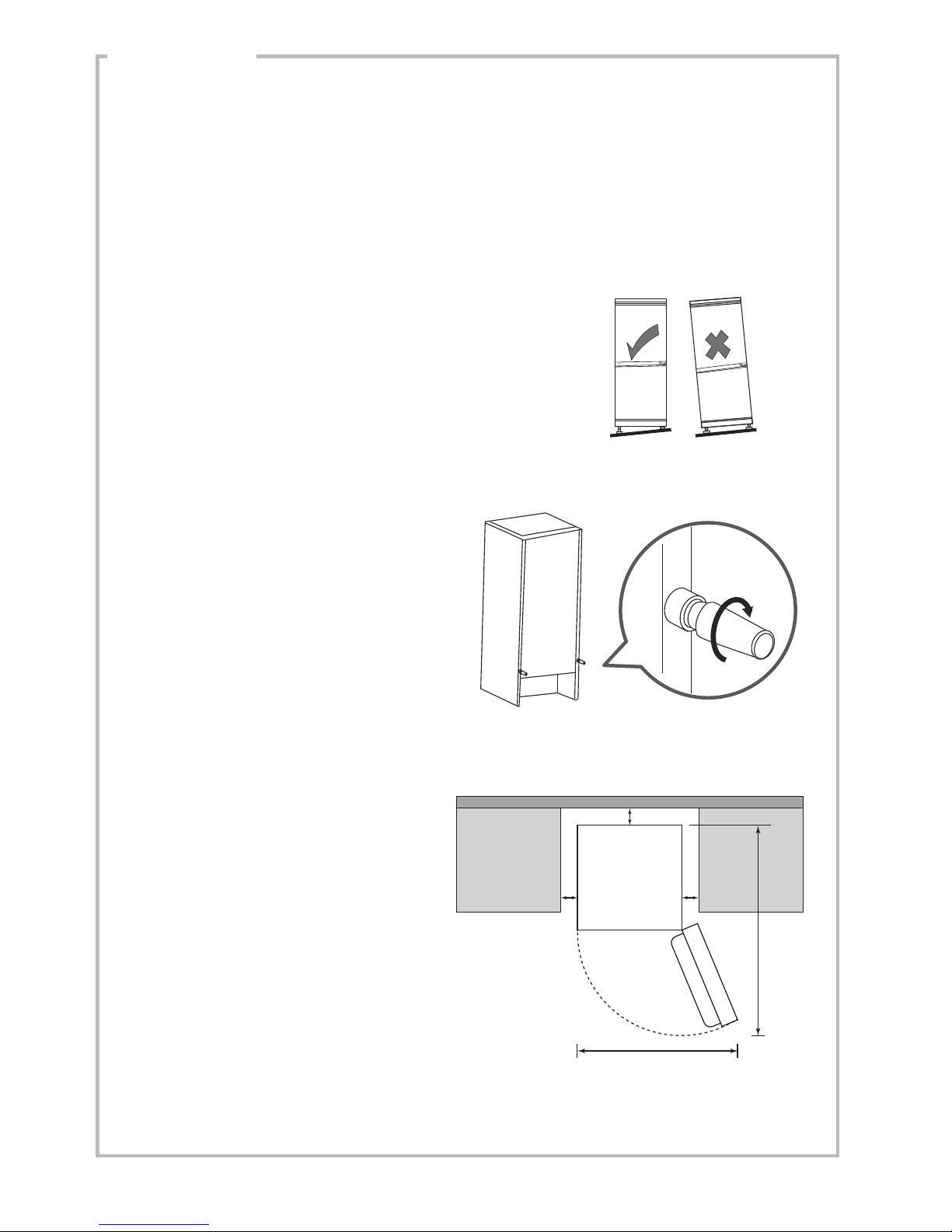

When selecting a position for your unit you should make sure the oor is at and rm, and the room is well

ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat

source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption.

Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed

for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the doors and magnetic seal alignments

will not be covered properly.

Installing the Spacers

Screw the spacers to the left and right side of the

unit’s rear part.

Free Space Requirements

When installing the unit, ensure that 25 mm

of free space is left at both sides, 50 mm at

the rear of the unit and 25 mm at the top of

the unit. The door can be opened to the right

or the left, depending on which best suits the

location. Please ensure there is adequate space

for the door to fully open to 160°.

LFC152W14_IB_Final140122.indd 7 22/01/2014 9:15 PM

INSTALLATION

1. Remove the 4 scews from top cover.

2. Lift the top cover away from the fridge.

3. Remove the three screws, then remove the

upper hinge that holds the door in place. Lift the

upper door and place it on a padded surface to

prevent it from scratching.

4. Take o the middle hinge by removing the

screws. Lift the lower door and place it on a

padded surface to prevent it from scratching.

unscrew

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.

• To take the door o it is necessary to tilt the unit backwards. You should rest the unit on

something solid, e.g. a chair just below the top panel.

• All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit at as this may damage the coolant system.

• We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualied

technician. You should only try to reverse the door yourself if you believe that you are qualied to

do so.

LFC152W14_IB_Final140122.indd 8 22/01/2014 9:15 PM

INSTALLATION

5. Remove the lower screws, hinge bracket and

levelling foot from the unit bottom. Keep the

matching bracket and foot together.

unscrew unscrew

6. Remove the remaining levelling foot from the

other side of the unit bottom and transfer it to

the corresponding position on the opposite side

of the unit bottom.

unscrew screw

180˚

7. Re-attach the bottom door hinge, screws and

foot to the opposite side of the unit.

8. After replacing the freezer door, screw the

middle hinge back onto the opposite side of the

unit. Middle hinge

Ensure the freezer door is aligned

horizontally and vertically, so that the

seals are closed on all sides before

nally tightening the hinge.

LFC152W14_IB_Final140122.indd 9 22/01/2014 9:16 PM

INSTALLATION

10. Carefully set the upper door back into place.

Re-attach the re-assembled upper door hinge

on the opposite side of the unit. Ensure the

fridge door is aligned horizontally and vertically

so that the seals are closed on all sides before

nally tightening the top hinge.

12. Put the top cover back on and x it in place with

the screws.

13. With the door closed, check that the door is

aligned horizontally and vertically and that

the seals are closed on all sides before nally

tightening the bottom hinge. Re-adjust the

levelling feet as needed.

unscrew screw

180˚

11. On the top panel move the blanking plate to the

side opposite the hinge.

9. Remove and replace the pin on the reverse side

of the hinge.

LFC152W14_IB_Final140122.indd 10 22/01/2014 9:16 PM
