LOCO COOKERS SmartTemp LCG2ST2C26 User manual
Owners Manual
Assembly Instructions
READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR OPERATE THIS PRODUCT.
Adult assembly required. Keep screws and parts out of reach of children.
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain these instructions for future reference.
26” 2-Burner Patented SmartTemp™
Precision Griddle
Model: LCG2ST2C26
LCG2ST2C26 • IM • 051022
WARNING
2
Indicates a potentially hazardous situation
which, if not avoided, could result in
moderate injury.
CAUTION
SAFETY SYMBOLS
Basic safety precautions should always be
observed when using this appliance.
Read and understand the meaning of these
symbols before assembling and using this
appliance.
This instruction manual contains important
information necessary for the proper
assembly and safe use of the appliance.
Read and follow all warnings and
instructions before assembling and using
the appliance.
Follow all warnings and instructions when
using the appliance.
Keep this manual for future reference.
If you smell gas:
• Shut offgas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
Failure to follow these instructions could
result in fire or explosion which could cause
property damage, personal injury or death.
DANGER
Indicates a hazardous situation which, if not
avoided, will result in serious injury or death.
DANGER
WARNING
Be alert to the possibility of serious personal
injury if the instructions are not followed. Equipped for use on: Propane
Main Max. Input Rating: 31,000 BTU/H
Certified under ANS Z21.58 - CSA 1.6-2018
Outdoor Cooking Gas Appliances
WARNING
• Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
• An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
• If a fire should occur, keep away from
the appliance and immediately call
your fire department. Do not attempt
to extinguish an oil or grease fire with
water.
Failure to follow these instructions could
result in fire, explosion or burn hazard
which could cause property damage,
personal injury or death.
WARNING:
This product can expose you to chemicals
including lead and lead compounds, known to
the State of California to cause cancer, birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov.
3
lococookers.com
TABLE OF CONTENTS
Warnings
Parts Diagram
Parts List
Hardware
Assembly Instructions
Leak Testing
Operation
Special Features
Care and Maintenance
Troubleshooting
Warranty
2, 4-7
8
9
10
11-18
19-20
20-22
23-24
25-28
29-31
32
4
WARNINGS
SAVE THESE INSTRUCTIONS
• The installation must conform with local codes
or, in absence of local codes, with the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, or the
Natural Gas and Propane Installation Code,
CSA B149.1, or the Propane Storage and
Handling Code, CSA B149.2, or the Standard
for Recreational Vehicles, ANSI A119.2/NFPA
1192, and CSA Z240 RV Series, Recreational
Vehicle Code, as applicable.
• This appliance, when installed, must be
electrically grounded in accordance with local
codes or, in the absence of local codes, with the
National Electric Code, ANSI/NFPA 70, or the
Canadian Electric Code, Part I, CSA C22.1.
• This appliance is for use with liquid propane
(LP) gas only. The conversion to or attempted
use of natural gas in this LP appliance is
dangerous and may cause bodily harm.
• Never use charcoal, lighter fluid, lava rocks,
gasoline, kerosene or alcohol with this appliance.
• This appliance is for outdoor use only. Never
use this appliance in a building, garage or any
other enclosed area.
• Never install or use this appliance in or on a
boat or recreational vehicle.
• Maintain proper clearances from combustible
construction. The minimum clearance to the
sides and back of the appliance is 36” (914 mm)
from any structure or combustible material. Do
not locate or use the appliance under overhead
combustible construction.
• Never operate this appliance on or under any
apartment or condominium balcony or deck.
• Keep the electrical supply cord and the fuel
supply hose away from any heated surfaces.
• This appliance is not intended for commercial
use.
• The use of alcohol, prescription drugs or non-
prescription drugs may impair the consumer’s
ability to properly assemble or safely operate
the appliance. Do not operate when under the
influence.
• When cooking with oil or grease, have a Type
BC or ABC fire extinguisher readily available.
• In the event of an oil or grease fire do not
attempt to extinguish with water. Immediately
call the fire department (911). A Type BC
or ABC fire extinguisher may, in some
circumstances, contain the fire.
• When cooking, the appliance must always be
on a level, stable, noncombustible surface
such as brick, concrete or dirt and in an area
free of combustible materials. Never use this
appliance on or around surfaces such as
asphalt, wood, dry grass or leaves, vinyl or
plastic. These surfaces are combustible and
may melt or catch fire.
• Do not leave the appliance unattended. Keep
children and pets away from the appliance at
all times.
• Do not leave the appliance unattended while
preheating or burning offfood residue. If the
appliance has not been cleaned, a grease fire
can occur that may cause damage.
• Do not move the appliance while in use. Allow
the appliance to cool before moving or storing.
• Do not attempt to disconnect the regulator from
the gas cylinder or any gas fitting while the
appliance is in use.
• The LP gas cylinder must be properly
disconnected and removed before moving this
appliance.
• This appliance is not intended for and should
never be used as a heater.
• This appliance will be hot during and after use.
Use insulated mitts or gloves for protection
from hot surfaces or splatter. Closed-toed
shoes should always be worn during operation
of this appliance.
• Avoid bumping of or impact with the appliance
to prevent spillage or splashing of hot cooking
liquid.
5
lococookers.com
• Use caution when in close proximity to
this appliance. Falling or tripping near the
appliance may result in the splashing or
igniting of hot cooking liquids and potentially
cause personal injury or property damage.
• Never drop food or accessories onto the
cooking surface. Lower food and accessories
slowly onto the cooking surface in order to
prevent splashing. When removing food from
the appliance, care shall be taken to avoid
burns from hot cooking liquids.
• Use caution when placing anything on the
cooking surface while the appliance is in
operation.
• The pressure regulator and hose assembly
supplied with the appliance must be used.
Replacement pressure regulators and hose
assemblies shall be those specified by the
appliance manufacturer.
• Keep the cooking area adjacent to the
appliance clear of debris and free of anything
flammable or combustible.
• Never attempt to attach this appliance to the
self-contained LP gas system of a camper,
trailer or motor home.
• Check burner/venturi tubes for insects and
insect nests and clean if necessary. A clogged
tube can lead to a fire beneath the appliance.
• Do not store or use gasoline or other flammable
liquids or vapors within 25 ft (7.6 m) of this
appliance.
• Do not alter the appliance in any manner. Do
not use the appliance until it is completely
assembled and all parts are securely fastened
and tightened.
• Do not build this appliance into any built-in or
slide-in construction. This could cause a fire
or an explosion that can damage property and
cause serious bodily injury or death.
• Use only factory-authorized replacement
parts. The use of any part that is not factory-
authorized can be dangerous.
WARNINGS
• Failure to raise the side shelves while igniting
the burners, or not waiting 5 minutes to allow
gas to clear if the burners do not light, may
result in an explosive flare-up.
• To protect against electric shock, do not
immerse cord or plugs in water or other liquid.
• Unplug from the outlet when not in use and
before cleaning. Allow the appliance to cool
before putting on or taking offparts.
• Do not operate and outdoor cooking gas
appliance with a damaged cord, plug, or
after the appliance malfunctions or has
been damaged in any manner. Contact the
manufacturer for repair.
• Do not let the cord hang over the edge of a
table or touch hot surfaces.
• Do not use this appliance for purposes other
than intended.
• When connecting, first connect plug to the
appliance, then plug appliance into the outlet.
• Use only a Ground Fault Interrupter (GFI)
protected circuit with this appliance.
• Use only the power supply cord supplied by
manufacturer.
• The manufacturer has properly located the
burners with respect to the orifices to allow the
appliance to burn sufficiently. Please do not
attempt to adjust the burners. They are preset
to the factory specifications.
6
1. Do not store a spare LP gas cylinder
under or near this appliance.
2. NEVER fill the cylinder beyond 80% full.
3. If the instructions in 1 and 2 are not
followed exactly, a fire causing serious
injury or death may occur.
The safety release valve on the LP tank
could activate the leaking of gas and
cause a severe fire and increase the risk
of serious injury or death.
DANGER LP TANK REMOVAL, TRANSPORT AND
STORAGE
1. Turn control knobs and LP tank valve OFF.
Turn coupling nut counterclockwise by hand
only. Never use tools to disconnect.
2. Place dust cap on cylinder
valve outlet whenever the
cylinder is not in use. Only
install the type of dust cap on
the cylinder valve outlet that
is provided with the cylinder
valve. Other types of caps or
plugs may result in leakage of propane.
3. A disconnected LP tank in storage or
being transported must have a safety cap
installed.
4. The cylinder must be stored outdoors out
of reach of children. NEVER store the
cylinder in enclosed spaces such as a
garage, carport, covered porch or any other
structure.
5. When the appliance is not in use, the gas
must be turned offat the supply cylinder.
6. Storage of an appliance indoors is
permissible only if the cylinder is
disconnected and removed from the
appliance.
7. The cylinder must be disconnected when
the appliance is not in use.
LP TANK
The LP tank must meet the following
requirements in order to be used with
your appliance:
• Measurements must be 12”
(30.5 cm) in diameter by 18”
(45.7 cm) high with 20 lb
(9.1 kg) maximum capacity.
• The LP gas supply
cylinder to be used must
be constructed and
marked in accordance
with the Specifications for
LP Gas Cylinders of the US Department
of Transportation (DOT) or the Standard
Dust Cap
WARNINGS: LP TANK
• If you smell, see or hear leaking gas,
IMMEDIATELY get away from the LP tank
and contact your FIRE DEPARTMENT
(911).
• Only cylinders marked “propane” shall be
used.
• Never use a cylinder with a damaged body,
valve, collar or footing. Dented or rusted
cylinders may be hazardous and should
be checked by your LP gas supplier before
use. The cylinder should not be dropped or
handled roughly.
• Never keep a cylinder in a hot car or
trunk. Heat will cause the gas pressure to
increase which may open the relief valve
and allow gas to escape.
DANGER
Liquefied Petroleum Gas (LP):
• LP gas is odorless, non-toxic and colorless
when produced. For your safety, LP gas has
been given an odor (similar to rotten eggs) so
you can smell if there is any leaking.
• LP gas is highly flammable and can
unexpectedly ignite when combined with air.
7
lococookers.com
for Cylinders, Spheres and Tubes for the
Transportation of Dangerous Goods and
Commission, CAN/CSA-B339.
The LP tank must include the following:
• A cylinder connection device compatible
with the connection for outdoor cooking
appliances.
• Safety relief valve.
• A Listed Overfill Protection
Device (OPD). This safety
device is identified by the
triangular hand wheel. Only
use tanks equipped with this
type of valve.
• LP tank must be arranged for
vapor withdrawal and include
collar that protects LP tank
valve.
WARNINGS: LP TANK
NEVER insert any tool or foreign object into
the LP tank valve outlet or safety relief valve.
You may damage the valve or cause a leak
which can lead to explosion, fire, personal
injury or death.
DANGER
Proper upright
cylinder
orientation
8

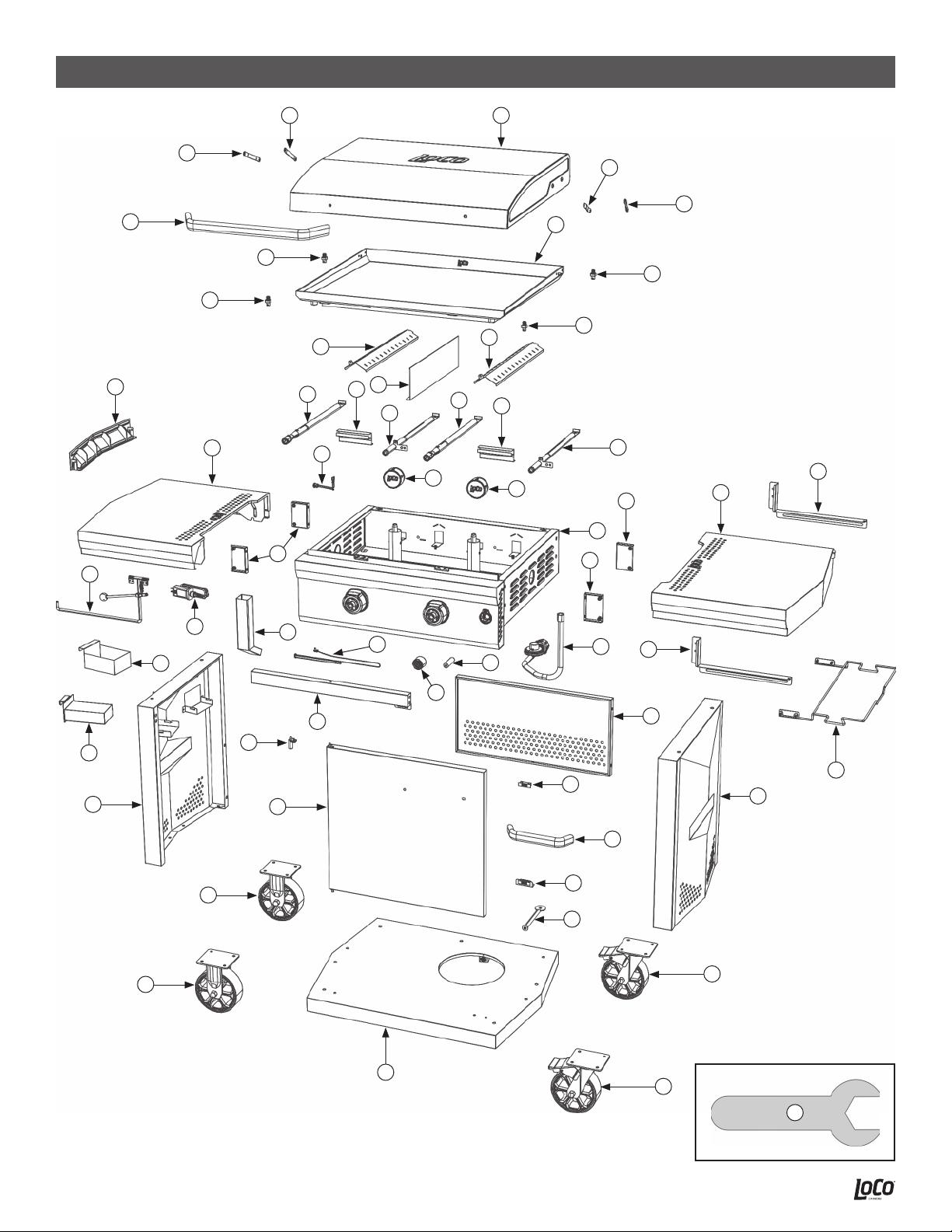

PARTS DIAGRAM
1
2
3
3
4
4
6
6
6
6
7
7
8
99
11
11
12
13
14
15
16
19
20
21
22
23 24
25
25
26 27
28
28
29
31
32 33
40
34
35
38
38
39
41
5
8
10
13
17
18
26
26
30
36
37
42
43
9
lococookers.com
Contact customer service if any parts are missing, damaged or if replacement parts are needed.
Part # Description Qty Part # Description Qty
1 Lid 1 23 Cart Panel, Left 1
2 Lid Handle 1 24 Cart Door 1
3 Lid Hinge Bracket, Long 2 25 Wheel (Non-Locking) 2
4 Lid Hinge Bracket, Short 2 26 Side Shelf Bracket 4
5 Cooktop 1 27 Side Shelf, Right 1
6 Cooktop Locking Foot 4 28 Trash Bag Rack Support 2
7 Burner Tent 2 29 Trash Bag Rack 1
8 Burner Tube, Pilot 2 30 AA Battery 1
9 Burner Tube, Non-Pilot 2 31 Ignition Button and Bezel 1
10 Burner Box Divider 1 32 Cart Brace, Front 1
11 Gas Carryover Channel 2 33 Cart Panel, Back 1
12 Burner Box, Complete 1 34 Cart Panel, Right 1
13 Control Knob 2 35 Door Handle 1
14 Side Shelf, Left 1 36 Tank Retention Screw 1
15 Paper Towel Rack 1 37 Lower Door Magnet 1
16 Grease Chute 1 38 Caster (Locking) 2
17 Upper Door Magnet 1 39 Tool Hooks 1
18 Power Port 1 40 Match Holder w/Chain 1
19 Power Cord Storage Tray 1 41 Cart Base 1
20 Power Cord 1 42 Cooktop Adjustment Wrench 1
21 Grease Tray 1 43 Upper Door Hinge 1
22 Regulator w/Hose 1
PARTS LIST
10
HARDWARE
M4x10 Screw
Qty. 9
A
M6x12 Screw
Qty. 47
B
M6x10 Screw
Qty. 8
C
M4x10 Screw
Qty. 5
D
M4 Hex Nut
Qty. 2
E
Tools required: Phillips head screwdriver • Adjustable wrench
(Not included)
Cooktop adjustment wrench
(Included)
Two people required for assembly.
Table of contents
Other LOCO COOKERS Griddle manuals
Popular Griddle manuals by other brands
Keating Of Chicago
Keating Of Chicago MIRACLEAN PRE-2000 manual
Nexgrill
Nexgrill 720-0786A owner's guide
Outwell
Outwell FH-3047C instruction manual
Rankam
Rankam Member's Mark GR2298901-MM-02 Assembly & operating instructions
Black Stone
Black Stone 1972 owner's manual
Star
Star Ultra Max 760TA Installation and operation instructions
