LocknCharge iC 10 User manual
QUICK START
What’s included?
iC 10 CHARGING STATION
iC 15 CHARGING STATION
x4*
x1 x1
x10*
x2*
*iC 15 comes with 3 baskets, 15 velcro cable straps and 6 anchor bolts.
x2 x1
x2
x1
VIDEO INSTRUCTIONS:
https://vimeo.com/361980064

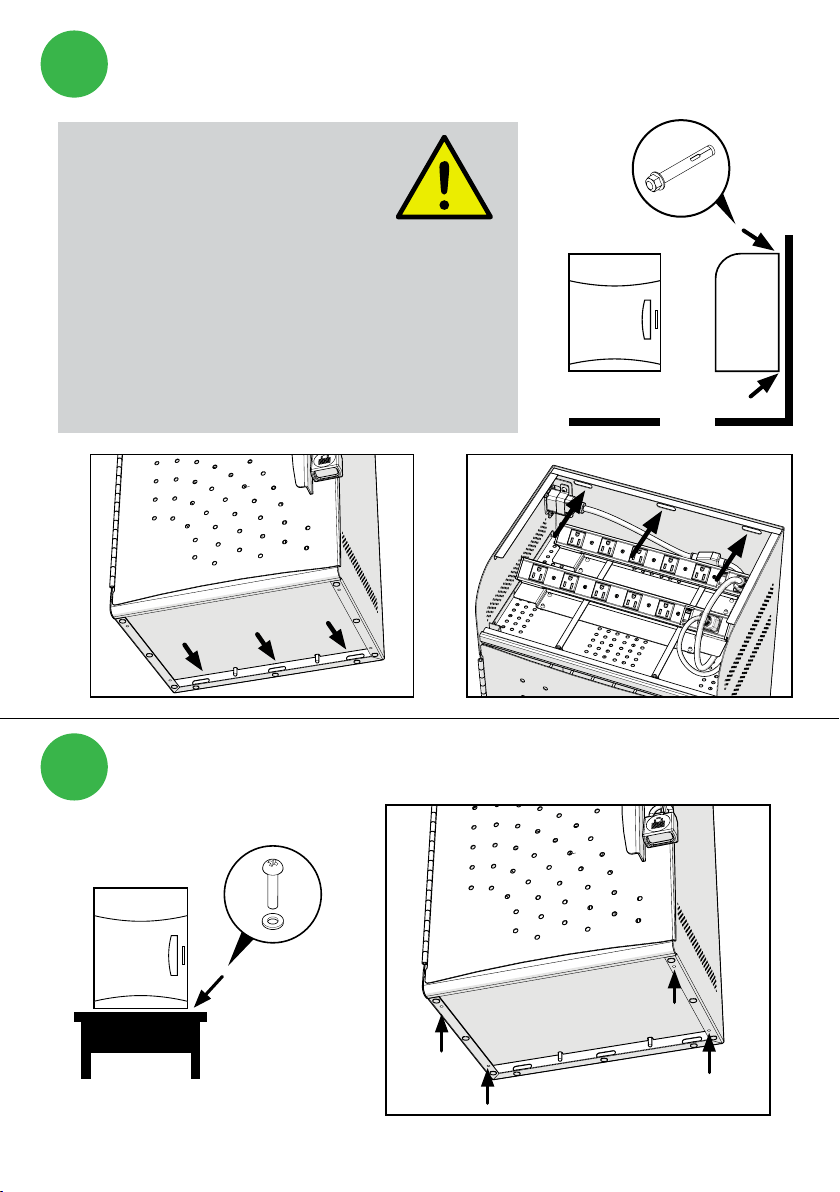

MOUNTING THE CHARGING STATION TO A WALL
MOUNTING THE CHARGING STATION TO A BENCH
*iC 10 model is shown
NOTE:
Screws not included
1a
This Charging Station must be secured to a wall or to a
bench before use. Use without securing exposes users
and others to a tipping hazard.
Only a suitably qualied installer may mount this
unit. Refer to a structural specialist to determine if the
wall you intend to mount this unit on is capable of
supporting the fully loaded Charging Station.
Refer to Drilling Instructions.
1b
IMPORTANT
DRILLING INSTRUCTIONS - WALL
DRILLING INSTRUCTIONS - BENCH
152.4056
6”
2.2”
56
2.2”6” 2”3.73”3 .73”2”6”
152.40 50.8094.80 94.8050.80152.40
6”
152.40
M6
M6
390
15.35”
550
21.65”
20
0.78”
24
0.94”
x4
*Screws not included
x4
*Screws not included
x4 x6
iC 10
iC 10
iC 15
iC 15
REPLACING THE DEVICE RACK WITH BASKETS
(optional)
*iC 10 model is shown
Push the top edge down
to release the top of the
device rack.
Carefully tilt and lift the
bottom of the device
rack.
2
3The device rack is released and can be
removed. The baskets can be placed
inside the charging station.
4
5
Open the charge compartment by sliding the lid out.
NOTE: door must be open for the lid to slide out
Plug in the device chargers (not supplied). Push the device connector through
the hole and pull along the rubber grip cable holder.
SETTING UP THE CHARGE COMPARTMENT
*iC 10 model is shown
6
7
Adjust the cable length to reach your device. Loop and neaten excess cable in
the charge compartment.
Repeat for the remaining device chargers. The power strips can be moved for
optimal positioning such as shown.
www.lockncharge.com (International)
www.pclocs.com.au (Australia and New Zealand)
8
9
Replace the lid over the charge compartment.
Close the door and use a padlock (supplied) to secure. Plug the supplied
power cable into the unit, then into the wall socket. Charging will commence
automatically.
*iC 10 model is shown
This manual suits for next models
