LIVARNO LUX LLES B2 Instruction sheet

V 1.1

English........................................................................................................................ 2

Polski ....................................................................................................................... 15

Magyar .................................................................................................................... 27

Česky ....................................................................................................................... 39

Slovenčina................................................................................................................ 52

Deutsch..................................................................................................................... 64

LIVARNO LUX LLES B2

2 - English

Content

Introduction................................................................................................................ 3

Intended use............................................................................................................... 3

Supplied items............................................................................................................ 3

Technical data ............................................................................................................ 4

Safety instructions ...................................................................................................... 5

Copyright ................................................................................................................... 6

Prior to use................................................................................................................. 6

The correct installation location......................................................................................................................7

Required tools..................................................................................................................................................7

Prior to installation...........................................................................................................................................7

Installation........................................................................................................................................................8

First use ...................................................................................................................... 9

Aligning the motion sensor .............................................................................................................................9

Setting light time (TIME)..................................................................................................................................9

Adjusting sensor sensitivity (SENS) ................................................................................................................9

Adjusting light sensitivity (LUX) .......................................................................................................................9

Cleaning / maintenance............................................................................................ 10

Troubleshooting ....................................................................................................... 11

Environmental and disposal information .................................................................. 11

Conformity ............................................................................................................... 12

Warranty and servicing advice................................................................................. 13

LIVARNO LUX LLES B2

English - 3

Introduction

Thank you for purchasing a LIVARNO LUX product.

Intended use

This energy-saving outdoor spotlight is not designed for commercial application. It is suitable for indoor

and outdoor use. The 23 watt energy-saving light bulb (10) provides good illumination. The motion sensor

detects movements and the energy-saving outdoor spotlight automatically switches itself on and off as a

result. This device meets all relevant norms and standards in conjunction with CE conformity. In the event

of any modification to the energy-saving outdoor spotlight that was not approved by the manufacturer,

compliance with these standards is no longer guaranteed.

Supplied items

Energy-saving outdoor spotlight LLES B2

Installation materials (2 screws and 2 plugs)

Operating instructions and safety instructions

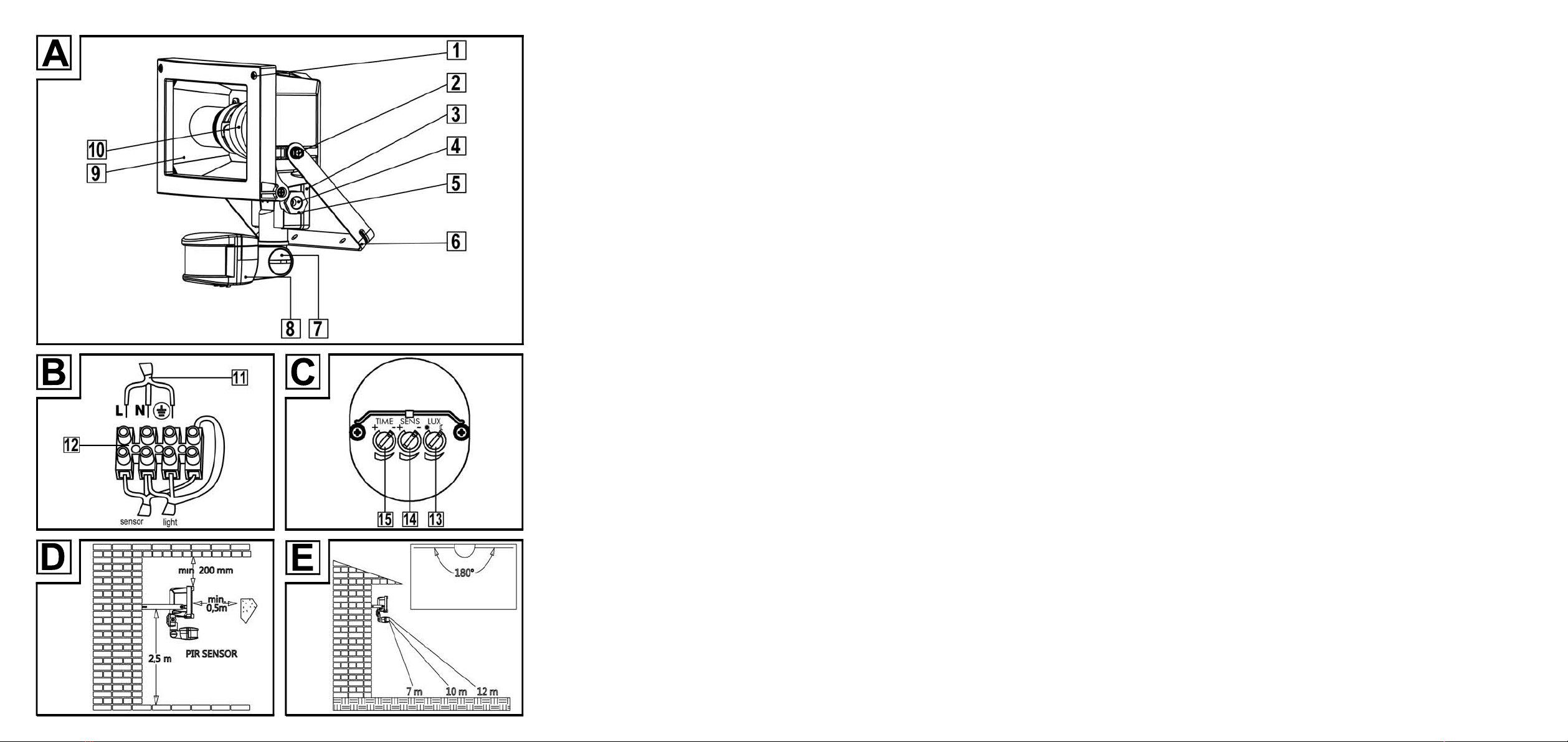

These operating instructions have a fold-out cover. The energy-saving outdoor spotlight is illustrated with

numbers on the inside cover. The numbers indicate the following:

1 Screw (front pane)

2 Screw (wall bracket)

3 Cable junction box

4 Cable bushing

5 Screw connection (cable bushing)

6 Wall bracket

7 Locking screw

8 Motion sensor

9 Front pane

10 Energy-saving light bulb (not dimmable)

11 Power cable (not supplied / home connection)

12 Screw terminal

13 LUX control

14 SENS control

15 TIME control

LIVARNO LUX LLES B2

4 - English

Technical data

Spotlight:

Brand: LIVARNO LUX

Model designation: LLES B2

Operating voltage: 220 – 240V

, 50Hz

Protection class: I (with earth conductor)

Protection rating: IP44 (splashing water protection category)

Dimensions (W x H x D): approx. 217 x 138.5 x 103 mm

Weight: approx. 1,035g (without light bulb)

Safety tested by:

Energy-saving light bulb:

Light bulb: Energy-saving light bulb E27 (only spiral bulb)

Energy efficiency class: A

Service life: approx. 8000 hours / approx. 8000 switching cycles

Luminous flux: 1300lm +/-5%

Power: 23 watts

Colour temperature: 6400K +/-10%

Motion sensor:

Sensor detection angle: 180° max.

Detection range: max. 12m (can be set via control dial)

Light sensitivity: can be set via control dial

Mechanical swivelling: approx. 150° horizontal / approx. 180° vertical

Light time: approx. 1 min +/- 15 sec to 15 min +/- 1.5 min

The technical data and design may be changed without notification.

LIVARNO LUX LLES B2

English - 5

Safety instructions

Before using this device for the first time, please read the following instructions carefully and take note of

the safety warnings, even if you are familiar with the use of electronic devices. Store these operating

instructions in a safe place for future reference. If you sell or pass on the device to someone else, be sure

to always include these operating instructions as they are an integral part of the device.

WARNING! This symbol indicates important information for safe operation of the

energy-saving outdoor spotlight and the safety of the user. Disregarding this

information can lead to material damage and/or health hazards and even death.

Fire hazard: Attach the energy-saving outdoor spotlight at a distance of at least

0.5m from illuminated materials. Excessive heat generation can cause a fire.

Any cracked protective cover must be replaced.

The energy-saving outdoor spotlight has an earth conductor. The earth conductor

(yellow/green) must be connected to the indicated terminal.

Electrical devices do not belong in the hands of children. Never allow children to use electrical

devices unsupervised. Children may not recognise potential risks. Always keep plastic packaging

away from children. It poses a suffocation risk.

If smoke is produced, or there are any unusual sounds or smells, turn the device off immediately.

In such cases, the device should not be used until it has been inspected by authorised service

personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however,

consult a doctor. The inhalation of smoke can be harmful.

The housing of the energy-saving outdoor spotlight must not be damaged. There is a risk of an

electric shock if the housing is damaged.

Do not use the energy-saving outdoor spotlight in potentially explosive environments which

contain flammable gases, vapours or dust. It poses a risk of explosion.

Never open the housing of the energy-saving outdoor spotlight except to change the energy-

saving bulb. The circuit must be disconnected during all work on the energy-saving outdoor

spotlight, even when changing the light bulb! There is a risk of an electric shock if the housing is

open.

LIVARNO LUX LLES B2

6 - English

You must not hang any objects on the energy-saving outdoor spotlight. The housing is not

designed to carry loads. Otherwise, the energy-saving outdoor spotlight could be damaged.

Never use such optical instruments as a magnifying glass to look directly into the light beam. This

can lead to eye injuries. In the event of a suspected eye injury, consult a doctor immediately.

All information contained in these instructions is subject to copyright and is provided for information

purposes only. It is only permitted to copy or duplicate data and information with the express and written

consent of the author. This also includes commercial use of the content and data. The text and illustrations

are based on the state of the art at the time of printing. Subject to change without notice.

Prior to use

Remove the energy-saving outdoor spotlight and the installation materials from the packaging.

Check the energy-saving outdoor spotlight for signs of damage. If damaged, the energy-saving outdoor

spotlight must not be used.

Only use energy-saving spiral light bulbs with E27 base and a maximum power of 23 watts!

Please note:

The supplied energy-saving light bulb is not dimmable. Do not use the energy-saving outdoor

spotlight with the supplied light bulb in circuits with dimmers.

The energy-saving light bulb (10) is stored within

the spotlight so that it can be transported safely.

Loosen the 2 screws (1) with a Phillips screwdriver

and carefully tilt the front pane (9) upwards.

Remove the packaging with the energy-saving

light bulb (10). Open the packaging, remove the

energy-saving light bulb (10) and screw it into the

socket in a clockwise direction. When doing so,

handle the energy-saving light bulb (10) by its

base and not by its glass body. The bulb should

only ever be handled with a cloth. Close the front

pane (9) downwards now and tighten the 2

screws (1) again.

LIVARNO LUX LLES B2

English - 7

The correct installation location

Select the installation location carefully and prepare well for the installation.

Place all individual parts, required tools and installation material so they are well arranged and ready

to hand.

The energy-saving outdoor spotlight may be mounted only on stable substrates, for example,

brickwork.

Do not install the energy-saving outdoor spotlight above a heat source or in the immediate vicinity of

other light sources. When selecting the installation location, also pay attention to the illustration [D] on

the inside cover.

Select the installation location so that the energy-saving outdoor spotlight is protected against wind,

rain and dirt.

Find out in advance which installation material is suitable for the installation location you selected.

Suitable installation material for concrete is included with the energy-saving outdoor spotlight.

Required tools

The following tools are not supplied. This list can be used for orientation. The exact nature of the required

tools depends on the individual on-site conditions.

Ladder

Voltage tester

Spirit level, folding ruler, pencil

Drill with drill bits

Phillips screwdriver, flat-bladed screwdriver

Spanner, combination pliers, side cutter

Prior to installation

The installation must be performed only by an authorised electrician!

The circuit must be disconnected during the installation!

When drilling the holes, make sure that no cables or pipes in the wall are damaged.

LIVARNO LUX LLES B2

8 - English

Before installation, familiarise yourself with the individual parts of the energy-saving outdoor spotlight

as well as the text and illustrations of these operating instructions and comply with them.

Make sure that the cable to which the energy-saving outdoor spotlight is to be connected is not live.

To ensure that this is the case, remove the appropriate circuit fuse from your fuse box or switch the

fuse to the "0" position.

Make sure that the cable is not live using a voltage tester!

Installation

Detach the wall bracket (6) from the energy-saving outdoor spotlight by removing the 2 screws (2)

with a Phillips screwdriver. Note that the wall bracket (6) is attached on both sides with a screw (2), a

spring washer and a flat washer. Keep these parts safe until you are ready to assemble them.

Use the wall bracket (6) as a template to mark the two holes.

Then drill the two holes and attach the wall bracket (6) using the supplied wall plugs and screws or,

depending on the installation location, using other suitable plugs and screws.

Open the cable junction box (3) by loosening the four screws using a Phillips screwdriver and

removing the cover.

Loosen the 2 screws on the strain relief within the cable junction box (3) with a Phillips screwdriver

only to the extent that the power cable (11) can be subsequently fed through it.

Loosen the screw connection (5) of the cable bushing (4), but do not completely unscrew it.

Remove approx. 5 to 8cm of the sheath of the power cable (11).

First, route the power cable (11) through the screw connection (5) and the cable bushing (4), and

then through the strain relief in the cable junction box (3). When routing the power cable (11)

through the cable bushing (4), an internal rubber seal must be penetrated. A slight resistance may

thus be felt.

Fix the power cable (11) by tightening the 2 screws on the strain relief within the cable junction box

(3). The end of the cable sheath must be in the strain relief for this purpose. Do not clamp the

individual wires!

Then tighten the previously loosened screw connection (5) of the cable bushing (4) in a clockwise

direction. This ensures the sealing of the power cable (11).

Connect the stripped wire ends of the power cable (11) using the screw terminal (12). Make sure that

the individual wires of the power cable (11) are connected correctly. Also pay attention in this context

to the illustration [B] on the inside cover.

Wire Symbol Designation

Black or brown L Phase

Blue N Neutral

Yellow/green Earth conductor

Other manuals for LLES B2

Table of contents

Languages:

Other LIVARNO LUX Outdoor Light manuals

LIVARNO LUX

LIVARNO LUX LTL 20 A2 Instruction sheet

LIVARNO LUX

LIVARNO LUX HG02103 Technical specifications

LIVARNO LUX

LIVARNO LUX 270697 User manual

LIVARNO LUX

LIVARNO LUX KH4246-01/11-V2 User manual

LIVARNO LUX

LIVARNO LUX 101253 Installation and operating instructions

LIVARNO LUX

LIVARNO LUX 302835 Technical specifications

LIVARNO LUX

LIVARNO LUX 14115702L Technical specifications

LIVARNO LUX

LIVARNO LUX 298486 User manual

LIVARNO LUX

LIVARNO LUX Z31908A-BS User manual

LIVARNO LUX

LIVARNO LUX 3433-025L Technical specifications

LIVARNO LUX

LIVARNO LUX LSLB 30 A1 Product information sheet

LIVARNO LUX

LIVARNO LUX 307577 1904 Technical specifications

LIVARNO LUX

LIVARNO LUX C122016-8 Technical specifications

LIVARNO LUX

LIVARNO LUX 282512 User manual

LIVARNO LUX

LIVARNO LUX 351874 2007 User manual

LIVARNO LUX

LIVARNO LUX LLES B2 Instruction sheet

LIVARNO LUX

LIVARNO LUX 306062 User manual

LIVARNO LUX

LIVARNO LUX 14101504L Technical specifications

LIVARNO LUX

LIVARNO LUX 285629 User manual

LIVARNO LUX

LIVARNO LUX 110450 User manual

LIVARNO LUX

LIVARNO LUX 291038 Technical specifications

LIVARNO LUX

LIVARNO LUX 7317-012L User manual

LIVARNO LUX

LIVARNO LUX 74184 User manual

LIVARNO LUX

LIVARNO LUX LSL 10 A4 User manual

Popular Outdoor Light manuals by other brands

Sealey

Sealey LED37 instructions

nordlux

nordlux VEJERS Mounting instruction

SImx

SImx ELITE LED LHTC637 installation instructions

GEV

GEV CAROLINE 10833 manual

NEBO

NEBO NEB-LSP-0020 Use and care guide

WE-EF

WE-EF PFL540 LED Installation and maintenance instructions

Lindby

Lindby 9949029 Intended use

HEPER

HEPER DOGO Side LW6048.585-US Installation & maintenance instructions

HEPER

HEPER LW8034.003-US Installation & maintenance instructions

Maretti

Maretti VIBE S 14.6080.04.A quick start guide

BEGA

BEGA 84 253 Installation and technical information

HEPER

HEPER MINIMO Installation & maintenance instructions

LIGMAN

LIGMAN BAMBOO 3 installation manual

Maretti

Maretti TUBE CUBE WALL 14.4998.04 quick start guide

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB installation instructions

urban ambiance

urban ambiance UQL1273 installation instructions

TotalPond

TotalPond 52238 instruction manual

Donner & Blitzen

Donner & Blitzen 0-02661479-2 owner's manual
