Linolit Linolit 40 User manual
FLOOR EQUIPMENT AND TOOLS
Industrial vacuum cleaner
Linolit 40
Industrial vacuum cleaner
Linolit 23
Instructions manual
CONTENT
1. INTRODUCTION 2
2. PRESENTATION 3
2.1 RESPONSIBILITY OF THE OWNER 3
2.2 RIGHT OF THE MANUFACTURER 3
2.3 STRUCTURE AND FUNCTIONS 4
3. START AND STOP 6
3.1 CONNECTING VACUUM CLEANER 6
3.2 START 6
3.3 STOP 7
4. MAINTENANCE AND SAFETY 7
4.1 CLEANING THE FILTER 7
4.2 REPLACING THE FILTER 7
4.3 SAFETY PRECAUTIONS 10
4.4 PERSONAL PROTECTIVE EQUIPMENT 12
4.5 GENERAL SAFETY PRECAUTIONS 12
4.6 ELECTRICAL SAFETY 13
4.7 GROUNDING 14
5. TECHNICAL MAINTENANCE
AND TRANSPORT 14
5.1 DAILY MAINTENANCE 15
5.2 CHECKING THE FILTER 15
5.3 TRANSPORT 15
6. TROUBLESHOOTING 16
7. TECHNICAL CHARACTERISTICS 19
1. INTRODUCTION
- 2 -
Warning! If the machine is used incorrectly, it can be
a dangerous tool that can cause serious injuries or even
death. Before operating the machine, please read the
instructions carefully and make sure you understand them.
Use personal protective equipment (see chapter
Personal protective equipment).
Warning! Grinding produces dust and inhalation of
dust may result in injuries. Use the respirator. Always
provide adequate ventilation.
This machine is in accordance with EU regulations. This
product should not be disposed of as household waste. In
ensuring the proper disposal of this product you will help to
prevent potential negative consequences for the
environment and human health, which may be caused by
improper processing of the product.
POLIRTLAK d.o.o.
Štihova ulica 10, 1000 Ljubljana, Slovenija
INDUSTRIAL VACUUM CLEANER LINOLIT 23
Weight: 35 kg
Voltage: 230 V
Current: 10 A
Year of production: 2016
IP protection: 54
- 3 -
2. PRESENTATION
Dear customer, thank you for buying the machine Linolit. We
hope that you will be satisfied with this product. Purchasing any
of our products gives you right to get the right professional help
in order to repair or maintain the machine.
We hope that this manual will be useful. Have the instructions
close by. Following the content (for proper use, service,
maintenance, etc.) you will significantly extend the life of the
machine and increase its second-hand value. If the machine is
traded or sold, give the manual to the new owner.
2.1. RESPONSIBILITY OF THE OWNER:
The owner or employer is responsible for sufficient knowledge
of the operator about the operation and safety measures of the
machine. Managers and operators have to read the instructions
and understand the content. They have to be familiar with:
-safety instructions for working with the machine;
-application and limitations of the machine;
-operating procedures and technical maintenance of the
machine.
2.2. RIGHT OF THE MANUFACTURER:
After the publication of this manual our company may include
additional information concerning safety issues. The owner is
responsible for safe working practice. Our company is
continuously working on the improvement of our products and
therefore reserves the right to change the form and the appearance
of the machine without the prior notice.
- 4 -
2.3. STRUCTURE AND FUNCTIONS: Linolit products have high
performance characteristics, such as reliability, the use of innovative
technology, advanced technical solutions and environmental friendliness.
Read this manual carefully before using the machine. For further
information, please contact your local dealer or our company.

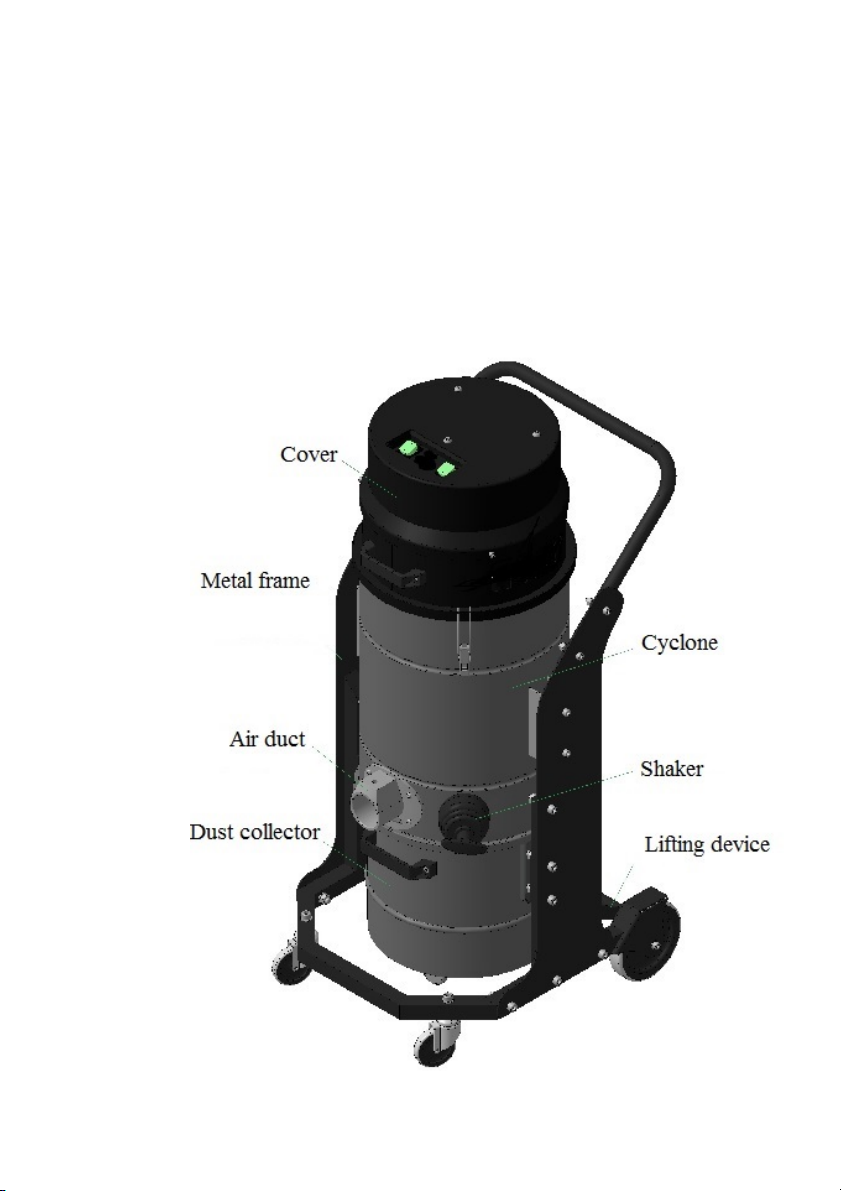

Linolit 23

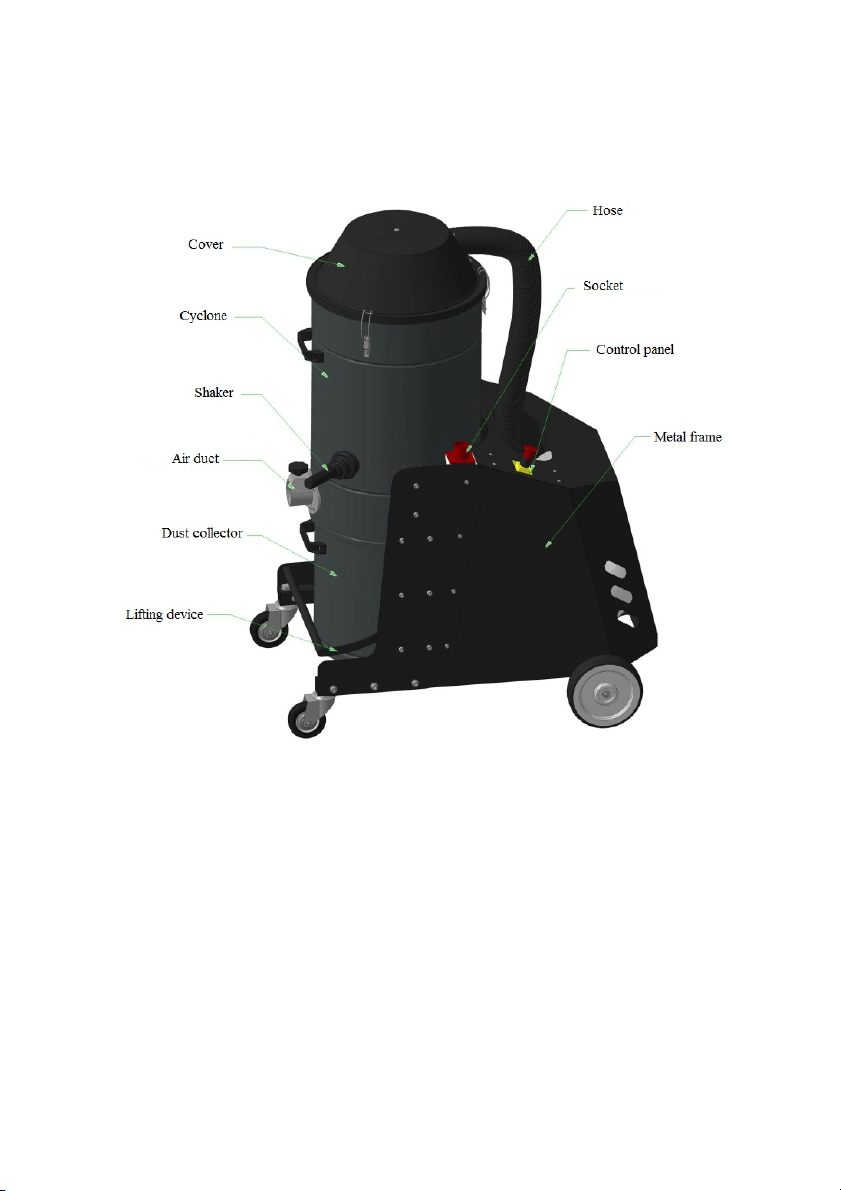

Linolit 40
- 5 -
3. START AND STOP
3.1 CONNECTING VACUUM CLEANER
Before operating the vacuum cleaner, please read the
instructions carefully and make sure you understand them.
Use personal protective equipment.
Keep unauthorised people out of the working area to prevent
serious injuries. Check that the machine is properly installed and
not damaged. !
Warning! Before connecting the vacuum cleaner to the electricity
network, make sure that the switch start/stop is set into the
position STOP. Connect the vacuum cleaner to the grounded
outlet.

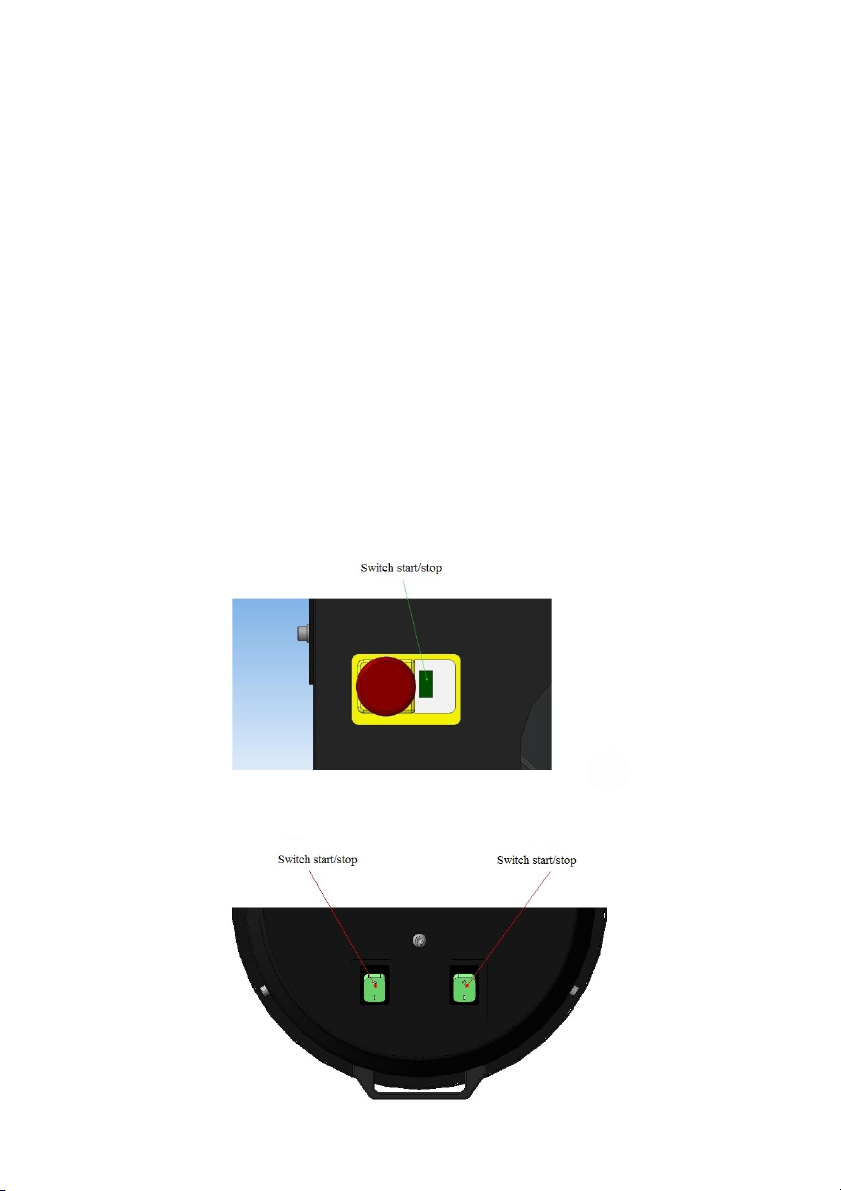

3.2 START
Linolit 40
Linolit 23
- 6 -
•Place the vacuum cleaner in the working area.
•Make sure that the dust collector is firmly attached to the
body of the vacuum cleaner.
•Make sure that the hose of the vacuum cleaner is
connected to the air duct on the body of the vacuum
cleaner.
•Connect the device to the electrical supply.
•Press the switch start/stop. Start the machine by
turning on the switch START. Industrial vacuum
cleaner Linolit 23 is equipped with two vacuum
motors that can be activated individually or
simultaneously. In case when both motors operate at
the same time, the suction capacity is considerably
increased. The optimal mode of the vacuum cleaner
operation depends on the quantity of industrial waste.
3.3 STOP
•Press the switch start/stop. Stop the machine by
turning on the switch STOP.
4. MAINTENANCE AND SAFETY
4.1 CLEANING THE FILTER
The filter is made of filtering material and can be easily
replaced. To clean the filter press the handle of the shaker up
and down. Replace the filter every 500 working hours or every
6 months of the vacuum cleaner operation.
4.2 REPLACING THE FILTER
In case you want to remove the filter from the cyclone, unclip the
latches on the cover and lift it. Unscrew the 5 screws that hold
the filter and replace the filter. After having installed the filter on
its position, tighten the screws evenly in order not to cause
damages on the upper ring of the filter. Put the cover back on the
vacuum cleaner and attach it with the latches.
- 7 -

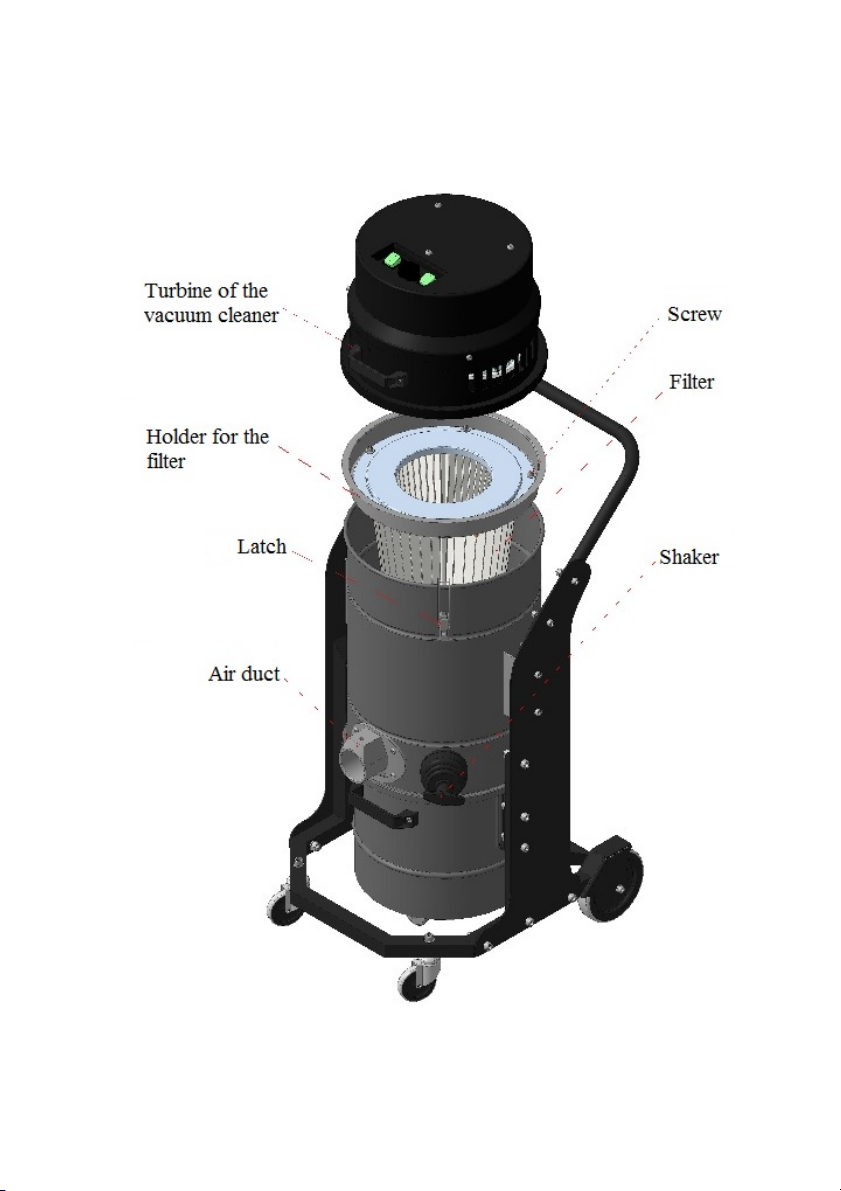

Filter position on Linolit 23
- 8 -

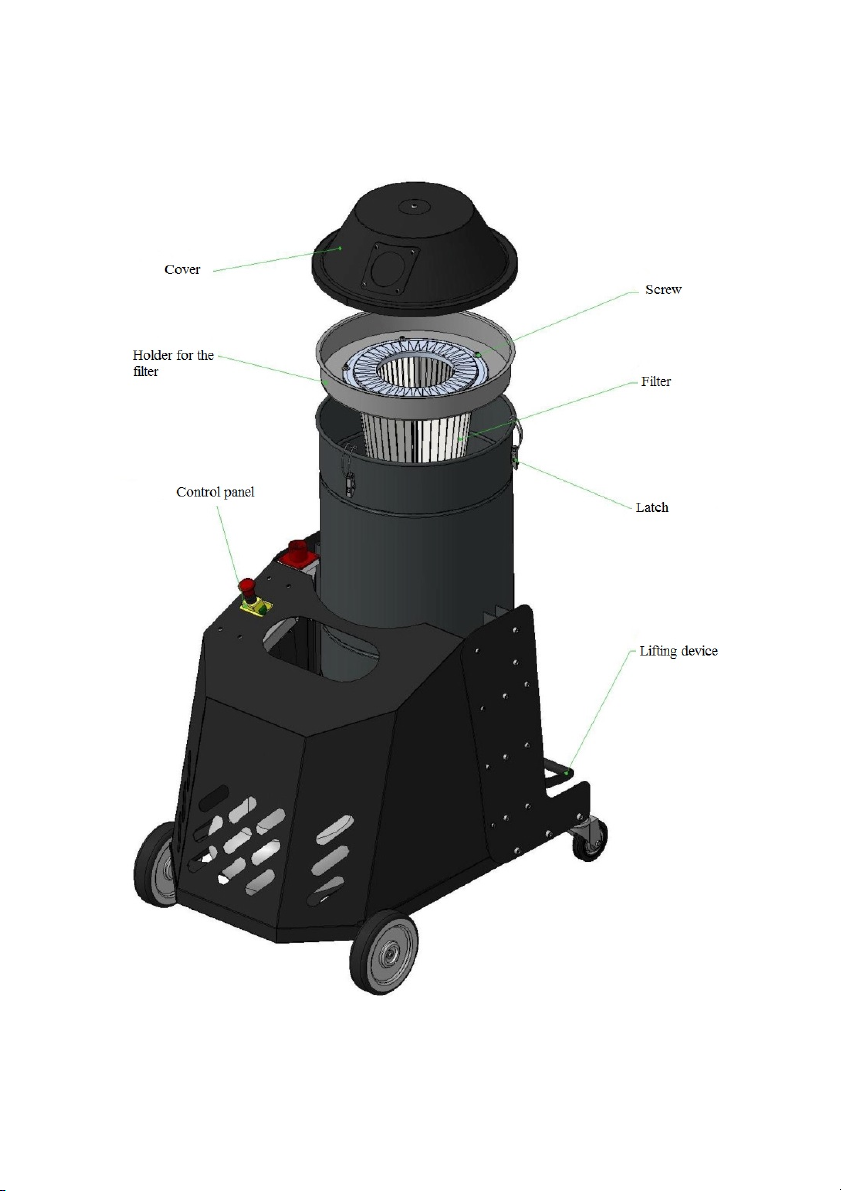

Filter position on Linolit 40
- 9-
