Linksys EA9200 Product overview

EA9200

Front view

•Indicator light — The Linksys logo stays on steadily while power is

connected and following a successful Wi-Fi Protected Setup connection.

Flashes or pulses slowly during bootup, during firmware upgrades, and

during a Wi-Fi Protected Setup connection. Flashes quickly when there

is a Wi-Fi Protected Setup error.

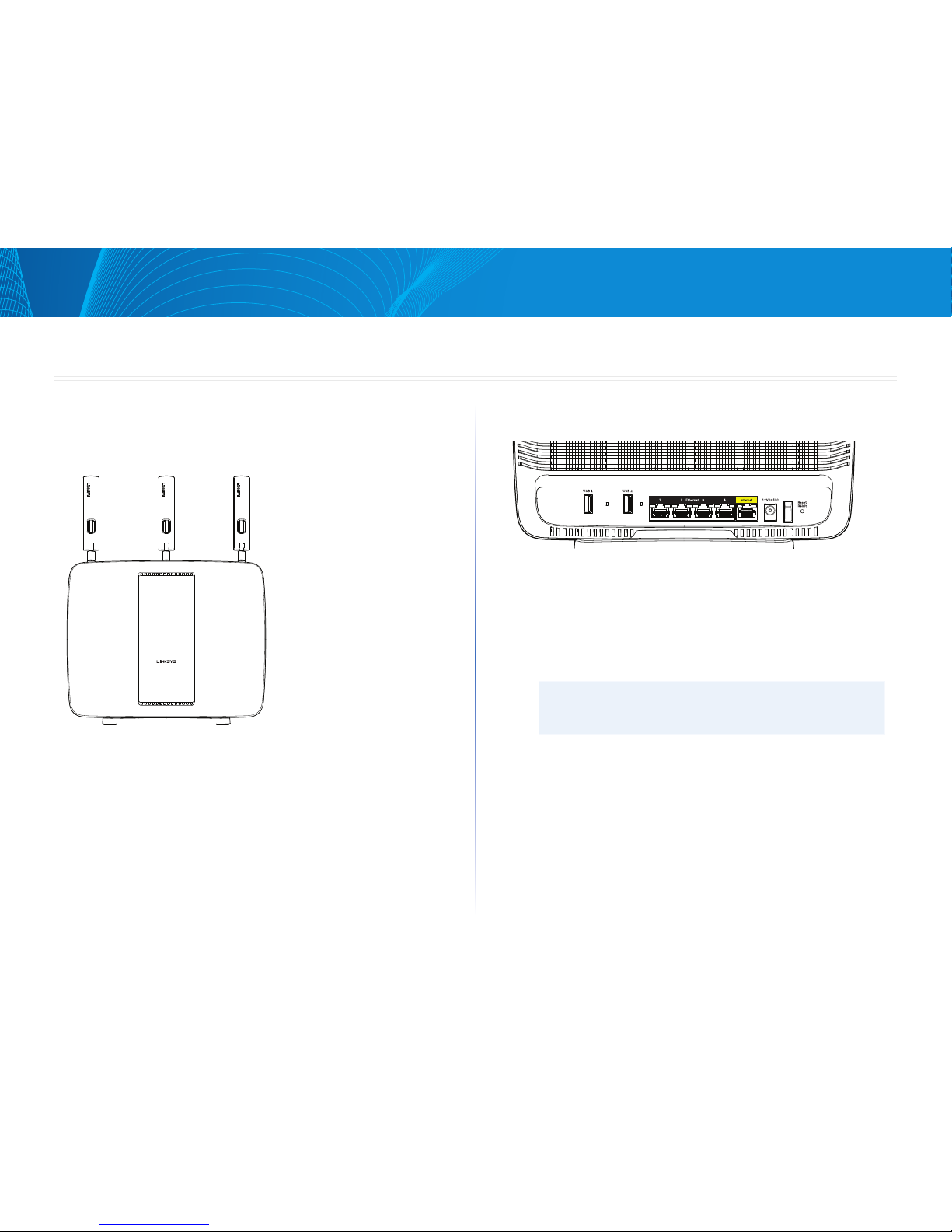

Back view

The ports/buttons from left to right: USB 3.0, USB LED, USB 2.0, USB LED,

Ethernet ports (1-4), Internet port, Power port, Power switch, Reset button

•USB ports — Connect and share a USB drive or a USB printer.

•USB LEDs — Illuminate when a USB drive is connected. Flash when

data is being transferred.

•Ethernet ports — Connect Ethernet cables to wired Ethernet network

devices.

NOTE

For best performance, use CAT5E or higher rated cables on the

Ethernet ports.

•Internet port — Connect an Ethernet cable to your modem.

•Power port — Connect the included AC power adapter.

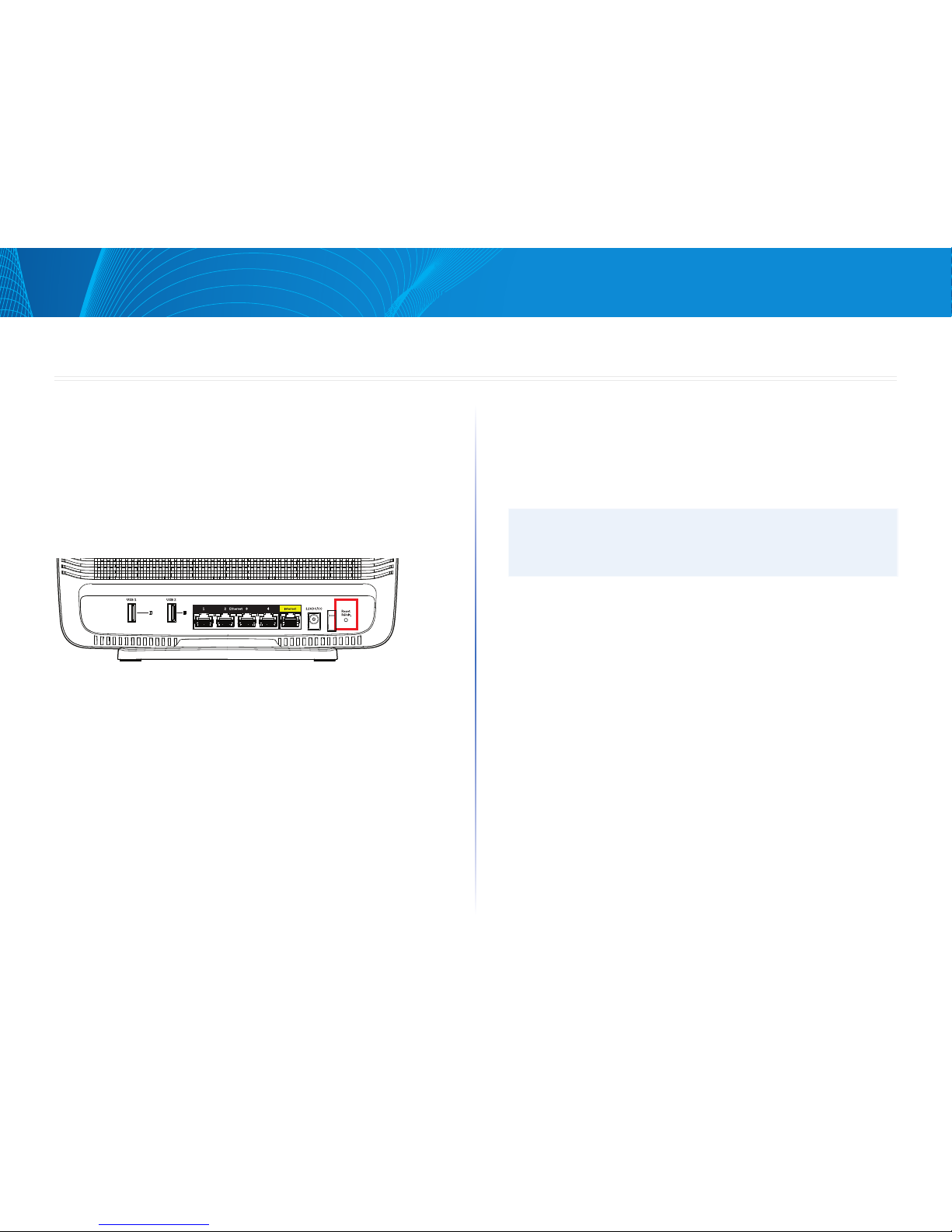

•Power switch — Press | (on) to turn on the router.

•Reset button — Press and hold for 10 seconds (until the port lights

flash at the same time) to reset the router to factory defaults. You can

also do this using Linksys Smart Wi-Fi.

Product overview

Linksys EA9200 Product overview

Side view

•Wi-Fi Protected Setup™ button — Press to easily configure wireless security

on Wi-Fi Protected Setup-enabled network devices.

•Wi-Fi button — Press to disable the wireless networks (light comes on).

Press again to enable the wireless networks (light goes out).

Top view

•Adjustable antenna ports — Three adjustable external antennas (included)

should be connected to the router before powering it on. Twist antenna

connectors clockwise onto ports.

Linksys EA9200 Setting Up Your Router

Where to find more help

Linksys.com/support (documentation, downloads, FAQs, technical support,

live chat, forums)

Linksys Smart Wi-Fi (linksyssmartwifi.com; click Help at the top of the screen)

How to install your router

If replacing an existing router, disconnect it.

1. Connect the antennas to the top of your router and power it on.

2. Connect the Internet cable from your modem to the yellow Internet port

on the back of your router. Wait until the Linksys logo on the front of your

router is solid.

3. Connect to the secure wireless name shown in the Quick Start Guide that

came with your router. (You can change these details later.) Select the

option to automatically connect to this network in the future. You will not

have Internet access until you complete router setup (see Step 4).

4. Open a web browser to launch the Linksys Smart Wi-Fi Router setup

instructions. If you don’t see the instructions, type linksyssmartwifi.com in

the address bar.

At the end of setup, follow the on-screen instructions to set up your Linksys

Smart Wi-Fi account. Use Linksys Smart Wi-Fi to manage your router’s settings,

including:

• Change your router’s name and password

• Set up guest access

• Configure parental controls

• Connect devices to your network

• Test your Internet connection speed

NOTE

As part of Linksys Smart Wi-Fi account setup, you will be sent a

verification e-mail. Make sure that you open the e-mail from Linksys

and click the provided link, and log in from a device connected directly

to the router.

How to connect to Linksys Smart Wi-Fi

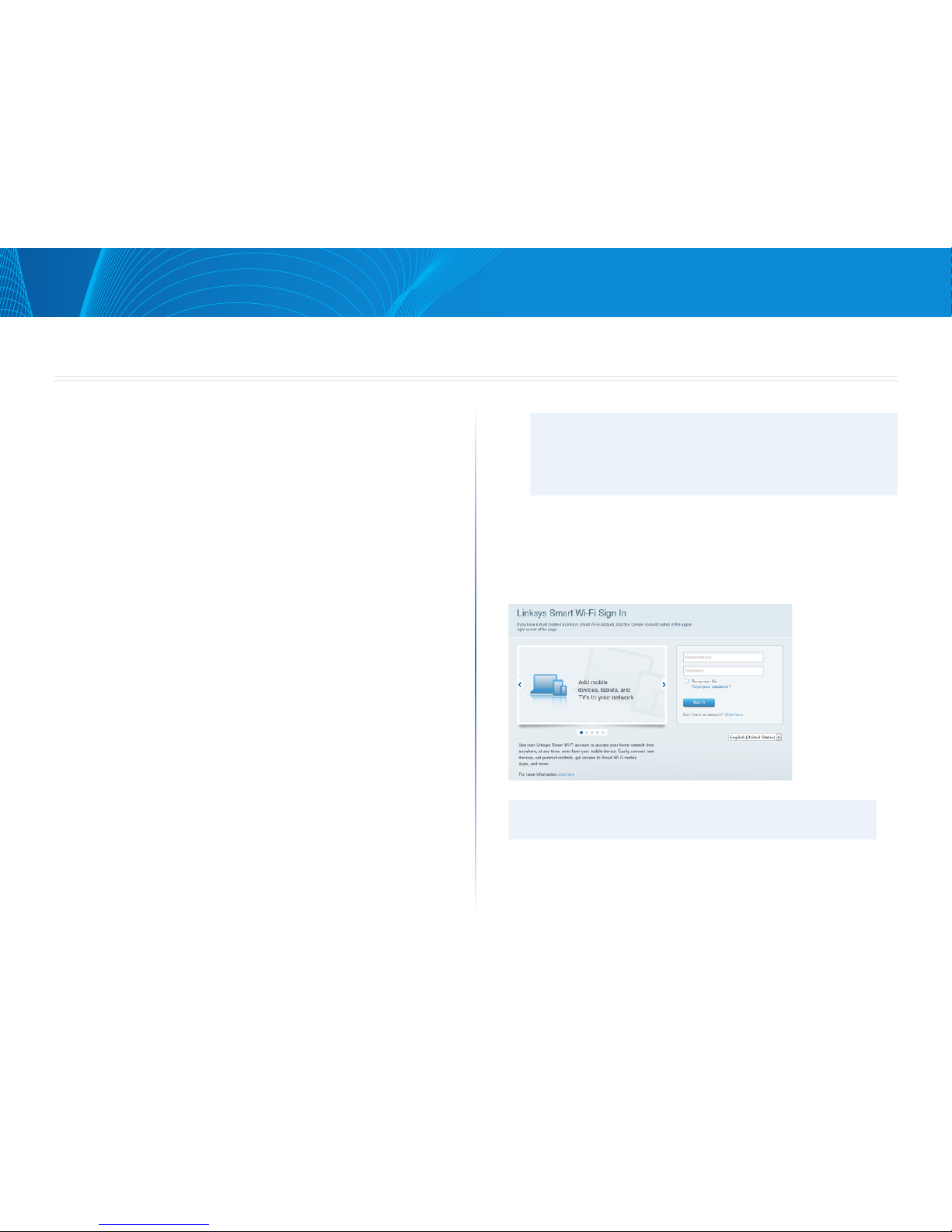

1. Open a web browser and go to www.linksyssmartwifi.com.

2. Enter the e-mail address and password you set up earlier and click Sign in.

How to change router settings

NOTE

For additional help on any menu, click Help at the top of the screen.

Setting Up Your Router

Linksys EA9200 Setting Up Your Router

• Open Linksys Smart Wi-Fi and log in to your account.

• In the menu on the left, click an option:

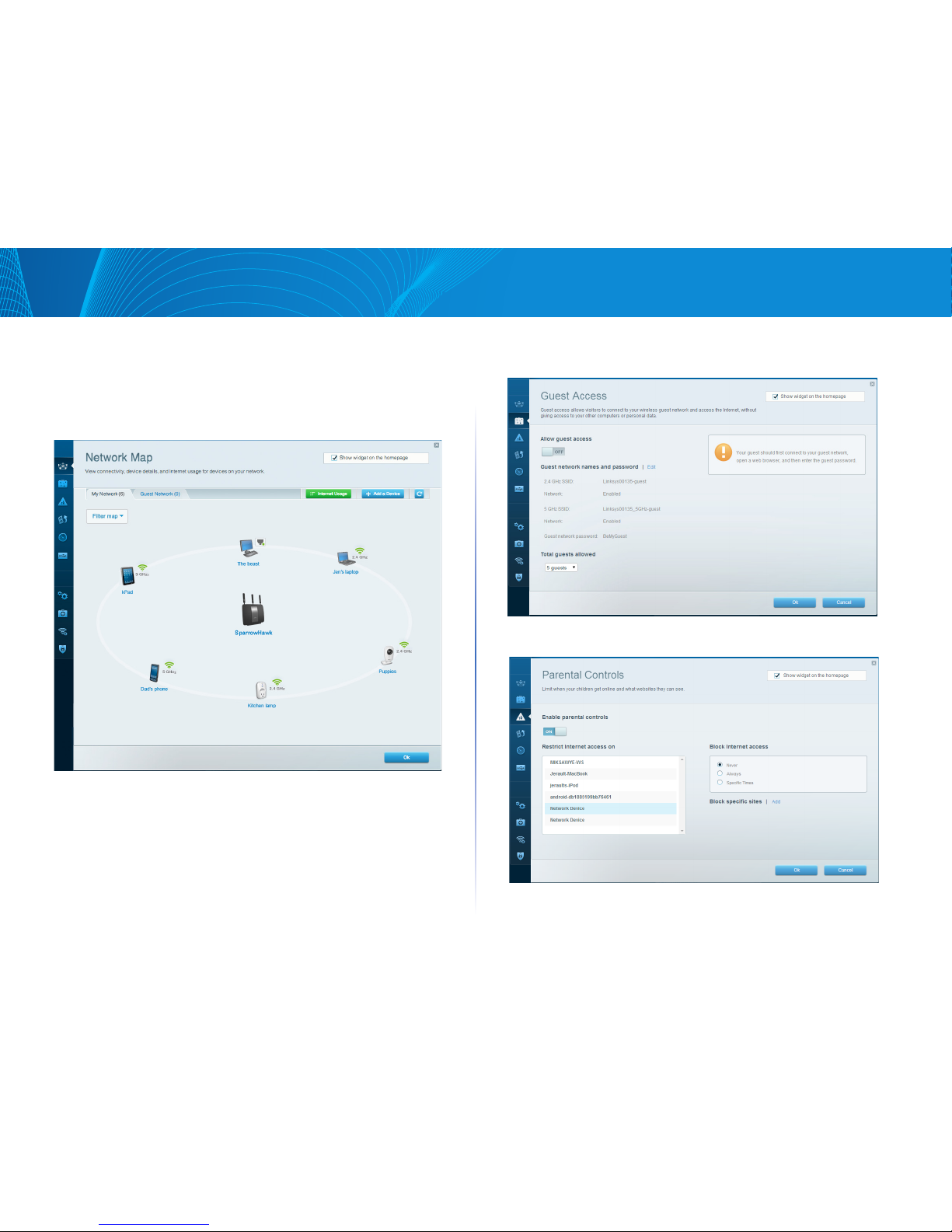

Network Map — Lets you display and manage all network devices connected

to your router. You can view devices on your main network and your guest

network, or display information about each device.

Guest Access — Lets you configure and monitor a network that guests can

use without accessing all of your network resources.

Parental Controls — Lets you block web sites and set Internet access times.

Linksys EA9200 Setting Up Your Router

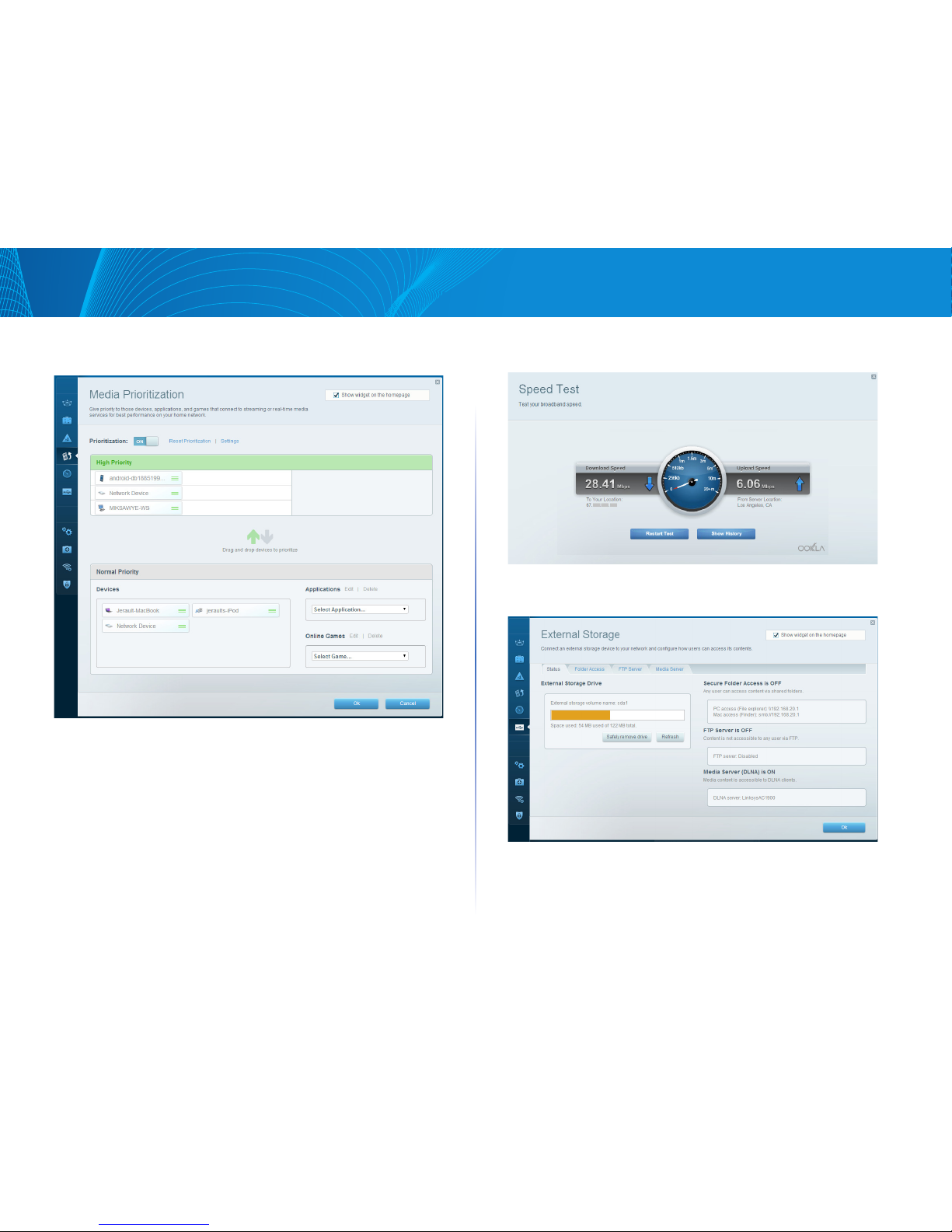

Media Prioritization — Lets you set which devices and applications have top

priority for your network traffic.

Speed Test — Lets you test your network’s Internet connection speed.

External Storage — Lets you access an attached USB drive (not

included) and set up file sharing, a media server, and FTP access.

Linksys EA9200 Setting Up Your Router

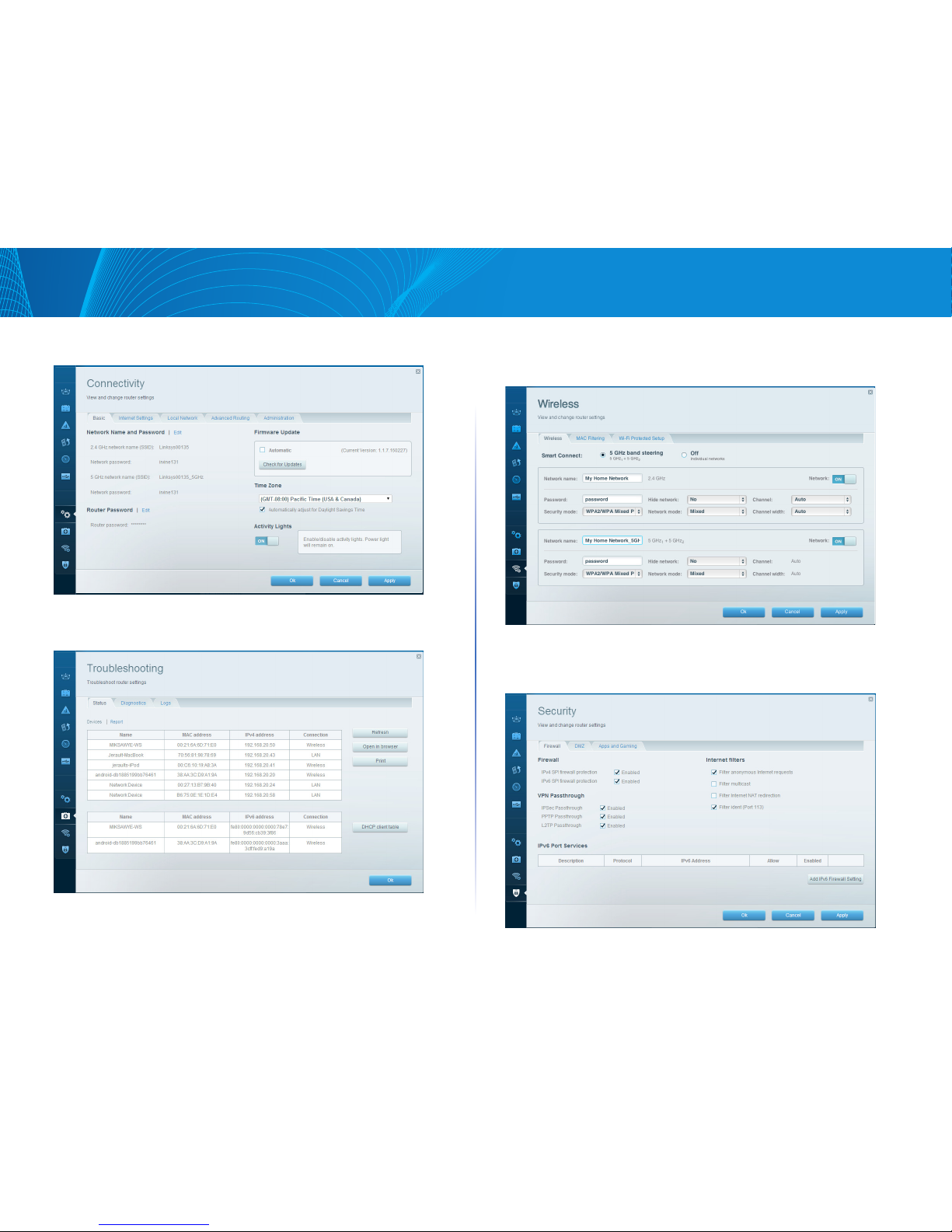

Connectivity — Lets you configure basic and advanced network settings.

Troubleshooting — Lets you diagnose problems with your router and check

the status of the network.

Wireless — Lets you configure your router’s wireless network. Among the

settings you may change are network name (SSID), security mode, password,

MAC filtering, and connect devices using Wi-Fi Protected Setup.

Security — Lets you configure your router’s wireless security. You can set

up the firewall, VPN settings, and make custom settings for applications

and games.

Linksys EA9200 Troubleshooting

This chapter can help you solve common setup issues and connect to the

Internet. You can find more help from our award-winning customer support at

linksys.com/support.

Your router was not successfully set up

If Linksys Smart Wi-Fi did not complete the setup, you can try the following:

Press and hold the Reset button on your router with a paperclip or pin until

the LED starts flashing (about 10 seconds), then install the router again.

If you still haven’t set up the router, find another computer, and use that

computer to install the router again.

Windows XP Service Pack update

On Windows XP computers, Linksys Smart Wi-Fi requires Service Pack 3. If the

currently installed Service Pack is older than version 3, you need to download

and install Service Pack 3.

NOTE

To temporarily connect to the Internet and download the required Service

Pack, you can use the included Ethernet cable to connect your computer

directly to your modem.

To Install Service Pack 3:

1. Connect to the Microsoft Update website

(update.microsoft.com/windowsupdate).

2. Follow the instructions on the website or contact Microsoft if you need

further help.

3. After downloading and installing Service Pack 3, install the router again.

Troubleshooting

Linksys EA9200 Troubleshooting

Your Internet cable is not plugged in

message

If you get a“Your Internet cable is not plugged in”message when trying to set

up your router, follow these troubleshooting steps.

Make sure that an Ethernet cable (or a cable like the one supplied with your

router) is securely connected to the yellow Internet port on the back of the

router and to the appropriate port on your modem. This port on the modem

is usually labeled Ethernet.

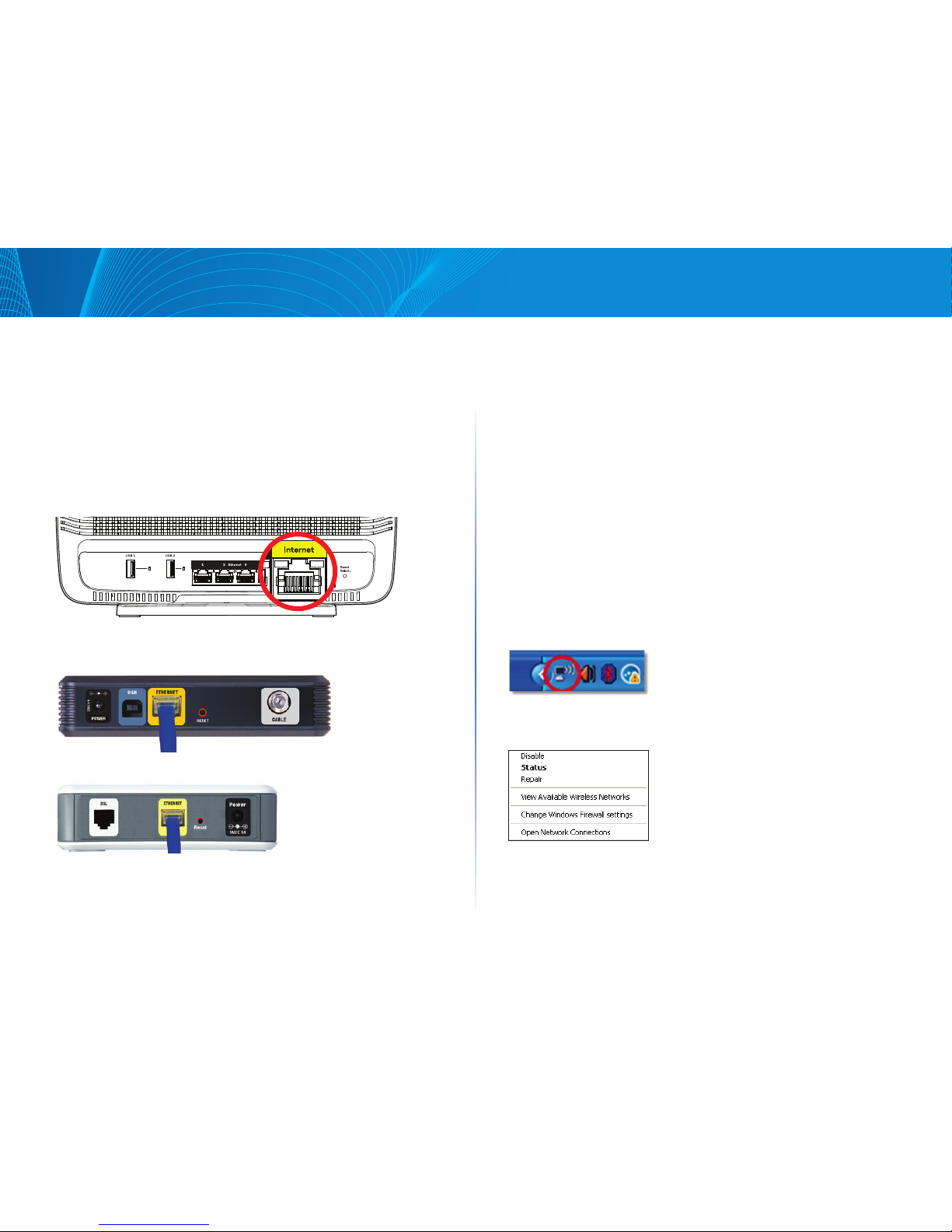

Back view of router

Back view of cable modem

Back view of DSL modem

Make sure that your modem is connected to power and is turned on. If it has a

power switch, make sure that it is set to the ON or l position.

If your Internet service is cable, verify that the cable modem’s CABLE port is

connected to the coaxial cable provided by your ISP.

Or, if your Internet service is DSL, make sure that the DSL phone line is

connected to the modem’s DSL port.

If your computer was previously connected to your modem with a USB cable,

disconnect the USB cable.

Install the router again.

Cannot access your router message

To access your router, you must be connected to your own network. If you

have wireless Internet access, the problem may be that you have accidentally

connected to a different wireless network.

To fix the problem on Windows computers:

1. On your Windows desktop, right-click the wireless icon in the system tray.

The icon can differ depending on your version of Windows.

2. Click View Available Wireless Networks. A list of available networks

appears.
