LINK-MI LM-AS01 User manual

ALL to SDI Scaler Converter

Operation Manual

1. Introduction

The ALL to SDI Scaler Converter allows you to upscale Composite,VGA,DVI,HDMI

signals to high definition video of SDI formats (HD-SDI SMPTE 292M or 3G-SDI

424M/425M), then output to both ports at the same time.

2. Features

Supports HDMI, DVI, VGA and Composite Video input signals;

Supports two SDI output simultaneously;

Supports SDI output distance up to 100 meters (3G-SDI), or 200 meters

(HD-SDI);

Scales any input signal to the HD-SDI or 3G-SDI output signals;

Supports HDMI input timings: VGA@60 ~ SXGA@60 & 480i ~1080p@60 Hz;

Supports VGA/DVI input timings: VGA@60 ~1920×1080@60 Hz;

Supports Composite Video input timings NTSC, PAL,SECAM;

Supports Black screen signal output;

3. Package Contents

ALL to SDI Scaler Converter 1pcs

12V/2.5A DC power adaptor 1pcs

Operation Manual 1pcs

4. Specification

SDI Transmission Rates 2.970 Gbps, 1.485 Gbps

Video Bandwidth 165 MHz

Input Ports 1×HDMI (Type A connector),

1×DVI with Audio

1x VGA with Audio

1×Composite with R/L

Output port 2×SDI (HD/3G-SDI),

SDI Cable Distance 3G/HD/up to 100/200 meters with

BELDEN 1694A cable

HDMI Cable Distance Input: 10 m, 8/12-bit

Input HDMI Timing Support VGA@60, SVGA@60, XGA@60, SXGA@60,

WXGA@60,480i@60,576i@50, 480p@60,

576p@50, 720p@50/60, 1080i@50/60,

1080p@24/25/30/50/60;

Input VGA/DVI Timing Support VGA@60, SVGA@60, XGA@60,

SXGA@60, WXGA@60,1280x720@60,

1920×1080@60

Input Composite Support NTSC, PAL,SECAM

Output Timing Support SDI: SMPTE 292M (1.485 Gbit/s) &

SMPTE 424M/425M (2.970 Gbit/s)

ESD Protection Human-body Model:

±8kV (air-gap discharge)

±4kV (contact discharge)

Dimensions 110mm (W)×288mm (D)×32 mm (H)

Weight 750 g

Chassis Material Metal

Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F

Storage temperature -20˚C~60˚C / -4˚F ~ 140˚F

Relative Humidity 20~90% RH (no condensation)

Power Consumption 5W

5. Operation and Fuctions

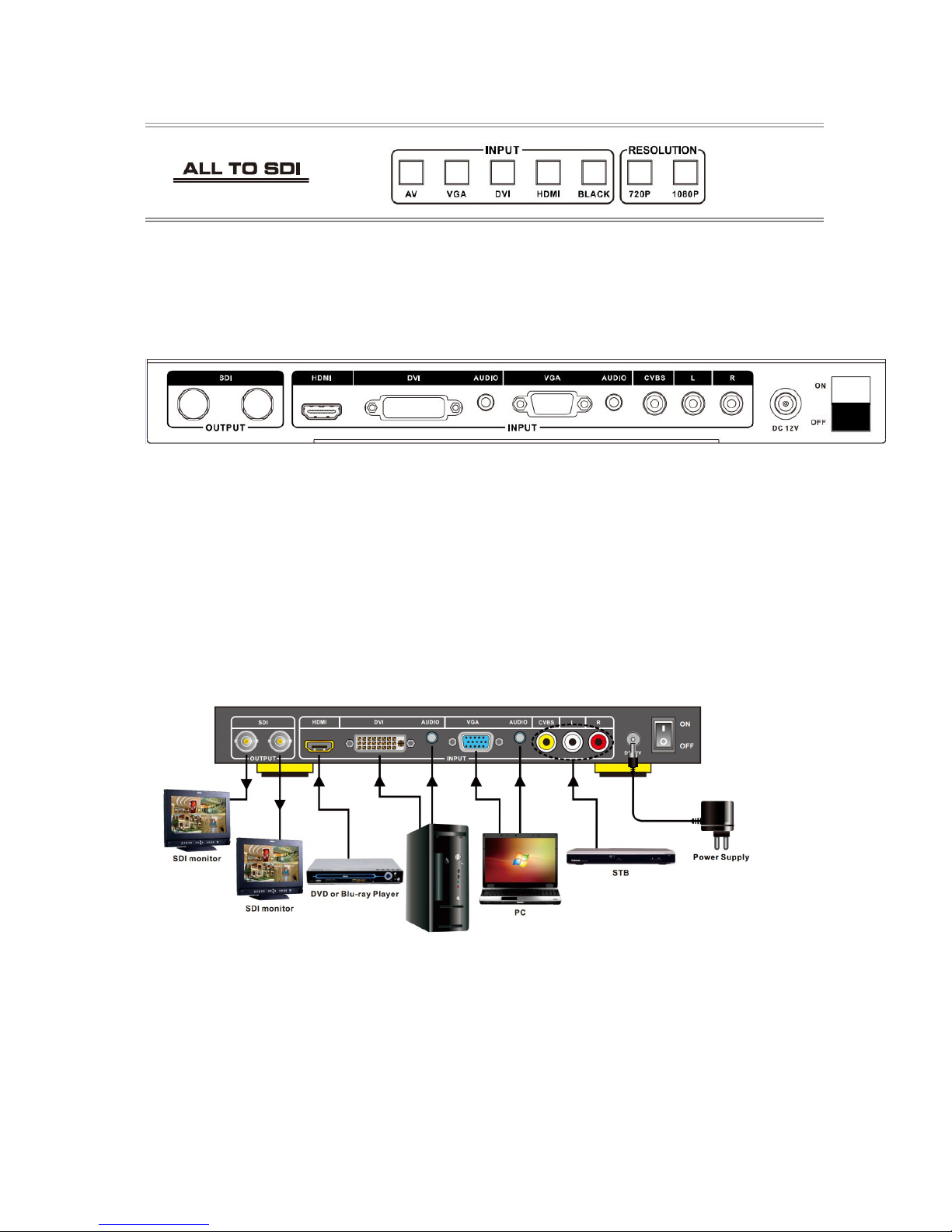

5.1 Front panel

1. INPUT BOTTONS: Press these buttons to select the input source.

2. RESOLUTION BOTTONS: Press these buttons to select the SDI output

resolution.

5.2 Rear panel

1. OUTPUT: The two SDI output is where you connect the SDI monitor with SDI

cable for input source display.

2. Input: These slot is where you connect the HDMI/DVI/VGA/Composite

source output from DVD, PS3,Set-top Box and Note Book.

3. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor

to AC wall outlet.

4. ON/OFF: Power ON/OFF.

6. Connection Diagram
