Liko Viking S Manual

Instruction guide

7EN138101-01

2005-06-28

Viking S is appropriate for all common lifting situations;

e.g., transfers between bed and wheelchair, to and

from the toilet and bathtub or for lifting to and from the

oor.

For optimal function and safety, it is essential that

the lift and any accessories you intend to use be

individually tested.

CAUTION!

Carefully read instructions for the lift and lifting accessories before use. Lifting and transferring a person

always presents a potential risk. A thorough understanding of the contents of this instruction guide is

essential. Only trained personnel should use the equipment. If you have questions, please contact Liko or

your local Liko representative.

Viking S

Prod. No. 2040006

Viking S has three alternative height adjustment

positions that ensure the optimal lifting interval in

every situation. The middle position is the standard

position; the lowest is ideal, e.g., for lifting children to

and from the oor. The highest position is selected for

extra lifting height, for example, when lifting to beds

and gurneys that are not height-adjustable.

“Caution!” triangles are used to warn of situations that demand extra care and attention.

English

In this document, the person being lifted is referred to as the “patient” and the person helping them is referred to as

the “caregiver”.

2 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

NOTE!

This instruction guide contains important information about the use of the

product. All personnel who use this product must be thoroughly familiar with the

contents of this instruction guide. Remember to keep the instructions where they

are easily accessible for users of the product.

Safety instructions ...................................................... 3

Product description..................................................... 3

Technical specications.............................................. 4

Dimensions................................................................. 4

Assembly instructions.............................................. 5-6

User´s guide ............................................................... 7

Charging the batteries ................................................ 8

Maximum load ............................................................ 9

Recommended lifting accessories......................... 9-10

Simple troubleshooting............................................. 11

Inspection and maintenance .................................... 12

Contents

3 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

Product description

Safety instructions

Before using, make certain that:

• the lift is assembled according to the instructions

• lifting accessories are correctly applied to the lift

• the batteries have been charged for at least 10 hours

• you have read and understood the instruction guides for the lift and lifting accessories

• personnel using the equipment have received appropriate instructions and training

• you have selected the correct type, size, material, and design of slings and accessories to safely meet

the patient’s needs

Before lifting, always make certain that:

• the lifting accessories are not damaged

• the lifting accessory is correctly and securely applied to the patient, so that no personal injury can

occur

• the lifting accessory is correctly applied to the lifting equipment

• the sling’s strap loops are correctly fastened to the slingbar hooks when the sling strap is extended,

but before the patient is lifted from the underlying surface

Viking S has been tested by an accredited testing institute and complies with the requirements of the

directive for Class 1 medical-technical products (MDD 93/42/EEC).

Viking S complies with the requirements of EC 60601-1, IEC 60601-1-2, EN ISO 10535, UL 60601-1 and

CAN/CSA C22.2 No. 606.1.

Particular caution must be observed in connection with the use of strong sources of electromagnetic

interference such as diathermy equipment and similar devices. Ensure that, e.g., diathermy cables are

not placed near the lifting equipment. In the event of uncertainty, consult the responsible technician or

supplier.

Max. load: 160 kg (350 lbs.)

1. Lift mast

2. Lift arm

3. Base

4. Handcontrol

5. Control unit with battery, emergency stop and

electrical emergency lowering

6. Slingbar with safety latches

7. Handles

8. Product decal

9. Motor/actuator for lift mast

10. Pedal for base-width adjustment

11. Rear wheels with brakes

12. Front wheels

13. Flexlink

14. Emergency lowering (mechanical)

15. Locking handles

16. Colour codes for sling sizes

4 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

FF1B1

Dimensions

Lifting speed: 3.0 cm/s without load

Batteries: 2 pcs. 12V 2.9 Ah valve-regulated

lead-acid gel-type batteries. New

batteries available from supplier.

Battery External charger, 100-230V, 50-60 Hz,

charger: max. 220 mA

Motor (mast): 24V, permanent magnetic motor with

mechanical safety mechanism and

safety nut

Material: Aluminium

Technical specications

Emergency Mechanical and electrical

lowering:

Wheels: Front: 75 mm twin castor wheels

Rear: 75 mm brake-equipped twin

castor wheels

Intermittent Int. Op. 10/90, active operation max

operation: 2 min. Out of a time of 100, active

must be less than 10, though not

more than 2 min.

IP class: IP X4

Built for indoor operation.

Type B, according to the degree of protection

against electric shock.

Class ll equipment.

160 175 53 198 141 126 91 64-113 52-101 100 11 3 86 25 14 135

170 48 193 136 105

165 43 188 131 110

350 69 21 78 56 50 36 25-44 20-40 39 4.3 1.2 34 55 31 53

67 19 76 54 41

65 17 74 52 43

Max. Min. Max. Min.

Viking S Max. load L A B B1 C D E F F1 G Weight Turning

diameter

Total Part

A: Capacity and weight in kg. Measurement in cm.

B: Capacity and weight in lbs. Measurement in inch.

5 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

Assembly instructions

1. Lock both rear wheels. Place the lift mast in the

socket on the base.

Before assembly, make sure you have the following:

• Locking handles (1 pair)

• Bag containing instruction guide and

decal “Using the lift”

• Battery charger

• Lift mast and lift arm, mast motor/

actuator, slingbar and control unit

• Base

• Handcontrol with cable

2. Lifting height can be set at three different levels.

Choose one of the three holes, as in the illustration

above. The middle hole is recommended in most

cases. The lower hole is recommended when extra

high lifting height is desired, and the upper hole is

recommended for lifting at a lower level. Holes are

placed at 50 mm (2 inch) intervals.

See table on page 4.

3. Using the accompanying locking handles,

secure the lift mast in the desired position in

the base. Adjust the handles so that they point

downward.

4. Connect cables as follows:

- Cable handcontrol to outlet 1

- Cable mast motor to outlet 2

6 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

6. Release emergency stop by turning the

button in the direction indicated by the arrows.

After assembly, check to ensure that:

• lift mast motions correspond with the

buttons on the handcontrol

• emergency lowering works properly

(mechanical and electrical)

• wheel brakes work properly

• the indicator lamp on the front of the

control unit lights during charging

5. Afx the transparent decal ”Using the lift”

(accompanies instruction guide) on the side

of the lift mast.

Using the lift

Operation

Operate the lift using the

pushbuttons on the hand

control.

Emergency Lowering

Pull the red emergency-

lowering regulator upwards.

Lift must be loaded in order

for mechanical emergency

lowering to function.

Emergency Stop

Push the red Emergency

Stop button on the control

box. To reset: Turn the

button in the direction of the

arrows.

Charging the batteries

Charge every night after

use. Before charging,

ensure that the red

Emergency Stop button

is not pushed in. Do not

charge in a wet area!

Locking the wheels

The rear wheels can be

locked by stepping on the

pedal above the wheel.

Locking the wheels can

affect stability negatively;

therefore, wheels should

only be locked during

lifts from the oor.

Read instruction guide!

www.liko.com

Lifting accessories

Before lifting, ensure that

the lifting accessory’s max.

load rating is sufcient for

the person being lifted!

7 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

User´s guide

Operation

Viking S is operated by pressing the buttons on the handcontrol.

For raising and lowering the lift arm:

press and , respectively.

Lifting motion stops as soon as the push-button is released.

If the battery needs charging, a lamp (A) is lit on the handcontrol.

There is, however, enough power left in the battery for several

lifts.

Never pull the lift by the actuator! This may result in

damage to the lift and possible injury.

Locking the wheels

Press the locking lever on the rear wheel down with your

foot. The wheel locks for rotation in all directions.

In most lifting situations, the wheel should not be locked.

We recommend that wheels only be locked when there

is a risk for personal injury should the lift start to roll, e.g.,

when lifting a person in the horizontal position from the

oor.

Release the lock by pressing the lever up.

Emergency stop

For emergency stop: Press the red Emergency stop

button.

To release/reset: Turn the button in the direction of the

arrows.

Electrical emergency lowering

The lift arm is lowered electrically by pressing “down”

( ) on the control unit.

Mechanical emergency lowering

Mechanical emergency lowering is performed by turning

the red emergency-lowering cylinder in the direction of

the arrows.

Base-width adjustment

The base width can be increased and decreased

mechanically by pressing the foot pedal. Press

the right side to widen the base and press the left

side to make the base narrower.

Locked wheels increases the risk of the lift tilting over.

8 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

For maximum service life, it is important that batteries

be charged regularly. We recommend charging after

use or each night.

Maximum charge is reached after about 10 hours.

When the batteries are fully charged, the charger dis-

connects automatically. NOTE! An indicator lamp on

the control unit lights constantly during charging.

When the batteries are fully charged, the lamp shuts

Charging the batteries

off. If the lamp continues to light after 12 hours, the

batteries probably need to be replaced. Discontinue

charging and replace batteries.

Never charge batteries in a wet area!

If the lift is not in daily use, we recommend that the

emergency stop be pressed in after the lift has been

used. This breaks the current and conserves battery

power.

Old batteries are to be given to authorized Liko personnel

or left at the nearest recycling station.

A display on the control unit indicates battery capacity. When the

handcontrol is activated, a diode/lamp lights, indicating battery

capacity.

Green (A): min. 50%

Yellow (B): 25-50%

Orange (C): 0-25%

Lamp lights for 10 seconds after activating.

Another lamp indicates that charging is in progress (D).

With external charger:

1. Connect charger cable to outlet for charger,

under the control unit.

2. Connect charger to power supply (100-230V~).

Charging procedure

Note! The lift does not operate when the charger cable is plugged into a wall socket.

9 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

Maximum load

Different maximum allowable loads may apply to different products on the assembled lift system: lift,

slingbar, sling and other accessories. For the total lift system, the lowest max. allowable load indicated

for the respective products on the system always applies. For example: A Viking S that is approved for

160 kg (350 lbs.) may be equipped with a slingbar that is approved for 300 kg (660 lbs.). In this case, the

applicable max. load is 160 kg (350 lbs.) for the total lift system.

Study markings on the lift and lifting accessories or contact your Liko representative if you have any

questions.

Slingbars for Viking

Slingbar Mini 220 Prod. No. 3156005

Max 205 kg / 450 lbs.

Universal Slingbar 350 Prod. No. 3156074

Max 300 kg / 660 lbs.

Universal Slingbar 450 Prod. No. 3156075

(Standard for Viking S)

Max 300 kg / 660 lbs.

Universal Slingbar 600 Prod. No. 3156076

Max 300 kg / 660 lbs.

Universal Twinbar 670 Prod. No. 3156077

Max 300 kg / 660 lbs.

Universal Sling Sidebars 450 Prod. No. 31560799

incl. storage bag

Max 300 kg / 660 lbs.

Sling Cross-bar 450 Prod. No. 3156021

Max 300 kg / 660 lbs.

Sling Cross-bar 670 Prod. No. 3156018

Max 300 kg / 660 lbs.

Recommended lifting accessories

Below are recommended slingbars and accessories for Viking.

For choice of appropriate slings and other lifting accessories, see e.g., the brochure ”Lifting

accessories”.

For further guidance on choosing a sling, consult the instruction guide for the respective sling model.

Here, you will nd advice on suitable combinations of Liko slingbars and Liko slings.

Contact your Liko representative or visit www.liko.com for advice and information on Liko’s product

range.

10 Liko • www.l iko .com

Instruction guide Viking S • 7EN138101-01

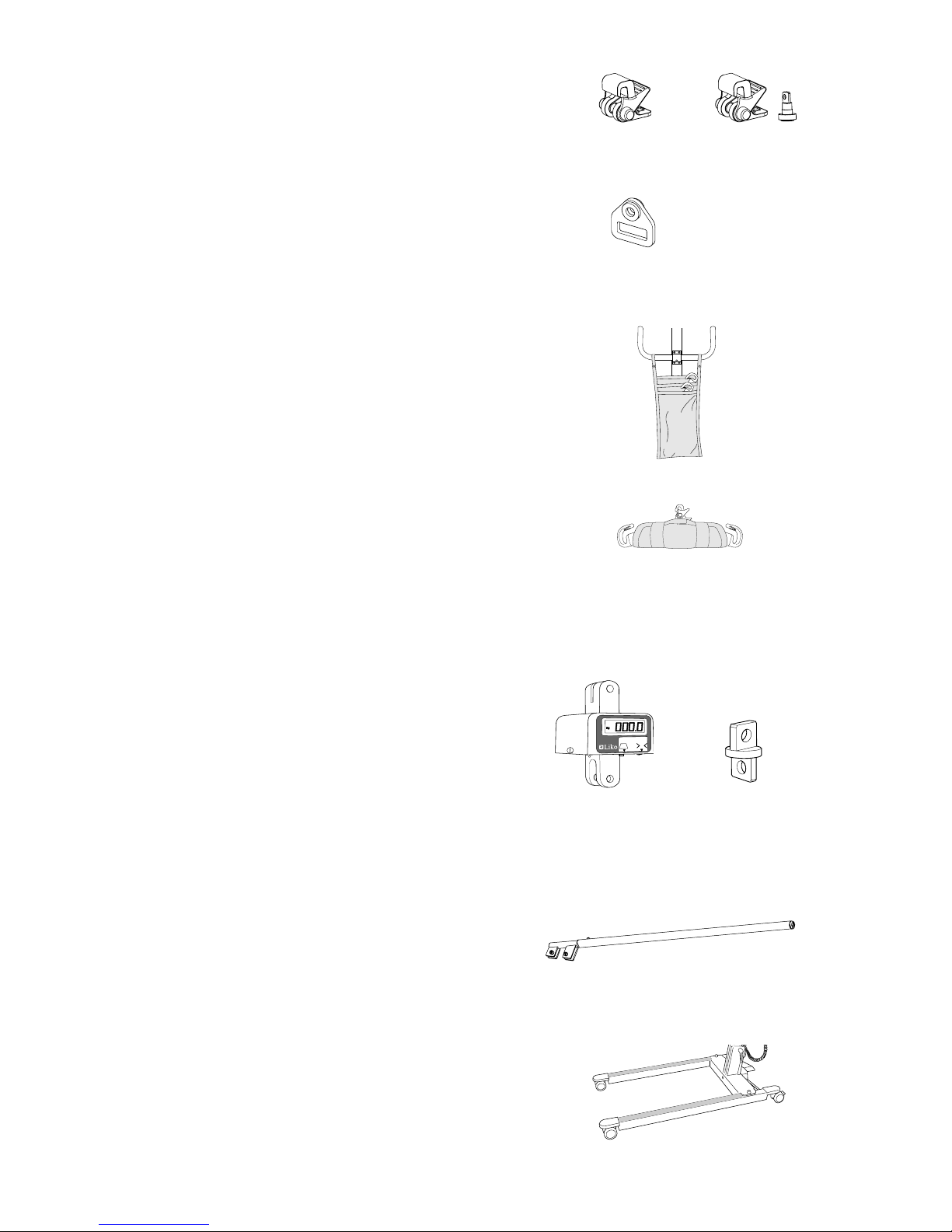

Adapter

2016504

Scales for Viking

LikoScale. Contact Liko for more information.

(Adapter 2016504 required)

�

LikoScale

Lever for base width adjustment Prod. No. 2037010

Lever for base-width adjustment.

Mounted on existing base-width pedals.

Leg Protector Viking S, M Prod. No. 2046011

Storage bag for slingbars Prod. No. 2001025

Slingbar cover Paddy 30 Prod. No. 3607001

(ts Universal Slingbars Prod. No. 3156074-76

and Slingbar Slim 350 Prod. No. 3156002)

Quick-release Hook

Liko’s Quick-release Hook system enables quick and easy

exchange of lifting accessories on Liko’s mobile and stationary

lifts. Viking can be equipped with Adapter 13 (Prod. No.

3156506) for use with Quick-release Hook, which is mounted

on the lifting accessory.

Quick-release Hook Universal (Prod. No. 3156508) ts

Universal Slingbars Prod. No. 3156074-3156077. Quick-release

Hook TDM (Prod. No. 3156502) ts Slingbar Mini 220 Prod.

No. 3156005, and Sling Cross-bars Prod. No. 3156021 and

3156018.

See ”Guide to Liko´s Quick-release Hook System”, which can

be downloaded from our website, www.liko.com, or contact Liko

for more information on the advantages and use of the Quick-

release Hook system.

Quick-release Hook

Universal

Prod. No. 3156508

Adapter 13

Prod. No. 3156506

Quick-release Hook

TDM

Prod. No. 3156502

Other manuals for Viking S

Table of contents

Popular Lifting System manuals by other brands

morse

morse 82H-124 Operator's manual

Braun

Braun NL955 Series Operator's manual

haacon

haacon 1889.10 quick start guide

Protekt

Protekt AT 252 instruction manual

R. Beck Maschinenbau

R. Beck Maschinenbau HS 600 operating manual

Nova Technology International, LLC

Nova Technology International, LLC NAS Series quick start guide

Genie

Genie Z-60/34 Operator's manual

Screen Technics

Screen Technics INTERFIT Vertical Up Lift instructions

Mortuary Lift

Mortuary Lift ULTIMATE 1000 instructions

Custom Equipment

Custom Equipment Hy-Brid 3 Series MAINTENANCE & TROUBLESHOOTING MANUAL

Custom Equipment

Custom Equipment Hy-Brid Lifts 2 Series Maintenance and troubleshooting manual

Hy-Brid Lifts

Hy-Brid Lifts HB-P3.6 MAINTENANCE & TROUBLESHOOTING MANUAL

BERG

BERG BeNomic EasyLeaf Technical manual

Powermate

Powermate LiftGate LG-3 Installation & operation manual

Snorkel

Snorkel TM12 Series Operator's manual

Terberg

Terberg OMNIDEKA Translation of the original instructions

Harmar Mobility

Harmar Mobility AL625 Installation & owner's manual

Rotary

Rotary SPO16 installation instructions
