LIGMAN KI-60485 Manual

INSTALLATION AND SERVICE MANUAL

For Installation of Kios Inground uplight round dia. 220mm. and dia. 216mm. Power LED.

Model. KI-60485 and KI-60495

Product drawing (dimensions)

TOOL

1 2 3

IP67 IK10 CLASS I 0.5m

YES

NO NO

Ta 25°c

Glass surface temp

KI-60495 = 37.0°c

Ta 25°c

Glass surface temp

KI-60485 = 37.0°c

EMBOSS FRAME KI-60485

FLAT FRAME KI-60495

Drive over 2,500kg. at max. 50km/h.

LigmanLighting

Technical amendments and modifications techniques reserved.

■LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.

The control gear for other voltages and frequencies is available upon request, please consult us for more details.

■LIGMAN luminaires are designed to conform IEC 60598 2-13 standard.

FM-TS-13-1/13-03-2561/REV.4

M KI-60485/31/08/16/REV.3

1/2

Europe Headquarters

Ligman Europe s.r.o.

VGP Park Usti nad Labem, P 2

Prestanov 113

403 17 Prestanov

Czech Republic

Tel. +420 608 740 504 | [email protected]

www.ligman.com

Ligman Ltd

Regus House, Victory Way

Crossways Business Park

Dartford DA2 6QD

Tel. 0800 975 0622

[email protected]

Thailand Headquarters

Ligman Lighting Co., Ltd.

17/2 Moo 4, Monthong, Bangnampreaw

Chachoengsao 24150 Thailand

Tel : +66 (2) 7339140

[email protected]

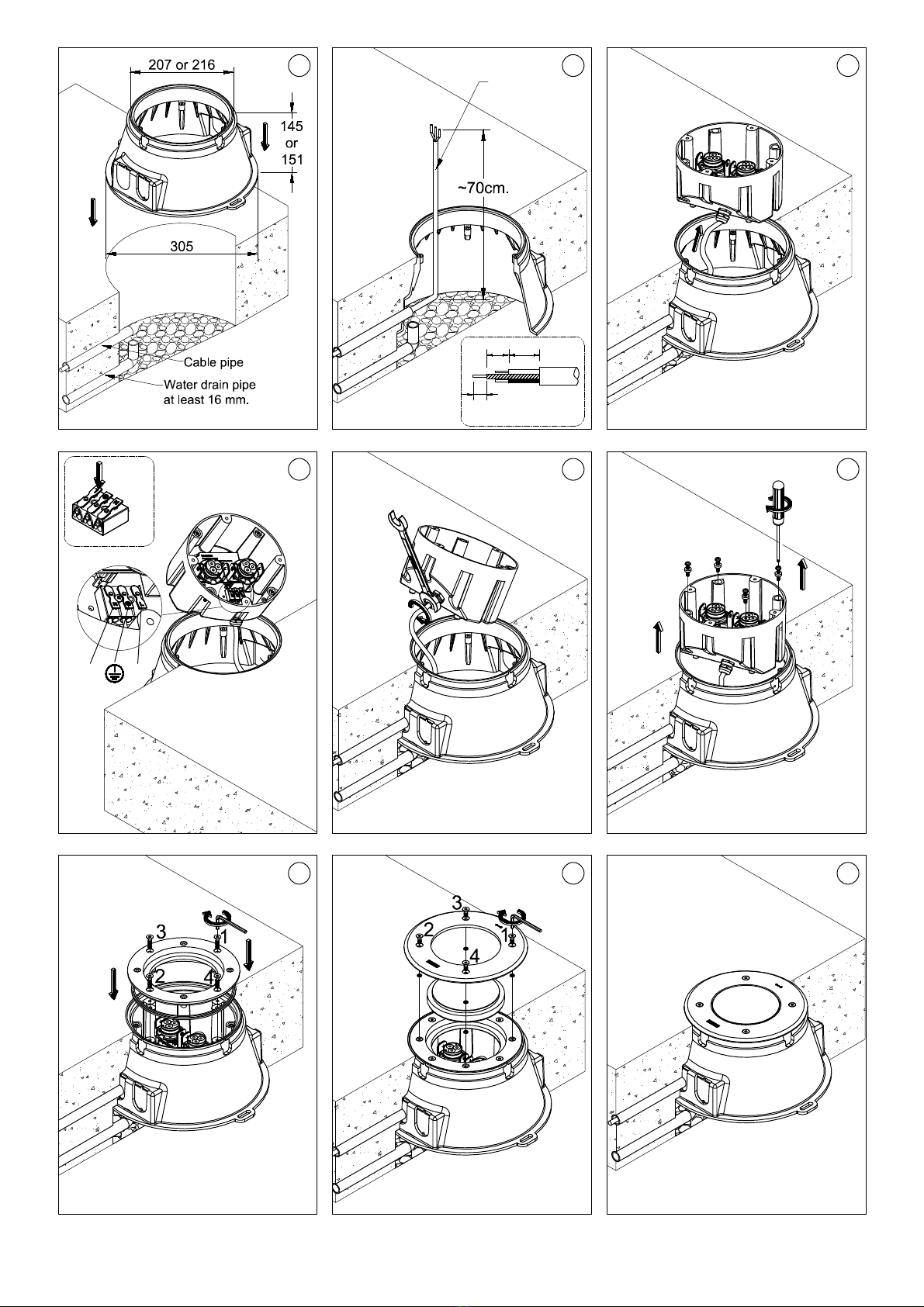

78 9

10 11 12

4 5 6

Cable OD

Min 6mm.

Max 12mm.

Torque :4.3Nm. Torque :4.3Nm.

Torque :3.0Nm.

Torque:6.25Nm.

Push

20 30

CABLE SIZE : 3x1.0mm²

Note : Brush finish stainless steel products requirement to wipe the product

periodically with a light oil (WD40 or equivalent) to remove any staining.

M KI-60485/31/08/16/REV.3

2/2
