LIGMAN AR-21012 Manual

TOOL

2.5,3,5

3

12

IP65 CLASS I IK08

MOUNTING DETAIL

4

Torque : 3.0 Nm.

Torque : 3.0 Nm.

L

N

Torque : 0.25 Nm.

Torque : 3.0 Nm.

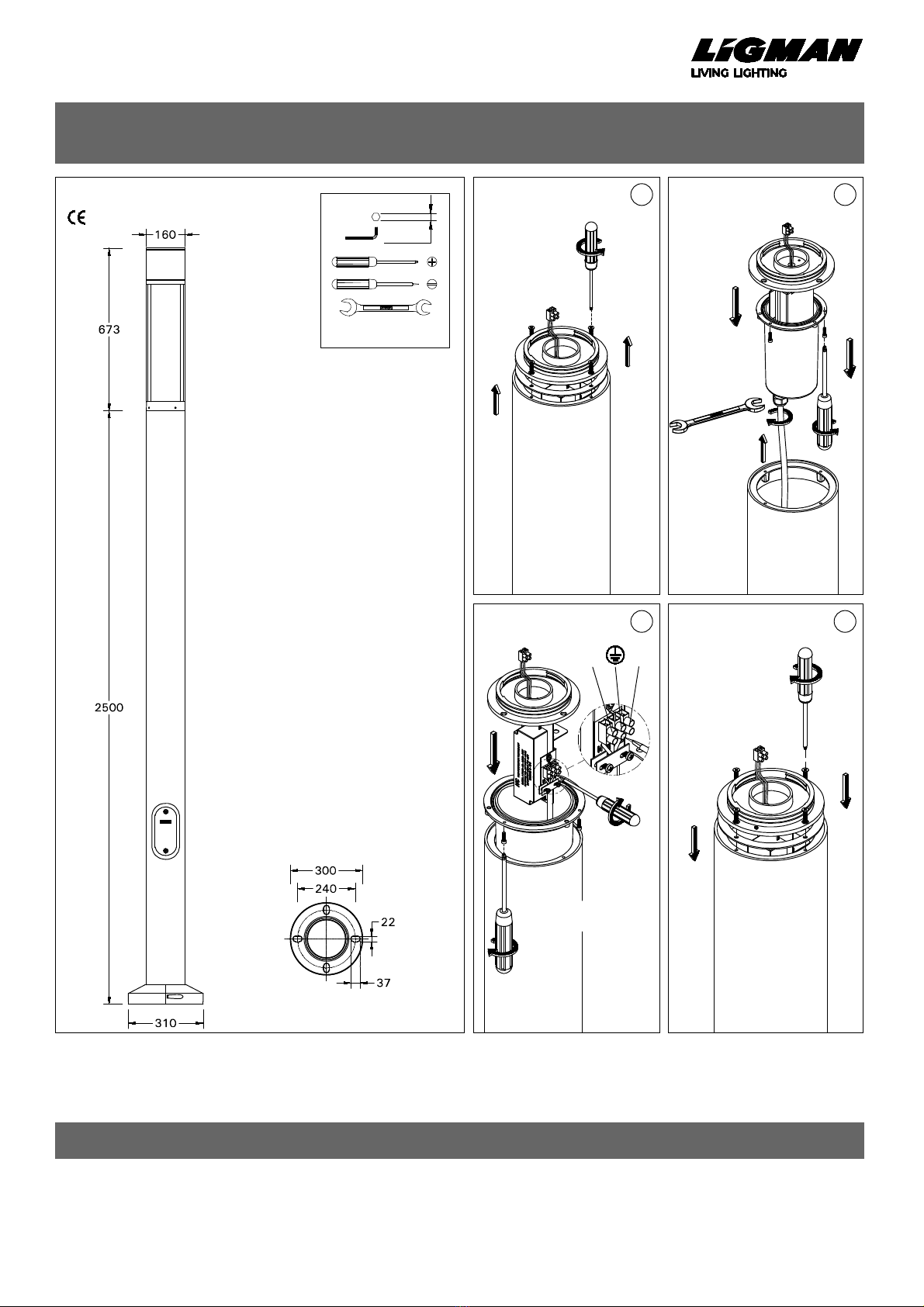

INSTALLATION AND SERVICE MANUAL

Product drawing (dimensions)

For Installation of Arizona light column dia 160mm LED.

Model. AR-21012

LigmanLighting

Technical amendments and modifications techniques reserved.

■LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.

The control gear for other voltages and frequencies is available upon request, please consult us for more details.

■LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.

FM-TS-13-1/13-03-2561/REV.4

M AR-21012/08/06/17/REV.2

1/2

Europe Headquarters

Ligman Europe s.r.o.

VGP Park Usti nad Labem, P 2

Prestanov 113

403 17 Prestanov

Czech Republic

Tel. +420 608 740 504 | [email protected]

www.ligman.com

Ligman Ltd

Regus House, Victory Way

Crossways Business Park

Dartford DA2 6QD

Tel. 0800 975 0622

[email protected]

Thailand Headquarters

Ligman Lighting Co., Ltd.

17/2 Moo 4, Monthong, Bangnampreaw

Chachoengsao 24150 Thailand

Tel : +66 (2) 7339140

[email protected]

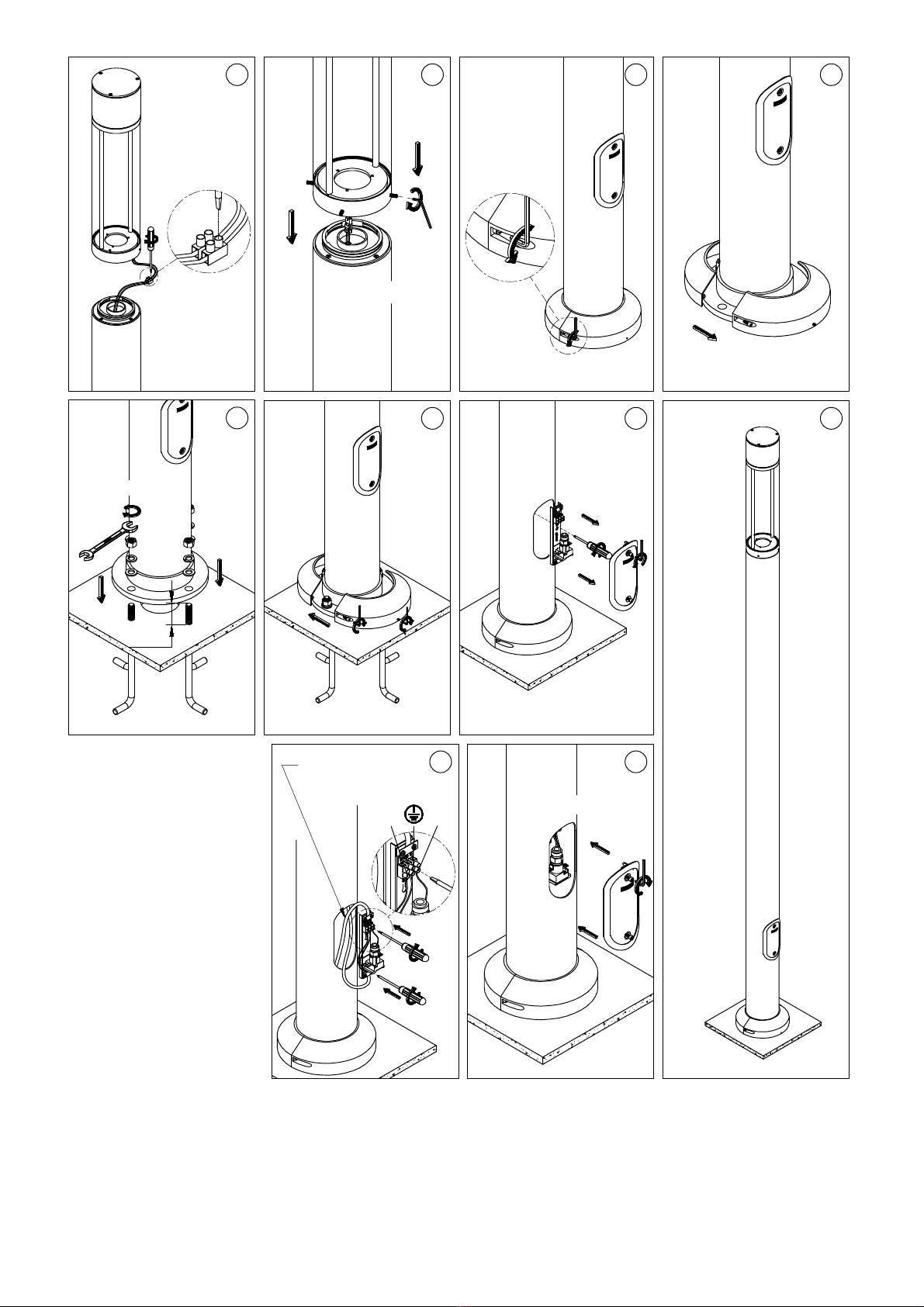

7

L

N

6

9

8

12

MAIN CABLE

POWER SUPPLY

Torque : 3.0 Nm.

Torque : 10.5 Nm.

Torque : 0.25 Nm. Torque : 3.0 Nm.

Torque : 4.3 Nm.

5

13

10 11 14

~5cm.

M AR-21012/08/06/17/REV.2

2/2
