Lightolier Uniframe Lytecaster 2001SW User manual

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

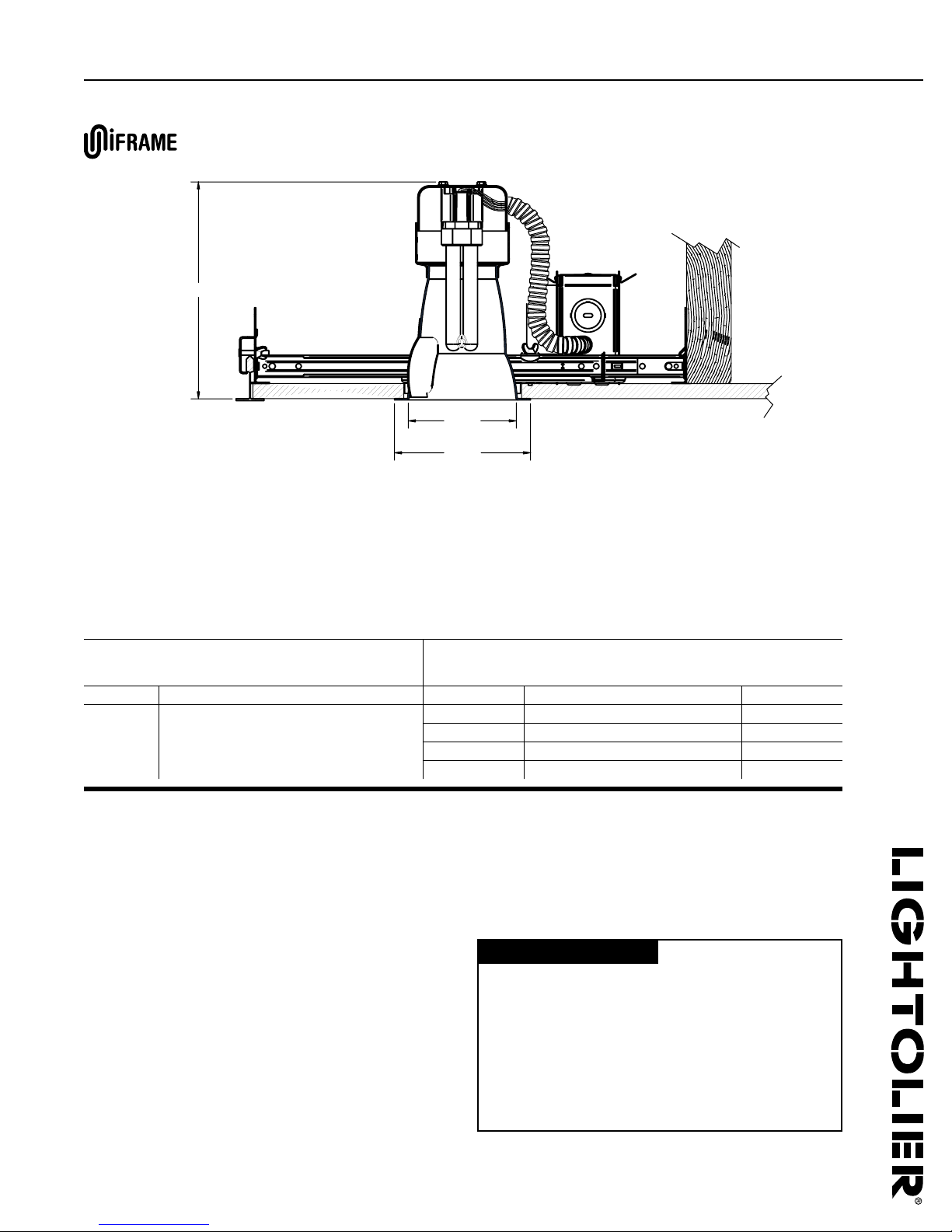

Lytecaster®Performance Recessed CFL Downlighting 2001SW

Page 1 of 2 3 ¾" Aperture Vertical Wall Wash, Compact Fluorescent, Performance Series,

Reflector Trim

Features

1. Reflector: Formed aluminum. Matte White flange.

2. Finishes: CL = Specular Clear (Iridescent Free coating)

CD = Clear Diffuse

WH = Matte White Paint

3. Wall Wash Kick Reflector: Formed aluminum. Clear finish.

4. Performance Data: 65° Cutoff angle.

See attached photometric reports for distribution and efficiency data.

Go to www.lightolier.com for .IES files.

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™ Compact Fluorescent Performance

Series Reﬂector Trims

Compatible Frame-In Kits

(See Individual Frame-In Kit Speciﬁcation Sheets)

Catalog No. Description Catalog No. Installation Type Lamping

2001CLSW

2001CDSW

2001WHSW

3-3/4” Vertical Single Wall Wash – Specular Clear

3-3/4” Vertical Single Wall Wash – Clear Diffuse

3-3/4” Vertical Single Wall Wash – Matte White

2001F13U Uniframe™Non-IC 120/277v 13w Quad/Triple

2001F18U Uniframe™Non-IC 120/277v 18w Triple

2001F13ICU/N Performance IC 120/277 13w Quad/Triple

2001F18ICU/N Performance IC 120/277 18w Triple

7 1/4"

4 1/2"

3 5/8"

Labels

cULus Listed. Suitable for Damp Locations. I.B.E.W.

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytecaster®Performance Recessed CFL Downlighting 2001SW

Page 2 of 2 3 ¾" Aperture Vertical Wall Wash, Compact Fluorescent, Performance Series,

Reflector Trim

2' From Wall-3' On Center

13 Quad Tube Lamp

2' From Wall-2' On Center

13 Quad Tube Lamp

2' From Wall-2' On Center

18w Triple Tube Lamp

Lighting Data

Footcandles On Wall: Multiple Units

15 f.c.

16 f.c.

2' From Wall-3' On Center

18W Triple Tube Lamp

EXAMPLE: 18w with multiple clear reflector units located 2' from wall

and spaced 3' on center, the illumination on the wall 3' down from ceiling

will be 15 f.c. beneath units and 16 f.c. between units.

Footcandle values are initial, rounded off and based on minimum of six units.

Distance From Ceiling in Feet

15 f.c.

2' 3' 2' 3'

1' 21 18 21

2' 29 29 29

3' 23 23 23

4' 16 16 16

5' 11 11 11

6' 8 8 8

7' 5 5 5

8' 4 4 4

9' 3 3 3

1' 16 12 16

2' 20 19 20

3' 15 16 15

4' 11 11 11

5' 8 8 8

6' 6 6 6

7' 4 4 4

8' 3 3 3

9' 2 2 2

1' 14 15 14

2' 18 19 18

3' 15 16 15

4' 11 11 11

5' 7 7 7

6' 5 5 5

7' 4 4 4

8' 3 3 3

9' 2 2 2

1' 11 9 11

2' 13 13 13

3' 10 11 10

4' 7 7 7

5' 5 5 5

6' 4 4 4

7' 3 3 3

8' 2 2 2

9' 2 2 2
