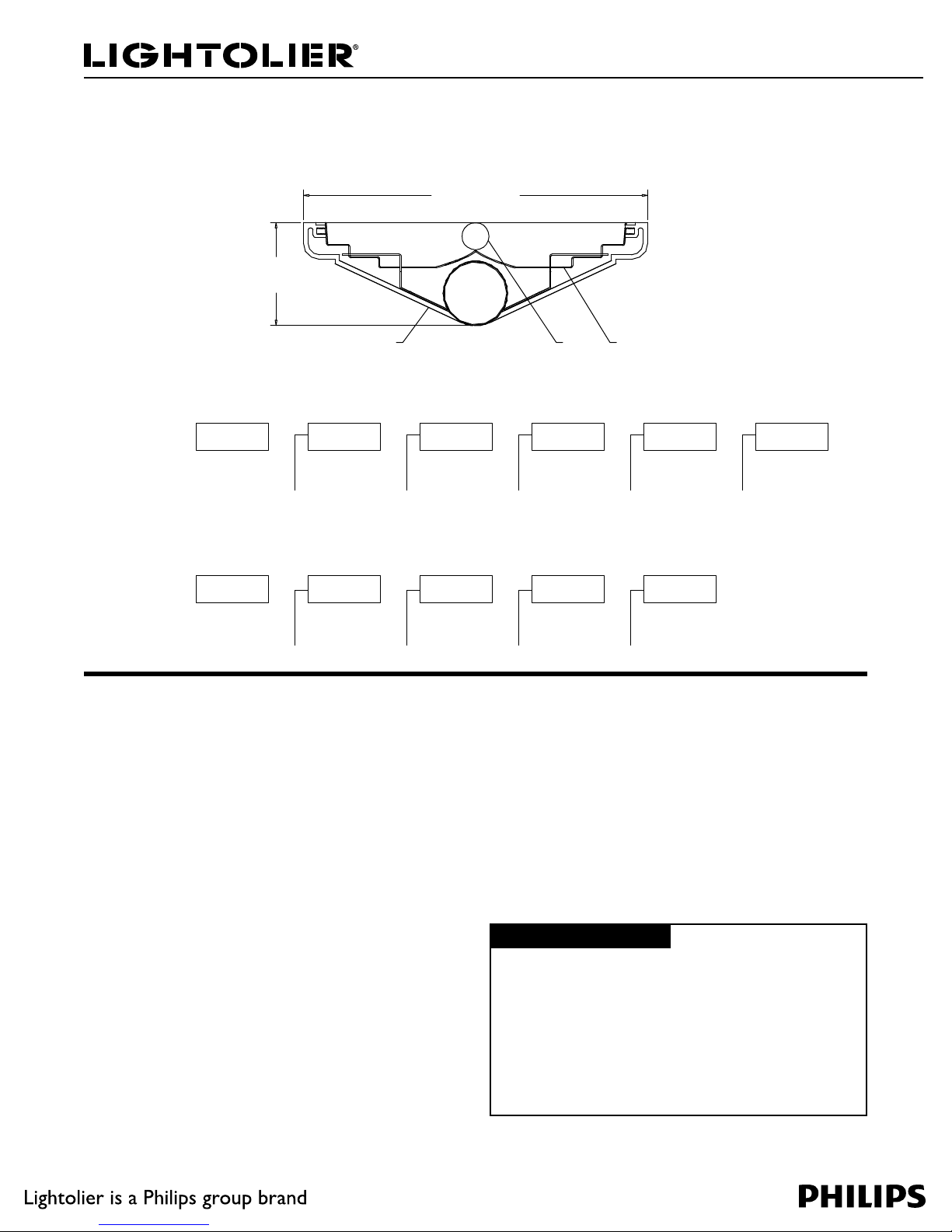

Lightolier SORA-3 User manual

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems SORA-3

1BHFPG -JHIU51FS'PPU/PNJOBM4FDUJPO

#

Ordering Information

S 1

Body

Family Lamps Wattage Style Length Finish

Family Item Suspension Length Finish

* Intermediate only.

1= 1 Lamp Per 28 = 28 Watt

54 = 54 Watt without

Wings

CO = Suspended 4= 4 Foot

Nominal

SC = Platinum

WH = White

E= End Set

I= Intermediate

CO = Cable

SO = Stem

PO = Power Feed*

SC = Platinum

WH = White

Complete Ordering Instructions below.

4-Foot Section

Features

1. Housing: Aluminumextruded upto 12-foot nominal lengths.

2. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).

3. Reflector: Die-formed high reflectance semi-specular aluminum.

Electrical

Ballast is electronic, low harmonic distortion, high power and ballast factor, uni-

versal voltage with two conductors and a ground. Mark X dimming (no extra control

wire required) is available. EM battery pack not available. Modules can be

continuously wired row mounted, but cannot exceed amperage limits of electrical

supply cords. Cable suspended fixtures have 18/3 SJT cord, stemproducts have

three 18 gauge wires provided in stem, and both versions must be hard wired.

Factory installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Mounting

Cable mounting utilize 1/16” (0.16cm) diameter SSTL aircraft cable, and are

continuously adjustable via a cable gripper. Stemmountings utilize 1/8 IP stems

(three wires only) with ball swivel mounting at ceiling line. Stems cannot be cut in

field and should be ordered to required length. 4-1/2” (11.43cm) diameter canopies

are used on both styles. 12-foot fixtures may have up to 1/4” (0.64) deflection in

luminaire housings.

Finish

Powder coated Steelcase Platinumor White baked enamel.

Customcolors available, consult factory.

Labels

UL (1598), cUL and I.B.E.W.

Continuos Rows:

1. Determine run length.

2. Order the appropriate number of Modules to complete the run.

3. Order one End Set per run.

4. Order one Intermediate suspension per Module minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

Intermediate suspension Power (for cable suspended units only).

Ordering Instructions

Individual fixtures:

1. Order number of Modules required.

2. Order one End Set per module.

8= 8 Foot

Nominal

12 = 12 Foot

Nominal

Suspension

30 = 30” (76.20cm)

36 = 36” (91.44cm)

Stem

Cable

2.40”

(6.10cm)

8.00” (20.32cm)

1 2 3

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems SORA-3

1BHFPG -JHIU51FS'PPU/PNJOBM4FDUJPO

80% 70% 50%

70 50 30 70 50 30 50 30 10

0 808080 6868 68 474747

1 736966 6259 59 403938

2 666056 5652 48 353331

3 605347 5145 41 312826

4 554741 4740 35 272422

5 504135 4335 30 242119

6 463730 3932 26 221816

7 423327 3628 23 201614

8 393024 3325 20 181412

9 362721 3123 18 161311

10 34 24 19 29 21 16 15 11 9

CANDLEPOWER

ZONE 0 22 45 67 90

DEG. CANDELAS

180 646 646 646 646 646

175 658 644 641 637 635

165 626 616 621 626 630

155 580 577 601 623 635

145 512 524 573 625 649

135 425 454 544 666 737

125 322 387 574 933 1129

115 211 306 889 1464 1599

105 100 343 1087 1481 1545

95 21 380 462 482 443

90 00000

Performance

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

REPORT NO.: ITL53326

LAMPS: 1-F54T5

LUMENS: 5000

EFFICIENCY: 83.8%

CAT NO.: S154C04WH

CANDLEPOWER CURVE

WALL R EFLE CTANCE

Fixture Lengths & Mounting Locations

Mounting Accessories

Power Feed Cable End Set

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

36” (91.44cm) Platinum: SECO36SC

36” (91.44cm) White: SECO36WH

Stem End Set

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

30” (76.20cm) Platinum: SESO3

30” (76.20cm) White: SESO3

Intermediate Cable

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

36” (91.44cm) Platinum:SICO36SC

36” (91.44cm) White: SICO36WH

Notes: Suspended luminaires can be continuously

row mounted longer than 20-foot but the electrical

capacity of power cords cannot be exceeded.

Intermediate Stem

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

30” (76.20cm) Platinum: SISO3

30” (76.20cm) White: SISO3

Intermediate Cable/Cord

Distance is fromthe ceiling

line to the top of the lumi-

naire housing.

36” (91.44cm) Platinum: SIPO36SC

36” (91.44cm) White: SIPO36WH

4-Foot

8-Foot

12-Foot

16-Foot

20-Foot

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp%Luminaire

0-90 0 0.0 0.0

90-180 4189 83.8 100.0

0-180 4189 83.8 100.0

4' 3-1/4” (130.15cm)

4' 2-1/8” (127.32cm)

8' 6-5/8” (260.67cm)

8' 5-3/8” (257.49cm)

12' 9-7/8” (390.84cm)

12' 8-3/4” (387.99cm)

12' 9-3/8” (389.57cm)

17' 1-1/4” (521.34cm)

12' 9-3/8” (389.57cm)

4' 2-3/4” (128.91cm)

21' 4-1/2” (651.51cm)8' 6" (259.08cm)
