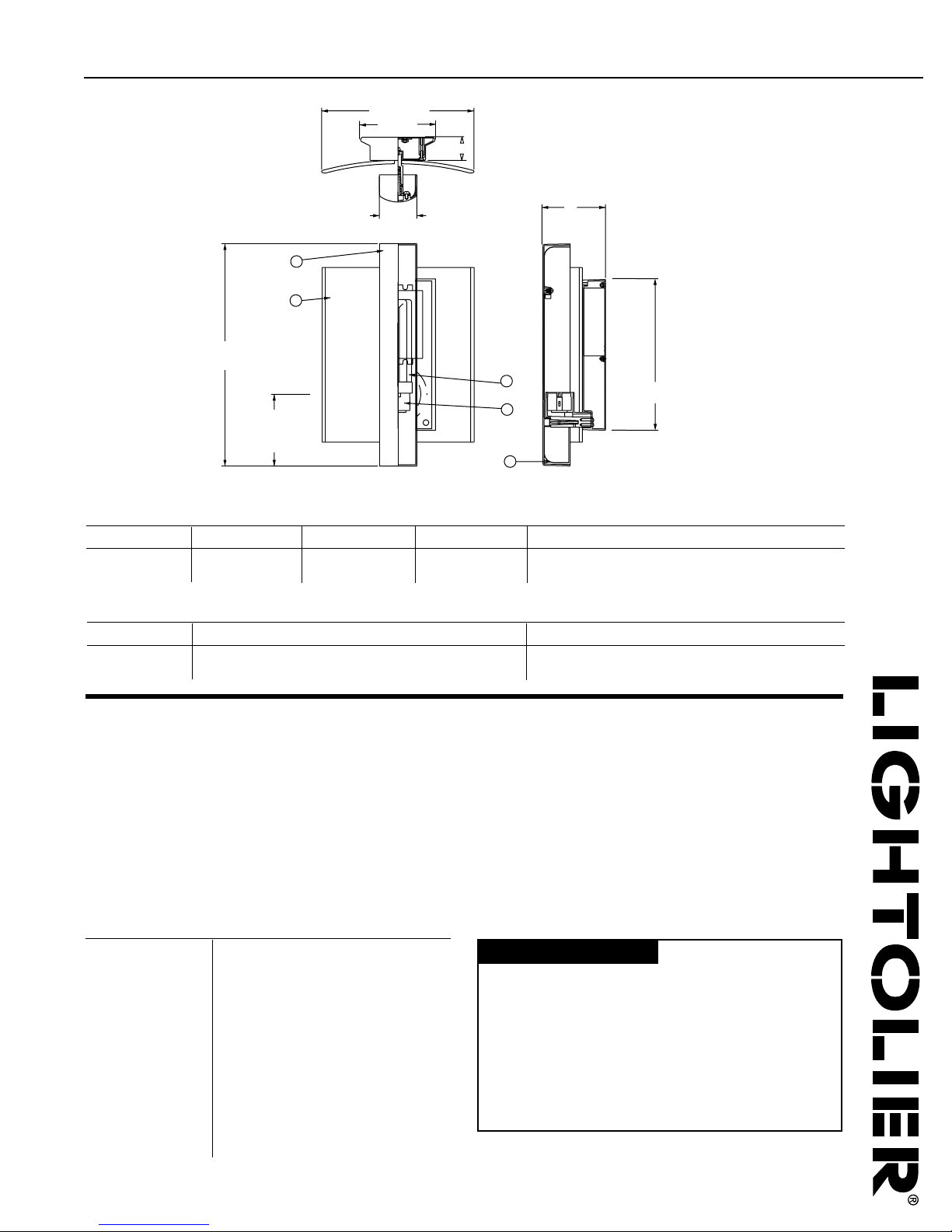

Architectural Decorative Soli™48020ALU

Page 1 of 2 Wall Mounted Compact Fluorescent ADA Compliant

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

14.0"

Height

4 1/2"

To Outlet

Box Center

9 1/2" Width

4 3/4"

1 1/2"

2 3/8"

Extension

9 1/2"

Features

1. Housing: Extruded and die-cast aluminum ballast and lamp chamber.

2. Optional Diffuser/Reflector: Curved etched glass or extruded opal virgin

acrylic.

3. Lamp: Triple tube Compact Fluorescent, 4-pin, electronic (by others).

4. Lampholder: Universal 26/32/42W Gx24q3/q4 base.

5. Optics: Internal patterned Alzak®reflector.

Mounting

Mounts directly to switch box or 4”octagonal J-Box. Octagonal box mounting

requires use of “J-Box Covers”and “Support Plate”supplied standard.

Electrical

Ballast: Electronic

120/277V Univ.

Total Input Watts: 26W Lamp = 29W

32W Lamp = 36W

42W Lamp = 46W

Max. Line Current: 26W 120V = 0.24A

277V = 0.11A

32W 120V = 0.31A

277V = 0.13A

42W 120V = 0.38A

277V = 0.17A

Power Factor: 26/32/42W =.98

Ballast Factor: 26W = 1.10

32/42W = 0.98

THD: 26/32/42W = 10%

Starting Temp: 0°F / -18°C

Diffuser Ordering Information

Catalog No. Description Dimensions

40873 Translucent Etched Soda Lime Glass w/ Chamfered Edges 11”L x 9.5”W x 5 mm Thick

40913 Extruded Opal Virgin Acrylic w/ Chamfered Edges 11”L x 9.5”W x 5 mm Thick

Options

Dimming: Advance Mark X ballasts are supplied as standard, delete U from the

end of catalog number and replace with suffix codes below:

MX1 = Multi-wattage 26/32/42W, 120V input.

MX2 = Multi-wattage 26/32/42W, 277V input.

Matching Linear Units: See SOLI ADA 2’48021ALU, SOLI ADA 3’48022ALU,

SOLI ADA 4’48023ALU.

Finish

All painted parts utilized the powder coat process. Lightolier Metallic Aluminum

Powder Coat Enamel.

Labels

cULus Listed. Suitable for Damp Locations.

Fixture Ordering Information

Catalog No. Finish Wattage Voltage Lamping

48020ALU Powder Coated 26/32/42W 120/277V Quad or Triple Tube Compact Fluorescent

Metallic Aluminum

Note: Luminaire can be ordered with or without diffusing shield. Order each separately.

Architectural Decorative Soli™48020ALU

Page 2 of 2 Wall Mounted Compact Fluorescent ADA Compliant

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Tested according to IES procedures.

Test distance exceeds five times the greatest luminous opening of luminaire.

CANDLEPOWER

ZONE 90 67.5 45 22.5 BEAM

DEG.

CANDELAS

055555

54369100

15 10 16 18 17 17 2

25 13 26 28 26 29 6

35 8 36 38 36 40 10

45 8 45 46 44 50 16

55 11 52 54 50 58 21

65 13 58 60 56 65 26

75 15 63 65 60 70 30

85 16 66 67 62 73 33

95 28 72 71 66 71 35

105 29 73 72 66 71 34

115 30 72 69 64 68 31

125 31 67 65 60 63 27

135 33 61 58 54 56 21

145 33 53 49 46 47 15

155 29 44 40 37 37 9

165 22 34 30 29 28 4

175 16 25 26 24 24 1

180 20 20 20 20 20

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-30 12 .52 2.42

0-40 25 1.06 4.99

0-60 71 2.99 13.99

0-90 183 7.65 35.82

40-90 158 6.58 30.83

60-90 111 4.66 21.82

90-180 328 13.71 64.18

0-180 512 21.36 100.00

** EFFICIENCY = 21.4% **

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

0 222222 202020 161616 131313 9 9 9 8

1 181716 161615 131212 10 9 9 7 7 6 5

2 151412 141211 1110 9 8 7 7 6 5 5 3

3 131110 1210 9 9 8 7 7 6 5 5 4 4 3

412108 109 7 8 76 6 54 433 2

51087 97 6 765 5 44 432 2

6 976 865 654 543 322 1

7 865 764 643 433 322 1

8 754 654 543 432 321 1

9 654 643 533 332 221 1

10 6 4 3 5 4 3 4 3 2 3 2 2 2 1 1 1

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

% WALL REFLECTION

CERTIFIED TEST REPORT NO. 2214FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

LIGHTOLIER ARCHITECTURAL DECORATIVE LUMINAIRE SOLI

CAT. NO. 48020ALU, ETCHED GLASS SHIELD DIFFUSER

1-32W CFL TRIPLE TUBE LAMP. PHILIPS PL-T. LUMEN RATING = 1220 LMS.

ADVANCE BALLAST #REZ 1T42 M2 LD

Prepared For:

Lightolier

Fall River, MA

Date: May 13, 2003
