Lightolier Lytespan 8105 User manual

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

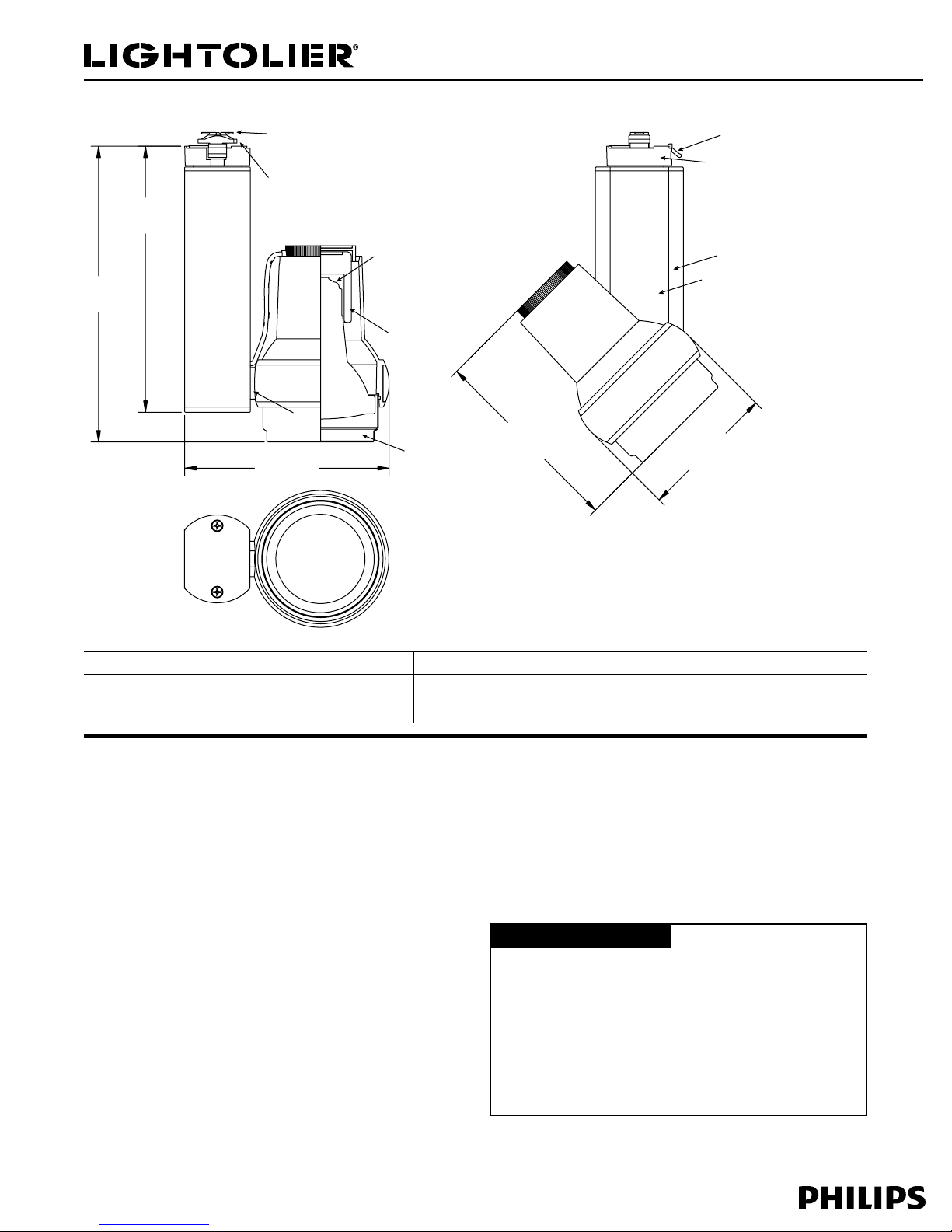

Lytespan®Track Lighting System 8105

Page 1 of 2 Step Spot Mini HID 39W PAR20 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Push Tab: Molded polycarbonate. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Movable Contact: Solid brass. Extends for connection to 2nd circuit in

Advent track.

5. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast. Thermally

protected, 0.40A maximum input current, 45W input power.

7. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Lamp Housing: Die-cast aluminum with cool-grip® insulation band; a high

temperature silicone rubber which allows aiming adjustments while fixture is

on. Integral color.

9. Lampholder: 5kV (600V) pulse rated glazed porcelain body socket with

plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads encased in

fiberglass sleeving.

1 0 . C o w l : Painted steel; retaining ring included to hold accessory in place.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF25 series

Color Filters: ADF25 series

Louver (Hex Cell): AL25HC

Mounting

All Monopoint, Multipoint, recessed track, suspension track, suspension

stems, sloped ceiling adapter, Basic, Advent and Radius track systems only.

Ceiling and horizontal or vertical wall mounted. Not compatible with ProSpec

track system.

Finish

All painted finishes are baked powder or enamel.

Markings

cCSAus Certified for dry locations only.

Catalog No. Finish Lamp

8105WH White

8105BK Black 39W PAR20 CMH (M130) E26 base

8105AL Aluminum Not Included

7.50"

(191mm)

6.75"

(172mm)

4.88"

(124mm)

4.75"

(121mm) 3.14"

(83mm)

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

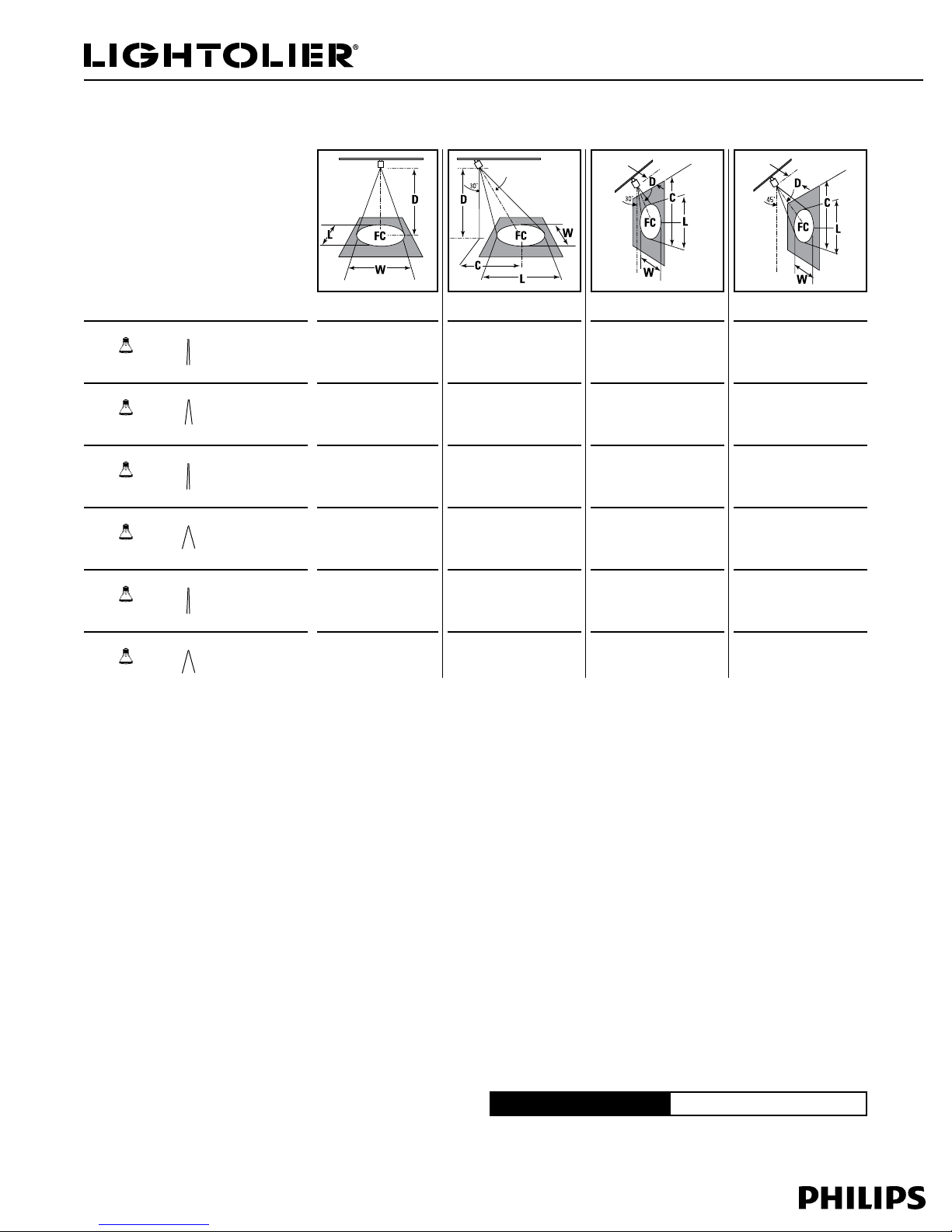

Lytespan®Track Lighting System 8105

Page 2 of 2 Step Spot Mini HID 39W PAR20 CMH

22000 10000

GE CMH39PAR20/SP

10°

7500 10000

GE CMH39PAR20/FL

25°

22000 9000

Sylvania

CMH39PAR20/SP 10°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

WBeam Width AAiming Angle

C Distance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

8' 4.6' 223 1.9' 1.6'

10' 5.8' 143 2.3' 2.0'

12' 6.9' 99 2.8' 2.4'

14' 8.1' 73 3.3' 2.8'

3' 5.2' 306 2.1' 1.0'

4' 6.9' 172 2.9' 1.4'

5' 8.7' 110 3.6' 1.7'

6' 10.4' 76 4.3' 2.1'

4' 4.0' 486 1.4' 1.0'

5' 5.0' 311 1.8' 1.2'

6' 6.0' 216 2.1' 1.5'

7' 7.0' 159 2.5' 1.7'

8' 344 1.4' 1.4'

10' 220 1.7' 1.7'

12' 153 2.1' 2.1'

14' 112 2.4' 2.4'

6' 3.5' 135 3.6' 3.1'

8' 4.6' 76 4.8' 4.1'

10' 5.8' 49 6.0' 5.1'

12' 6.9' 34 7.2' 6.1'

2' 3.5' 234 4.2' 1.8'

3' 5.2' 104 6.2' 2.7'

4' 6.9' 59 8.3' 3.5'

5' 8.7' 38 10.4' 4.4'

3' 3.0' 295 2.8' 1.9'

4' 4.0' 166 3.7' 2.5'

5' 5.0' 106 4.7' 3.1'

6' 6.0' 74 5.6' 3.8'

6' 208 2.7' 2.7'

8' 117 3.5' 3.5'

10' 75 4.4' 4.4'

12' 52 5.3' 5.3'

8' 4.6' 223 1.9' 1.6'

10' 5.8' 143 2.3' 2.0'

12' 6.9' 99 2.8' 2.4'

14' 8.1' 73 3.3' 2.8'

3' 5.2' 306 2.1' 1.0'

4' 6.9' 172 2.9' 1.4'

5' 8.7' 110 3.6' 1.7'

6' 10.4' 76 4.3' 2.1'

4' 4.0' 486 1.4' 1.0'

5' 5.0' 311 1.8' 1.2'

6' 6.0' 216 2.1' 1.5'

7' 7.0' 159 2.5' 1.7'

8' 344 1.4' 1.4'

10' 220 1.7' 1.7'

12' 153 2.1' 2.1'

14' 112 2.4' 2.4'

5000 9000

Sylvania

CMH39PAR20/FL 30°

6' 3.5' 90 4.4' 3.7'

8' 4.6' 51 5.9' 5.0'

10' 5.8' 32 7.3' 6.2'

12' 6.9' 23 8.8' 7.4'

2' 3.5' 156 5.5' 2.1'

3' 5.2' 69 8.2' 3.2'

4' 6.9' 39 10.9' 4.3'

5' 8.7' 25 13.7' 5.4'

3' 3.0' 196 3.5' 2.3'

4' 4.0' 110 4.6' 3.0'

5' 5.0' 71 5.8' 3.8'

6' 6.0' 49 6.9' 4.5'

6' 139 3.2' 3.2'

8' 78 4.3' 4.3'

10' 50 5.4' 5.4'

12' 35 6.4' 6.4'

23000 9000

Philips

CMH35PAR20/SP 10°

8' 4.6' 233 1.9' 1.6'

10' 5.8' 149 2.3' 2.0'

12' 6.9' 104 2.8' 2.4'

14' 8.1' 76 3.3' 2.8'

3' 5.2' 319 2.1' 1.0'

4' 6.9' 180 2.9' 1.4'

5' 8.7' 115 3.6' 1.7'

6' 10.4' 80 4.3' 2.1'

4' 4.0' 508 1.4' 1.0'

5' 5.0' 325 1.8' 1.2'

6' 6.0' 226 2.1' 1.5'

7' 7.0' 166 2.5' 1.7'

8' 359 1.4' 1.4'

10' 230 1.7' 1.7'

12' 160 2.1' 2.1'

14' 117 2.4' 2.4'

5000 9000

Philips

CMH35PAR20/FL 30°

6' 3.5' 90 4.4' 3.7'

8' 4.6' 51 5.9' 5.0'

10' 5.8' 32 7.3' 6.2'

12' 6.9' 23 8.8' 7.4'

2' 3.5' 156 5.5' 2.1'

3' 5.2' 69 8.2' 3.2'

4' 6.9' 39 10.9' 4.3'

5' 8.7' 25 13.7' 5.4'

3' 3.0' 196 3.5' 2.3'

4' 4.0' 110 4.6' 3.0'

5' 5.0' 71 5.8' 3.8'

6' 6.0' 49 6.9' 4.5'

6' 139 3.2' 3.2'

8' 78 4.3' 4.3'

10' 50 5.4' 5.4'

12' 35 6.4' 6.4'
