Lightolier Lighting Systems LP-10 User manual

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LP-10

1BHFPG -JOFBS1FSG-ZUFÜDN4PMJE*OEJSFDU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

13” (33.02cm)

3”

(7.62cm)

Complete ordering instructions below.

Features

1. Housing: 18 gauge steel. Die-formed steel end cap with concealed access

holes for through wiring. No exposed fasteners or hardware.

others.

2. Lamping: Three T8 32 watt fluorescent lamps per 4-foot section. Provided by

3. Reflector: Precision die-formed CRS painted high reflectance white.

Module Ordering Information

Style Series Options

3T8 = 3-F32T8 4= 4-Foot U= Universal Voltage Blank = No Options

8= 8-Foot E= Emergency Pack DS = A-B Switch

D1 = Dimming 120v X4 = 4 Wire for Dimming &

Switched Emergency

D2 = Dimming 277v

LP 2 3T8A

LengthLampsType Ballast

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory

installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC, 4 wire feed required.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

Mountings

Cable Suspension (not shown) - 4-1/2” (11.43cm) diameter flat canopy finished

white enamel, 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36” (91.44cm) without cutting.

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of SINGLE

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

CABLE & CORD FEEDS.

4 Wire: Order X4 modules for remainder of the run when using dimming and/or

switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed

End Sets (LP2EC36X4) when using 4 Wire Modules.

Emergency Circuiting: Special circuiting - consult factory.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

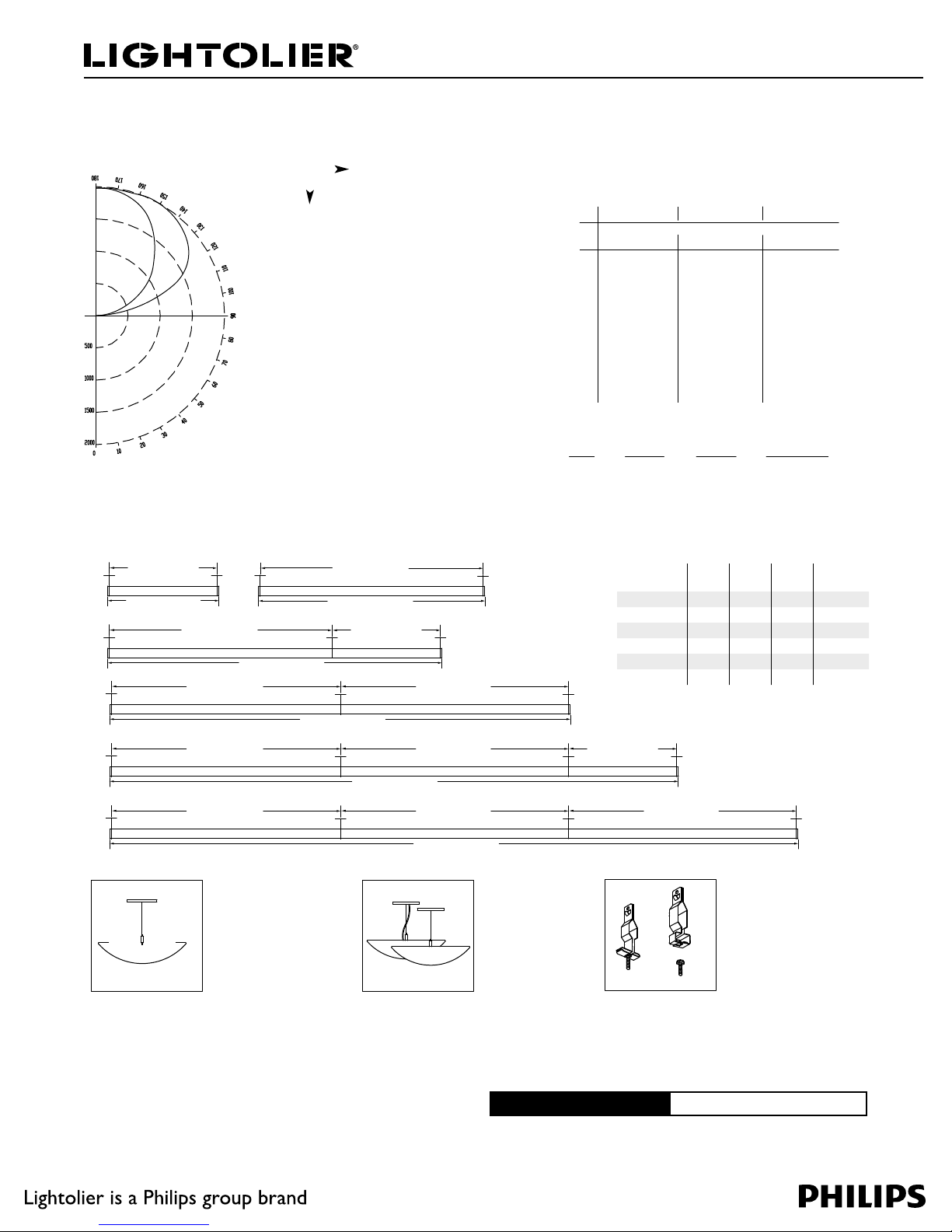

Lighting Systems LP-10

1BHFPG -JOFBS1FSG-ZUFÜDN4PMJE*OEJSFDU-JHIU51FS'PPU/PNJOBM4FDUJPO

Mounting Accessories

Fixture Lengths & Mounting Locations

Ceiling Grid Kit

CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

Power Feed End Set

Standard Cable Length is 36” (91.44cm)

Straight Cord: LP2EC36

4 Wire Cord*: LP2EC36X4

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm)

Single Cable: LP2C36

Single Cable & Cord: LP2CC36

Single Cable & 4 Wire Cord: LP2CC36X4 * use for dimming and/or

emergency battery packs

4’ 8’

48” (121.92cm)

4’ 2” (127.00cm)

96” (243.84cm)

8’ 2” (248.92cm)

12’

96” (243.84cm)

12’ 2” (370.84cm)

96” (243.84cm)

16’ 2” (492.76cm)

96” (243.84cm)

20’ 2” (614.68cm)

96” (243.84cm)

16’

96” (243.84cm)

24’ 2” (736.60cm)

96” (243.84cm)

24’

20’

48” (121.92cm)

96” (243.84cm)

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 1977 1977 1977 1977 1977

175 1976 1976 1986 1986 1986

165 1918 1937 1958 1981 1981

155 1790 1836 1891 1991 2005

145 1559 1662 1764 1945 1976

135 1282 1444 1596 1856 1899

125 1028 1247 1493 1806 1761

115 709 1037 1286 1463 1478

105 392 769 845 876 870

95 131 269 236 224 219

90 33 45 25 14 12

85 0 0 0 0 0

75 0 0 0 0 0

65 0 0 0 0 0

55 0 0 0 0 0

45 0 0 0 0 0

35 0 0 0 0 0

25 0 0 0 0 0

15 0 0 0 0 0

500000

000000

Performance

REPORT NO: LRL 300-1Z

CAT NO: LPL2A3T84U

LAMPS: 3 F32T8

LUMENS: 2900

EFFICIENCY: 87.6%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

083838371 7171494949

176726965 6259424139

269635859 5450373533

363555053 4743333027

457494349 4237292623

552433744 3732252220

648383241 3327231917

744342837 2924201714

841312435 2621181512

938282232 2419171311

10 35 25 20 30 22 17 15 12 10

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

CANDLEPOWER CURVE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 0 0.0 0.0

90-180 7617 87.6 100.0

0-180 7617 87.6 100.0

4-Foot

Module

8-Foot

Module End Set Cable/

Joiner

4-Foot Run 11

8-Foot Run 11

12-Foot Run 111 1

16-Foot Run 21 1

20'-Foot Run 121 2

24'-Foot Run 31 2
