Lightolier Lytespan 8248 User manual

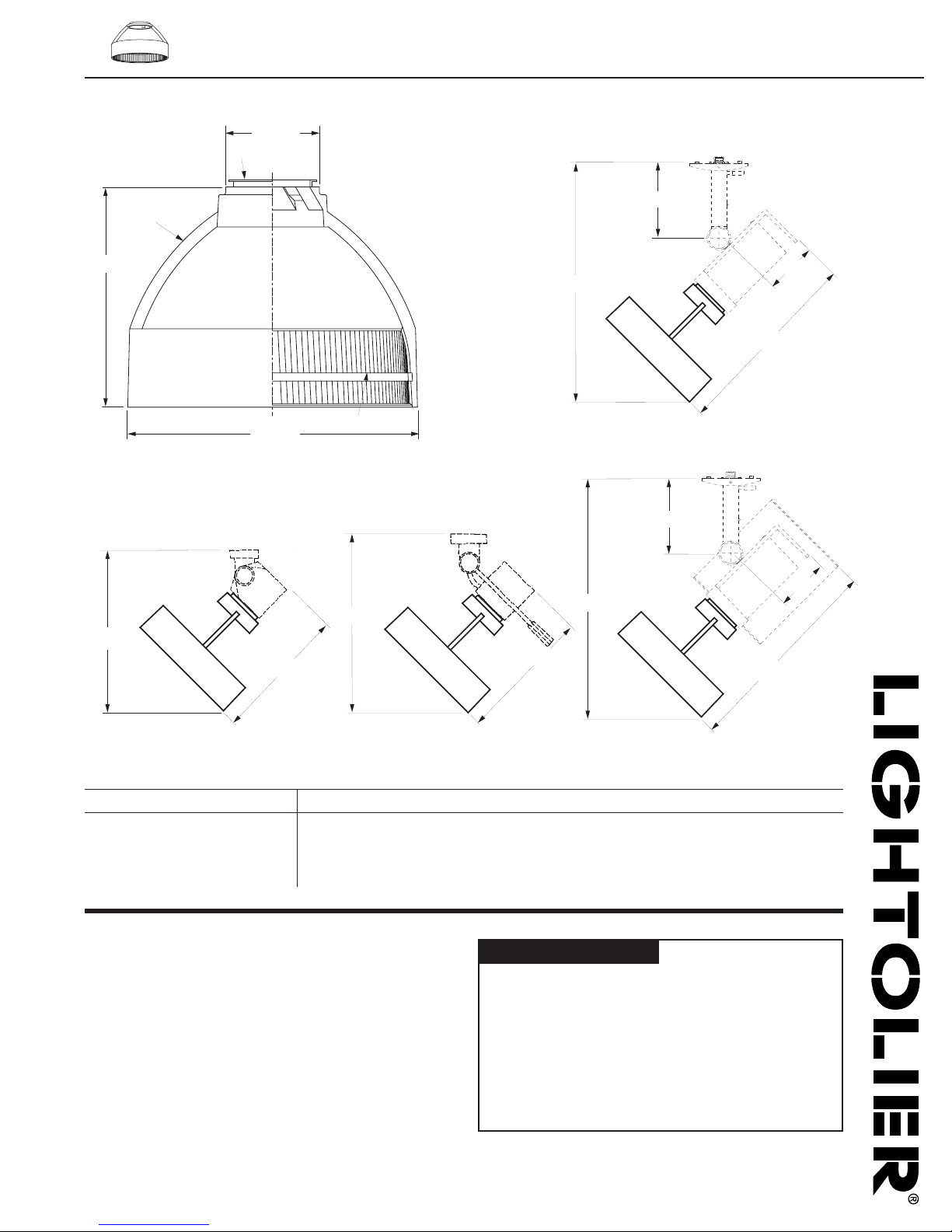

11 1/4”

9”

2 9/16”

3 9/16”

11 1/4”

3 9/16”

9 5/8”

3 3/16”

7 9/16”

6 1/8”

8 1/8”

6 1/8”

4 1/4”

Ring PAR38 with MetallicsTM Incandescent/Halogen

Fixtures 8701 & 28701 (ProSpec)

ø5 9/16”

Ring PAR38 with MetallicsTM Electronic Metal Halide

Fixtures 8706E & 8707E

ø1 13/16”

Ring PAR38 with Par-Tech®

Incandescent/halogen

Fixture 8201

Ring PAR38 with Par-Tech®

Incandescent/halogen

Fixture 8202

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 8248

Page 1 of 1 MetallicsTM Par-Tech®PAR38 Ring Shade

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Shade: Die-cast aluminum.

2. Neck Flange: Cold rolled steel, zinc-plated. Used to attach shade to fixture,

without tools.

3. Groove: To connect optional Accessory Holder to shade.

Options and Accessories

PAR38 Accessory Holder (8595) & Accessories (AF4 & AF4HC Series). Order

separately (See Lightolier Specification Sheet 8595).

Finish

All painted finishes: White, Titanium, or Black baked enamel. Natural Metal is

Brushed Metal with protective Clear Coat.

Labels

UL, I.B.E.W.

Ordering Information

Catalog No. Finishes Lamps

8248 WH Matte White

INCANDESCENT: PAR38 250W Max. 150W Max. with Accessories (When used on Fixtures 8701 & 28701)

8248 TM Dark Titanium

INCANDESCENT: PAR38 150W Max. (When used on Fixtures 8201 & 8202)

8248 NM

Natural Metal METAL HALIDE: PAR38 70W (When used on fixture no. 8706E)

8248 BK

Matte Black METAL HALIDE: PAR38 100W (When used on fixture no. 8707E)
