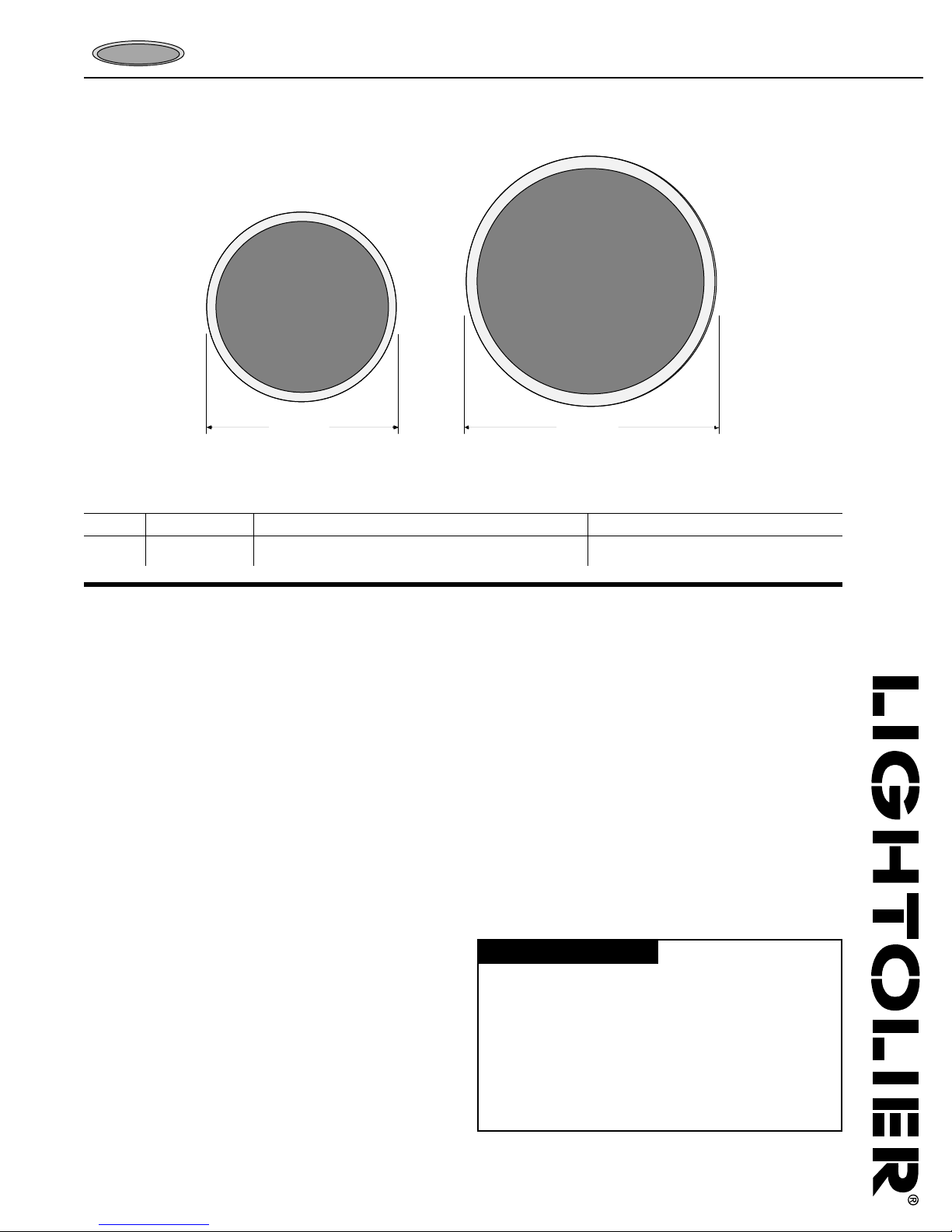

Lightolier Calculite AS4LS User manual

Dia. Catalog No. Use With Description

4 3/4" AS4LS All 6" and 7" ProSpec®Premium adjustable accent lights. Screens

6 1/4" AS7LS All Dual Function fixtures with CAH7 accessory holder. set of (2) 15% and (2) 40% screens

Calculite®Accessories/Options AS4LS

Page 1 of 2 Light Blocking Screens

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Features

1. Screen: Rimmed stainless steel wire mesh. A set of (2) 15% light blocking

screens and (2) 40% light blocking screens. Provides the effect of dimming

by reducing light output without changing color temperature of the lamp.

Especially useful for museum or retail display lighting where color rendering

is critical.

Screen(s) Used %Light Blocked %Light Transmitted

(1) 15% Screen 15% 85%

(2) 15% Screens 28% 72%

(1) 40% Screen 40% 60%

(1) 15% screen

and

(1) 40% Screen 49% 51%

(2) 40% screens 64% 36%

Note: Maximum of (2) screens per fixture. Actual light transmis-sion may vary

slightly from figures above depending on the light source used and the orienta-

tion of screens relative to one another when (2) are used.

4 3/4" Dia. 6 1/4" Dia.

Evolution 4" Trims with Non-IC Frames

Fixture

C4MRA 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C4MRGA 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C4MRGD 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C4MRW 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C4MRD 1 Secondary Color Lens or 1 Mixing Color Lens or 1 Specialty Filter

Evolution 6" Trims with Non-IC Frames

Fixture

C6P30A 1 Primary Color Lens or 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C6P30A30 1 Primary Color Lens or 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C6P36A 1 Primary Color Lens or 1 Secondary Color Lens or 1 Mixing Color Lens or 1 Specialty Filter

C6P36A30 1 Primary Color Lens or 1 Secondary Color Lens or 1 Mixing Color Lens or 1 Specialty Filter

C6P38A 1 Primary Color Lens or 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

C6P38A30 1 Primary Color Lens or 1 Secondary Color Lens or 1 Mixing Color Lens and 1 Specialty Filter

Evolution 4" Trims with AIC Frames

Fixture

C4MRA 1 Secondary Color Lens or 1 Mixing Color Lens or 1 Specialty Filter

C4MRD 1 Secondary Color Lens or 1 Mixing Color Lens or 1 Specialty Filter

Calculite®Accessories/Options AS4LS

Page 2 of 2 Light Blocking Screens

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) •A0902

Job Information Type:
