Lightmybricks 10265 User manual

INSTALLATION GUIDE 1FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE

Light My Bricks LEGO Ford Mustang

10265 Light Kit

Installation Guide

INSTALLATION GUIDE 2FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE

Hello, we’re Light My Bricks.

We’re here to help you get started on

the LEGO Ford Mustang (10265)

Lighting Kit.

This PDF lists instructions for the

LED light kit only. If you are wishing

to purchase the Light My Bricks Ford

Mustang (10265) LED Lighting Kit,

please click here to view the product

page.

If you run into any issues, please refer

to the troubleshooting section towards

the end of this guide.

Have fun and enjoy!

PACAKAGE CONTENTS

PACKAGE CONTENTS:

8 x White 15cm Bit Lights

7 x White 30cm Bit Lights

1 x 8-Port Expansion Board

1 x 12-Port Expansion Board

1 x NC Push Board

1 x 15cm Connecting Cable

1 x 30cm Connecting Cable

1 x USB Power Cable - USB Power Cable has replaced Flat,

Round, and AA Battery Packs as of June 2022 due to child

safety regulations. Please use the USB Power Cable in place

of the Battery Pack.

LEGO PIECES:

6 × Trans Clear Round Plate 1×1

1 × Trans Clear Plate w Rounded Bottom 2×2

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 3

Contents 4. Before You Begin

8. Steps

20. Final product

21. Troubleshooting

26. Contact

CONTENTS

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 4

LAYING CABLES IN BETWEEN

AND UNDERNEATH BRICKS

Cables can t in between and

underneath LEGO® bricks, plates, and

tiles providing they are laid correctly

between the LEGO® studs. Do NOT

forcefully join LEGO® together around

cables; instead ensure they are laying

comfortably in between each stud.

CAUTION: Forcing LEGO® to connect

over a cable can result in damaging

the cable and light.

CONNECTINGCABLECONNECTORS

TO EXPANSION BOARDS

Take extra care when inserting

connectors to ports of Expansion

Boards. Connectors can be inserted

only one way. With the expansion

board facing up, look for the soldered

“=” symbol on the left side of the port.

The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into

the port. If a plug won’t t easily into

a port connector, do not force it.

Incorrectly inserting the connector

can can result in bent pins inside the

port or possible overheating of the

expansion board when connected.

Before You Begin

BEFORE YOU BEGIN

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 5

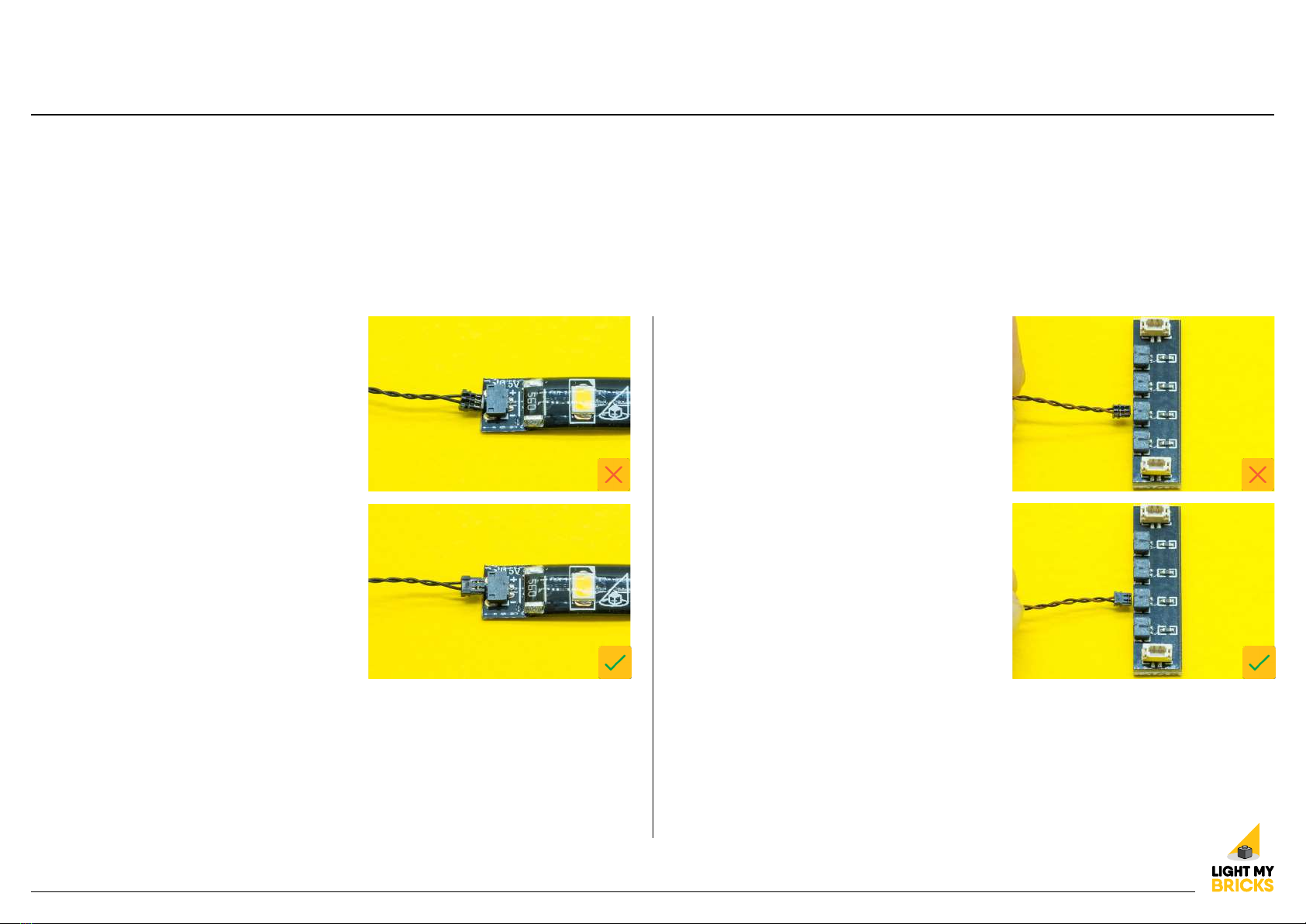

CONNECTINGCABLECONNECTORS

TO STRIP LIGHTS

Take extra care when inserting

connectors to ports on the Strip

Lights. Connectors can be inserted

only one way. With the Strip Light

facing up, ensure the side of the

connector with the wires exposed is

facing down. If a plug won’t t easily

into a port connector, don’t force it.

Doing so will damage the plug and

the connector.

CONNECTING MICRO CABLE

CONNECTORS TO MICRO

EXPANSION BOARD PORTS

Take extra care when inserting the

micro connectors to micro ports of

Micro Expansion Boards. Connecting

Micro Bit Lights to Micro Expansion

Boards is similar to connecting lights

and cables to Strip Lights. With the

expansion board facing up, ensure the

side of the connector with the wires

exposed is facing down. If a plug won’t

t easily into a port connector, do not

force it. Use your ngernail to push

the plastic part of the connector to the

micro port.

Before You Begin

BEFORE YOU BEGIN

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 6

INSTALLING BIT LIGHTS UNDER

LEGO® BRICKS AND PLATES

When installing Bit Lights under

LEGO® pieces, ensure they are placed

the correct way up (Yellow LED

component exposed). You can either

place them directly on top of LEGO®

studs or in between.

Before You Begin

BEFORE YOU BEGIN

INSTALLATION GUIDE 7FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE

Instructions To ensure a smooth

installation of your light kit,

please read and follow each

step carefully.

If you run into any issues,

please refer to the online

troubleshooting guide.

STEPS

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 8

LEGEND: DISCONNECT TURN / FLIP TWIST/BRAIDDIRECTIONAL POWER ON / TESTCONNECT/RECONNECT

STEPS

White 30cm Bit Light

Trans Clear Round Plate 1x1

x 2

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 9

LEGEND: DISCONNECT TURN / FLIP TWIST/BRAIDDIRECTIONAL POWER ON / TESTCONNECT/RECONNECT

STEPS

White 30cm Bit Light

Trans Clear Round Plate 1x1

x 2

FORD MUSTANG 10265 LIGHT KIT INSTALLATION GUIDE INSTALLATION GUIDE 10STEPS

If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies

(with the light or expansion board). To correct any issues with expansion board ports, please view the section addressing expansion board issues on our online troubleshooting guide.

LEGEND: DISCONNECT TURN / FLIP TWIST/BRAIDDIRECTIONAL POWER ON / TESTCONNECT/RECONNECT

USB Power Cable

has replaced Flat,

Round, and AA

Battery Packs as

of June 2022 due

to child safety

regulations.

Connect the USB

Power Cable to a

USB Power Bank

White 30cm Bit Light

x 2

8-Port Expansion Board

Flat Battery Pack
