Lightmybricks 10256 User manual

Light My Bricks: Taj Mahal Lighting Kit

The following page is instructions for the Light My Bricks LEGO Taj Mahal

(10256) LED light kit. You purchase this kit on our official website.

To ensure a trouble-free installation of your light kit, please read and follow

each step carefully.

Package contents:

• 8x White 30cm Bit Lights

• 9x White Strip Lights

• 2x Multi Colour Strip Lights • 1x 8-Port Expansion Board

• 6x 6-Port Expansion Boards

• 7x 30cm Connecting Cables

• 10x 15cm Connecting Cables

• 1x USB Power Cable 30cm

• 6x Adhesive Squares

LEGO Pieces

• 9x LEGO Plate 1x6 (any colour)

• 4x Plate 1x2 (any colour)

. . .

Important things to note:

Laying cables in between and underneath bricks

Cables can t in between and underneath LEGO® bricks, plates, and tiles

providing they are laid correctly between the LEGO® studs. Do NOT

forcefully join LEGO® together around cables; instead ensure they are laying

comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a

cable can result in damaging the cable and

light.

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion Boards.

Connectors can be inserted only one way. With the expansion board facing

up, look for the soldered “=” symbol on the left side of the port. The

connector side with the wires exposed should be facing toward the

soldered “=” symbol as you insert into the port. If a plug won’t t easily into

a port connector, do not force it.

Incorrectly inserting the connector can can

result in bent pins inside the port or possible

overheating of the expansion board when

connected.

Connecting cable connectors to Strip Lights

Take extra care when inserting connectors to ports on the Strip Lights.

Connectors can be inserted only one way. With the Strip Light facing up,

ensure the side of the connector with the wires exposed is facing down. If a

plug won’t t easily into a port connector, don’t force it.

Doing so will damage the plug and the connector.

Installing Bit Lights under LEGO® bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed the

correct way up (Yellow LED component exposed). You can either place

them directly on top of LEGO® studs or in between.

. . .

OK, Let’s Begin!

Instructions for this Kit

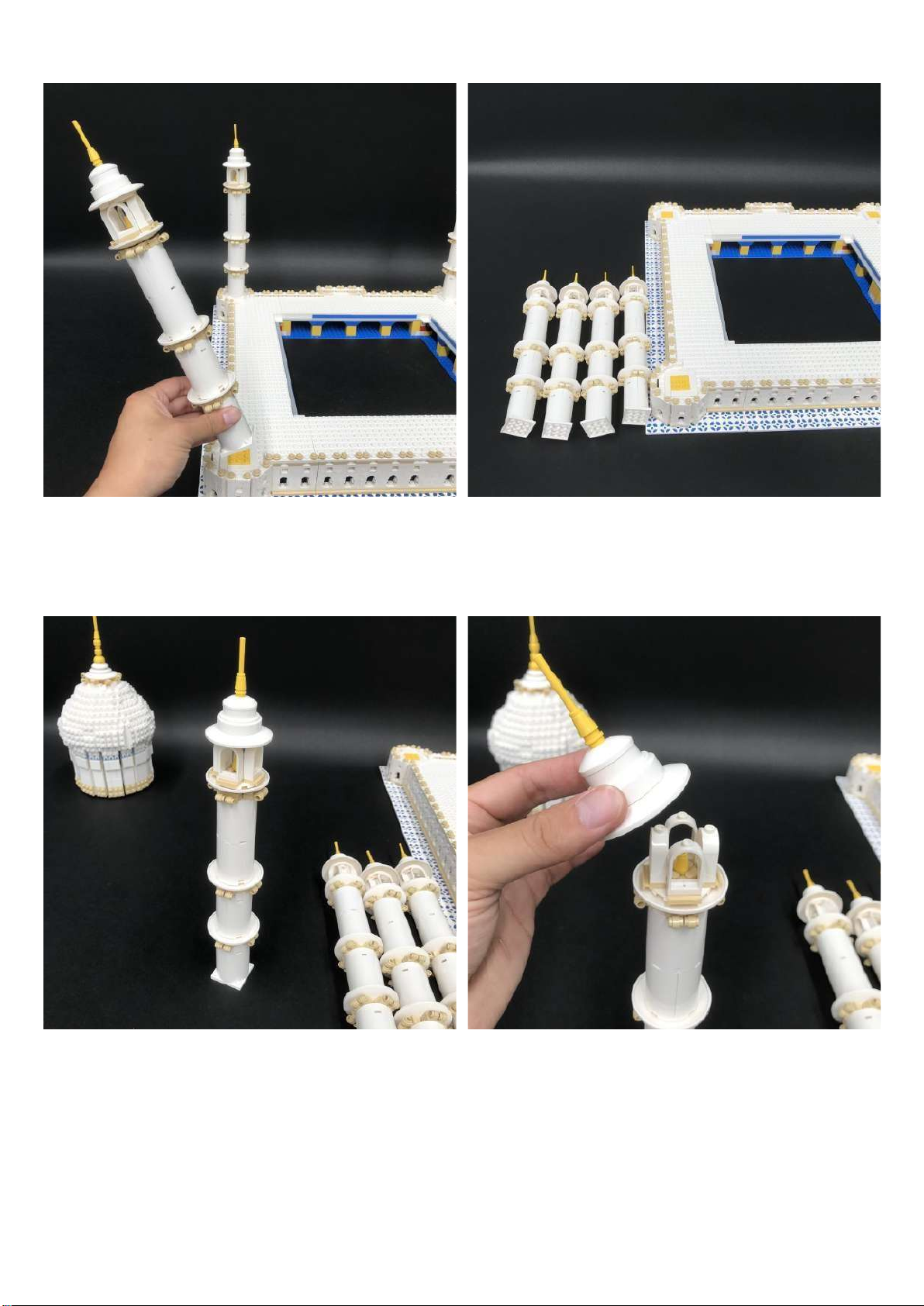

1.) Start by removing the center tower as well as the second level of theTaj

Mahal.

2.) Disconnect the four towers.

3.) Take one of the towers and disconnect the roof as per below:

Take a White 30cm Bit Light and stick it underneath the roof in the centre

using an Adhesive Square.

4.) Reconnect the roof ensuring the cable from the Bit Light is facingone of

the corners, then disconnect the bottom of the tower from the below

position:

5.) Take the top of the tower and then disconnect the following piecesfrom

the bottom:

Gently pull apart the two upper round wall sections and then slip the Bit

Light cable inside.

Lay the cable down the middle of the wall sections and then close them up.

Reconnect the two lower wall sections ensuring the Bit Light cable is laid

down the middle.

Thread the end of the Bit Light Cable down the top of the round plate below

and then thread the cable down the bottom of the white dish.
