Life Gear 93280 User manual

FORMULA

ELLIPTICAL TRAINER

ITEM NO: 93280

OWNER’S MANUAL

IMPORTANT: Read all instructions carefully before using this product. Retain this

owner’s manual for future reference.

The specifications of this product may vary from this photo, subject to change without notice.

2011, July

TABLE OF CONTENTS

WARRANTY---------------------------------------------------------------------------------1

SAFETY INSTRUCTIONS ------------------------------------------------------------- 2

PARTS LIST ------------------------------------------------------------------------------- 3

HARDWARE PACKING LIST --------------------------------------------------------- 5

TOOLS -------------------------------------------------------------------------------------- 6

OVERVIEW DRAWING -----------------------------------------------------------------7

ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 8

OPERATING THE COMPUTER ------------------------------------------------------ 15

ADJUSTMENTS -------------------------------------------------------------------------- 18

MAINTENANCE -------------------------------------------------------------------------- 19

TROUBLESHOOTING ------------------------------------------------------------------ 19

WARM UPAND COOL DOWN ROUTINE ----------------------------------------- 20

ONE YEAR LIMITED WARRANTY

LifeGear Inc. warrants to the original purchaser that this product is free from defects in

material and workmanship when used for the purpose intended, under the conditions that it

has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's

obligation under this warranty is limited to replacing or repairing, free of charge, any parts

which may prove to be defective under normal home use. This warranty does not include

any damage caused by improper operation, misuse or commercial application.

From the date of purchase, the frame is warranted to be free from defects for 1 (one) year.

This warranty is extended only to the original owner and is not transferable.

When ordering replacement parts please have the following information ready:

1. Owner's Manual

2. Model Number

3. Description of Parts

4. Part Number

5. Date of Purchase

SAFETY INSTRUCTIONS

Basic precautions should always be followed, including the following safety

instructions when using this equipment: Read all instructions before using this

equipment.

1. Read all the instructions in this manual and do warm up exercises before using this

equipment.

2. Before exercise, in order to avoid injuring the muscle, warm-up exercise of every

position of the body is necessary. Refer to Warm Up and Cool Down Routine page.

After exercise, relaxation of the body is suggested for cool-down.

3. Please make sure all parts are not damaged and fixed well before use. This

equipment should be placed on a flat surface when using. Using a mat or other

covering material on the ground is recommended.

4. Please wear proper clothes and shoes when using this equipment; do not wear clothes

that might catch any part of the equipment.

5. Do not attempt any maintenance or adjustments other than those described in this

manual. Should any problems arise, discontinue use and consult an Authorized

Service Representative.

6. Be careful when step on or leave the pedal always hold the handlebars first. Make the

pedal at your side at the lowest position, step on the pedal, and stride over the main

frame then step on the other pedal. When using, please hold the handlebar by hands,

make the pedals running smoothly by push or pull handlebars, then run the equipment

regularly by cooperation of hands and feet. After exercise, please also make one

pedal at the lowest position and leave your foot on the higher pedal first and then

another.

7. Do not use the equipment outdoors.

8. This equipment is for household use only.

9. Only one person should be on the equipment while in use.

10. Keep children and pets away from the equipment while in use. This machine is

designed for adults only. The minimum free space required for safe operation is not

less than two meters.

11. If you feel any chest pains, nausea, dizziness, or short of breath, you should stop

exercising immediately and consult your physician before continuing.

12. The maximum weight capacity for this product is 110kgs.

WARNING:Before beginning any exercise program consult your physician.

This is especially important for the persons who are over 35 years old or who have

pre-existing health problems. Read all instructions before using any fitness

equipment.

CAUTION:Read all instructions carefully before operating this product.

Retain this Owner’s Manual for future reference.

PARTS LIST

No. Description Qty No. Description Qty

001 Main Frame 30x60x2 1 027 Cap Nut M6 4

002 Front Post Ø50x1.5 1 028 Bolt Cap S16 2

003 Left Handrail Arm Ø32x1.5 1 029 Nylon Nut M6 6

004 Right Handrail Arm Ø32x1.5 1 030 Curve Washer Ø6xØ12x1 4

005 Left Foot Bar 40x25x1.5 1 031 Bolt M6x35 4

006 Right Foot Bar 40x25x1.5 1 032 Bolt M10x18 2

007 Handlebar Ø28x1.5 1 033 Spring Washer Ø10 2

008 Left Decorative Cover 1 034 Big Washer Ø8xØ20x2 2

009 Right Decorative Cover 1 035 Washer Ø28xØ16.2x5 2

010 U Shape Bracket 2 036 Powder Metal Bushing

Ø33xØ29xØ16x3 4

011 Idle Wheel Bracket 1 037 Plastic Bushing Ø32xØ16x5 2

012 Belt Pulley with Crank Ø240 J6 1 038 Bolt for Tension Control Knob

M5x45 1

013 Curve Washer Ø8xØ16x1.5 2 039 Curve Washer for Tension Control

Knob Ø5 1

014 Front Stabilizer Ø60x1.5x380 1 040 Tension Control Knob 1

015 Rear Stabilizer Ø60x1.5x480 1 041 Bolt Ø15.8x62 2

016 Left Handrail Ø32x1.5x633 1 042 Powder Metal Bushing

Ø24.5xØ16x14 8

017 Right Handrail Ø32x1.5x633 1 043 Big Curve Washer Ø8xØ20x2 6

018 Handrail Foam Grip

Ø31xØ37x480 2 044 Bolt M8x20 (L20) 2

019 Handrail End Cap 2 045 Foot Bar Cover-A 2

020 Handlebar Foam Grip

Ø33xØ27x360 2 046 Foot Bar Cover-B 2

021 Handlebar End Cap Ø28.6x1.5 2 047 Left Foot Pedal 395x150x65 1

022 Hand Pulse Sensor with Wire

L=750 2 048 Right Foot Pedal 395x150x65 1

023 Screw ST4.2x20 8 049 Bolt M6x40 6

024 Screw ST2.9x12 10 050 Washer Ø6xØ12x1 6

025L Left Handrail Arm Cover-A 1 051 Powder Metal Bushing Ø18xØ8x10 4

025R Right Handrail Arm Cover-A 1 052 Bolt for left U Shape Bracket 1/2” 1

026L Left Handrail Arm Cover-B 1 053 Wave Washer Ø28xØ17x0.3 2

026R Right Handrail Arm Cover-B 1 054 Spring Washer Ø20xØ13xB2 2

PARTS LIST

No. Description Qty No. Description Qty

055 Left Nylon Nut 1/2” 1 078 Sensor Wire II L=1600 1

056 Nylon Nut M8 6 079 Idle Wheel 1

057 Washer Ø16xØ8x1.5 6 080 Eyebolt M8x85 1

058 Bolt M8x50 2 081 Nut M10 2

059 Bolt Cap S13 2 082 Adjustable Leveler M10 2

060 Front Left Stabilizer End Cap 1 083 Bolt M8x20 (L10) 1

061 Bolt M8x70 4 084 Front Right Stabilizer End Cap 1

062 Big Curve Washer Ø25xØ8 4 085 Nut M6 2

063 Cap Nut M8 4 086 Spring Washer Ø6 2

064 Cover Cap Ø40xØ25x10 2 087 Tension Bracket 2

065 Phillips Self Tapping Screw

ST4.2x25 6 088 Eyebolt M6x36 2

066 Left Cover 1 089 M10x1 Nut for Flywheel 2

067 Right Cover 1 090 Flywheel Ø230x40x32 1

068 Screw ST4.2x25 10 091 Bolt M8x15 8

069 Belt PJ370 J6 1 092 Rear Right Stabilizer End Cap 1

070 Hexagon Nut 7/8” 1 093 Bolt for right U-Shape Bracket 1/2” 1

071 Washer Ø34.5xØ23x2.5 1 094 Right Nylon Nut 1/2” 1

072 Bearing Nut II 7/8” 1 095 Washer Ø10xØ20x2 2

073 Bearing 2 096 Computer (RD93232) 1

074 Bearing Cup 2 097 Bolt M5x10 4

075 Bearing Nut I 15/16” 1 098 Sensor Wire I L=1100 1

076 Washer Ø40xØ24x3.0 1 099 Tension Cable L=1800 1

077 Rear Left Stabilizer End Cap 1

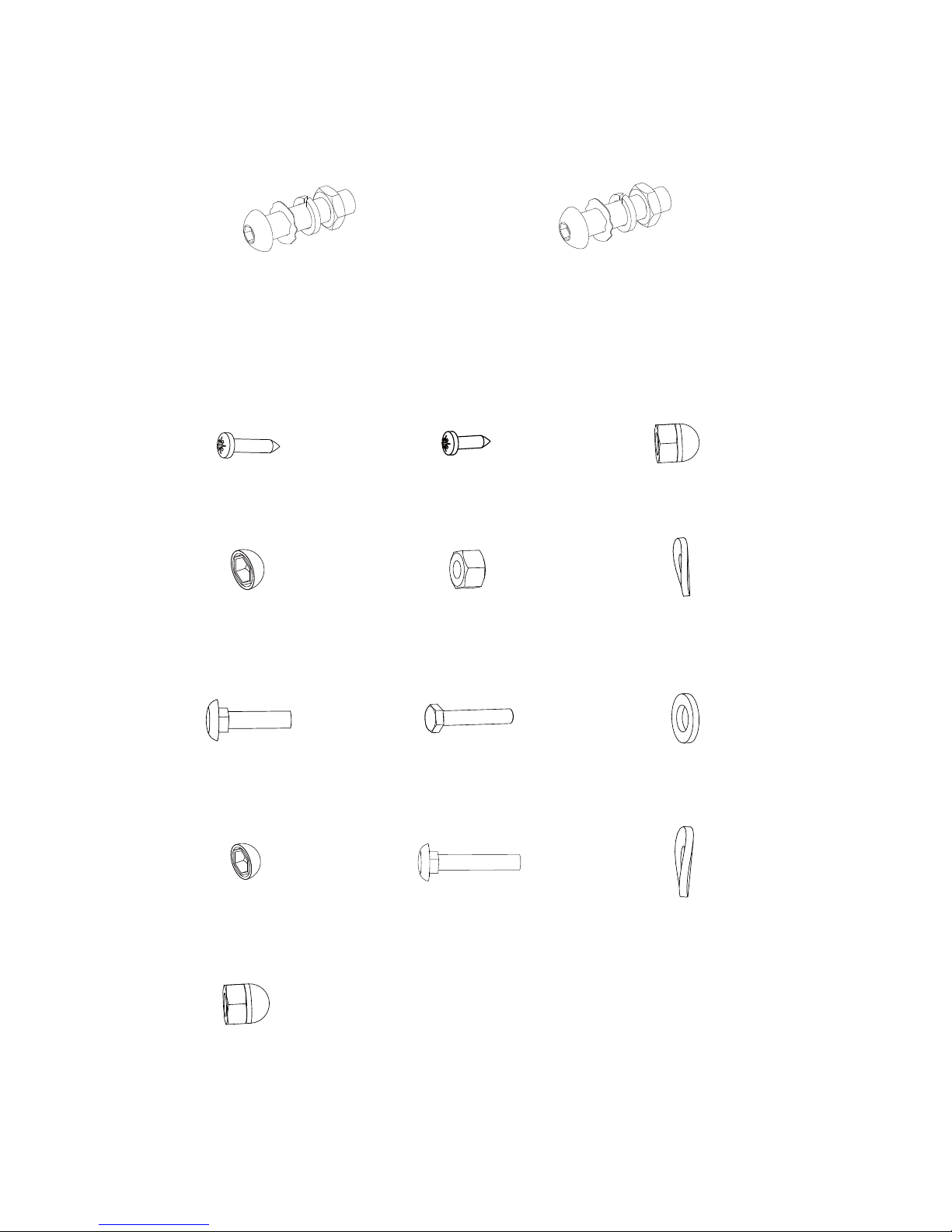

HARDWARE PACKING LIST

(61) Bolt M8x70

4 PCS

(27) Cap Nut M6

4 PCS

(53) Wave Washer

Ø28xØ17x0.3 1 PC

(54) Spring Washer

Ø20xØ13xB2 1 PC

(93) Bolt for right U Shape

Bracket 1/2” 1 PC

(94) Right Nylon Nut 1/2” 1 PC

(52) Bolt for left U Shape

Bracket 1/2” 1 PC

(53) Wave Washer

Ø28xØ17x0.3 1 PC

(54) Spring Washer

Ø20xØ13xB2 1 PC

(55) Left Nylon Nut 1/2” 1 PC

(29) Nylon Nut M6

6 PCS

(50) Washer Ø6xØ12x1

6 PCS

(49) Bolt M6x40

6 PCS

(28) Bolt Cap S16

2 PCS

(62) Big Curve Washer

Ø25xØ8

4 PCS

(31) Bolt M6x35

4 PCS

(30) Curve Washer

Ø6xØ12x1

4 PCS

(24) Screw ST2.9x12

8 PCS

(23) Screw ST4.2x20

4 PCS

(63) Cap Nut M8

4 PCS

(59) Bolt Cap S13

2 PCS

TOOLS

Multi Hex Tool

S10, S13, S17, S19

1 PC

Allen Wrench S6

1 PC Allen Wrench S8

1 PC

Multi Hex Tool with Phillips Screwdriver

S10, S13, S14, S15

1 PC

OVERVIEW DRAWING

14 84

65 82

77 82

94 54

53 93

46 45

44 44 34

34 42

30 27

26R

25R

26L

25L

20 19

19 18

ASSEMBLY INSTRUCTIONS

1. Front and Rear Stabilizers Installation

Position the Front Stabilizer (14) in front of Main Frame (1) and align bolt holes.

Attach the Front Stabilizer (14) onto the front curve of the Main Frame (1) with two M8x70

Bolts (61), two Ø25xØ8 Big Curve Washers (62), and two M8 Cap Nuts (63). Tighten cap

nuts with the Multi Hex Tool with Phillips Screwdriver provided.

Install two M10 Adjustable Levelers (82) with M10 Nuts (81) onto the Rear Stabilizer (15).

Position the Rear Stabilizer (15) behind the Main Frame (1) and align bolt holes.

Attach the Rear Stabilizer (15) onto the rear curve of the Main Frame (1) with two M8x70

Bolts (61), two Ø25xØ8 Big Curve Washers (62), and two M8 Cap Nuts (63). Tighten cap

nuts with the Multi Hex Tool with Phillips Screwdriver provided.

Hardware:

4 Bolts (M8x70) 4 Big Curve Washers

(Ø25xØ8) 4 Cap Nuts (M8)

Multi Hex Tool with Phillips Screwdriver

S10, S13, S14, S15

Tool:

2. Front Post and Tension Control Knob Installation

Remove six M8x15 Bolts (91) and six Ø8xØ20x2 Big Curve Washers (43) from the Main

Frame (1). Remove bolts and washers with the S6Allen Wrench provided.

Insert the Tension Cable (99) through into the bottom hole of Front Post (2) and pull it out

from the square hole of Front Post (2).

Connect the Sensor Wire II (78) from the Main Frame (1) to the Sensor Wire I (98) from the

Front Post (2).

Insert the Front Post (2) onto the tube of the Main Frame (1) and secure with six M8x15

Bolts (91) and six Ø8xØ20x2 Big Curve Washers (43) that were removed. Tighten bolts

and washers with the S6 Allen Wrench provided.

Remove the M5x45 Bolt for Tension Control Knob (38) and Ø5 Curve Washer for Tension

Control Knob (39) from the Tension Control Knob (40). Remove bolt and curve washer

with the Multi Hex Tool with Phillips Screwdriver provided.

Put the cable end of resistance cable of Tension Control Knob (40) into the spring hook of

Tension Cable (99) as shown in drawing A of figure 2. Pull the resistance cable of Tension

Control Knob (40) up and force it into the gap of metal bracket of Tension Cable (99) as

shown in drawing B of figure 2. Attach the Tension Control Knob (40) onto the Front Post

(2) with the M5x45 Bolt for Tension Control Knob (38) and Ø5 Curve Washer for Tension

Control Knob (39) that were removed. Tighten bolt curve washer with the Multi Hex Tool

with Phillips Screwdriver provided.

Allen Wrench S6

Multi Hex Tool with Phillips Screwdriver

S10, S13, S14, S15

Tool:

40 99

99 40

This manual suits for next models

Table of contents

Other Life Gear Elliptical Trainer manuals

Life Gear

Life Gear 93580 User manual

Life Gear

Life Gear 93290 User manual

Life Gear

Life Gear 93266 User manual

Life Gear

Life Gear 93385 User manual

Life Gear

Life Gear CLASSIC PRO 93795 User manual

Life Gear

Life Gear 93390 User manual

Life Gear

Life Gear 93580 User manual

Life Gear

Life Gear 93470 User manual

Life Gear

Life Gear 93580N User manual

Life Gear

Life Gear Swany 93460 User manual

Life Gear

Life Gear 93396 User manual

Life Gear

Life Gear XINGGUI 93046 User manual

Life Gear

Life Gear 93390 User manual

Life Gear

Life Gear Accord 93476 User manual

Life Gear

Life Gear 93560 User manual

Life Gear

Life Gear TRANSPORT ML 93680 User manual

Life Gear

Life Gear 93296 User manual

Life Gear

Life Gear CLASSIC PRO 93790 User manual

Life Gear

Life Gear mercury 93575 User manual

Life Gear

Life Gear 93286 User manual

Life Gear

Life Gear 93320 User manual

Life Gear

Life Gear 26560 User manual

Life Gear

Life Gear Classic 93380 User manual

Life Gear

Life Gear 26355 User manual

Popular Elliptical Trainer manuals by other brands

Weslo

Weslo Momentum 4.0 Elliptical Manuale d'istruzioni

Progear Fitness

Progear Fitness Air elliptical pro 1307 owner's manual

Torque Fitness

Torque Fitness XPLLP owner's manual

Octane Fitness

Octane Fitness PRO3700C Operation manual

Xterra

Xterra FS5.8e owner's manual

Bodyguard

Bodyguard E-40 user manual

Bonn Germany

Bonn Germany Concept 2.2 user manual

Precor

Precor Resolute RSL 620 Assembly guide

NordicTrack

NordicTrack E 9.2 Elliptical HASZNALATI UTASITAS

Vision Fitness

Vision Fitness X6600iNetTV Assembly guide

Matrix

Matrix MX-A5x owner's manual

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 owner's manual

Sears

Sears FREE SPIRIT C249 30737 0 owner's manual

True

True FS-64 Assembly manual

Sport-thieme

Sport-thieme ST 310 manual

VIRTUFIT

VIRTUFIT CTR 1.1 user manual

Kettler

Kettler GIRO C 1 manual

CIRCLE FITNESS

CIRCLE FITNESS E7 owner's manual
