LIBRATONE Diva User manual
LIBRATONE
DIVA
OWNER’S MANUAL
2
INDEX
3 Congratulations
4 FullRoom™
5 AirPlay / Bluetooth / DLNA
6 Introduction
7 Quick AirPlay Setup (Wi-Fi)
8 Quick DLNA Setup
9 Quick Bluetooth Setup
10 TV Setup
11 IR Learning
12 Libratone App
13 Factory reset
14 Cover change
15 Wall mount
16 Troubleshooting / Register / Warranty
17 Speaker specs
18 Wi-Fi / Bluetooth specs
3
CONGRATULATIONS!
YOU HAVE TAKEN A LEAP OF FAITH.
A step towards a world of wireless bliss.
It takes a great deal of courage to liberate yourself from the shackles of speaker cables and
ordinary stereo systems.
But you have jumped right into it. FOR THIS WE SALUTE YOU.
We have done everything in our power to make your Libratone sound system as simple and user
friendly as possible. Hopefully this manual will answer any questions you might have.
Thank you for buying our product. Thank you for joining the revolution.
4
FULLROOM™
Libratone Diva is based on a patented audio technology. We call it FullRoom™ sound.
Allow us to explain:
Regular speakers have closed cabinets. They push the sound waves in one direction - forward.
Libratone Diva, on the other hand, plays like an acoustic instrument, dispersing sound waves in
multiple directions, giving you a 360°sound experience.
FullRoom™ technology means that you only need one sound source to get a room full of sound.
Whether you hang it on the wall, place it on a shelf or put it on the ground you get the same
amazing sound quality.
Placing Libratone Diva close to a wall will reflect the sound off the wall. This gives you a deeper
bass and an even fuller soundscape.
5

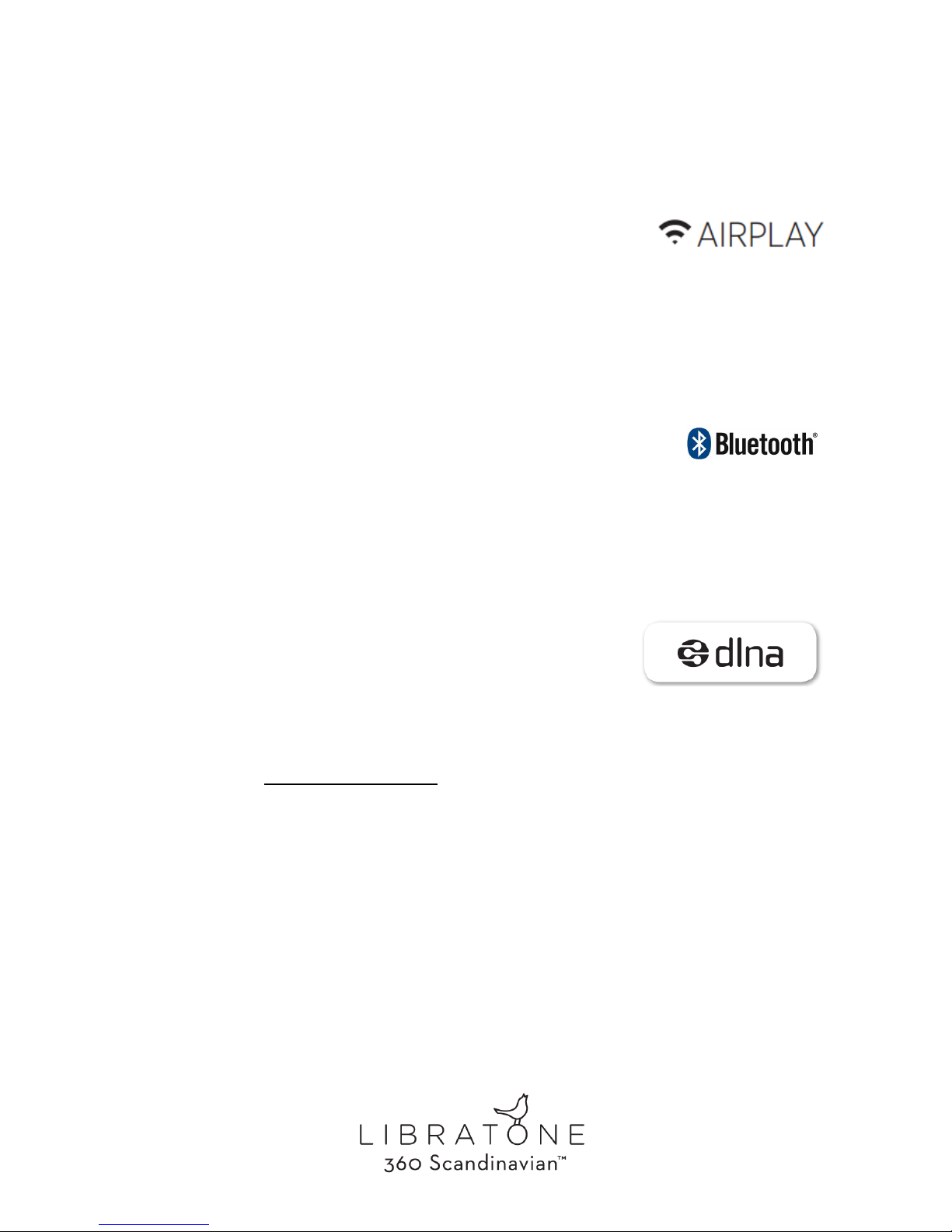

MUSIC AT HOME
AirPlay is a technology designed by Apple to transmit audio within a Wi-Fi network. Once your
Libratone speaker is connected to your home Wi-Fi, you can stream music via services like Spotify,
Deezer, WiMP, TuneIn, Rdio, iTunes etc. from your iPhone, iPad, iPod touch or computer. This
means that you have your entire music and movie library in the palm of your hand, ready to be set
free.
MUSIC ON THE GO
Bluetooth allows you to wirelessly play music in CD-quality from any iOS, Android or Windows
Phone device to your Libratone speaker. By enabling a direct connection between the audio
source and the speaker, the need for a wireless network is eliminated.
Pairing is easily achieved through NFC on your Android or Windows Phone device or through the
Bluetooth menu on your iOS device.
DLNA
Built-in DLNA technology allows you to stream music to your Libratone speaker from most devices
using Android 4,0 or later, Blackberry OS 10 or later, and computers running Windows 7 or 8.
For more info go to www.libratone.com/dlna
6

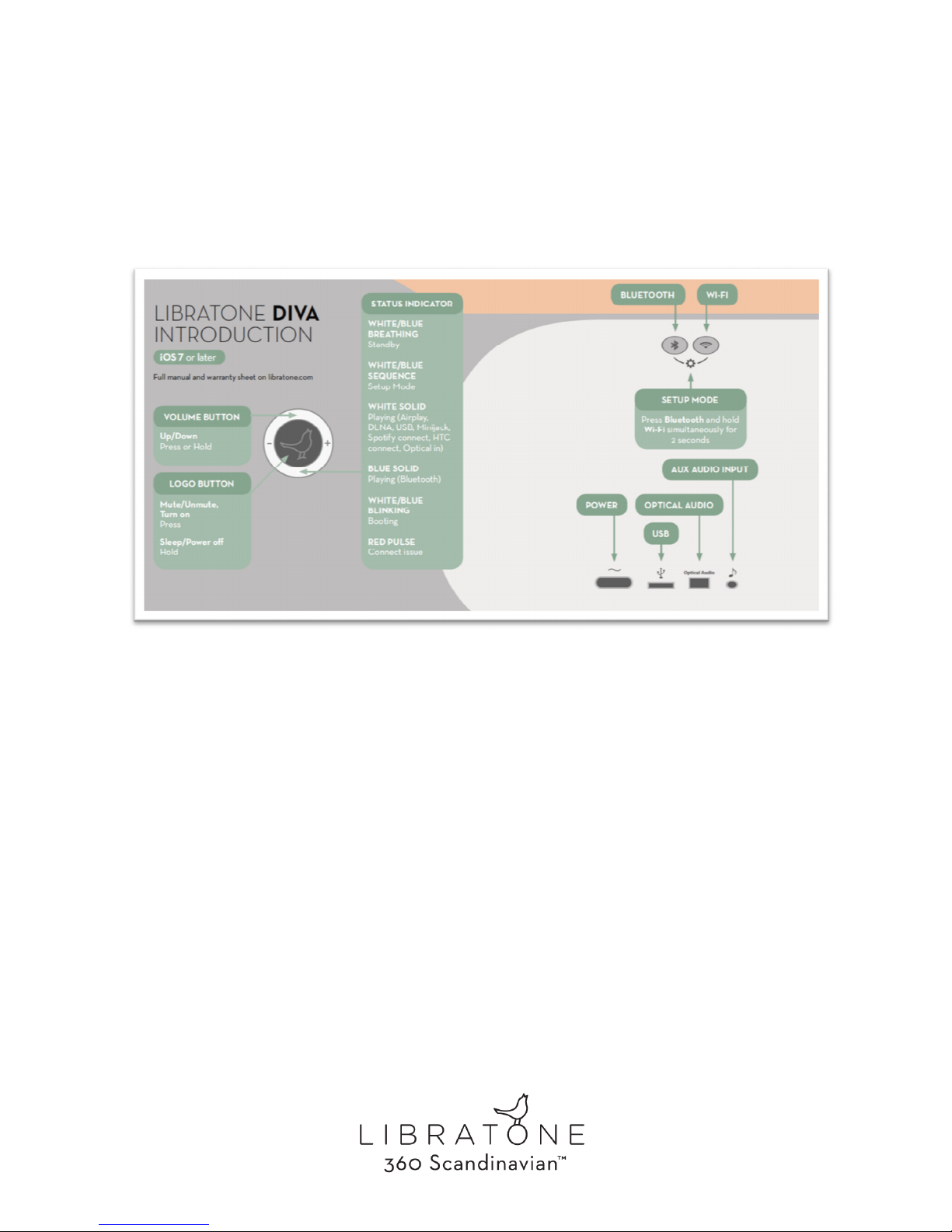

INTRODUCTION
7

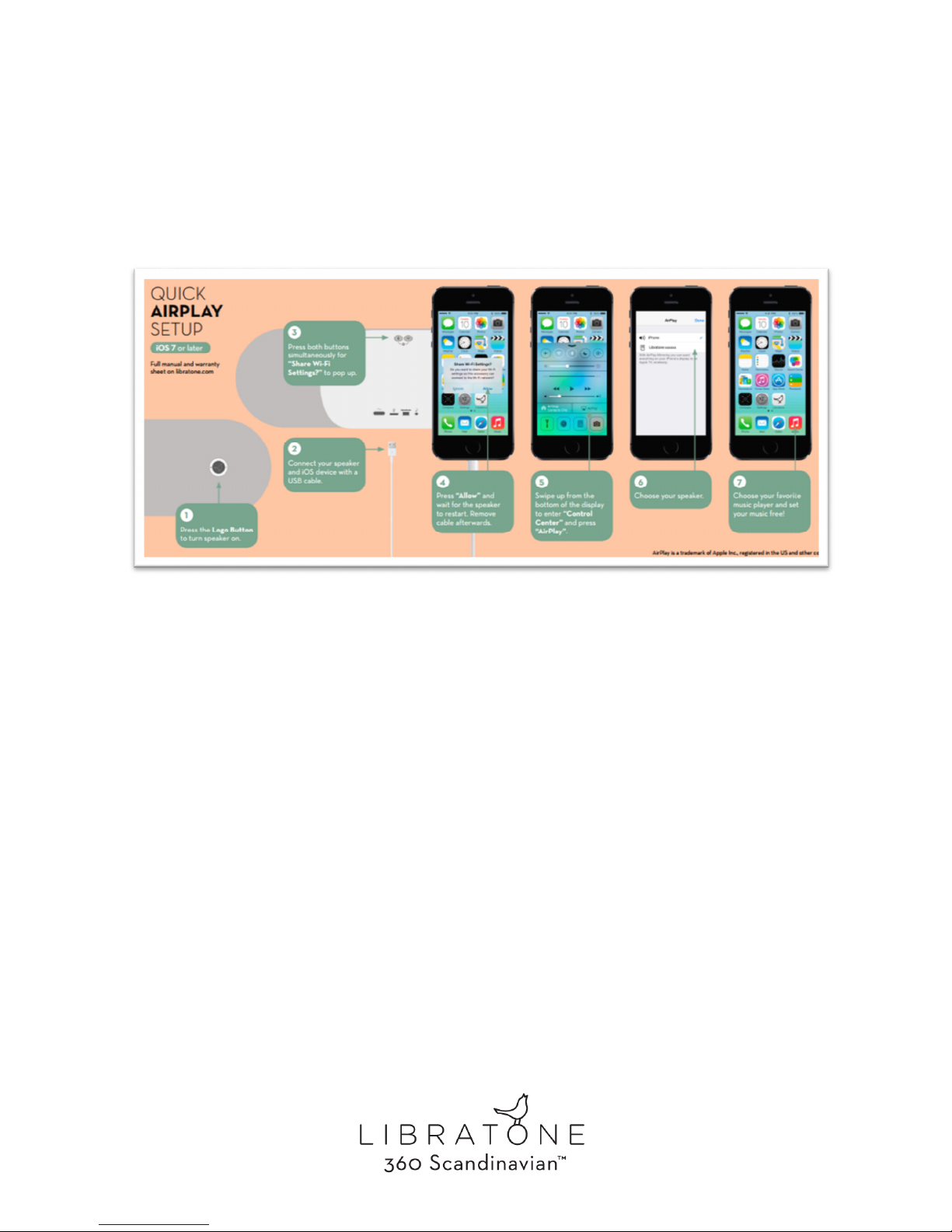

QUICK AIRPLAY SETUP
8

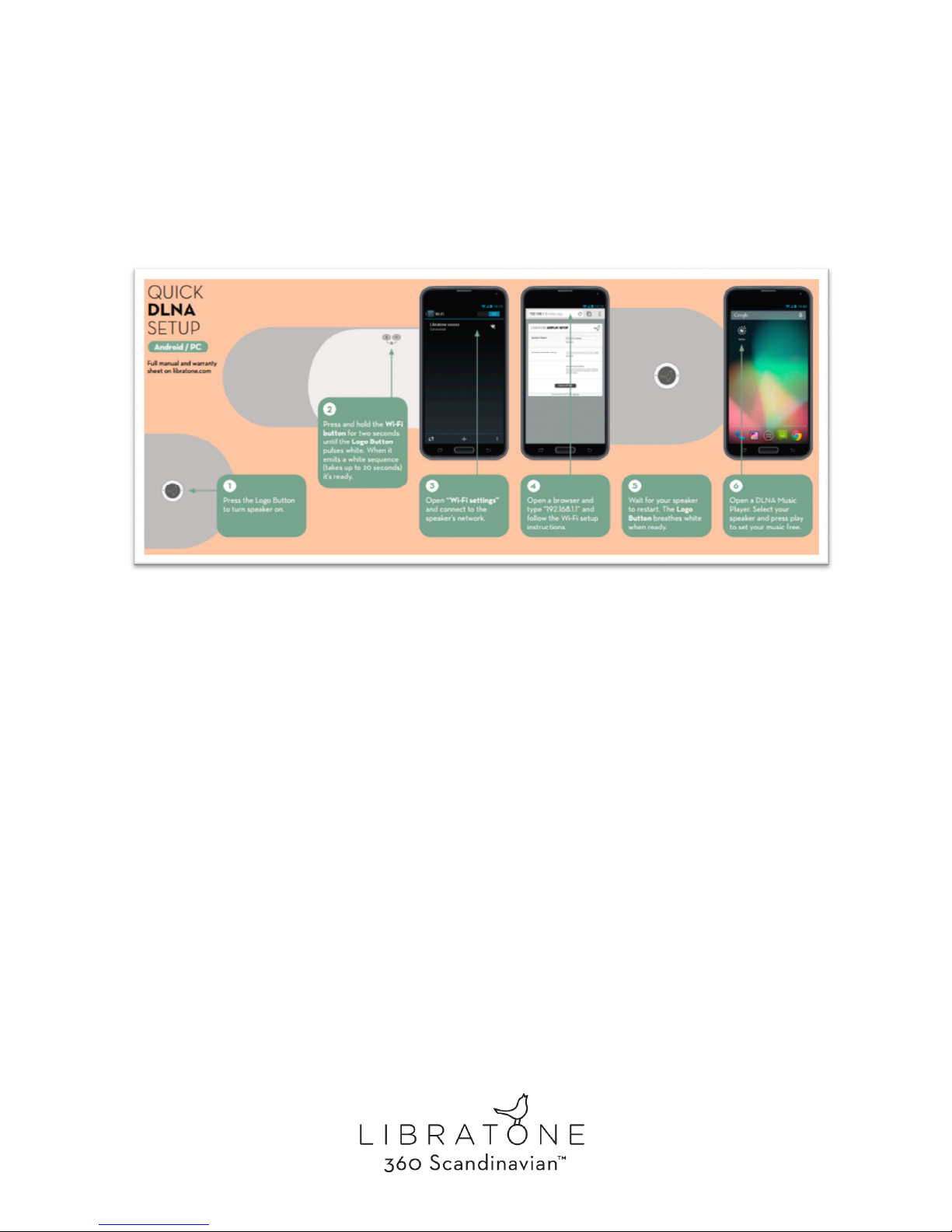

QUICK DLNA SETUP
9

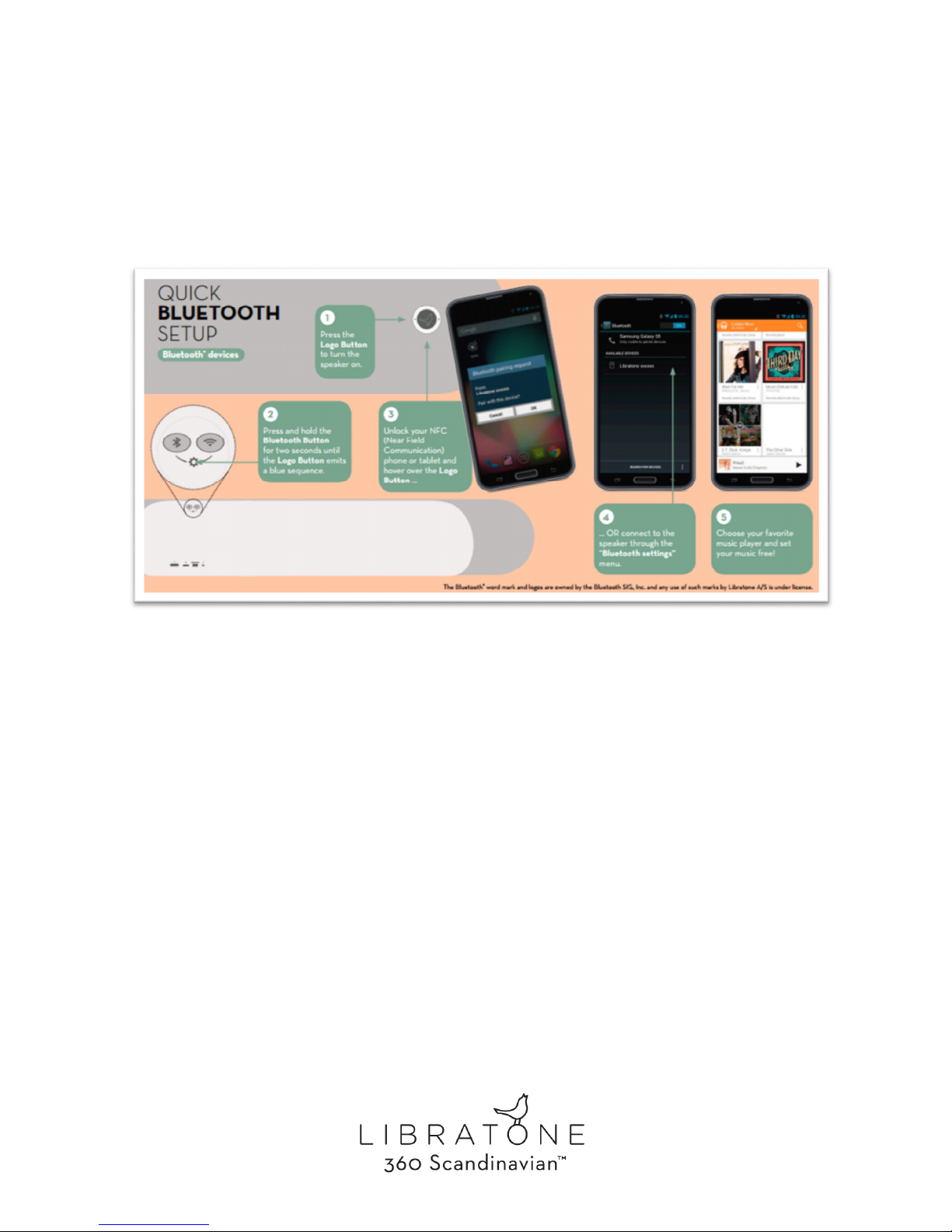

QUICK BLUETOOTH SETUP
10

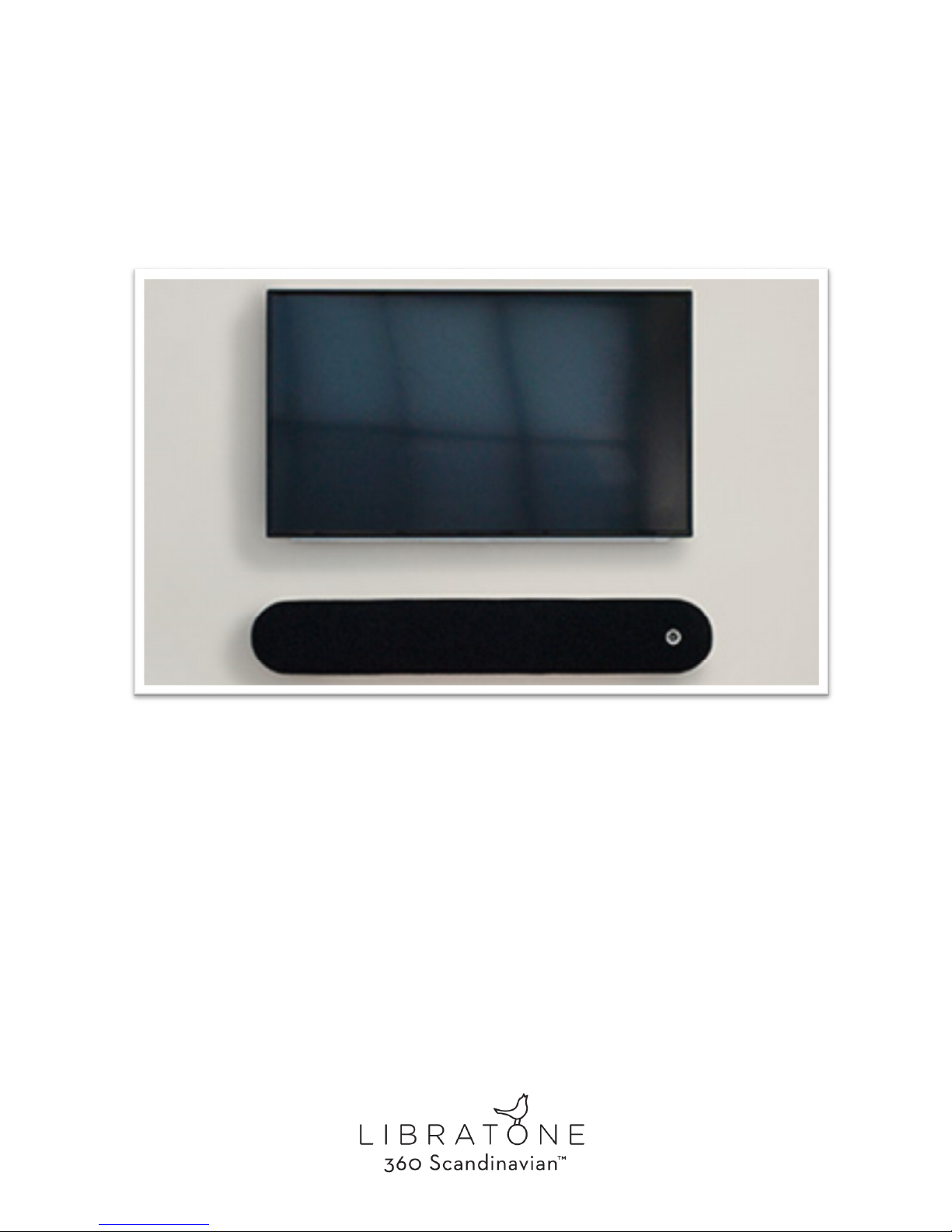

TV SETUP
Connecting your new Libratone Diva with your TV is easy. For digital sound simply connect to your
TV with an optical cable. This is a great way of upgrading the mediocre sound of your TV
If volume on your TV optical out is not controlled by your normal TV remote - you can use IR
Learning in Libratone App to teach your IR TV remote to control speaker volume.
If you prefer analog setup - a regular mini jack does the trick. This is a popular solution since this
most often enables you to use your normal TV remote control to adjust TV volume.
If you start streaming AirPlay to your Diva from a mobile device or computer - the sound source will
automatically switch from your TV to AirPlay streaming. AirPlay is prioritized. So make sure nothing
is streaming, when you want to use AUX.
