LG HCEZ2415S2 User manual
OWNER'S MANUAL
CHIMNEY HOOD
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
HCEZ2415S2
MFL62060365
Rev.00_112322
www.lg.com
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
global_main.book.book Page 1 Wednesday, November 23, 2022 7:44 AM
TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
WARNING............................................................................................................3
CAUTION .............................................................................................................6
CARING FOR THE ENVIRONMENT....................................................................8
INSTALLATION
Product Overview...............................................................................................9
Installation ..........................................................................................................9
OPERATION
Using the Appliance.........................................................................................12
MAINTENANCE
Cleaning and Replacing...................................................................................13
TROUBLESHOOTING
Before Calling for Service................................................................................15
global_main.book.book Page 2 Wednesday, November 23, 2022 7:44 AM
3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic
precautions, including the following:
Installation
• The manufacturer will not be held liable for any damages resulting
from incorrect or improper installation.
• The minimum safety distance between the cooker top and the
extractor hood is 650 mm (some models can be installed at a lower
height, refer to the paragraphs on working dimensions and
installation).
• Check that the mains voltage corresponds to that indicated on the
rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply
guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum
diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying
combustion flumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances
(e.g. gas burning appliances), a sufficient degree of aeration must be
guaranteed in the room in order to prevent the backflow of exhaust
gas. The kitchen must have an opening communicating directly with
the open air in order to guarantee the entry of clean air. When the
cooker hood is used in conjunction with appliances supplied with
energy other than electric, the negative pressure in the room must
not exceed 0.04 mbar to prevent fumes being drawn back into the
room by the cooker hood.
global_main.book.book Page 3 Wednesday, November 23, 2022 7:44 AM
4
SAFETY INSTRUCTIONS
• If the instructions for installation for the gas hob specify a greater
distance specified above, this has to be taken into account.
Regulations concerning the discharge of air have to be fulfilled.
Operation
• The extractor hood has been designed exclusively for domestic use to
eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been
designed.
• Never leave high naked flames under the hood when it is in
operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only,
making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames.
• Do not flame under the hood; risk of fire.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children should be supervised to ensure that they do not play with
the appliance.
• There shall be adequate ventilation of the room when the hood is
used at the same time as appliances burning gas or other fuels.
• The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
• Accessible parts may become hot when used with cooking
appliances. Never touch hot parts. Keep children at a safe distance.
• Grease deposits in the grease filter may catch fire. Never work with
naked flames close to the appliance (e.g. flambéing). Do not install
the appliance near a heatproducing appliance for solid fuel (e.g.
wood or coal) unless a closed, nonremovable cover is available. There
must be no flying sparks.
global_main.book.book Page 4 Wednesday, November 23, 2022 7:44 AM
5
SAFETY INSTRUCTIONS
ENGLISH
• Hot oil and fat can ignite very quickly. Never leave hot fat or oil
unattended. Never use water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully using a lid, fire blanket or
something similar.
• When gas burners are in operation without any cookware placed on
them, they can build up a lot of heat. A ventilation appliance installed
above the cooker may become damaged or catch fire. Only operate
the gas burners with cookware on them.
• Operating several gas burners at the same time gives rise to a great
deal of heat. A ventilation appliance installed above the cooker may
become damaged or catch fire. Never operate two gas burners
simultaneously on the highest flame for longer than 15 minutes. One
large burner of more than 5 kW (wok) is equivalent to the power of
two gas burners.
• Components inside the appliance may have sharp edges. Wear
protective gloves.
• Items placed on the appliance may fall down. Do not place any
objects on the appliance.
• The light emitted by LED lights is very dazzling, and can damage the
eyes (risk group 1). Do not look directly into the switched on LED
lights for longer than 100 seconds.
• The appliance is not intended for use by young children or infirm
persons without supervisions.
• Young children should be supervised to ensure they do not play with
the appliance.
• Plug the power cord to socket outlet with earthing continuity
terminal.
• Do not use open flame, or allow oil to go beneath the appliance.
• Use the unit according to the instructions to avoid any fire hazard.
• The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
• Follow the local laws applicable for external air evacuation.
global_main.book.book Page 5 Wednesday, November 23, 2022 7:44 AM
6
SAFETY INSTRUCTIONS
Maintenance
• In the event of damage to the power cable, it must be replaced by the
manufacturer or by the technical service department, in order to
prevent any risks.
• Cleaning and user maintenance shall not be made by children
without supervision.
• There is a fire risk if cleaning is not carried out in accordance with the
instructions.
• Switch off or unplug the appliance from the mains supply before
carrying out any maintenance work.
• Clean and/or replace the filters after the specified lime period (Fire
hazard).
• Fatty deposits in the grease filter may catch fire. Regularly clean the
grease filter. Never operate the appliance without a grease filter.
• Prior to any maintenance, cleaning operation, ensure the power is cut
off.
• If the supply cord is damaged, it must be replaced by the
manufacturer, service agent or similarly qualified person in order to
avoid a hazard. The replaced power cord should be provided by
manufacturer or seller.
• If the plug or cord is damaged, contact an LG Electronics Customer
Information Centre.
• There is a fire risk if cleaning is not carried out in accordance with the
instruction.
• In case of damaged connecting wire, refer to the manufacturer, after-
sale service personnel or other qualified technicians.
CAUTION
CAUTION
• To reduce the risk of injury to persons, malfunction, or damage to the
product or property when using the appliance, follow basic safety
precautions, including the following:
global_main.book.book Page 6 Wednesday, November 23, 2022 7:44 AM
7
SAFETY INSTRUCTIONS
ENGLISH
Operation
• The filter is made of high density aluminum.
• The appliance uses 4 hob elements at most.
• The cooker hood is for home use only, not suitable for barbecue,
roast shop and other commercial purposes.
• Keep the kitchen room ventilated.
Maintenance
• Do not use corrosive detergent for cleaning. The proper function of
the unit is conditioned by the regularity of the maintenance.
• To protect the main body from corrosive of the long time
accumulation of dirt, the cooker hood should be cleaned with hot
water with non-corrosive detergent every two months.
• Clean the hood using a damp cloth and a neutral liquid detergent.
• The cooker hood and its filter should be cleaned regularly according
to the instruction.
• If there is any fault occurred with the appliance, contact an LG
Electronics Customer Information Centre.
• Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be done by a
qualified technician.
global_main.book.book Page 7 Wednesday, November 23, 2022 7:44 AM
8
SAFETY INSTRUCTIONS
CARING FOR THE ENVIRONMENT
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste
electrical and electronic products (WEEE) should be
disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous substances
so correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health. Your old appliance may contain reusable
parts that could be used to repair other products, and
other valuable materials that can be recycled to conserve
limited resources.
• You can take your appliance either to the shop where you
purchased the product, or contact your local government
waste office for details of your nearest authorised WEEE
collection point. For the most up to date information for
your country please see www.lg.com/global/recycling.
global_main.book.book Page 8 Wednesday, November 23, 2022 7:44 AM
9
INSTALLATION
ENGLISH
INSTALLATION

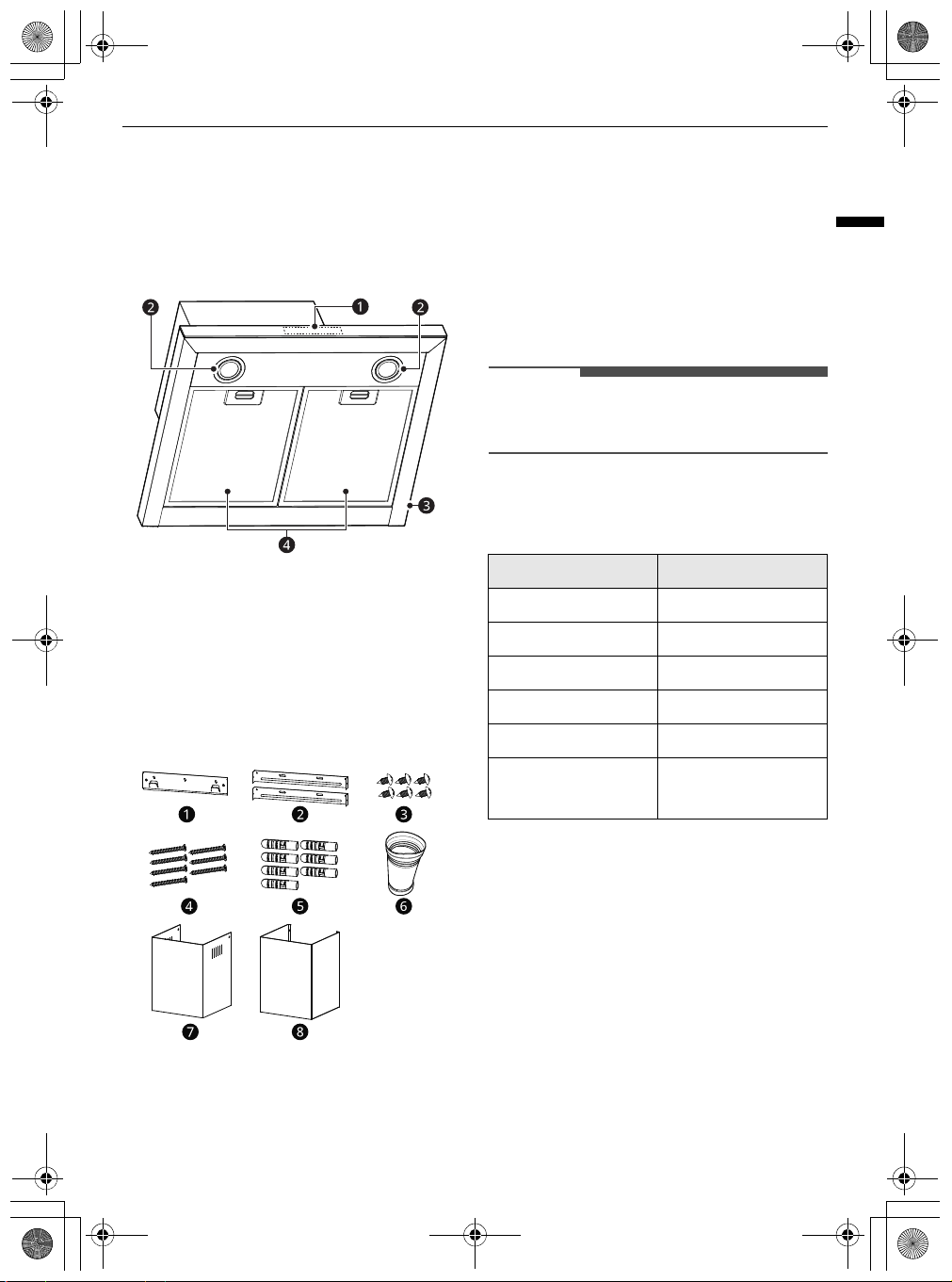

Product Overview
Parts
a
Control Panel
b
Light
c
Hood Body
d
Filter
Accessories
a
Hood Fixing Bracket (1 ea)
b
Chimney Fixing Brackets (2 ea)
c
Screws (Φ4.2 mm x 9.5 mm, 6 ea)
d
Screws (Φ5 mm x 50 mm, 7 ea)
e
Wall Plugs (7 ea)
f
Exhaust Pipe (1 ea)
g
Upper Decorative Chimney (1 ea)
h
Lower Decorative Chimney (1 ea)
NOTE
• Type and quantity of accessories is subject to
actual demand.
Technical Specifications
The parameters are tested under conditions of 230
V 50 Hz when the voltage is 220-240 V~ 50/60 Hz.
Installation

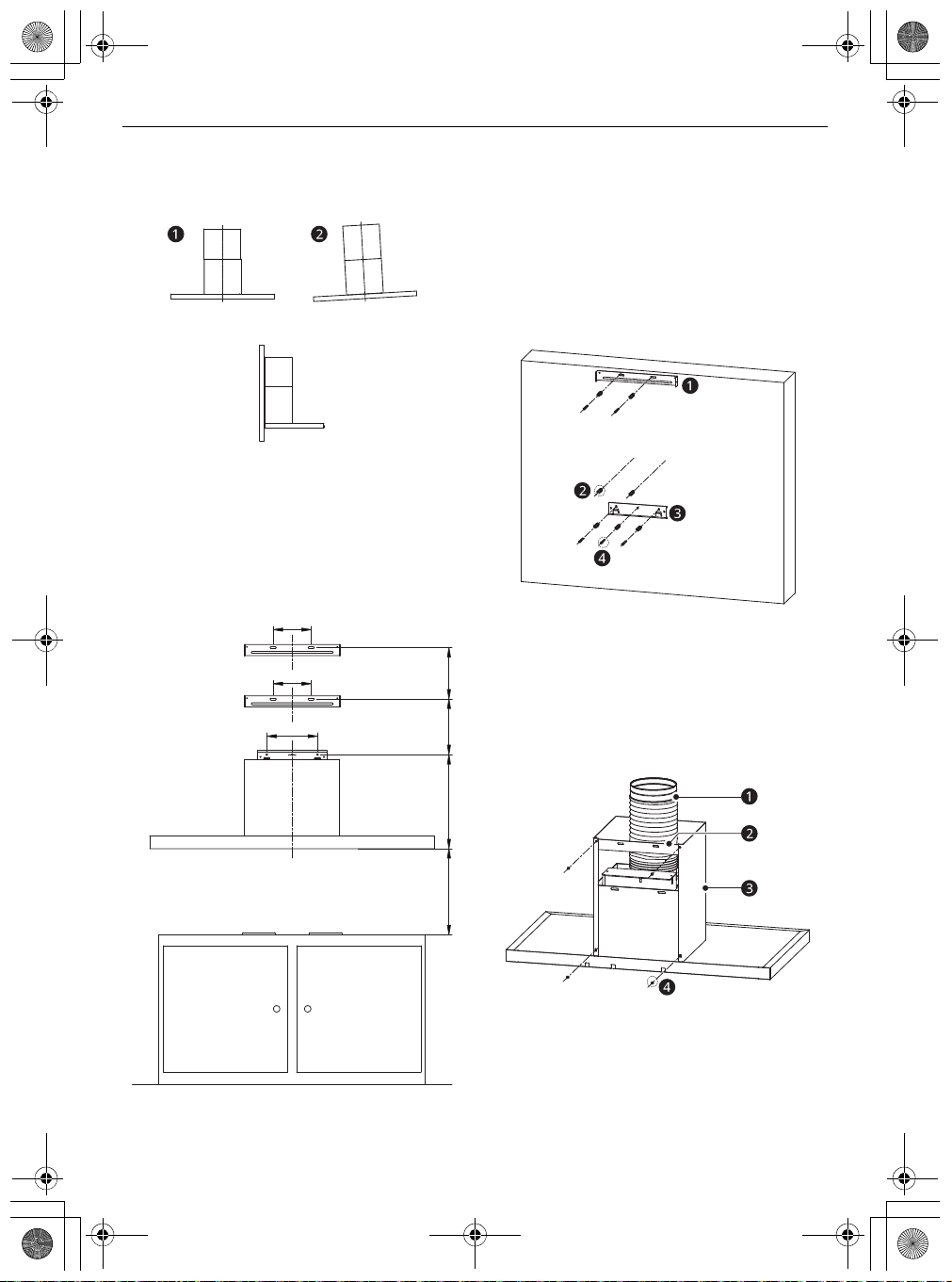

Dimensions and Clearances
• It cannot share the same air ventilation tube with
other appliances such as gas tube, warmer tube,
and hot wind tube. Doing so may cause hazards
such as reduced pressure, combustion
impairment, or harmful gases being drawn back.
• The bending of the ventilation tube should be
2
120°, parallel or above the start point/should
be connected to the external wall.
Hood HCEZ2415S2
Voltage 220 - 240 V ~ 50/60 Hz
Rated Power 253 W
Lighting Power 2 x 1.5 W
Motor Power 250 W
Diameter of Air Tube 150 mm
Air Flow 630 m
3
/h (High), 800
m
3
/h (Booster)
global_main.book.book Page 9 Wednesday, November 23, 2022 7:44 AM
10
INSTALLATION
• Make sure the installation plate is placed
horizontally to avoid grease collection at one
end.
a
Right
b
Wrong
• After installation, make sure that the plug can be
pulled out if necessary.
• The cooker hood should be placed 650-750 mm
up from the cooking plate for safety and
effective operation.
• There must be adequate ventilation of the room
when the cooker hood is working.
Installing the Appliance
1
Remove the protective film from the decorative
chimney and hood body.
2
Fix the hood fixing bracket
c
and the chimney
fixing bracket
a
with the wall plugs
b
and
screws
d
to the wall. Install 2 wall plugs
b
on
the wall for step 5.
b
Wall Plugs (7 ea)
d
Screws (Φ5 mm x 50 mm, 5 ea)
3
Fix the exhaust pipe
a
and lower decorative
chimney
c
on the main body, connect the
chimney fixing bracket
b
and lower decorative
chimney.
d
Screws (Φ4.2 mm x 9.5 mm, 4 ea)
120 mm
120 mm
160 mm
50-350 mm
119 mm299 mm
650-750 mm
global_main.book.book Page 10 Wednesday, November 23, 2022 7:44 AM
Table of contents
Other LG Ventilation Hood manuals
