LG Fridge-Freezer User manual
3
Registration
Important Safety Instruction
Identification of Parts
Installation
Starting
Temperature Control
Quick Freeze
Vacation
Self Test
Ice Making
Defrosting
Storing Food
General Information
Lamp Replacement
Cleaning
Trouble Shooting
Precaution
How to Reverse the Doors.
Table of Contents
Introduction
Installation
Operation
Suggestion On
Food storage
Care and
Maintenance
Trouble Shooting
To Reverse the
Doors
4
4
7
8
8
9
9
10
10
10
10
11
12
13
13
14
15
17
17
Energy-Saving Method
Energy-Saving
Method
4
Introduction
The model and serial number are found on the rear of
this unit. This number is unique to this unit and not
available to others. You should record requested
information here and retain this guide as a permanent
record of your purchase. Staple your receipt here.
Date of Purchase :
Dealer Purchased From :
Dealer Address :
Dealer Phone No. :
Model No. :
Serial No. :
Important Safety Instruction
This fridge-freezer must be properly installed and
located in accordance with the Installation
Instruction before it is used.
Never unplug your fridge-freezer by pulling on the
power cord. Always grip plug firmly and pull straight out
from the outlet.
When moving your appliance away from the wall,
be careful not to roll over or damage the power
cord.
After your fridge-freezer is in operation, do not
touch the cold surfaces in the freezer compartment,
particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
Registration
Introduction
Precaution
CAUTION
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
5
Introduction
6
This appliance contains a small amount of isobutane
refrigerant (R600a), natural gas with high
environmental compatibility, but it is also
combustible. When transporting and installing the
appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any
naked flames or potential sources of ignition and air
the room in which the appliance is standing for
several minutes.
In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size
of the room in which the appliance may be sited depends
on the amount of refrigerant used. The room must be
1m2
in size for every 8g of R600a refrigerant inside the
appliance. The amount of refrigerant in your particular
appliance is shown on the identification plate inside the
appliance.
Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.

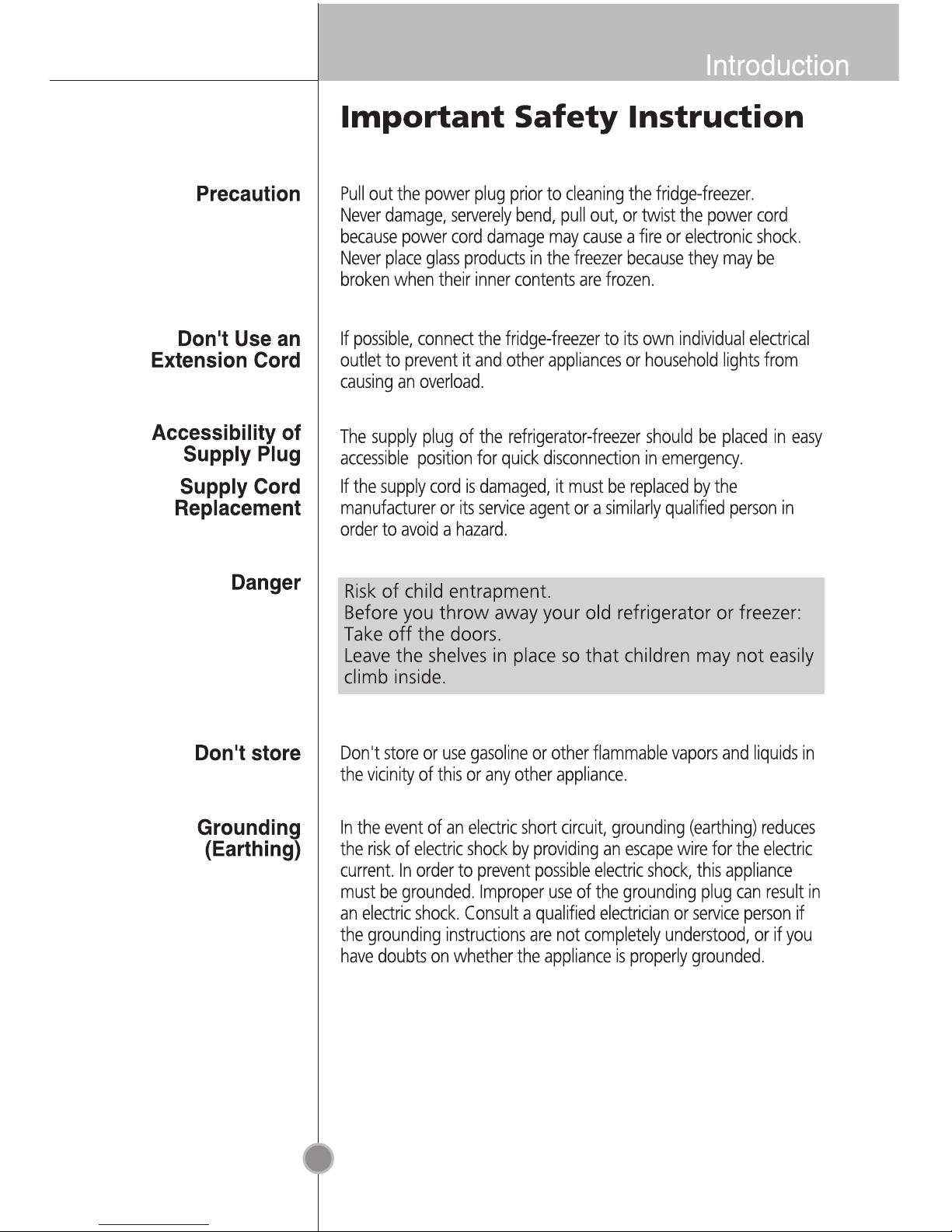

Important Safety Instruction
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the
appliance require special disposal procedures. When
disposal, please consult with service agent or a
similarly qualified person.
7
Introduction
Identification of Parts
Note
Parts,features,and options vary by model.
Your model may not include every option.
Rotatable
Door Basket
Utility Corner(movable)
Bottle Holder
2 Bottle
Door Basket
Leveling Screw
Egg Tray(1 or 2)
Freezer Temperature
Control
Removable
Glass Shelf(2 or 3)
Lamp
Multi-air Flow Duct
Fresh Zone
(Optional)
Fridge Temperature
Control
Vegetable Drawer
Used to keep fruits
and vegetables, etc.
fresh and crisp.
Ice Cube Tray
Storage
Drawer
Removable
Plinth
(optional)
(optional)
(1 or 2)
8
Installation
Installation
1. Select a good location.
Place your fridge-freezer where it is easy to use.
2. Avoid placing the unit near heat sources,
direct sunlight or moisture.
3. There must be proper air circulation around your
fridge-freezer to keep it operating efficiently.
4. To avoid vibration, the unit must be leveled.
If required, adjust the leveling screws to compensate
for the uneven floor.
The front should be slightly higher than the rear to aid
in door closing.
Leveling screws can be turned easily by tipping the
cabinet slightly.
Turn the leveling screws counterclockwise( ) to
raise the unit, clockwise( ) to lower it.
5. Don’t install this appliance below 5°. It may cause the
debasement of the refrigerator.
6. Install accessories such as ice cube box, etc., in their
proper places.They are packed together to prevent
possible damage during shipment.
7. Connect the power supply cord (or plug) to the outlet.
8. To ensure proper air circulation around the fridge-freezer,
please maintain sufficient space on both the sides as well
as top and maintain at least 2 inches (5 cm) from the rear
wall.
Don't double up with other appliances on the same
outlet.
When your fridge-freezer is installed, allow it 2-3 hours to
stabilize at normal operating temperature prior to filling
it with fresh or frozen foods.
If power plug is disconnected, allow 5 minutes delay
before restarting.
Your fridge-freezer is now ready for use.
Starting
9
Operation
Your fridge-freezer has two controls that let you regulate
the temperature in the fridge and freezer compartments.
• Initially set the TEMP. CONTROL
at "4". Then adjust the
compartment temperature
according to your desire.
• If you want an inside temperature
slightly less cold or colder, turn the
knob towards WARM or COLD, respectively.
When the surrounding temperature is low, adjust the
TEMP. CONTROL to 'WARM'.
•Freezer temperature control is on the top of the fridge-
freezer. Initially set the Freeze Temp at mid-point. By
pressing the Freezer Temp button, you can adjust the
temperature of the Freezer as indicated by the numbers
of lamps lit.(the setting is composed of five steps,
5 lamps lit indicates coldest.)
•When you starting the Fridge-Freezer or connecting the
power plug to the outlet, temperature setting is
automatically set to the mid-point.
• This function is used when
you want to freeze the foods
quickly. Press the 'QUICK
FREEZE' button once, and
then the quick freeze
operation starts with the
lamp lit.
The quick freeze operation
takes about 3 hours.
When its operation ends,
it automatically returns to the normal state.
If you want to stop the quick freeze operation, press
the 'QUICK FREEZE' button once more, the lamp goes
out, and the quick freeze operation stops and the
refrigerator returns to the normal state.
Temperature Control
Fridge
Freezer
Quick Freeze
TEMP. CONTROL
7
COLD
WARM
1
6
5
42
3
FREEZE TEMP
VACATION QUICK FREEZE
QUICK FREEZE
10
Operation
This function makes the fridge-freezer
work in a power saving mode which is
useful for when you are away on
holiday, by reducing energey
consumption as much as possible.
Pressing 'VACATION' starts operation
with lamp ON and pressing it again
stops the operation.
For better functioning, you should set
the TEMP. CONTROL to "WARM".
This function allows you to check for operational
problems. If you think you have a problem with your
fridge-freezer, then press the temperature control button:
- If the indicate lights move up or down, then there is no
problem with your fridge-freezer.
- If the indicate lights do not move up or down, then
please leave the power connected and call your nearest
service agent.
• To make ice cubes, fill the
ice tray to the water level
and place it in the freezer.
• If ice cubes are required
fast, press the 'QUICK
FREEZE' button.
• To remove ice cubes,
hold the tray at its ends and twist gently.
Defrosting takes place automatically.
The defrosting water flows down to the evaporating tray
and is evaporated automatically.
Vacation
Self Test
Ice Making
Defrosting
VACATION
To remove ice cubes easily, run water on the tray
before twisting.
Tip
11
SUGGESTIONS ON FOOD STORAGE
• Do not store food which goes bad easily at low
temperature, such as banana, and melon.
• Allow hot food to cool prior to storing. Placing hot food
in the fridge-freezer could spoil other food, and lead to
higher electric bills.
• When storing the food, use a container with a lid. This
prevents moisture from evaporating, and helps food to
keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of
cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets
warm air enter the fridge-freezer, and cause
temperature to rise.
• To adjust the temperature control easily, do not store
food near the temperature control dial.
• Never keep too many foods in door rack, as this may
stop the door from fully closing.
• Do not store bottles in the freezer compartment - they
may break when frozen.
• Do not refreeze food that has been thawed. This causes
loss of taste and nutrition.
Storing Food
Note
If you keep the fridge-freezer in a hot, and humid place,
frequently open its door or put a lot of vegetables in it,
dew may form in it, which has no effect on its
performance.
Remove the dew with dust cloth free from care.
12
Energy-Saving Method
Energy-Saving Method
•Install the fridge in a shady,cool and well-ventilated
place.
•Do not open and close the door frequently if not
necessary.
•Please do not keep the door open for a long time,
close door in the shortest time.
•Allow hot food to cool prior to storing.
•Too much food are not advised to be put in. Enough
space should be kept for cool air circulating freely.
•Do not set the temperature of refrigerator lower than
needed.Do not put the food near the temperature
sensor.
•Food need’t store is not advised to be put in.
•Place the deep-frozen food for thawing intorefrigerator;
they can be used for cooling the refrigerator.
(Applicabe to some models only)
•Clean up the back cover and anti-condensation pipe
termly (once a year) to make sure heat exchange in gear.
(Applicabe to some models only)
•Do not block air vents with food.
( Applicabe to some models only)
Other manuals for Fridge-Freezer
14
This manual suits for next models
1
Table of contents
Other LG Refrigerator manuals
LG
LG LFX25974 Series User manual
LG
LG LFC23760 Series User manual
LG
LG GR-J338LSJV User manual
LG
LG LFC20760 Series User manual
LG
LG LF30S8210 Series User manual
LG
LG GV-B258R4 Series User manual
LG
LG GS-B680WL User manual
LG
LG LCW-004 User manual
LG
LG LRSC26944SW User manual
LG
LG Refrigerator-freezer User manual
