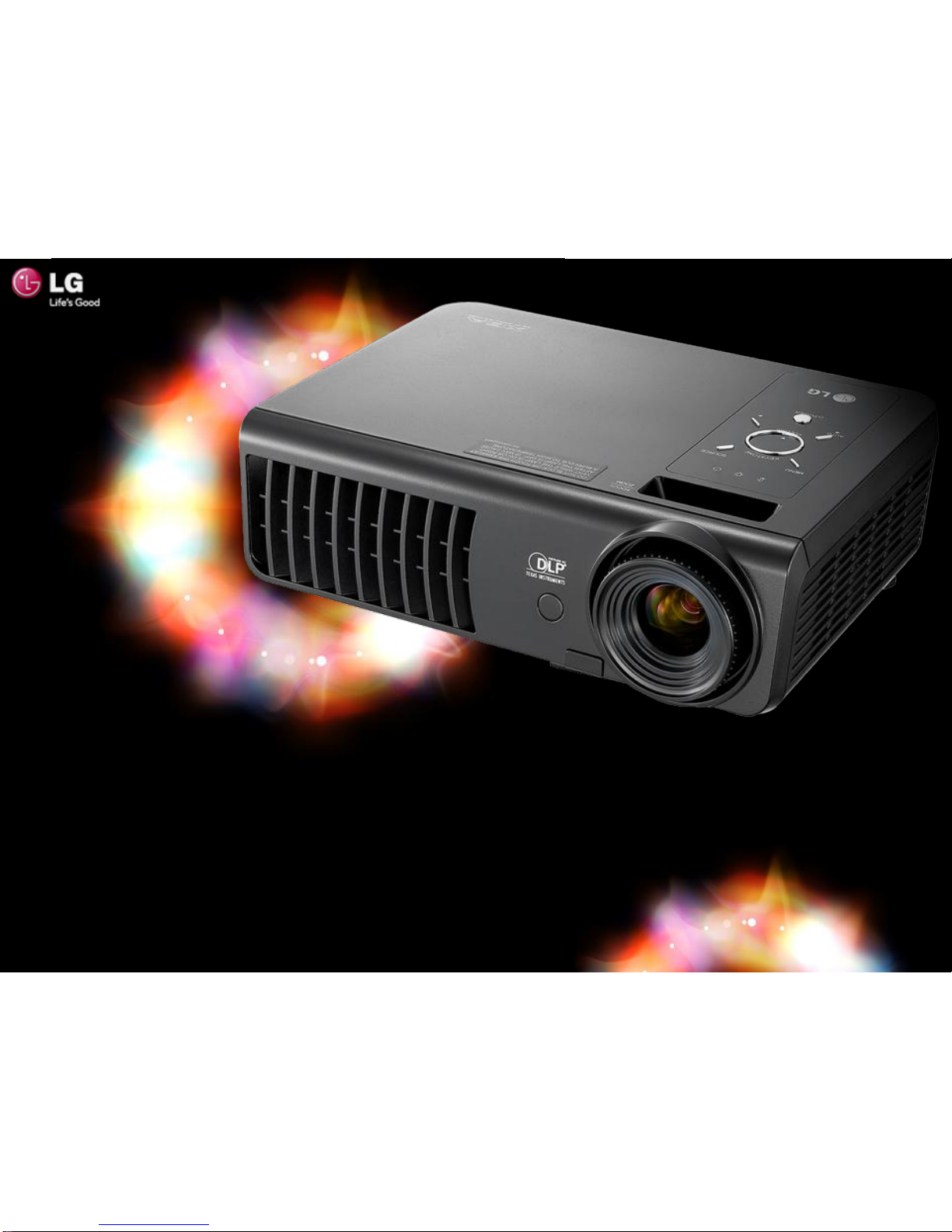

LG BX324 Installation and operation manual
BX324
SIMPLE & COMPACT PORTABLE BUSINESS PROJECTOR
OVERVIEW
FEATURE
NO CLOLR DECAY & COST SAVING
FEATURE

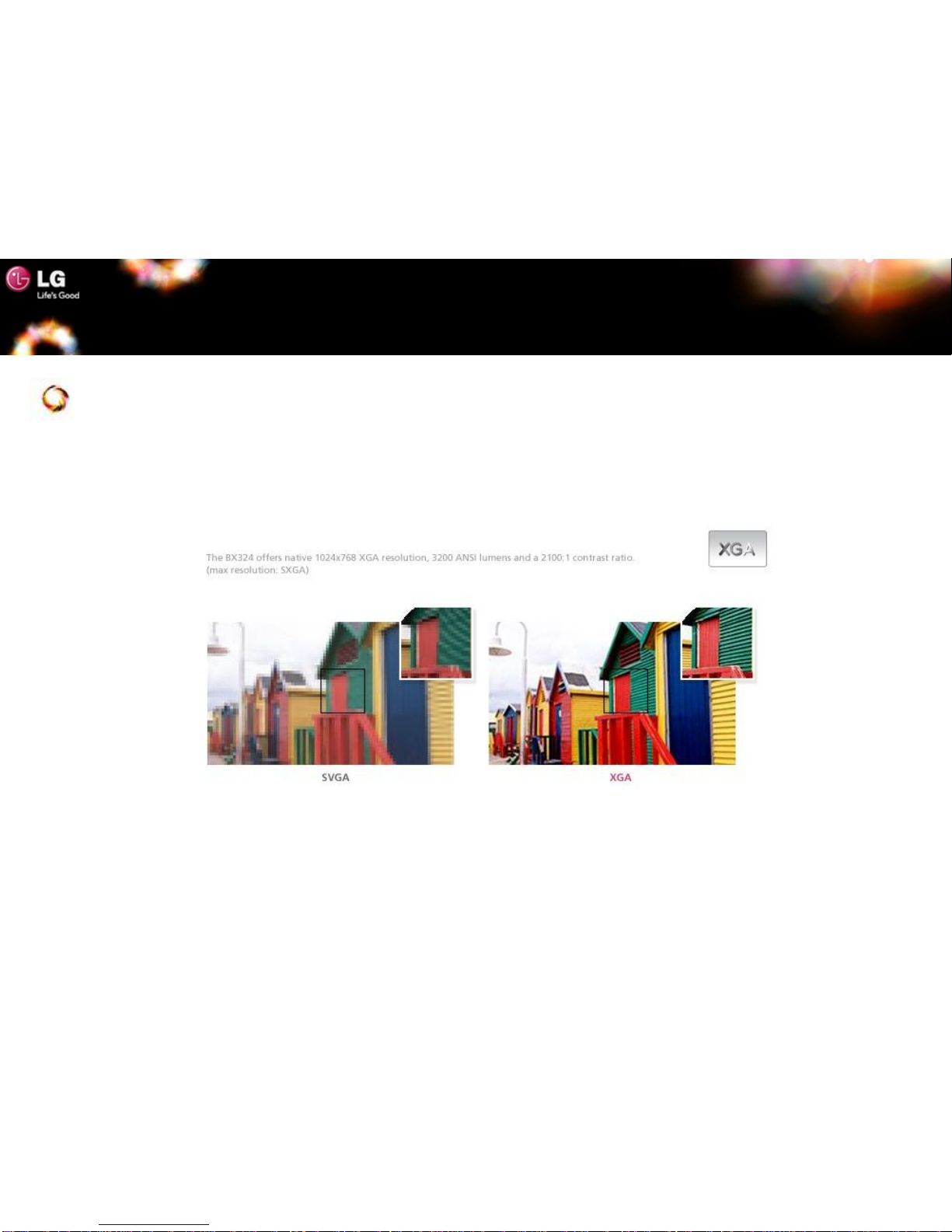

XGA NATIVE RESOLUTION
FEATURE
3200 ANSI LUMENS
2100:1 HIGH CONTRAST RATIO
BRILLIANT COLOR
FEATURE
5 SEGMENT COLOR WHEEL
1W UNDER
3D READY PROJECTOR
FEATURE
VARIOUS INPUT & OUTPUT TERMINAL
FEATURE
EXPERT COLOR MANAGEMENT
PRESENTATION TIMER
QUICK POWER ON/OFF
FRONT EXHAUST
AUTO –ALTITUDE DETECTION
SPECIFICATION
Projection System
DLP
Display Technology
0.55" DMD S450(DDP
2431)
Native Resolution
XGA(1024x768)
Brightness(ANSI-Lumens)
3200
Contrast Ratio(FOFO)
2100:1
Noise
High Brightness
39dB
Economic
33dB
Uniformorty
90%
Color wheel
5 segments(RYGWB)
Projection Len
s
Focus
Manual
Zoom
Manual 1.1x
Projection Ima
ge
Standard
51"@2m
Throw Ratio
1.92/2.14
Projection Offset
128% ±10%
Lamp
Type / Maker
UHP/240W
Life time
High Brightness
2000 hrs
Economic (Eco mod
e)
3500 hrs
General Specification
DLP
Menu Language
Korean/ English/ French/ Spanish/ German/It
alian/Swedish/Portuguese/Chinese Simplified
/Chinese Traditional/Russina/Polish/Greek/T
urkish/Hungarian/Arabic
Aspect Ratio Correction
Native 4:3, Support 16:9
Sound
1.5W Mono
Dimension (WxHxD, mm)
262x194x89
Weight
1.91Kg
Power Consumption
320W
Stand by Power
< 1W
Power Supply
AC (100~240 free voltage), 50/60Hz
Input Signal
Compatibility
Digital(HDMI)
-
RGB
up to SXGA+(1400x1050@60Hz)
Component Video
1080i/720p/576p/576i/480p/480i
Composite Video
NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECA
M
SPECIFICATION
INPUT/OUTPUT Terminals
DLP
RGB in
1
RGB(PC) Audio in
1
RGB out
-
Composite(AV) in
1
S video
1
Component (YPbPr)
1 (thru RGB)
Audio out
-
RS-232C
1
RJ45
-
HDMI
-
USB
-
Special Features
DLP
Digital Keystone Correction
O (Vertical) ±15˚
Picture Still
O
Auto Source Detection
O
Quick Power on/off
O
Auto Sleep
O
Blank
O
Image Flip
O(Horizonal / Vertical)
Color Temperature
O
Lens Shift
-
Over Scan
O
Brilliant Color™
O
Black Level Control
-
Expert control
O
VIDI™
-
3D Ready
O
Picture Quality Certification
-
Added Features
DLP
USB Host (MP3, DivX, Photo) Divx Player
-
File viewer (Office, PDF, HWP)
-
FM Wireless Audio
-
Design
DLP
Cabinet Color
Black
Local Key
O
Kensington Lock
O
Lamp
Bottom Side
Accessory
DLP
Carry Bag
O
Manual
O (CD)
Remote control
O (Card type)
RC Battery
O
Cable
D-sub, Power cord
Etc.
-
Safety Regulation
UC; CUL. CE(with C-Tick), NOM, CC
C, FCC, KC/KCC
PCT/GOST, CB, SASO, TUV-GS
