LG 55EG920V User manual

www.lg.com

OWNER’S MANUAL

Please read this manual carefully before operating your set and retain

it for future reference.

*MFL68823613*

P/NO : MFL68823613 (1510-REV06)

Printed in Korea

EG91** EG92**

EG96** EF95**

A-2 TABLE OF CONTENTS

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-10 Tidying cables

A-10 MAKING CONNECTIONS

A-10 Antenna connection

A-13 Satellite dish connection

A-14 HDMI connection

A-18 - ARC (Audio return channel)

A-19 DVI to HDMI connection

A-21 Component connection

A-22 Composite connection

A-23 Headphone connection

A-25 Audio connection

A-25 - Digital optical audio connection

A-27 USB connection

A-30 CI module connection

A-32 Euro scart connection

LANGUAGE LIST

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

PORTUGUÊS

NEDERLANDS

ΕΛΛΗΝΙΚΑ

 

B-1 SPECIFICATIONS

B-3 REGULATORY

COMMON

LANGUAGE

A-3

SETTING UP THE TV

Image shown may dier from your TV.

Attaching the stand

55EG91**

Stand cover

Protective package

1 When assembling the stand, lay the front screen Protec-

tive package included in the product box on a table or

product box and then place the TV screen face down on

the Protective package.

yDo not lift your TV without the stand. The protrud-

ing Joystick Button may be damaged.

CAUTION

Stand assy

M4 x L20

4 EA

Stand cover

yInsert the protruding parts of the Stand cover into

the holes.

CAUTION

A-4 SETTING UP THE TV

55EG92**, 55EG96**

Stand cover

Protective package

1 When assembling the stand, lay the front screen Protec-

tive package included in the product box on a table or

product box and then place the TV screen face down on

the Protective package.

yDo not lift your TV without the stand. The protrud-

ing Joystick Button may be damaged.

CAUTION

Stand assy

M4 x L20

5 EA

Cover holder

Stand

cover

yInsert the Cover holder of the Stand cover into the

holes until it clicks. Press the Stand cover gently so

that the non-woven fabric inside is attached tightly.

CAUTION

A-5

SETTING UP THE TV

Stand cover

yInsert the protruding parts of the Stand cover into

the holes.

CAUTION

Cover holder

Stand

cover

yInsert the Cover holder of the Stand cover into the

holes until it clicks. Press the Stand cover gently so

that the non-woven fabric inside is attached tightly.

CAUTION

65EG96**

Stand cover

Protective package

1 When assembling the stand, lay the front screen Protec-

tive package included in the product box on a table or

product box and then place the TV screen face down on

the Protective package.

yDo not lift your TV without the stand. The protrud-

ing Joystick Button may be damaged.

CAUTION

Stand assy

A-6 SETTING UP THE TV

Cover holder

Stand

cover

yInsert the Cover holder of the Stand cover into the

holes until it clicks. Press the Stand cover gently so

that the non-woven fabric inside is attached tightly.

CAUTION

M4 x L20

8 EA

Stand cover

yInsert the protruding parts of the Stand cover into

the holes.

CAUTION

A-7

SETTING UP THE TV

55EF95**

Stand cover

yDo not lift your TV without the stand. The protrud-

ing Joystick Button may be damaged.

yUse a flat tool to remove the Stand cover.

CAUTION

Stand assy

M4 x L14

5 EA

Stand cover

yInsert the protruding parts of the Stand cover into

the holes.

CAUTION

A-8 SETTING UP THE TV

Cover holder

Stand

cover

yInsert the Cover holder of the Stand cover into the

holes until it clicks.

CAUTION

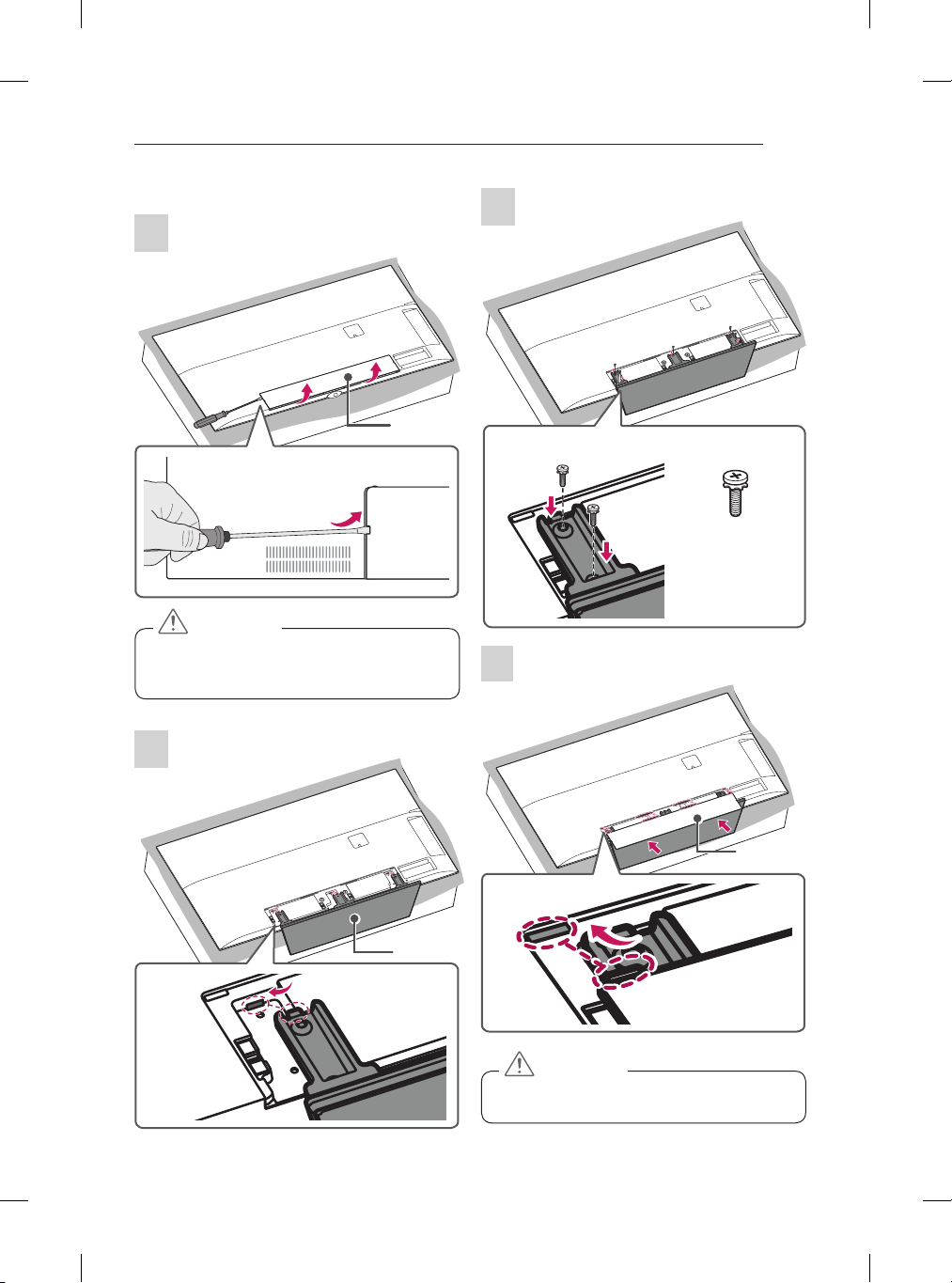

65EF95**

Stand cover

yDo not lift your TV without the stand. The protrud-

ing Joystick Button may be damaged.

yUse a flat tool to remove the Stand cover.

CAUTION

Stand assy

A-9

SETTING UP THE TV

M4 x L14

8 EA

Stand cover

yInsert the protruding parts of the Stand cover into

the holes.

CAUTION

Cover holder

Stand

cover

yInsert the Cover holder of the Stand cover into the

holes until it clicks.

CAUTION

yRemove the stand before installing the TV on a

wall mount by performing the stand attachment in

reverse.

NOTE

yWhen attaching the stand to the TV set, place the

screen facing down on a cushioned table or flat

surface to protect the screen from scratches.

yMake sure that the screws are inserted correctly

and fastened securely. (If they are not fastened

securely enough, the TV may tilt forward after being

installed.)

Do not use too much force and over tighten the

screws; otherwise screw may be damaged and not

tighten correctly.

CAUTION

A-10

SETTING UP THE TV / MAKING CONNECTIONS

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses

diagrams for the EG9609 models.

Antenna connection

Wall

antenna

socket

(*Not

provided)

English

Connect the TV to a wall antenna socket with an RF cable

(75 ).

yThe external device connection may differ from the

model.

yUse a signal splitter to use more than 2 TVs.

yIf the image quality is poor, install a signal amplifier

properly to improve the image quality.

yIf the image quality is poor with an antenna

connected, try to realign the antenna in the correct

direction.

yAn antenna cable and converter are Not provided.

ySupported DTV Audio: MPEG, Dolby Digital, Dolby

Digital Plus, HE-AAC

yFor a location that is not supported with ULTRA

HD broadcasting, this TV cannot receive ULTRA HD

broadcasts directly. (Depending on model)

NOTE

Tidying cables

Image shown may dier from your TV.

Gather and bind the cables with the cable holder.

Cable holder

yDo not move the TV by holding the cable holder,

as the cable holder may break, and injuries and

damage to the TV may occur.

CAUTION
