LG MS-304W User manual
MICROWAV OV N
SERVICE MANUAL
MODEL: MS-304W
MS-304WB
MS-304WG
MS-304WS
CAUTION
B FOR S RVICING TH UNIT, R AD TH SAF TY PR CAUTIONS IN THIS MANUAL.
This device is to be serviced only by properly qualified service personnel.
Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be
taken to avoid possible exposure to excessive microwave energy.
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
A) Do not operate or allow the oven to be operated with the door open.
B) Make the following safety checks on all ovens to be serviced before activating the magnetron or other
microwave source, and make repairs as necessary; (1) interlock operation, (2) proper door closing, (3)
seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and
latches, (5) evidence of dropping or abuse.
C) Before turning on microwave power for any service test or inspection within the microwave generating
compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment,
integrity, and connections.
D) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation
and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual
before the oven is released to the owner.
) A microwave leakage check to verify compliance with the Federal Performance Standard should be
performed on each oven prior to release to the owner.
SAFETY PRECAUTIONS
CAUTION
MICROWAVE RADIATION
DO NOT B COM XPOS D TO RADIATION FROM TH MICROWAV G N RATOR
OR OTH R PARTS CONDUCTING MICROWAV N RGY.
(Page)
SAFETY PRECAUTIONS
---------------------------------------------------------------------
Inside ront cover
SPECIFICATIONS
-----------------------------------------------------------------------------------------------------
1-1
CAUTIONS
--------------------------------------------------------------------------------------------------------------
2-1
INSTALLATIONS
------------------------------------------------------------------------------------------------------
3-1
OPERATING INSTRUCTIONS
------------------------------------------------------------------------------------
4-1
F ATUR S
------------------------------------------------------------------------------------------------------------------------
4-1
CONTROL PAN L
--------------------------------------------------------------------------------------------------------------
4-1
OP RATING S QU NC
----------------------------------------------------------------------------------------------------
4-2
SCH MATIC DIAGRAM
------------------------------------------------------------------------------------------------------
4-3
CIRCUIT D SCRIPTION
-----------------------------------------------------------------------------------------------------
4-4
SERVICE INFORMATION
------------------------------------------------------------------------------------------
5-1
TOOLS AND M ASURING INSTRUM NTS
---------------------------------------------------------------------------
5-1
MICROWAV L AKAG T ST
--------------------------------------------------------------------------------------------
5-1
M ASUR M NT OF MICROWAV POW R OUTPUT
-----------------------------------------------------------
5-3
DISASS MBLY AND ADJUSTM NT
-------------------------------------------------------------------------------------
5-3
INT RLOCK CONTINUITY T ST
------------------------------------------------------------------------------------------
5-7
COMPON NT T ST PROC DUR
--------------------------------------------------------------------------------------
5-8
TROUBL SHOOTING
------------------------------------------------------------------------------------------------------
5-11
EXPLODED VIEW
------------------------------------------------------------------------------------------------
6-1
REPLACEMENT PARTS LIST
------------------------------------------------------------------------------------
7-1
SCHEMATIC DIAGRAM OF P.C.B.
------------------------------------------------------------------------------
8-1
PRINT D CIRCUIT BOARD
-------------------------------------------------------------------------------------------------
8-2
P.C.B. PARTS LIST
---------------------------------------------------------------------------------------------------
9-1
CONTENTS
This microwave oven is designed for household use only.
It is not recommended for commercial purposes.
DESCRIPTION
MS-304W / MS-304WB / MS-304WG / MS-304WS
230 Volts AC 50 Hz
Single phase, 3 wire grounded
Microwave 1,300W
900 Watts full microwave power (I C60705)
2,450 MHz
2M214 - 39F, 2M254J
0 ~ 99 min.
530 (W) x 322 (H) x 404 (D) mm
348 (W) x 235 (H) x 366 (D) mm
16 kg
17 kg
Microwave Power for Variable Cooking
Power level
MAX (900W) ...................................... Full power throughout the cooking time
M D.-HIGH (720W)............................ approx. 80% of Full power
M DIUM (540W) ................................ approx. 60% of Full power
D FROST (360W).............................. approx. 40% of Full power
LOW/WARM (180W)........................... approx. 20% of Full power
Owner's manual
Glass turntable
Rotating ring
1-1
ITEM
MODEL
Power Requirement
Power Output
Microwave Frequency
Magnetron
Timer
Outside Dimensions
Cavity Dimensions
Net Weight
Shipping weight
Control Complement
Nameplate Location
Accessories
SPECIFICATIONS
Back side

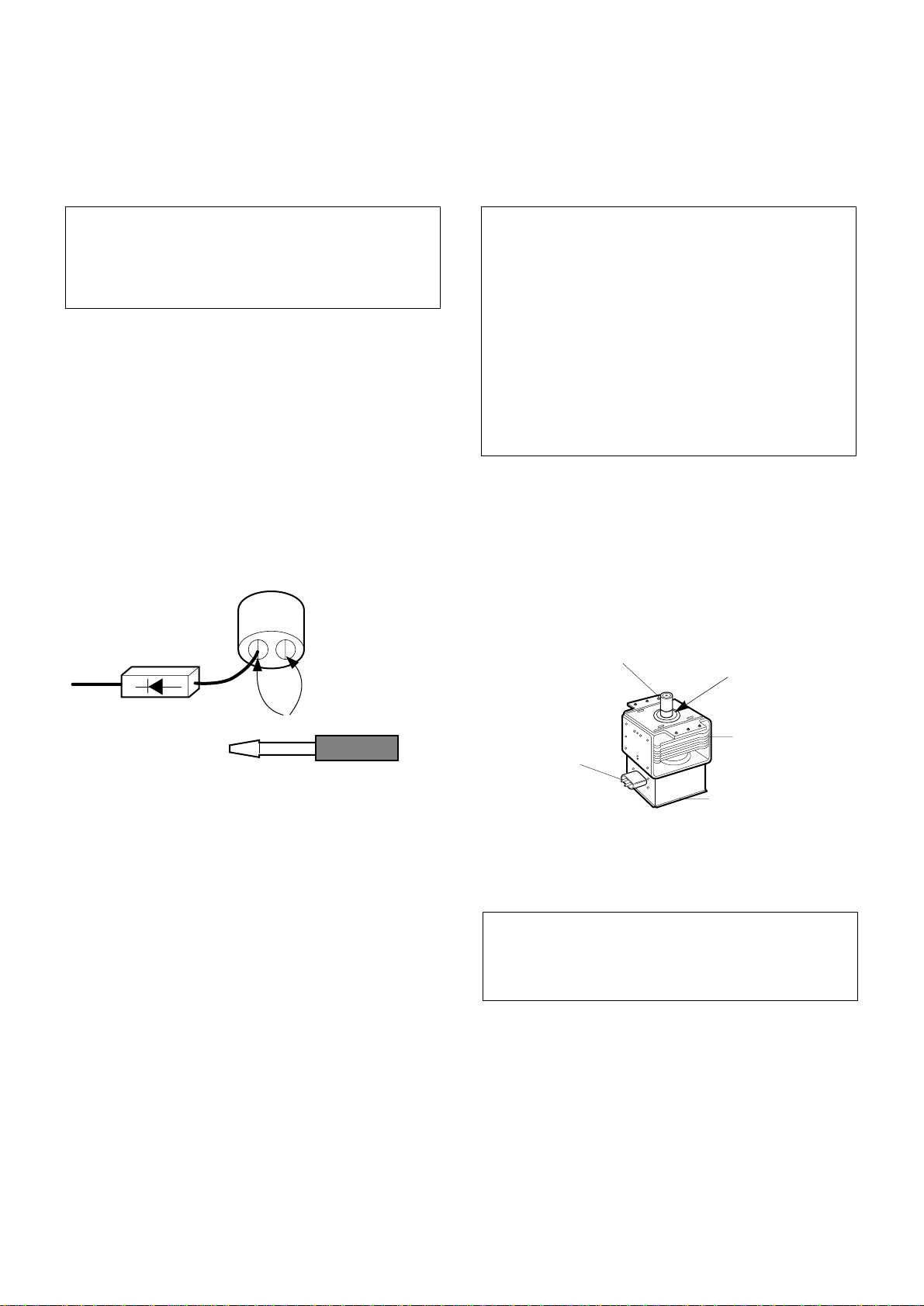

• DO NOT operate on a 2-wire extension cord during
repair and use.
• N V R TOUCH any oven components or wiring during
operation.
• B FOR TOUCHING any parts of the oven, always
remove the power plug from the outlet.
• For about 30 seconds after the oven stops, an electric
charge remains in the high voltage capacitor. When
replacing or checking, you must discharge the high
voltage capacitor by shorting across the two terminals
with an insulated screwdriver.
•
Remove your watches whenever working close to or
replacing the Magnetron.
• N V R operate the oven with no load.
• N V R injure the door seal and front plate of the oven
cavity.
• N V R put iron tools on the magnetron.
• N V R put anything into the latch hole and the
interlock switches area.
• Proper operation of the microwave oven requires that
the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is properly
installed around the dome o the tube whenever
installing the magnetron.
2-1
CAUTIONS
Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.
Gasket
ANT NNA
COOLING FIN
MAGN TRON
CHASSIS GROUND
FILAM NT
T RMINALS
MAGN TRON
INSTALLATIONS
3-1

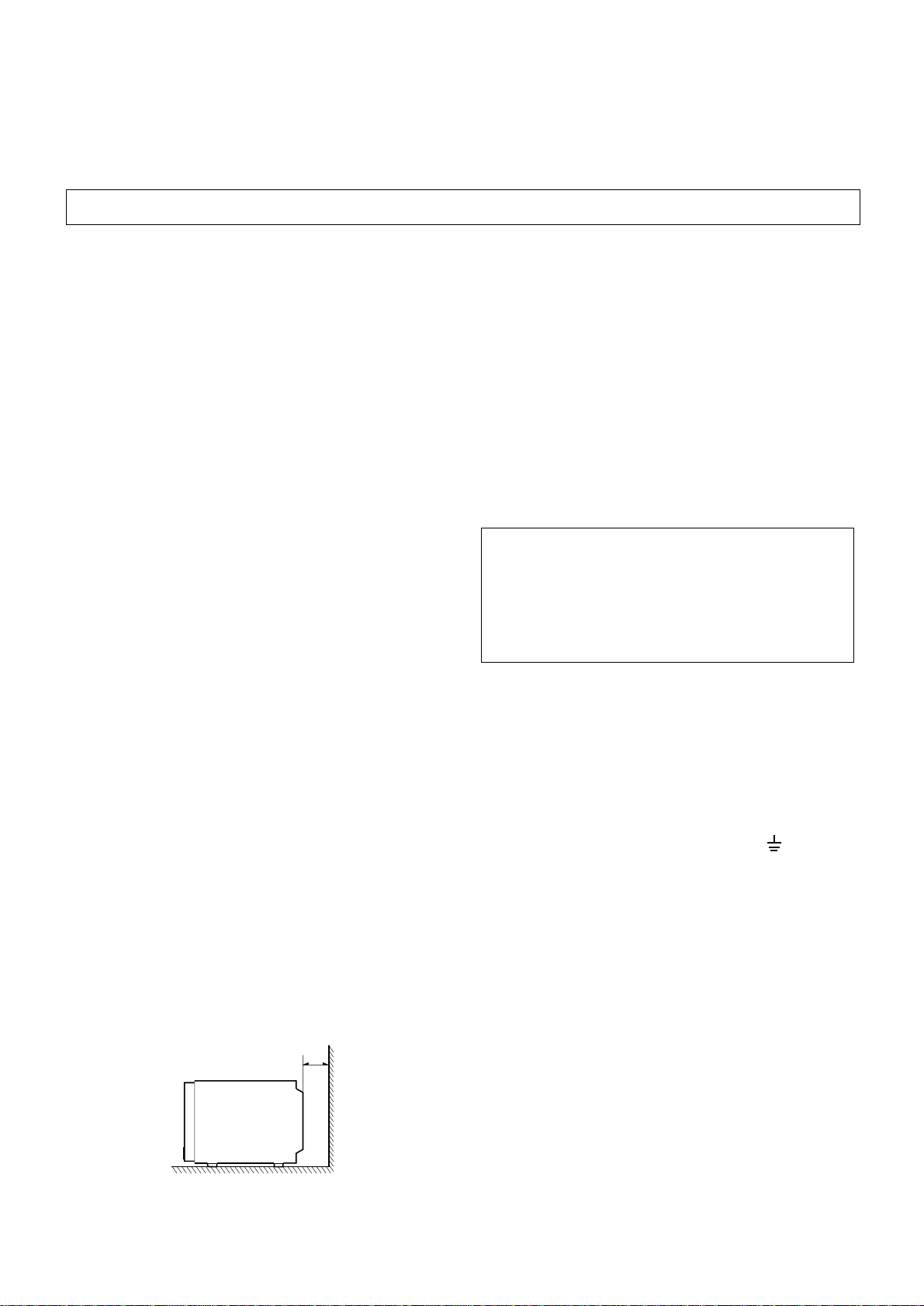

INSTALLING
1. mpty the microwave oven and clean inside it with
a soft, damp cloth. Check for damage such as
misaligned door, damage around the door or dents
inside the cavity or on the exterior.
2. Put the oven on a counter, table, or shelf that is
strong enough to hold the oven and the food and
utensils you put in it. (The control panel side of the
oven is the heavy side. Use care when handling.)
3. Do not block the vent and the air intake openings.
Blocking vent or air intake openings can cause
damage to the oven and poor cooking results.
Make sure the microwave oven legs are in place to
ensure proper air flow.
4. The oven should not be installed in any area where
heat and steam are generated, because they may
damage the electronic or mechanical parts of the
unit.
Do not install the oven next to a conventional
surface unit or above a conventional wall oven.
5. Use microwave oven in an ambient temperature
less than 104°F(40°C).
6. Place the microwave oven on a sturdy and flat
surface at least 10 cm(4 inches) from the wall.
7. Place the microwave oven as far away as possible
from TV, RADIO, COMPUT R, etc., to prevent
interference.
8. Do not touch the front glass during or after cooking
of the Grill and Combination mode.
This glass is very hot during heater operating.
9. Do not operate the oven at microwave and
combination mode with Grill rack placed in the
cavity when the oven is empty.
EARTHING INSTRUCTIONS
This microwave oven is designed to be used in a fully
earthed condition.
It is imperative, therefore, to make sure it is properly
earthed before servicing
WARNING-
THIS APPLIANC
MUST B ARTH D
IMPORTANT
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows.
The wire which is colored green-and-yellow must be
connected to the terminal in the plug which is marked
with the letter Eor by the earth symbol ( ) or
colored green or green-and-yellow.
The wire which is colored blue must be connected to
the terminal in the plug which is marked with the letter
Nor colored black.
The wire which is colored brown must be connected
to the terminal in the plug which is marked with the
letter Lor colored red.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.
10cm
The wires in this mains lead are colored in
accordance with the following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
4-1
OPERATING INSTRUCTIONS
FEATURES

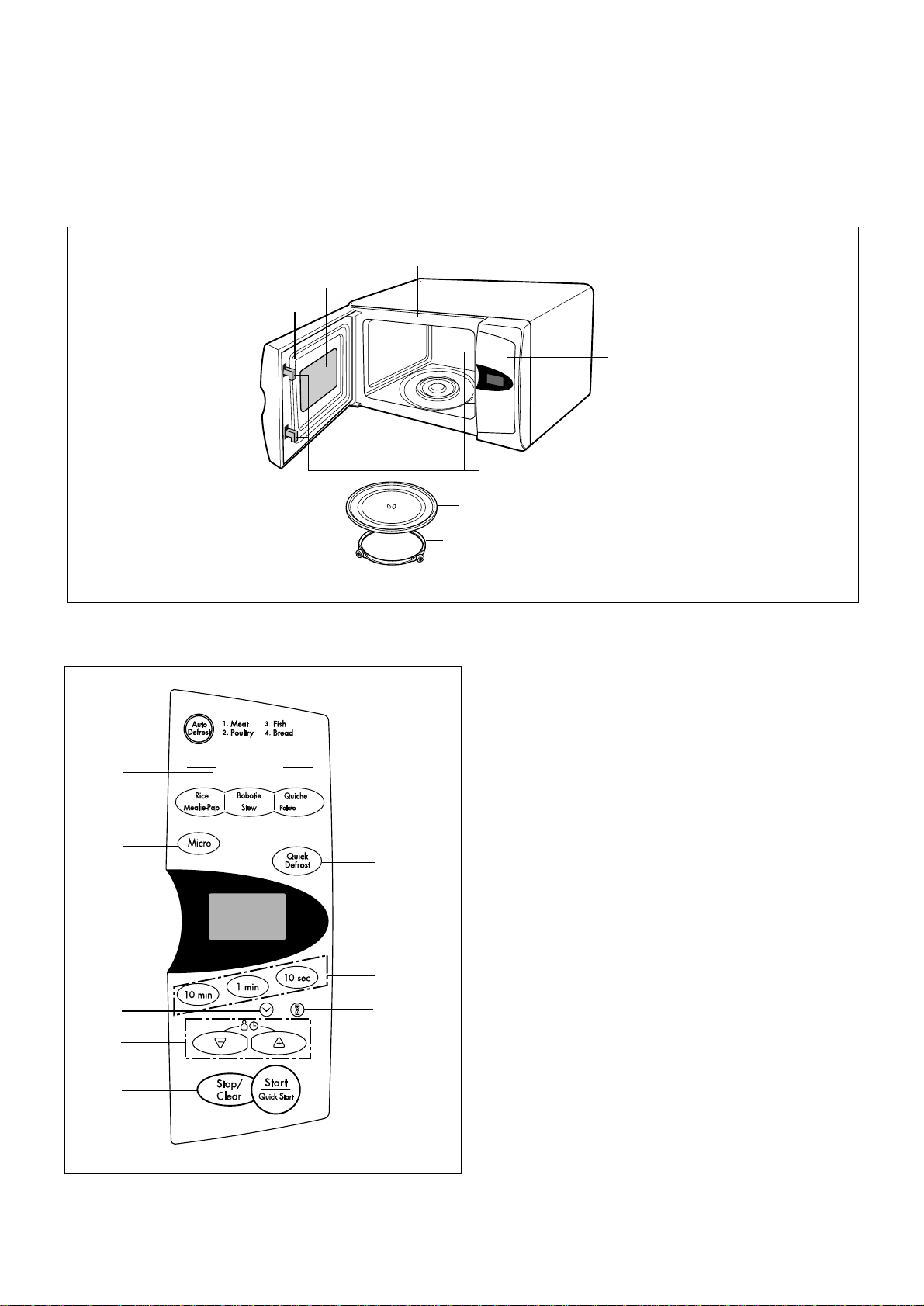

CONTROL PANEL
1. AUTO WEIGHT DEFROST: Used to select the
auto weight defrost.
2. AUTO COOK: Used to select the auto cook.
3. MICRO: Used to select the desired power level for
cooking.
4. QUICK DEFROST: Used to defrost quickly 1Lb.
5. DISPLAY WINDOW: Used to show time of day,
cooking of power level, cooking category.
6. COOK TIME: Used to cook food for a desired time.
7. MORE/LESS: Used to change the cooking time &
desired weight.
8. STOP/CLEAR: Used to stop oven and clear all
entries except time of day.
9. START/Q-START: To quickly set the cooking time
directly.
10. CLOCK: Used to set the time of day.
11. KITCHEN TIMER:
Turntable
Rotating Ring
Oven Front Plate
Window Door Screen
Safety Door Lock System
Door Seal
Key pad
Auto cook
BakeBake
set
clock kitchenkitchen
timertimer
1
2
3
5
4
10 11
89
6
7
4-2
The following is a description of component functions
during oven operation.
1. SETTING THE CLOCK
2. MICROWAVE COOKING
3. AUTO WEIGHT DEFROST
4. AUTO COOK
5. CHILD LOCK
This oven has a CHILD LOCK feature.
To Set CHILD LOCK
To Cancel CHILD LOCK
6. QUICK START
7. MORE AND LESS
Operating Sequence
Clock
Desired
minute Start
Desired
hour
Stop/Clear
Stop/Clear
Desired
power
level
Desired
cooking
time Start
Stop/Clear Stop/Clear
(Touch and Hold)
Stop/Clear Stop/Clear
(Touch and Hold)
Stop/Clear Start
Stop/Clear More
Less
Desired auto cook
Stop/Clear Desired
defrost
category Food
weight Start
Stop/Clear Desired
auto cook
category Food
weight Start

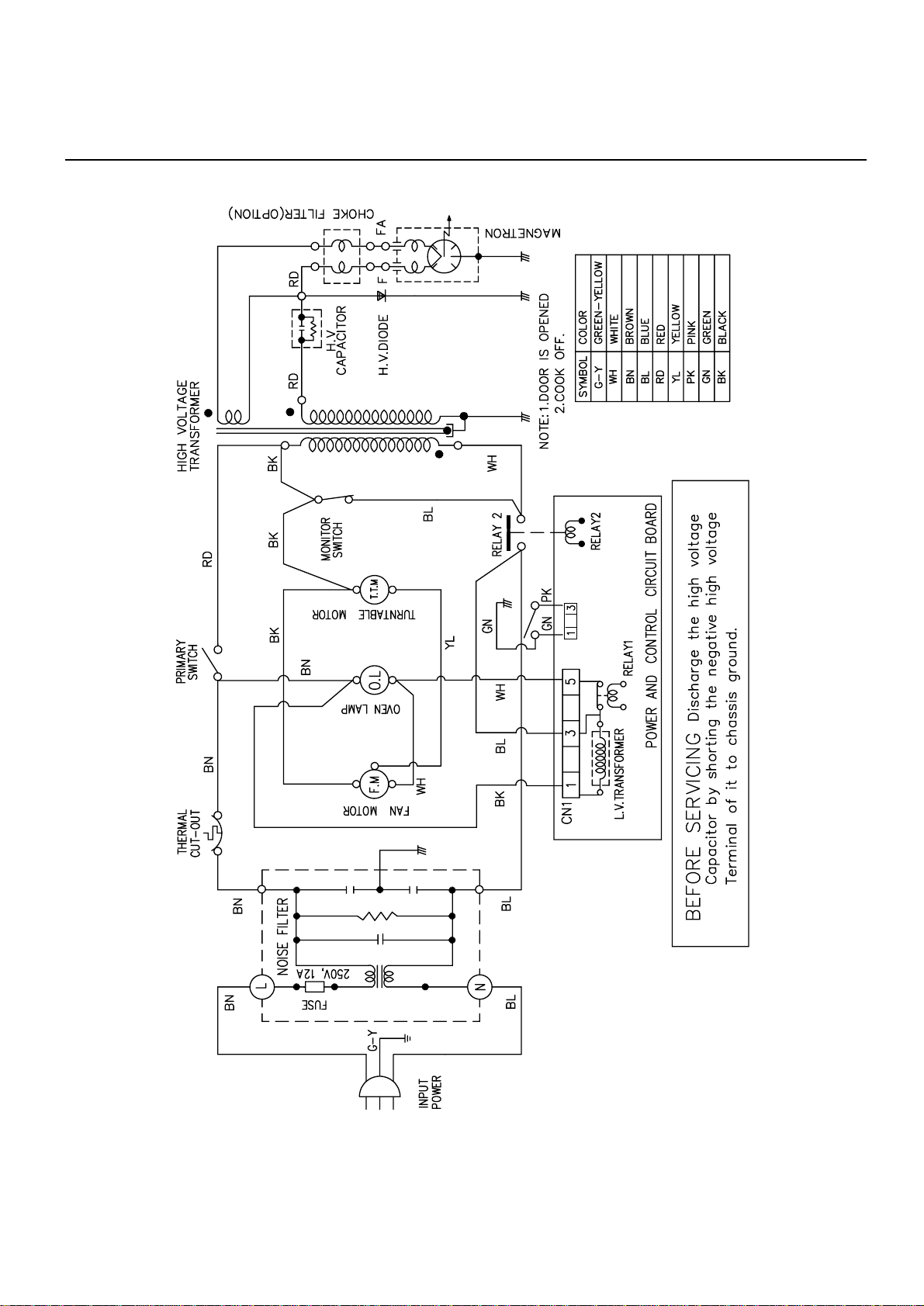

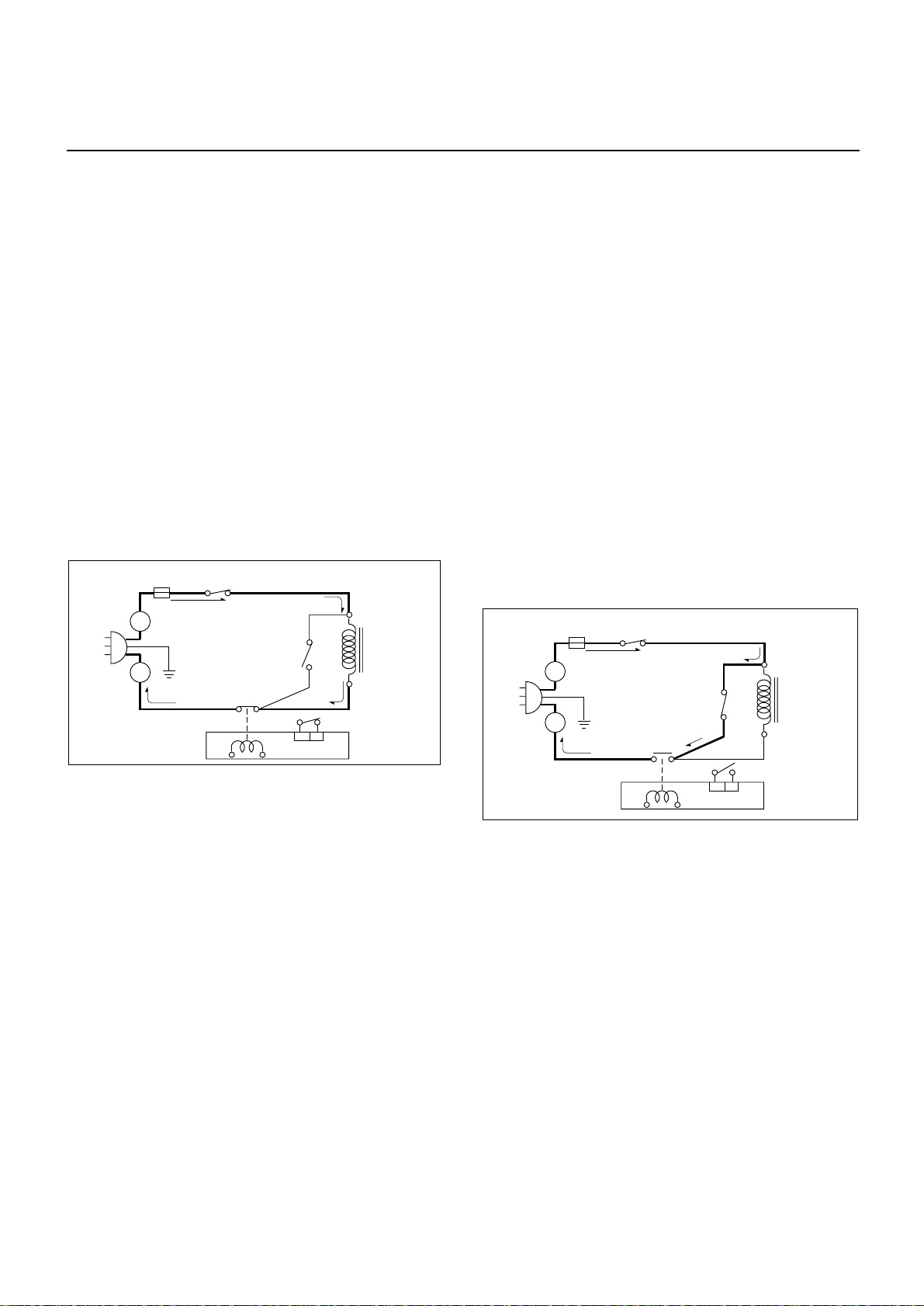

SCHEMATIC DIAGRAM
4-3
CIRCUIT DESCRIPTION
GENERAL DETAILS
• The low voltage transformer supplies the necessary
voltage to the micom controller when power cord is
plugged in.
• When the door is closed, the primary switch is ON, the
secondary switch is ON, and the monitor switch opens
(contact COM and NO).
WHEN SELECTING COOKING POWER
LEVEL AND TIME
• The micom controller memorizes the function you set.
• The time you set appears in the display window.
• ach indicator light turns on to indicate that the stage
has been set.
WHEN TOUCHING THE START PAD
• The coil of the relay is energized by the micom
controller.
• Power input is supplied to the high voltage transformer
through the fuse to the primary switch and relay 2.
• Turntable rotates.
• The fan motor rotates and cools the magnetron by
blowing the air (coming from the intake on the
baseplate).
• The air is also directed into the oven to exhaust the
vapor in the oven through the upper plate.
• Cooking time starts counting down.
• 3.2 volts AC is generated from the filament winding of
the high voltage transformer. This 3.2 volts is applied to
the magnetron to heat the magnetron filament through
two noise-preventing choke coils.
• A high voltage of approximately 2100 volts AC is
generated in the secondary of the high voltage
transformer which is increased by the action of the high
voltage diode and charging of the high voltage
capacitor.
• The negative 4,000 Volts DC is applied to the filament
of the magnetron.
WHEN THE OVEN IS SET AT ANY LEVEL
EXCEPT MAXIMUM.
• The micom controller controls the ON-OFF time of
relay 2 by the applied signal to vary the average output
power of microwave oven as POW R L V L.
(refer to page 1-1)
• One complete cycle of relay 2 is 22 seconds.
WHEN THE DOOR IS OPENED DURING
COOKING
• Both the primary switch and relay 2 are cut off primary
winding voltage of the high voltage transformer.
• ON-OFF of relay 2 is coupled electrically with opening
and closing of the secondary switch.
• When the door is opened, the secondary switch is
opened and when the door is closed, the secondary
switch is closed.
• The cooking time stops counting down.
• Relay stops functioning.
• As the door is opened, if the contact of primary switch
fails to open, the fuse opens due to the large current
surge caused by the monitor switch activation, which in
turn stops magnetron oscillation.
4-4
L
FUS
H.V.
TRANS-
FORM R
R LAY 2
MICOM CONTROLL R
S CONDARY
SWITCH
PRIMARY
SWITCH
N
MONITOR
SWITCH
L
FUS
H.V.
TRANS-
FORM R
R LAY 2
MICOM CONTROLL R
S CONDARY
SWITCH
PRIMARY
SWITCH
N
MONITOR
SWITCH
This manual suits for next models
3
Table of contents
Other LG Microwave Oven manuals
