LG LMVM2277ST User manual
MICROWAVE OVEN
OWNER’S MANUAL
LMVM2277ST
http://us.lgservice.com
PLEASE READ THIS OWNER’S MANUAL
THOROUGHLY BEFORE OPERATING.
삼흥
정판
P/NO.: MFL37191403
Printed in Korea
2
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY...
(a) Do not attempt to operate this oven with the
door open since open-door operation can
result in harmful exposure to microwave
energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven
front face and the door or allow soil or
cleaner residue to accumulate on sealing
surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door
closes properly and that there is no
damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired
by anyone except properly qualified service
technician.
Thank you for purchasing a LG microwave oven.
Please record the model number and serial
number of this unit for future reference. We also
suggest you record the details of your contact with
LG (LG Electronics U.S.A., Inc.) concerning this unit.
Staple your receipt here for proof of purchase.
Model No: _________________________________
Serial No: _________________________________
Dealer:___________________________________
_________________________________________
_________________________________________
Dealer Phone No:___________________________
Customer Relations
LG Electronics U.S.A., Inc.
Service Division Bldg. #3
201 James Record Rd.
Huntsville, AL 35824-0126
3
TABLE OF CONTENTS
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY .................................................................. 2
TABLE OF CONTENTS ........................................... 3
SAFETY .................................................................... 4
UNDERSTANDING YOUR MICROWAVE OVEN .... 6
Location of Model Number .................................... 6
Oven Specifications .............................................. 6
Electrical Requirements ....................................... 6
Grounding Instructions .......................................... 6
Microwave Oven Features .................................... 7
Installing glass tray .................................................8
Installation instructions for glass tray .....................9
Control Zone Features ........................................ 10
USING YOUR MICROWAVE OVEN ...................... 12
Learn About Your Microwave Oven .................... 12
Clock ................................................................... 12
Timer On/Off ....................................................... 12
Vent Fan .............................................................. 12
Vent Turbo .......................................................... 12
Vent Auto Time Set .............................................. 12
Light Hi/Lo/Off ..................................................... 12
Child Lock ........................................................... 13
EZ-ON ................................................................. 13
Custom Set ......................................................... 13
More/Less ........................................................... 14
Cooking at High Power Levels ............................ 14
Microwave Power Levels .....................................14
Multi Stage Cooking ............................................ 14
Cooking Guide for Lower Power Levels .............. 15
Sensor Operating Instructions ............................. 16
Sensor Cooking Guide ........................................ 16
Sensor Popcorn .................................................. 16
Sensor Cook ....................................................... 17
Sensor Reheat .................................................... 17
Sensor Cook Table ............................................. 18
Sensor Reheat Table .......................................... 18
Soften .................................................................. 19
Melt ..................................................................... 19
Glide Cook ...........................................................19
Soften Table ........................................................ 20
Melt Table ........................................................... 20
Glide Cook Table ................................................ 21
Auto Defrost ........................................................ 22
Quick Defrost ...................................................... 22
Time Defrost ........................................................ 22
Defrost Tips ......................................................... 23
Metal Rack .......................................................... 23
COOKING .............................................................. 24
Getting the Best Cooking Results ....................... 24
Fish and Shellfish ................................................ 24
Fish and Shellfish Cooking Table ........................ 24
Appetizers /Sauces /Soups ................................. 25
Meat .................................................................... 25
Meat Cooking Table ............................................ 26
Chicken ............................................................... 27
Chicken Cooking Table ....................................... 27
Pasta and Rice .................................................... 28
Pasta Cooking Table ........................................... 28
Rice Cooking Table ............................................. 28
CARING FOR YOUR MICROWAVE OVEN .......... 29
Caring For Your Microwave Oven ....................... 29
Metal Rack .......................................................... 30
Cleaning the Grease Filters ................................ 30
Charcoal Filter Replacement ............................... 30
Cooktop/Night Light Replacement ...................... 31
Oven Light Replacement ..................................... 31
COOKING UTENSILS ............................................ 32
Microwave Utensil Guide .................................... 32
TROUBLESHOOTING ........................................... 33
Before Calling for Service ................................... 33
Questions and Answers ...................................... 34
LIMITED WARRANTY ........................................... 35
SAFETY
4
II
IIMM
MMPP
PPOO
OORR
RRTT
TTAA
AANN
NNTT
TT
SS
SSAA
AAFF
FFEE
EETT
TTYY
YY
II
IINN
NNSS
SSTT
TTRR
RRUU
UUCC
CCTT
TTII
IIOO
OONN
NNSS
SS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal
injury, or damage when using the range. This guide do not cover all possible conditions that may occur.
Always contact your service agent or manufacturer about problems that you do not understand.
WARNING - To reduce the risk of burns,
electric shock, fire, injury to persons, or exposure to
excessive microwave energy.
• Read all the instructions before using your oven.
• Do not allow children to use this oven without
close supervision.
• Read and follow the specific PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY found
on page 2.
•
Do not use corrosive chemicals or vapors, such as
sulfide and chloride, in this appliance.
This type of
oven is specifically designed to heat, cook, or dry
food. This microwave oven is mode for household
use only. It is not designed for industrial or laboratory
use.
•
Do not use or store this appliance outdoors.
Do not
use this product near water - for example, near a
kitchen sink, in a wet basement, or near a swimming
pool.
•
Do not use the cavity for storage purposes.
Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
• Clean the ventilating hood frequently. Do not
allow grease to accumulate on the hood or the
filters.
• Use care when cleaning the vent hood filters.
Corrosive cleaning agents such as lye-based oven
cleaners may damage the filters.
• Do not tamper with the built-in safety switches
on the oven door. The oven has several built-in
safety switches to make sure the power is off when
the door is open.
• If food flames under the hood, turn the fan on.
• Suitable for use above both gas and electric cooking
equipment 36 inches wide or less.
• Do not use this oven for commercial purposes.
It is made for household use only.
• When cleaning the door and the surfaces that
touch the door, use only mild, non-abrasive
soaps or detergents and a sponge or soft cloth.
• If your oven is dropped or damaged, have it
thoroughly checked by a qualified service technician
before using it again.
• To avoid a fire hazard:
- Do not severely overcook food. Severely
overcooked foods can start a fire in the oven.
Do not use recycled paper products in your
microwave oven. The contain particles that can
cause arcing or may ignite.
- Do not store combustible items (bread,
cookies, etc.) in the oven, because if lightning
strikes the power lines it may cause the oven to
turn on.
- Do not use wire twist-ties in the oven. Be sure
to inspect purchased items for wire twist-ties and
remove them before placing the item in the oven.
• If a fire should start:
- Keep the oven door closed.
- Turn the oven off.
- Disconnect the power cord or shut off the
power at the fuse or circuit breaker panel.
• To avoid electric shock:
- This appliance must be grounded. Connect it
only to a properly grounded outlet. See the
electrical GROUNDING INSTRUCTIONS
on page 6.
- Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
- Do not immerse the electrical cord or plug
in water.
- Keep the cord away from heated surfaces.
• Take care when The Door is opened.
There is a possibility of being injured.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION”.
These word means :
This symbol will alert you to hazards or unsafe practices which could cause serious bodily
harm or death.
WARNING
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or
property damage.
CAUTION
5
SAFETY
SAVE THESE INSTRUCTIONS
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT ( U.S.A. ONLY)
• To avoid improperly cooking some foods.
- Do not heat any types of baby bottles or baby
food. Uneven heating may occur and possibly
cause personal injury.
- Do not heat small-necked containers, such as
syrup bottles.
- Do not deep-fat fry in your microwave oven.
- Do not attempt home canning in your
microwave oven.
- Do not heat the following items in the
microwave oven: whole eggs in the shell, water
with oil or fat, sealed containers, or closed glass
jars. These items may explode.
• Do not cover or block any openings in the oven.
• Use your oven only for the operations described in
this manual.
• Do not run the microwave oven empty.
• Secure the cord in the cabinet above the oven.
• Preserve the oven floor:
- Do not heat the oven floor excessively.
- Do not allow the gray film on special microwave-
cooking packages to touch the oven floor. Put
the package on a microwavable dish.
-
Do not cook anything directly on the oven floor or
turntable.
Use a microwavable dish.
- Keep a browning dish at least 3/16 inch above floor.
Carefully read and follow the instructions for the
browning dish. If you use a browning dish
incorrectly, you could damage the oven floor.
• Install or locate this appliance only in accordance
with the provided installation instructions.
• This appliance should be serviced only by qualified
service personnel. Contact the nearest authorized
service facility for examination, repair, or adjustment.
• Liquids, such as water, coffee, or tea can be
overheated beyond the boiling point without
appearing to be boiling due to sunface tension of the
liquid. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR
OTHER UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons;
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is
in strict accordance with the manufacturer's
instructions, may cause interference to radio and
television reception. It has been type tested and
found to comply with limits for ISM Equipment
pursuant to part 18 of FCC Rules, which are
designed to provide reasonable protection against
such interference in a residential installation.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following:
• Reorient the receiving antenna of the radio or
television.
• Relocate the Microwave Oven with respect to the
receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so
that the microwave oven and the receiver are on
different branch circuits.
The manufacturer is not responsible for any radio or
TV interference caused by unauthorized
modification to this microwave oven. It is the
responsibility of the user to correct such interference.
WARNING:
UNDERSTANDING YOUR MICROWAVE OVEN
Please read this owner’s manual. It will tell you how
to use all the fine features of this microwave oven.
LOCATION OF MODEL NUMBER

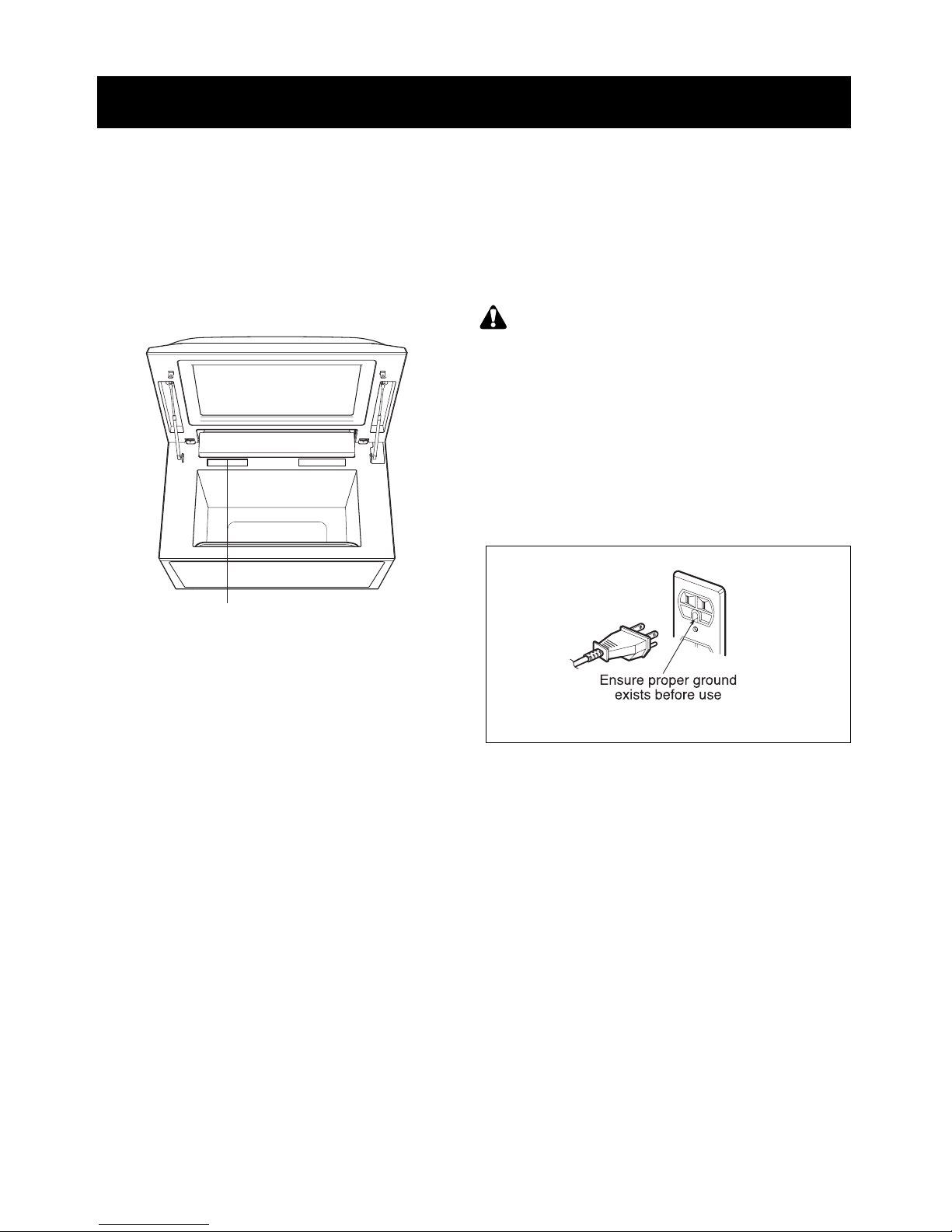

To request service information or replacement parts,
the service center will require the complete model
number of your microwave oven. The number is on the
oven front as shown in the illustration below.
OVEN SPECIFICATIONS
Output Power 1,100W (IEC60705)
Outer Dimensions 2915/16” x 1711/16” x 163/4”
Cavity Volume 2.2 Cu.ft
Net Weight 75 lbs.
ELECTRICAL REQUIREMENTS
The oven is designed to operate on a Standard
120V/60Hz household outlet. Be sure the circuit is at
least 15A or 20A and the microwave oven is the only
appliance on the circuit. It is not designed for 50Hz
or any circuit other than a 120V/60Hz circuit.
GROUNDING INSTRUCTIONS
This appliance must be grounded. If an electrical
short circuit occurs, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. The appliance is equipped with a cord
having a grounding wire with a grounded plug. Put the
plug into
an outlet that is properly installed and grounded.
WARNING - If you use the grounding
plug improperly, you risk electric shock.
Ask a qualified electrician if you do not understand the
grounding instructions or if you wonder whether the
appliance is properly grounded.
This appliance has a short power supply cord to
reduce the risk of anyone tripping over or becoming
entangled in the cord. See the separate Installation
Instructions for directions on placing the cord properly.
Keep the electrical power cord dry and do not pinch or
crush it in any way.
6
MODEL NUMBER LABEL
UNDERSTANDING YOUR MICROWAVE OVEN
MICROWAVE OVEN FEATURES
7
Oven Control
Zone
Vent Grille
Door Handle
Window with
Metal Shield
Gas Spring
Cooktop/Countertop Light Grease Filter
Door Safety
Lock System
Model and Serial
Number Plate
Cooking Guide
Metal Rack
Glass Tray
Guide Tray

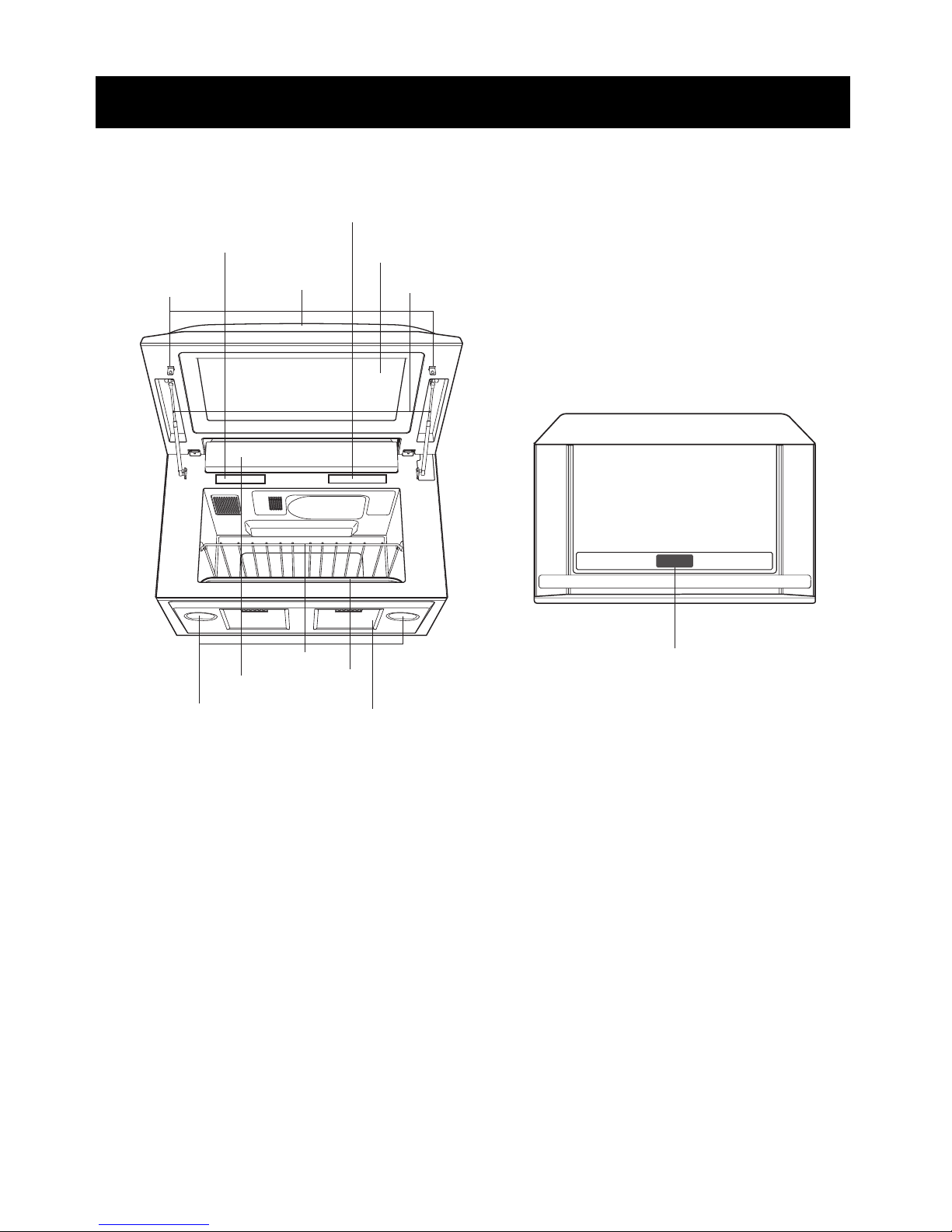

Your microwave oven is designed to make your
cooking experience as enjoyable and productive as
possible. To get you up and running quickly, the
following is a list of the oven’s basic features:
1. Metal Shielded Window. The shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
2. Model and Serial Number Plate & Cooking
Guide Label
3. Charcoal Filter (behind Vent Grille)
4. Vent Grille
5. Glass tray / Guide tray. The glass tray
moves food as it cooks for more even cooking. It
must be in the oven during operation for best
cooking results.
6. Cooktop/Countertop Light
7. Grease Filter. See “CHARCOAL FILTER
REPLACEMENT” section.
8. Control Zone. Touch the glass on this area to
perform all functions.
9. Metal Rack. Use for extra space when
cooking in more than one container at the
same time. Remove metal rack when you are
not using it.
10. Gas Spring.
UNDERSTANDING YOUR MICROWAVE OVEN
1. Glass tray
2. Rotating ring
3. Guide tray
4. Shaft
The glass tray moves in both direction and
turns to help cook food more evenly. Do not
operate the microwave oven without the glass
tray in place.
To Install:

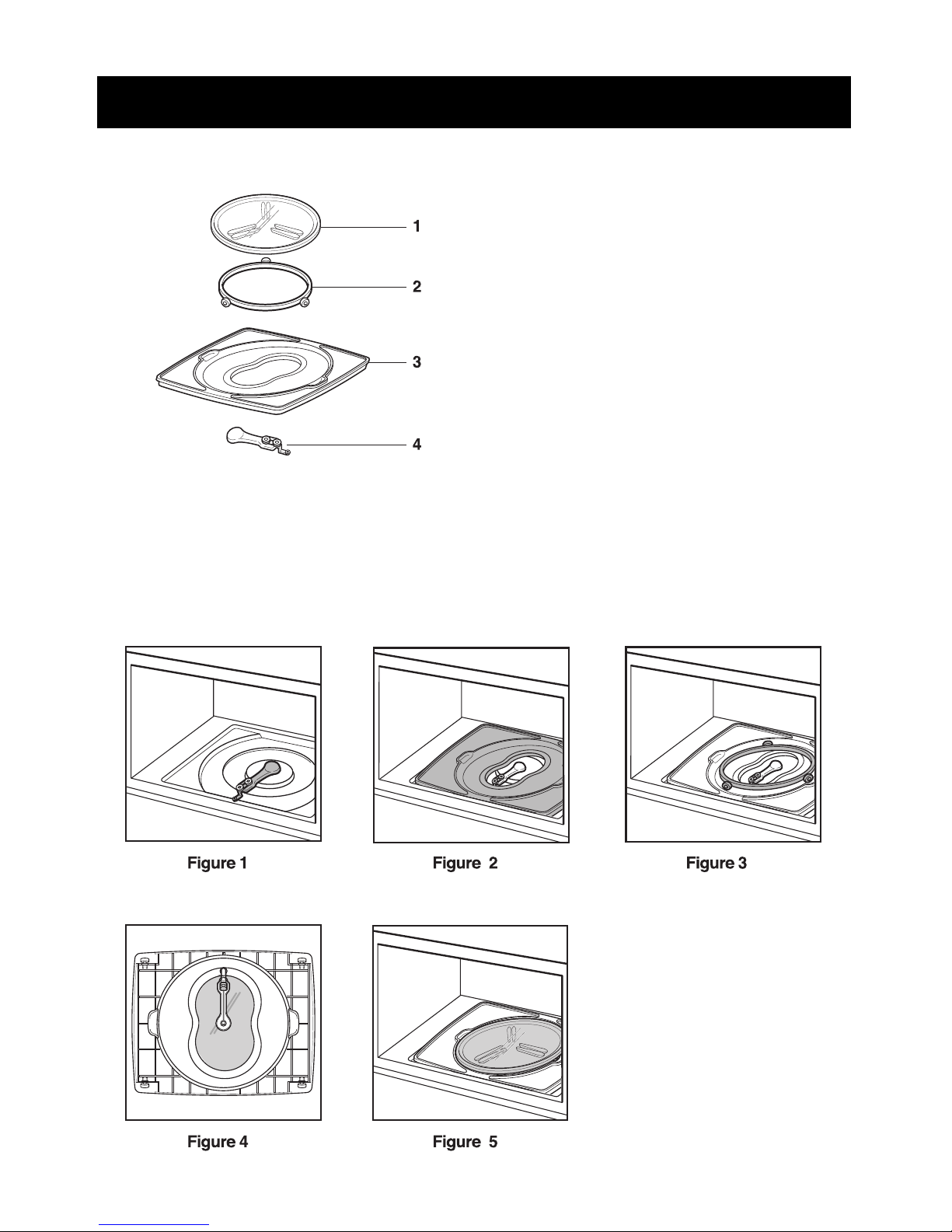

1. Place the guide tray on the oven cavity bottom.
The rollers on the shaft should fit inside the guide tray bottom groove.(see figure 1,2)
2. Place the rotating ring on the guide tray.
(see figure 3)
3. Place the glass tray on the rotating ring. Fit the rollers of the shaft between the raised,
hollowed groove of the glass tray bottom. The rollers on the rotating ring should fit inside
the glass tray bottom ridge. (see figure 4,5)
8
Installing glass tray
UNDERSTANDING YOUR MICROWAVE OVEN
To Install:

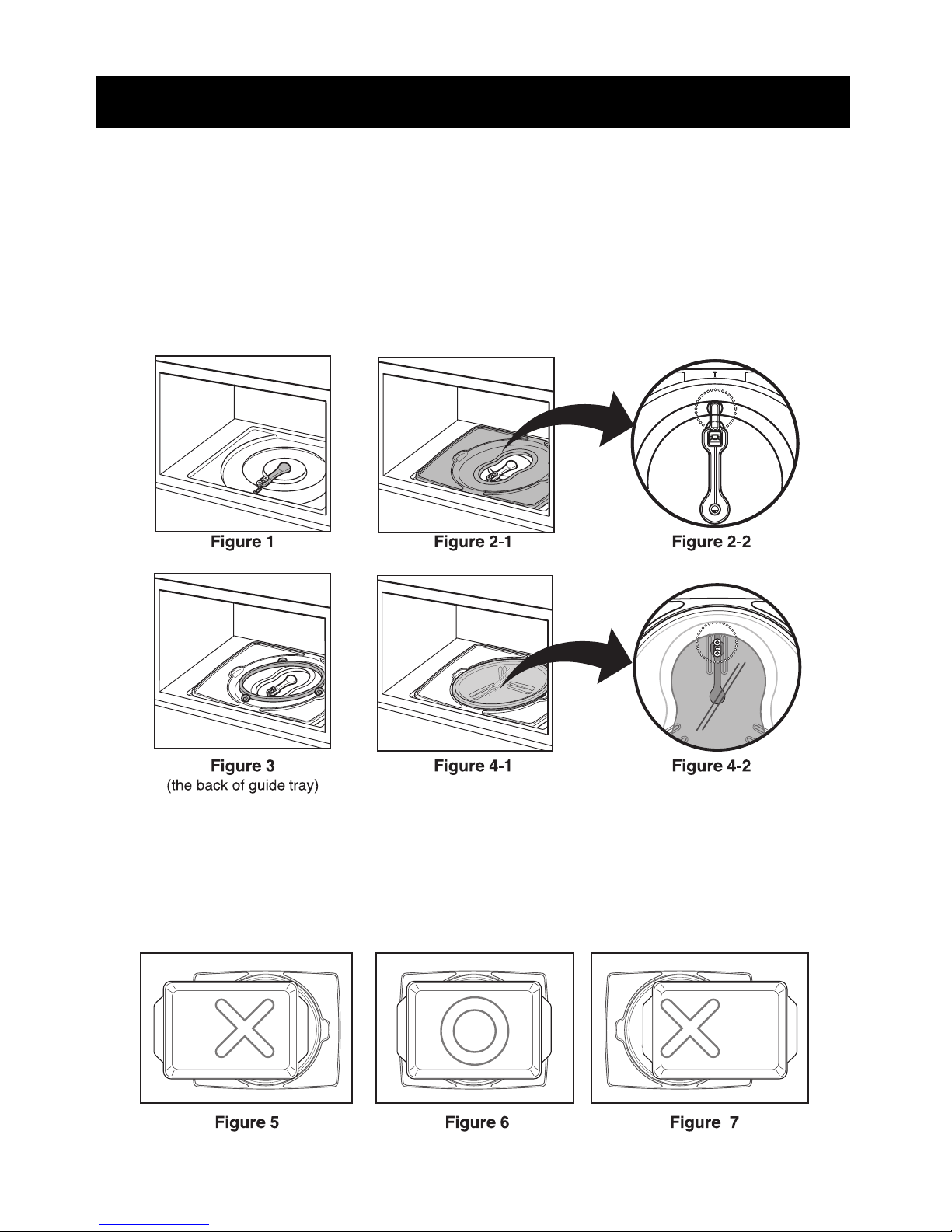

1. Place the guide tray on the oven cavity bottom. The rollers on the shaft should fit inside the guide
tray bottom groove. (see figure 1, 2-1, 2-2)
2. Place the rotating ring on the guide tray. (see figure 3)
3. Place the glass tray on the rotating ring. Fit the rollers of the shaft between the raised, hollowed
groove of the glass tray bottom. The rollers on the rotating ring should fit inside the glass tray
bottom ridge. (see figure 4-1, 4-2)
NOTE: IF NOT INSTALL THE GLASS TRAY EXACTLY, THAT CAN MAKE A NOISE.
9
Installation instructions for glass tray
When using an oblong dish, don’t forget to place it in the center of the guide tray, or poor
performance will result.
Oblong dish which is smaller than 13 inches should be placed on the glass tray. Dishes larger than
13 inches should be placed on the raised edge of the guide tray not allowing it to sit on the glass tray.
Otherwise, poor performance will result.
Using Oblong dish
UNDERSTANDING YOUR MICROWAVE OVEN

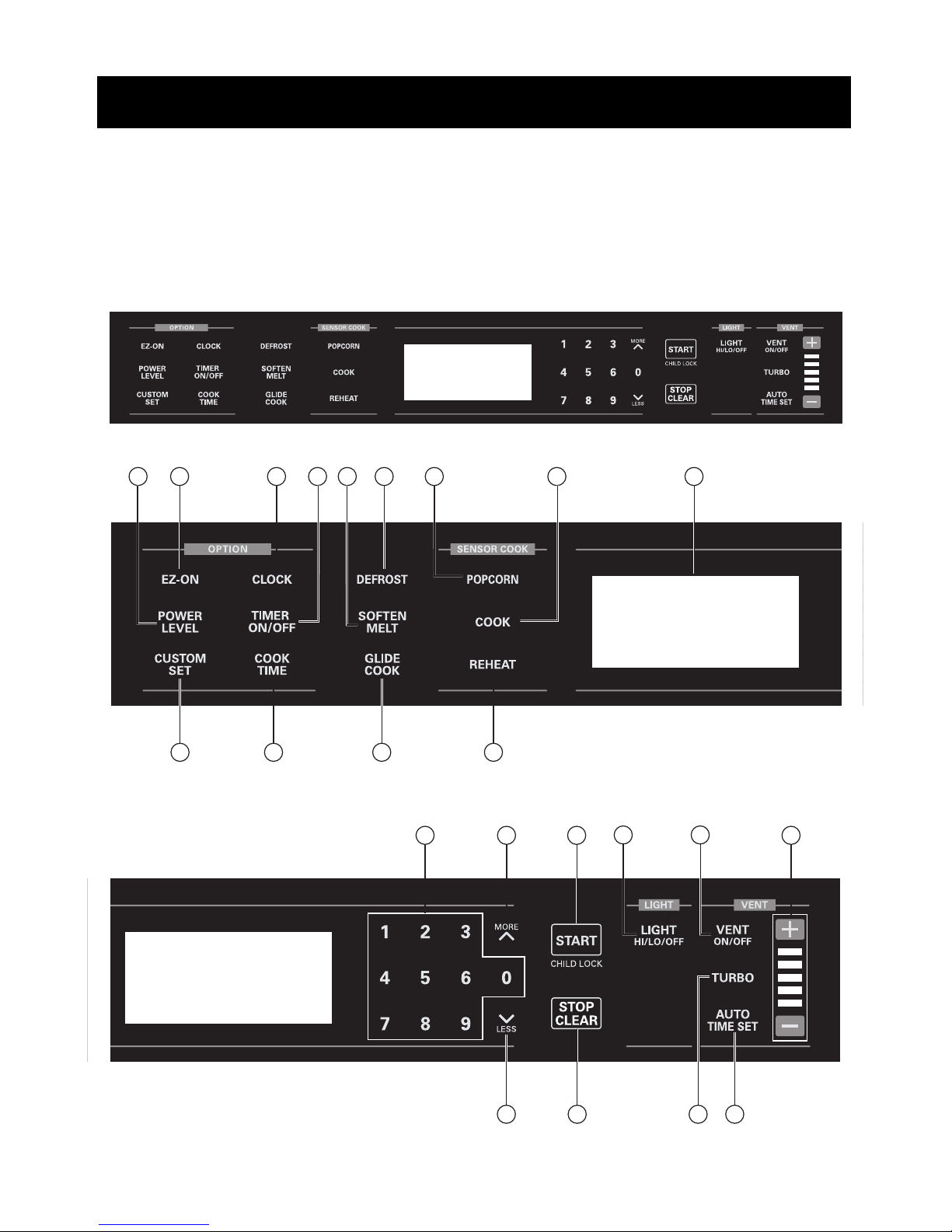

CONTROL ZONE FEATURES
Your microwave oven control zone lets you select the desired cooking function quickly and easily. All you have
to do is touch the necessary Command keys on the door glass. The following is a list of all the Command and
Number keys located on the control zone. For more information on these features, see the OPERATION
section.
10
2314 895 1211
6 7 10 13
14 15 17 23
19 20
16 18 2221
Other manuals for LMVM2277ST
5
Table of contents
Other LG Microwave Oven manuals
