Lexmark 520-sheet Configuration guide

Printing guide

Get the most from the printer by properly loading the trays and setting the types and sizes for media.

Loading the standard or optional 520-sheet tray

The printer has one standard 520-sheet tray (Tray 1), and may have one or more optional 520-sheet trays. All 520-sheet trays

support the same paper sizes and types.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each paper drawer or tray separately. Keep

all other drawers or trays closed until needed.

1Pull the tray out.

Notice the size indicators at the bottom of the tray. Use these indicators to help position the length and width guides.

Printing guide

Page 1 of 3

2Squeeze and then slide the width guide to the correct position for the paper size loaded.

3Squeeze and then slide the length guide to the correct position for the paper size loaded.

Note: The length guide has a locking device. To unlock, slide the button on top of the length guide down. To lock, slide the

button up when a length has been selected.

4Flex the sheets back and forth to loosen them. Do not fold or crease the paper. Straighten the edges on a level surface.

5Load the paper stack with the recommended print side faceup.

Printing guide

Page 2 of 3

Notes:

•Place print side facedown for duplex printing.

•Place pre-punched paper with the holes toward the front of the tray.

•Place letterheads with the header on the left side of the tray.

•Make sure the paper is below the maximum fill line located on the edge of the paper tray.

Warning—Potential Damage: Overloading the tray can cause paper jams and possible printer damage.

6Insert the tray.

7From the printer control panel, verify the Paper Size and Paper Type setting for the tray based on the paper you loaded.

Setting the paper size and type

The Paper Size setting is automatically sensed according to the position of the paper guides in each tray except the multipurpose

feeder. The Paper Size setting for the multipurpose feeder must be set manually from the Paper Size menu. The Paper Type

setting must be set manually for all trays that do not contain plain paper.

From the home screen navigate to:

> Paper Menu > Paper Size/Type > select a tray > select the paper size or type >

The factory default Paper Type setting is Plain Paper.

Printing guide

Page 3 of 3

Table of contents

Other Lexmark Printer Accessories manuals

Lexmark

Lexmark 3200 - MFP - Option User manual

Lexmark

Lexmark N8050 User manual

Lexmark

Lexmark ImageQuick SIMM User manual

Lexmark

Lexmark 1361760 User manual

Lexmark

Lexmark C792 Family Service manual

Lexmark

Lexmark CS410 series Product manual

Lexmark

Lexmark 2000-Sheet Drawer Optra T User manual

Lexmark

Lexmark X7500 User manual

Lexmark

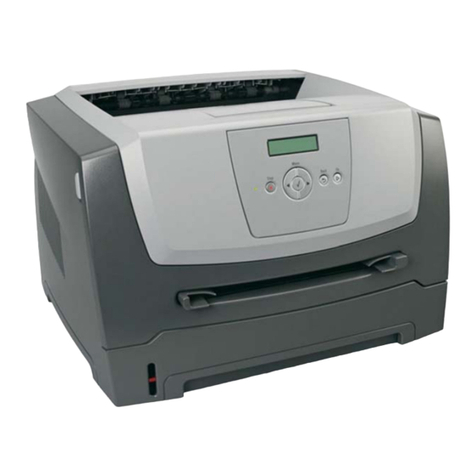

Lexmark 250d - E B/W Laser Printer User manual
