Leviton LEO LED00 User manual

LEO™

LEO™ LED Zoom Ellipsoidal

Cat. No. LED00

User’s Guide

CATALOG LOGIC

LED00-30B; LED00-50B

Fixture Part Color Temperature Housing

LED: LED Ellipsoidal 00: Light Engine -30: 3200K B: Black Housing

08: 8-22°Zoom -50: 5600K

18: 18-36°Zoom -LT: Lens Tube

30: 30-55°Zoom

SPECIFICATIONS

CAT. NO. LED00

WATTAGE 200W

STANDBY LOAD

WEIGHT 18.3 lbs. (8.3 kg)

SIZE W 9.8" (250mm) x H 18.5" (470mm) x D 13.8" (350 mm)

ELECTRICAL 100-240 VAC, 50/60Hz

AGENCY ETL, cETL, CE, FCC

WARNINGS AND CAUTIONS

• TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that

power is off before installation.

• TO AVOID SERIOUS PERSONAL INJURY, always connect this product to a grounded circuit.

• To be installed and/or used in accordance with electrical codes and regulations.

• If you are unsure about any part of these instructions, consult an electrician.

SAFETY NOTES

WARNING: TO AVOID DEATH, SERIOUS PERSONAL INJURY OR PROPERTY DAMAGE:

• Do not open the housing or attempt any repairs. In the unlikely event the unit may require service

please contact Leviton Technical Support. Opening the housing or attempting to repair product will

void the warranty.

• Do not expose this product to rain or moisture. This product is for indoor use only! (IP20) When

transferring product from extreme temperature environments, (e.g., cold truck to warm humid

ballroom) condensation may form on the internal electronics of the product. To avoid causing a

failure, allow product to fully acclimate to the surrounding environment before connecting it to power.

• Do not operate this product if you see damage on the housing, lenses, or cables.

PRODUCT INTRODUCTION

LEO™ LED Zoom Ellipsoidal is a high-performance Ellipsoidal-style LED lighting ﬁxture that delivers

bright and long throw in a choice of color temperatures (3200K and 5600K) with high color rendering index

(CRI 90+). It also features beam shaping shutters, gobo/iris slots, and lens tubes that are interchangeable.

The ﬁxture is fully dimmable from 0% to 100% and can be controlled manually or via DMX controller. It

also supports power linking with built-in powerCON®connectors. Virtually quiet operation makes it ideal

for use in any situation. The ﬁxture is RDM-ready for precise monitoring of the LED chip’s performance

and status to make maintenance easy.

GETTING STARTED

Thank you for choosing LEO™ LED Zoom Ellipsoidal by Leviton

. Every LEO™ LED Zoom Ellipsoidal has

been thoroughly tested and has been shipped in perfect operating condition. Your package should include:

Power cords with alternate connectors, and, powerCON®extension cables are available. Please contact

Leviton and review product data sheets for details.

Important: Unpack the product and check the box to make sure all the parts are in the package and

are in good condition. If any of them are damaged, please contact the shipper to make a claim. If any

components are missing, please contact our Customer Service Department at 1-800-736-6682.

• Light Engine

• Fuse, glass tube, 6A (for 110V)

• Fuse, glass tube, 3A (for 220V)

• Safety Cable, 31.5" (800mm) with Spring Clips

• 36" - 39.5" (1m) power lead with powerCON®

& PBG (NEMA 5-15P Connector)

• powerCON®B connector

• User’s Guide

Safety Cable

Rear View

Power in

Power switch

12 mm Hole

mounting yoke

Yoke fastening

knob

Display control

knob

Fuse

DMX input

(XLR5-pin male)

Handle

LCD display

DMX output

(XLR5-pin

female)

loop out

Light Engine Lens Tube 30-55 Lens Tube 18-36 Lens Tube 08-22

Note: Light Engine and Lens Tubes (sold separately)

IDENTIFY THE PARTS

Power

Supply

Inside

Super quiet

cooling fan

less than

28dbA

@ 1m

4-Black Ended

shutters

Front View

Optical zoom

adjusting

knob

Glass

Lens 3-slot accessory

runners

SAFETY NOTES

• This product contains no user-serviceable parts. Do not open the housing or attempt any repairs,

doing so will void the manufactures warranty. In the unlikely event the unit may require service please

contact Leviton Technical Support.

• Do not operate this product if you see damage on the housing, lenses, or cables.

• This product is for indoor use only! (IP20) To prevent risk of ﬁre or shock, do not expose this product to

rain or moisture. When transferring product from extreme temperature environments, (e.g. cold truck

to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid

causing a failure, allow product to fully acclimate to the surrounding environment before connecting

it to power.

INSTALL LENS TUBE

CAUTION:

Do not operate the ﬁxture without a lens tube installed.

A complete ﬁxture requires a light engine and lens tube.

Open the lens tube cover and remove metal packing frame before use.

Rotate the tube to make sure it is attached and locked to the ﬁxture; otherwise the tube

assembly may inadvertently separate from the light engine.

To attach the lens tube, align the lens with the light engine’s lens mount index and turn the lens tube as

shown by the arrow until it clicks in place.

To detach the lens tube, turn the lens as shown by the arrow while pulling the two spring clips on each

side of the tube. Turn the lens until it stops, and then detach it.

Make sure the lens tube is attached and locked to

the ﬁxture while the retaining clip is facing on top.

ATTACH LENS TUBE

ZOOM IN

ATTACH LENS TUBE

Align the lens with the light engine’s lens mount

index. Turn the lens tube as shown by the arrow

until it clicks in place.

Fuse pre-installed in BLACK fuse cover supports 220V AC Power only

Fuse pre-installed in GREY fuse cover supports 110V AC Power only

Always make sure you are connecting this product to the proper voltage in accordance

with the speciﬁcations in this manual or on the product’s speciﬁcation label.

Choose the correct fuse for your voltage before connecting power.

REPLACE FUSE

CAUTION:

Step 1: Unplug the product from power.

Step 2: Use a slotted screwdriver, push slightly and rotate counterclockwise

to open the fuse cap.

Step 3: Take out the fuse cap and fuse. Put a new fuse inside the fuse cap.

Step 4: Screw the fuse cap back in place and reconnect power.

CONNECT POWER

CAUTION:

LEO™ LED Zoom Ellipsoidal comes with a power lead terminated with a powerCON®A connector on

one side, and a PBG NEMA 5-15P connector on the other side. Other connector options are available

from Leviton or may be installed by your contractor. In addition, the ﬁxture is designed for "Feed-Thru"

operation using single power source connection at the ﬁrst ﬁxture, then, using powerCON®extensions

between ﬁxtures. The maximum load supported is 16A through the powerCON®connectors which is

reduced to 15A if you use a 15A source power connector like a NEMA 5-15P.

If creating your own powerCON®connectors, use the table below to wire the included powerCON®B

connector, or a local plug to the power lead.

Connection Wire

AC Live Brown

AC Neutral Blue

AC Ground Green / Yellow

WARNING: TO AVOID SERIOUS PERSONAL INJURY, always connect this product to

a grounded circuit.

FUSE 110V/6A; 220V/3A

SLOW BLOW

OPEN LOCK

MOUNT FIXTURE

CAUTION:

LEO™ LED Zoom Ellipsoidal may be mounted in any position (max. tilting +45° to -90° from horizontal);

however, make sure there is adequate room for ventilation, conﬁguration, and maintenance.

The ﬁxture comes with a hanging/mounting yoke to which you can attach mounting clamps. The bracket

has a 0.5" (12mm) hole, which is appropriate for this purpose. Make sure the clamps are capable of

supporting the weight of this product.

FIXTURE ANGLE ADJUSTMENT

The ﬁxture can be tilted up and down to position the light where it is needed.

Step 1: Loosen the yoke fastening knob, use the handle on the rear of the unit to keep the ﬁxture

steady.

Step 2: With the ﬁxture turned on, use the handle to tilt it to the desired angle.

Step 3: Tighten the yoke fastening knob.

CONNECT DMX

LEO™ LED Zoom Ellipsoidal uses 5-pin XLR connectors for signal transmission and can be controlled

via DMX-512 protocol. The diagram below shows the ﬁxture’s XLR-5 signal ports.

Step 1: Connect the (male) 5-pin connector side of the DMX cable to the output (female) 5-pin connector

of the DMX console.

Step 2: Connect the end of the cable coming from the console which will have a (female) 5-pin connector

to the ﬁxture’s input port ("DMX IN") consisting of a (male) 5-pin connector.

Step 3: Then, proceed to connect from the output port ("LOOP") as stated above to the input of the

following ﬁxture and so on.

Always mount this product in a safe position with adequate ventilation and away from

a heat source, at least 20" (50 cm) from adjacent surface, and no ﬂammable materials

close by while it is operating, at least 8" (20 cm) from adjacent surfaces.

Always connect the provided Safety Cable to the ﬁxture and a suitable anchor. The safety

cable should loop through the ﬁxture yoke and be connected to a secure attachment at

the other end.

XLR Pin # Signal

1 common

2 data -

3 data +

4 NC

5 NC

DMX IN LOOP

XLR-5 si

nal ports

ACCESSORIES

LEO™ LED Zoom Ellipsoidal can accommodate many different accessories.

ACCESSORY SLOTS

CAUTION:

LEO™ LED Zoom Ellipsoidal has the drop-in slot for gobo holder and 3 accessory slots in the front of the

ﬁxture, and is equipped with a spring-loaded barndoor clip that prevents color frames and accessories

from falling out.

Step 1: Release the barndoor clip by pushing it sideways while gently pulling backwards.

Step 2: Insert the media/accessories, secure with a safety cable where necessary.

Step 3: Lock the barndoor clip by pushing sideways while gently pushing forward.

Accessories such as barn doors and color scrollers must be secured by a safety cable

to the mounting structure.

Make sure all color / diffusion media are locked in position with the barndoor clip before

hanging the ﬁxture.

BEAM SHAPING

The LEO ellipsoidal spotlight has several features which allow you to shape the beam to your needs.

These features are best learned by experience and practice.

The beam can be shaped using the built-in shutters, a gobo pattern, a drop-in iris, or by rotating the lens tube.

The ﬁxture also features a variable beam, altered by adjusting the front and rear zoom lenses in relation

to each other. The front lens deﬁnes the beam spread, the rear lens the focus degree of ‘softness’ or

‘hardness’ of the beam edge or shutters.

CAUTION:

Always close the shutters when transporting or storing the product.

Description Part Number

Lens tube 08-22 LED08-LTB

Lens tube 18-36 LED18-LTB

Lens tube 30-55 LED30-LTB

Metal Color Frame 9.65" x 9.65" (245 x 245mm) LEDAC-CFB

Safety Guard 9.65" x 9.65" (245 x 245mm) LEDAC-SGB

"B" Size Pattern Holder (W 3-3/4", Open Dia 2-3/4") LEDAC-PTN

Safety Cable (included) TA0SC-000

OPERATION

CAUTION:

LEO™ LED Zoom Ellipsoidal will start a self-checking process when power is applied. The unit will

display the DMX address for dimming when ready to use. For standard operation, connect the ﬁxture to a

power source (100~240V AC single phase), and a DMX signal cable. The LCD Display will turn on after

the power switch is turned to "ON" position. Now you are ready to set the desired conﬁguration and DMX

addresses.

You can assign a DMX channel to control dimming, cooling fan speed, LCD display-on time, built-in

effects and live/safe modes according to the DMX value on the "Menu Map". These parameters can also

be assigned through a console.

Do not touch this product’s housing during operation because it may be very hot if

overheated.

The maximum ambient temperature is 95˚F (35˚C). Do not operate this product at a

higher temperature.

Do not cover the ventilation holes when operating to avoid internal overheating.

Avoid direct eye exposure to the light source while the product is on.

In case of a serious operating problem, stop using this product immediately!

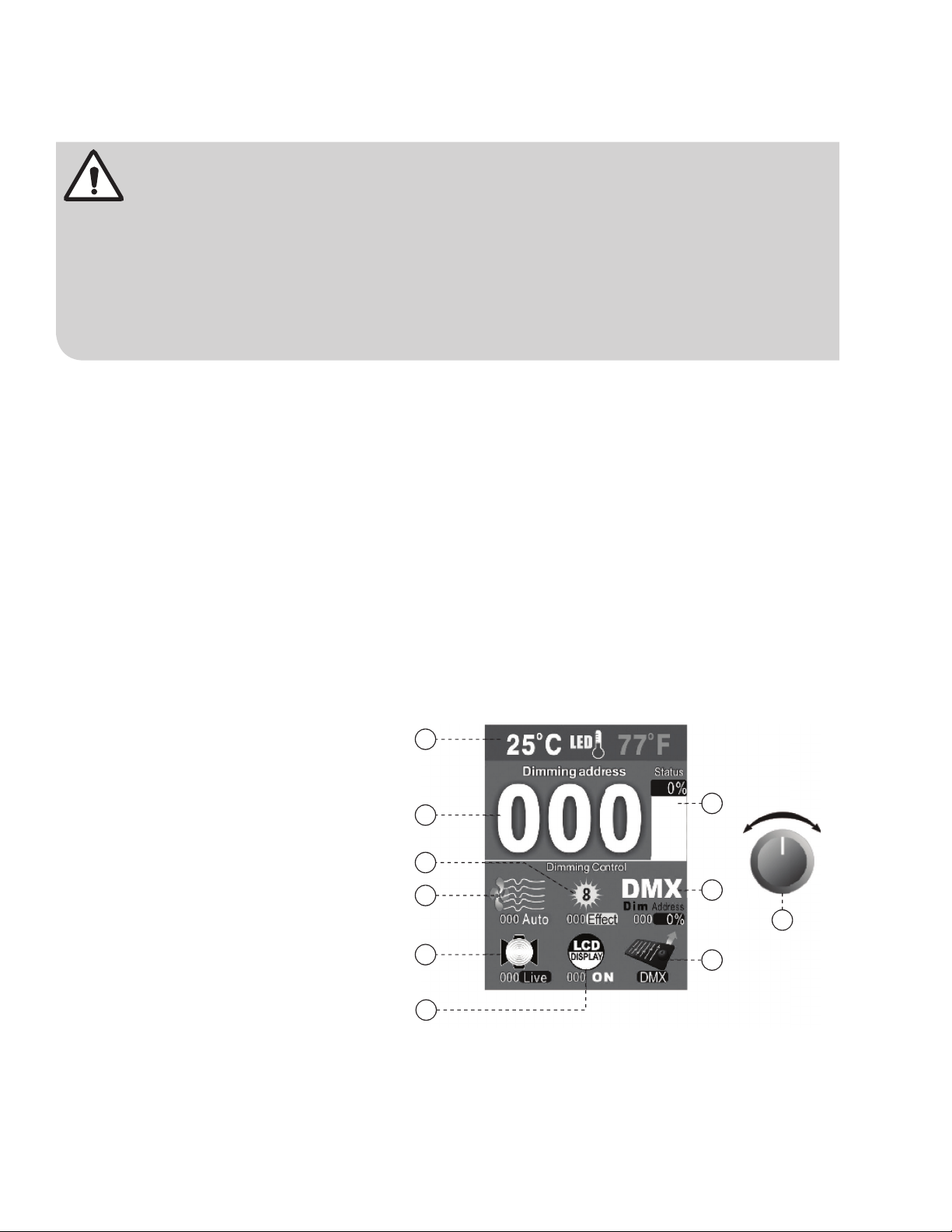

CONTROL INTERFACE

LEO™ LED Zoom Ellipsoidal comes with a LCD Display and a control knob on the rear of the unit for

control settings:

1. LED Temperature

2. DMX dimming address

3. Built-in effects

4. Cooling Fan speed control

5. Operation Mode: Live or Safe

6. LCD display on time

7. Control mode: DMX or Manual

8. DMX dimming address setting

9. Status-bar

10. Rotary-press-knob

Table of contents

Other Leviton Lighting Equipment manuals

Leviton

Leviton JCC JC17078 User manual

Leviton

Leviton MC24 User manual

Leviton

Leviton JCC Emergency Series User manual

Leviton

Leviton 8700 GX Installation instructions

Leviton

Leviton Mini Softline User manual

Leviton

Leviton Decora Standard 5226 User manual

Leviton

Leviton N7008 User manual

Leviton

Leviton 9866-B0W User manual

Leviton

Leviton JCC JC17065 User manual

Leviton

Leviton JCC JC50302 User manual

Leviton

Leviton IED96-130 User manual

Leviton

Leviton 9866-B0W User manual

Leviton

Leviton ODCOP User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
