LevelOne VDS-1201 User manual

1

VDS-1201/1202/1203

Ethernet over VDSL2 Converter

Quick Installation Quide

<Packing Contents>

(1) One VDSL2 LAN Extender

(2) One AC to DC Power Adaptor (12VDC/1A)

(3) One User QIG

< Installation Steps>

VDS-1201/1202 VDS-1203

(4) Connect regular phone set to PHONE port if original indoor telephone is used

(5) Connect existing DSL or Coax wireline.

(6) Connect PC to either LAN 1 or 2

(7) Set up Pin 1 on OFF as CO side and other device on ON as CPE for a pair

connection

(8) Plug in 12V/1A external power adaptor and power up the devices for

connection

LED Indicators

On the front panel of the device, there are 5 LED indicators as the following

POWER:“Green On”indicates power is on and normal.

LAN1:“Green On”indicates Ethernet LAN1 port is in connection.

“Flashing”indicates Ethernet LAN1 data activities.

LAN2:“Green On”indicates Ethernet LAN2 port is in connection.

“Flashing”indicates Ethernet LAN2 data activities.

All manuals and user guides at all-guides.com

all-guides.com

2

DSL:“Green On”indicates VDSL2 is in connection.

“Flashing”indicates VDSL2 is in line handshaking.

M/S:“Green On”indicates device is set as Slave (VTU-R) mode.

“OFF”indicates device is set as Master (VTU-C) mode.

*refer to DIP Switch Pin 1

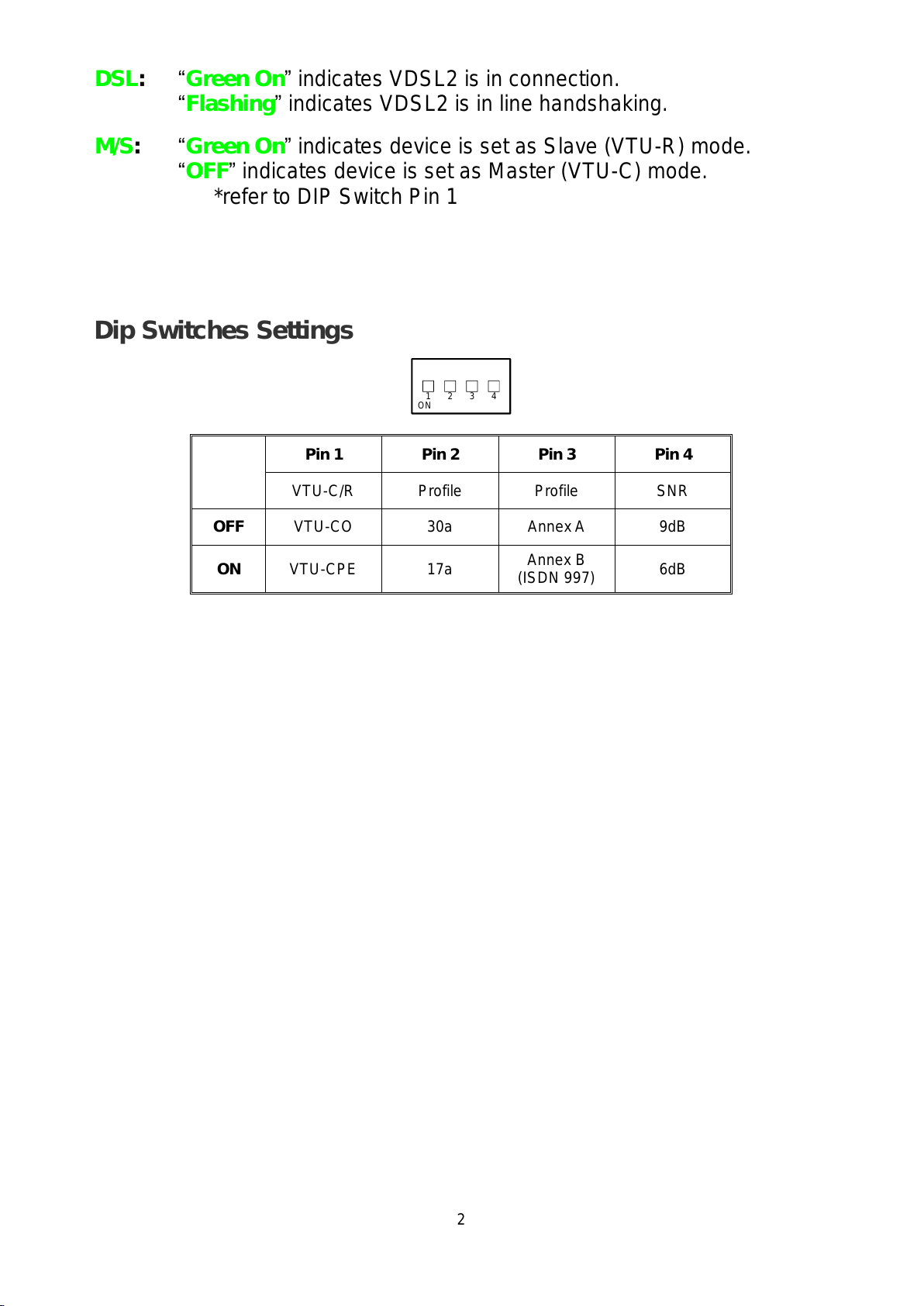

Dip Switches Settings

ON

1 2 3 4

Pin 1

Pin 2

Pin 3

Pin 4

VTU-C/R

Profile

Profile

SNR

OFF

VTU-CO

30a

Annex A

9dB

ON

VTU-CPE

17a

Annex B

(ISDN 997)

6dB
