Leonton PG2-1202-SFP Series User manual

Leonton

PG2-1202-SFP Series

(PG2-1202-SFP / PG2-1202-SFP-T)

User Manual

Version 1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or

translation without prior permission is prohibited, except as allowed under the copyright laws.

Disclaimer

Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or

implied, including but not limited to the implied warranties of merchantability and fitness for a

particular purpose. Leonton Technologies, Co. Ltd. may make improvements and/or changes to the

product and/or specifications of the product described in this manual, without prior notice.

Leonton Technologies, Co. Ltd. will not be liable for any technical inaccuracies or typographical

errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to

change without prior notice.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio communications if the

equipment is not installed and used in accordance with the instructions. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could

void the user's authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

This document is the current official release manual. Please check our website (www.leonton.com)

for any updated manual or contact us by e-mail ([email protected]).

Contents

Overview..................................................................................................................... 1

Key Features ............................................................................................................ 1

Package Contents..................................................................................................... 2

Safety Precaution..................................................................................................... 2

Hardware Description................................................................................................. 3

Physical Dimensions................................................................................................. 3

Front Panel............................................................................................................... 4

Top View .................................................................................................................. 4

LED Indicators .......................................................................................................... 5

Ethernet Ports.......................................................................................................... 6

Cabling ..................................................................................................................... 7

Wiring the Power Inputs .......................................................................................... 9

Wiring the Fault Alarm Contact.............................................................................. 10

Mounting Installation ............................................................................................... 11

DIN-Rail Mounting.................................................................................................. 11

Wall Mounting ....................................................................................................... 13

Hardware Installation ............................................................................................... 14

Installation Steps.................................................................................................... 14

Trouble Shooting ...................................................................................................... 15

Overview

This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit unmanaged

Ethernet switch series has 10*10/100/1000Tx with 8*IEEE 802.3at compliant ports (30W/port)

and 2 dual rate (100/1000) SFP slots, suitable for applications that require high bandwidth and

long distance communication.

In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This

also allows it to function in harsh environments, as well as support power redundancy with a dual

power input design with reverse polarity protection. The built-in relay warning function alerts

users about occurring power failures.

With one model having an operating temperature of -10°C ~ 65°C , and another with a wide

operating temperature of -40°C ~ 75°C, this series is designed to meet any needs for industrial

automation application and harsh environments.

Key Features

Interface & Performance

All Copper ports support auto MDI/MDI-X function

Embedded 8*10/100/1000Tx (PSE 30W/Port) + 2*10/100/1000Tx and 2*100/1000 SFP Slots

Store-and-forward switching architecture

8K MAC Address Table

Supports 9.6Kbytes Jumbo Frame

4Mbits memory buffer

Power Input

Redundant power DC 48-55V with connective 1*6-pin removable terminal bloc

Max. current 10A

Max. PoE output: 240W

Relay Contact: 24VDC, 1A resistive

Certification

CE/FCC

UL 61010-1

UL 61010-2-201

ISA 12.12.01

Operating Temperature

Standard operating temperature model: -10°C ~ 65°C

Extended operating temperature model (–T): -40°C ~ 75°C

Case/Installation

IP30 protection

Installation in pollution degree to environment

DIN-Rail and Wall mount design

Package Contents

1 - PG2-1202-SFP(-T)

2 - Wall mounting brackets and screws

Safety Precaution

Attention

If the DC voltage is supplied by an external circuit, please use a protection device on the power

supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware

specs, ports, cabling information, and wiring installation will be described within this user manual.

Hardware Description

Physical Dimensions

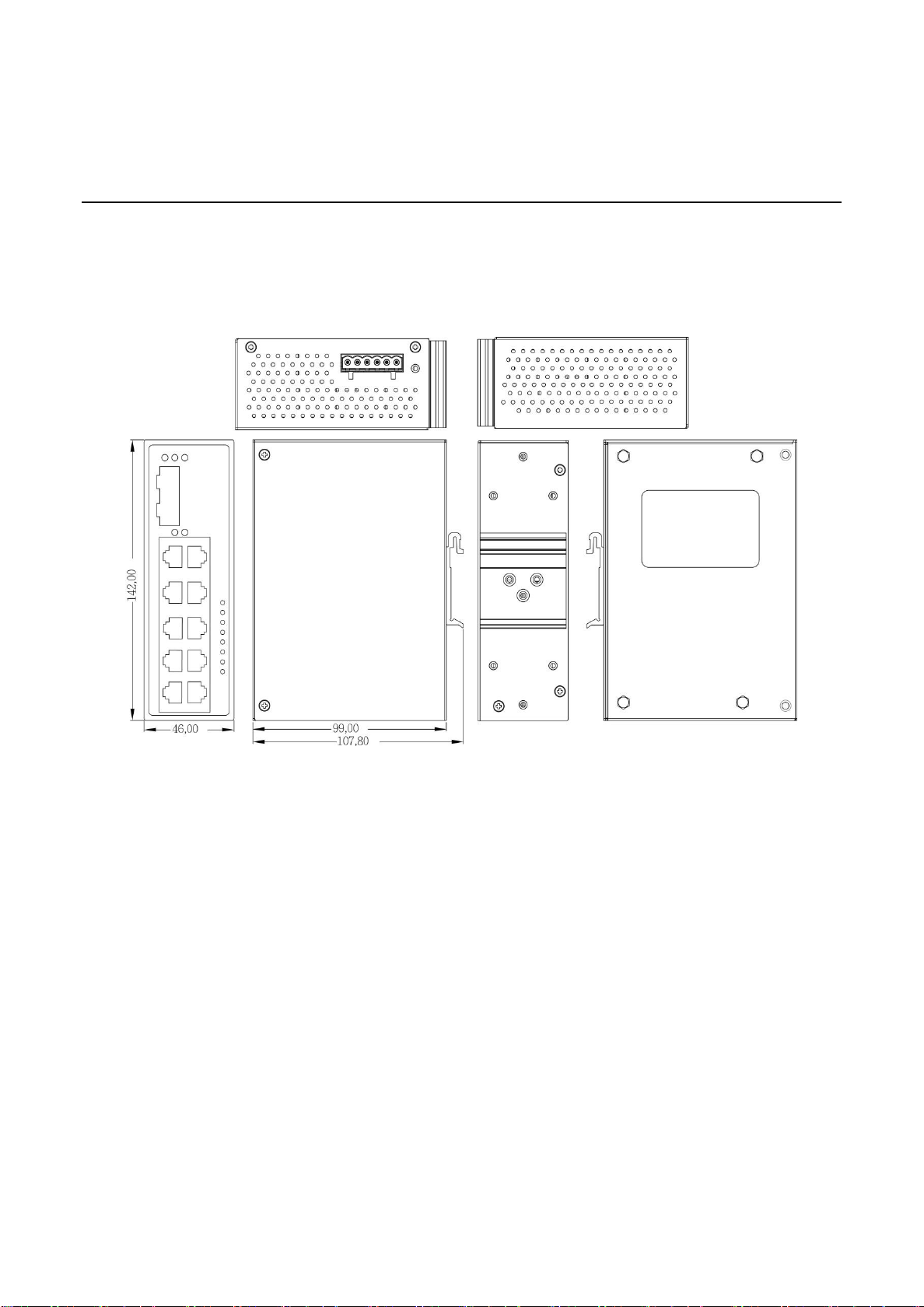

Figure 2.1, below, shows the physical dimensions of PG2-1202-SFP series.

(W x H x D) is 46mm x 142mm x 99mm

Figure 2.1: PG2-1202-SFP Series Physical Dimensions

Front Panel

The front panel of the PG2-1202-SFP series industrial PoE+ gigabit unmanaged Ethernet switch is

shown below in Figure 2.2.

Figure 2.2: The Front Panel of PG2-1202-SFP Series

Top View

Figure 2.3, below, shows the top panel of the PG2-1202-SFP series switch that is equipped with

one 6-pin removal terminal block connector for dual DC power inputs (48-55VDC).

Figure 2.3: Top Panel View of PG2-1202-SFP Series

LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has its

own specific meaning, see below in Table 2.1.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 is inactive

Off

Power input 1 and 2 are both functional

LINK/ACT

(SFP Port)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

Amber

Connected to network, 100Mbps

Flashing

Networking is active

Off

Not connected to network

(LAN Port)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

10/100

(LAN Port)

Green

Connected to network, 10/100Mbps

Flashing

Networking is active

Off

Not connected to network

PoE

Green

The port is supplying power to the powered-device

Off

No powered-device attached or power supplying fails

Table 2.1: LED Indictors for PG2-1202-SFP Series

Ethernet Ports

RJ-45 Ports (Auto MDI/MDIX)

The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or

1000Base-T devices connections. Auto MDI/MDIX means that the

switch can connect to another switch or workstation without

changing the straight-through or crossover cabling. See the figures

as below for straight-through and crossover cabling schematics.

10/100BASE-T(X) RJ-45 Pin Assignments (Table 2.2)

Crossover Cable

Straight Through Cable

Pin Number / Signal

1 / RX+

3 / TX+

1 / RX+

1 / TX+

2 / RX-

6 / TX-

2 / RX-

2 / TX-

3 / TX+

1 / RX+

3 / TX+

3 / RX+

6 / TX-

2 / RX-

6 / TX-

6 / RX-

Table 2.2

1000BASE-T RJ-45 Pin Assignments (Table 2.3)

Crossover Cable

Straight Through Cable

Pin Number / Signal

1 / TP0+

3 / TP1+

1 / TP0+

1 / TP1+

2 / TP0-

6 / TP1-

2 / TP0-

2 / TP1-

3 / TP1+

1 / TP0+

3 / TP1+

3 / TP0+

4 / TP2+

7 / TP3+

4 / TP2+

4 / TP3+

5 / TP2-

8 / TP3-

5 / TP2-

5 / TP3-

6 / TP1-

2 / TP0-

6 / TP1-

6 / TP0-

7 / TP3+

4 / TP2+

7 / TP3+

7 / TP2+

8 / TP3-

5 / TP2-

8 / TP3-

8 / TP2-

Table 2.3

Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.
