Lenovo ThinkPad T480 User manual

Printed in China

PN: SP40K05175

T480

Setup Guide

Panduan Persiapan



Unpack | Isi Kemasan |

Standard items | Item standar | 

Initial setup | Persiapan awal |

E-manual | E-manual |

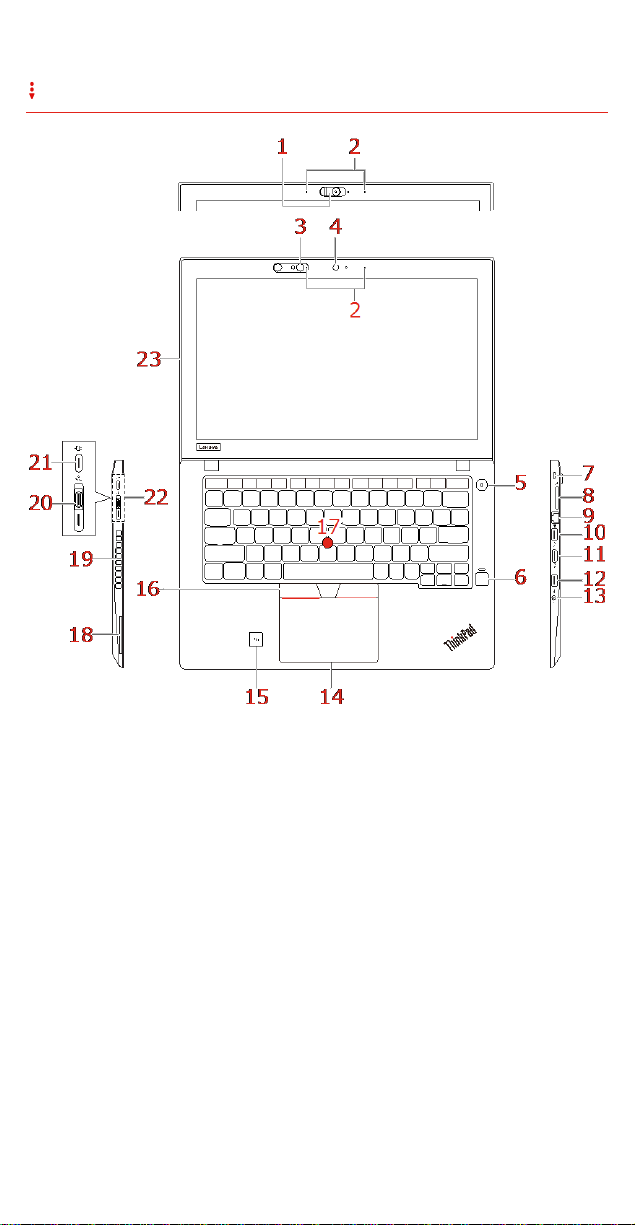

Overview | Ikhtisar |

[English]

1. Conventional camera with

camera shutter＊

2. Microphones

3. Infrared camera＊

4. Conventional camera

5. Power button

6. Fingerprint reader＊

7. Security-lock slot

8. Media-card slot

9. Ethernet connector

10. Always On USB 3.1 connector

Gen 1

11. HDMITM connector

12. USB 3.1 connector Gen 1

13. Audio connector

14. Trackpad

15. NFC mark＊

16. TrackPoint®buttons

17. TrackPoint pointing stick

18. Smart-card slot＊

19. Fan louvers

20. USB-CTM connector

(Thunderbolt 3 compatible)

21. USB-C connector

22. Docking-station connector

23. Screen (multi-touch screen on

some models)

＊Available on some models

[Bahasa Indonesia]

1. Kamera konvensional dengan

katup kamera＊

2. Mikrofon

3. Kamera inframerah＊

4. Kamera konvensional

5. Tombol daya

6. Pembaca sidik jari＊

7. Slot kunci keamanan

8. Slot kartu media

9. Konektor Ethernet

10. Konektor Always On USB 3.1

Gen 1

11. Konektor HDMITM

12. Konektor USB 3.1 Gen 1

13. Konektor audio

14. Trackpad

15. Tanda NFC＊

16. Tombol TrackPoint®

17. Stik penunjuk TrackPoint

18. Slot kartu Smart＊

19. Kisi-kisi kipas

20. Konektor USB-CTM (Kompatibel

dengan Thunderbolt 3)

21. Konektor USB-C

22. Konektor stasiun dok

23. Layar (layar multisentuh pada

beberapa model)

＊Tersedia pada beberapa model

[]

1. ＊

2. 

3. ＊

4. 

5. /

6. ＊

7. 

8. 

9. 

10. Always On USB 3.1 Gen 1

11. HDMITM

12. USB 3.1 Gen 1

13. 

14. 

15. NFC＊

16. TrackPoint®

17. TrackPoint

18. ＊

19. 

20. USB-CTM

(Thunderbolt 3)

21. USB-C

22. 

23. ()

＊

Compliance with the EU Radio Equipment Directive

The following applies to models with a radio device.

Hereby, Lenovo (Singapore) Pte. Ltd., declares that the

radio equipment type ThinkPad T480 is in compliance

with Directive 2014/53/EU.

Refer to the Safety and Warranty Guide for further

information regarding EU regulatory compliance.

Second Edition (April 2018)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract

No. GS-35F-05925.
