Lennox Merit 13HPD018 User manual

13HPD Heat Pump

13HPD

Economical, reliable home cooling

Home Comfort Systems

LENNOX’ MERIT®SERIES

Components designed

for exceptional durability

and easy maintenance

ENERGY STAR®qualified

Merit®Series 13HPD Heat Pump

EFFICIENT, ECONOMICAL COOLING YEAR AFTER YEAR

Innovation never felt so good.

™

EfficiEncy Rating

Meets or exceeds

13.00 SEER (Seasonal

Energy Efficiency Ratio)

and 7.7 HSPF

(Heating Seasonal

Performance Factor).

WaRRanty*

5-year limited warranty

on the compressor and

all remaining covered

components.

Visit us at www.lennox.com, or contact us at 1-800-9-LENNOX.

(95M72) 13HPD 06/08

PC54635

Merit®Series 13HPD Specifications

13HPD 018 024 030 036 042 048 060

Dimensions 33-1/4 x 24-1/4 33-1/4 x 24-1/4 29-1/4 x 24-1/4 33-1/4 x 24-1/4 33-1/4 x 28-1/4 37 x 28-1/4 37 x 32-1/4

HxWxD (in.) x 24-1/4 x 24-1/4 x 24-1/4 x 24-1/4 x 28-1/4 x 28-1/4 x 32-1/4

HxWxD (mm) 845 x 616 x 616 845 x 616 x 616 743 x 616 x 616 845 x 616 x 616 845 x 718 x 718 940 x 718 x 718 940 x 819 x 819

Note: Due to Lennox’ ongoing commitment to quality, all specifications, ratings and dimensions are subject to change without notice.

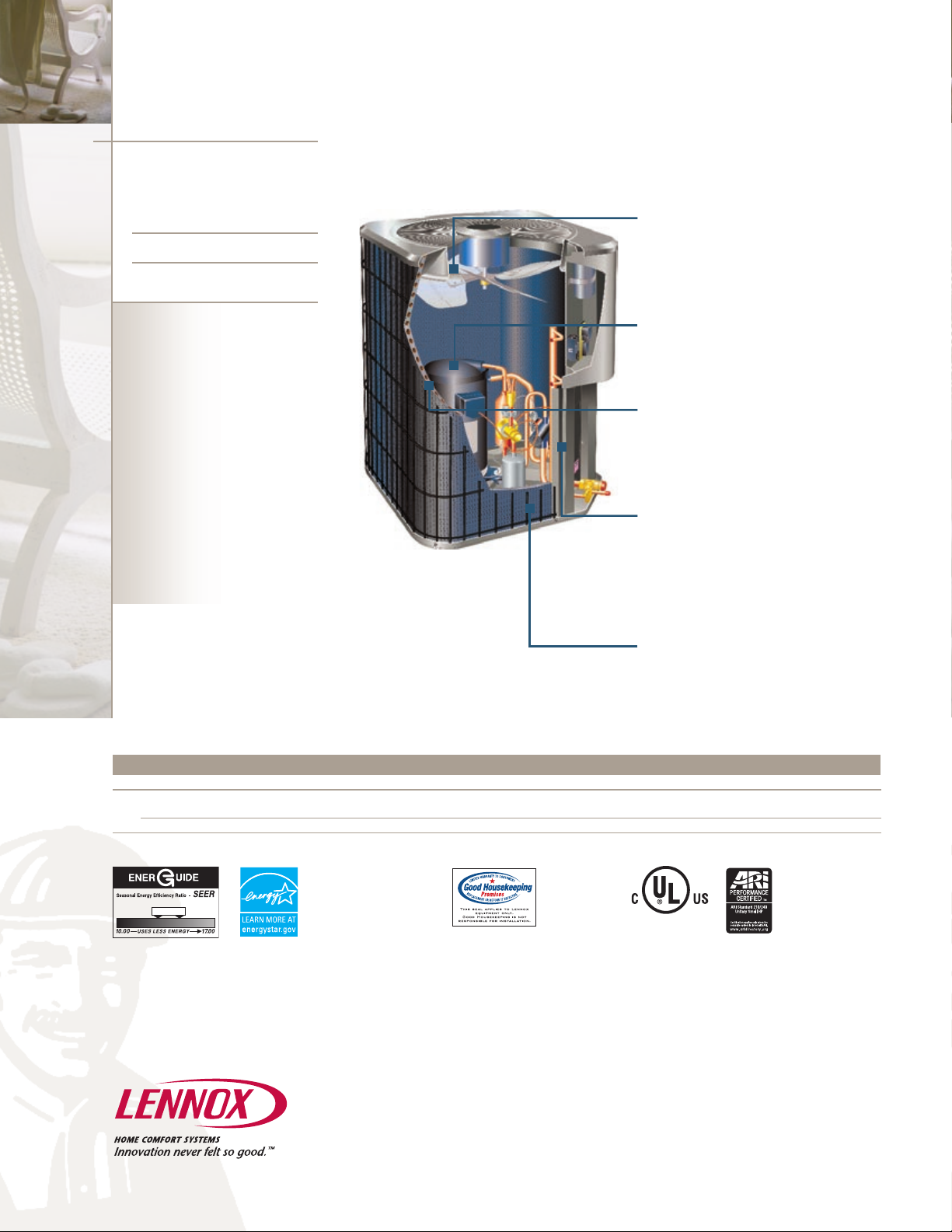

Direct-Drive Fan – Precision-

balanced direct-drive outdoor fan

is designed to provide quieter

operation and longer product life.

High-Efficiency Scroll

Compressor – Provides smooth,

efficient and reliable operation.

High-Efficiency Outdoor Coil –

Provides exceptional heat transfer

and low air resistance for

high-efficiency operation.

Corrosion-Resistant Cabinet –

Protects against rust and corrosion

with heavy-gauge, galvanized

steel construction and a durable,

baked-on finish.

Durable Coil Guard – Provides

long-lasting coil protection with

non-corrosive, PVC-coated steel-wire

construction.

*Applies to residential applications only.

See actual warranty certificate for details.

13.00-14.50

THIS MODEL

Proper sizing and installation of equipment

is critical to achieve optimal performance.

Split system air conditioners and heat

pumps must be matched with appropriate

coil components to meet ENERGY STAR®

criteria. Ask your Lennox dealer for details,

or visit www.energystar.gov.

Lennox is proud of the

fact that these products

have earned the Good

Housekeeping Seal.
